Simpson Hangers | SKU:
LTHMA
Simpson Strong-Tie LTHMA Light-Duty Multiple-Truss Hanger (16 Gauge Galvanized)
$79.14
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LTHMA Description

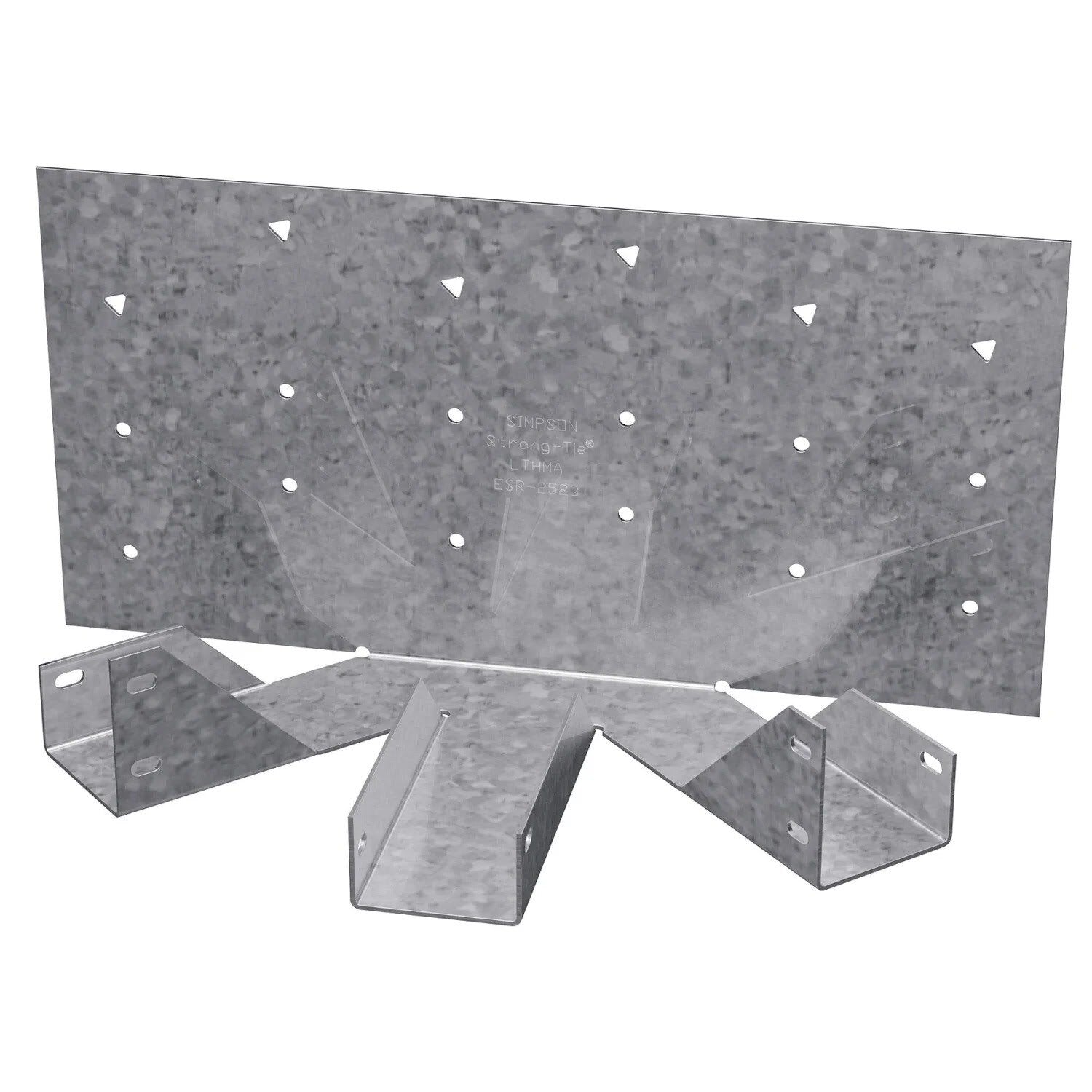

The Simpson Strong-Tie LTHMA is a light-capacity hanger designed to carry two or three single-ply trusses in a terminal hip installation.
Simpson Strong-Tie LTHMA Includes
- (1) Light-Duty Multiple-Truss Hanger 16 Gauge Galvanized
Simpson Strong-Tie LTHMA Features
- Light-capacity hanger for terminal hip installations
- Supports two or three single-ply trusses
- Designed for 45° hip trusses
- Galvanized finish for corrosion resistance
Simpson Strong-Tie LTHMA Applications
- Terminal hip installations for trusses
- Supporting two or three single-ply trusses in construction

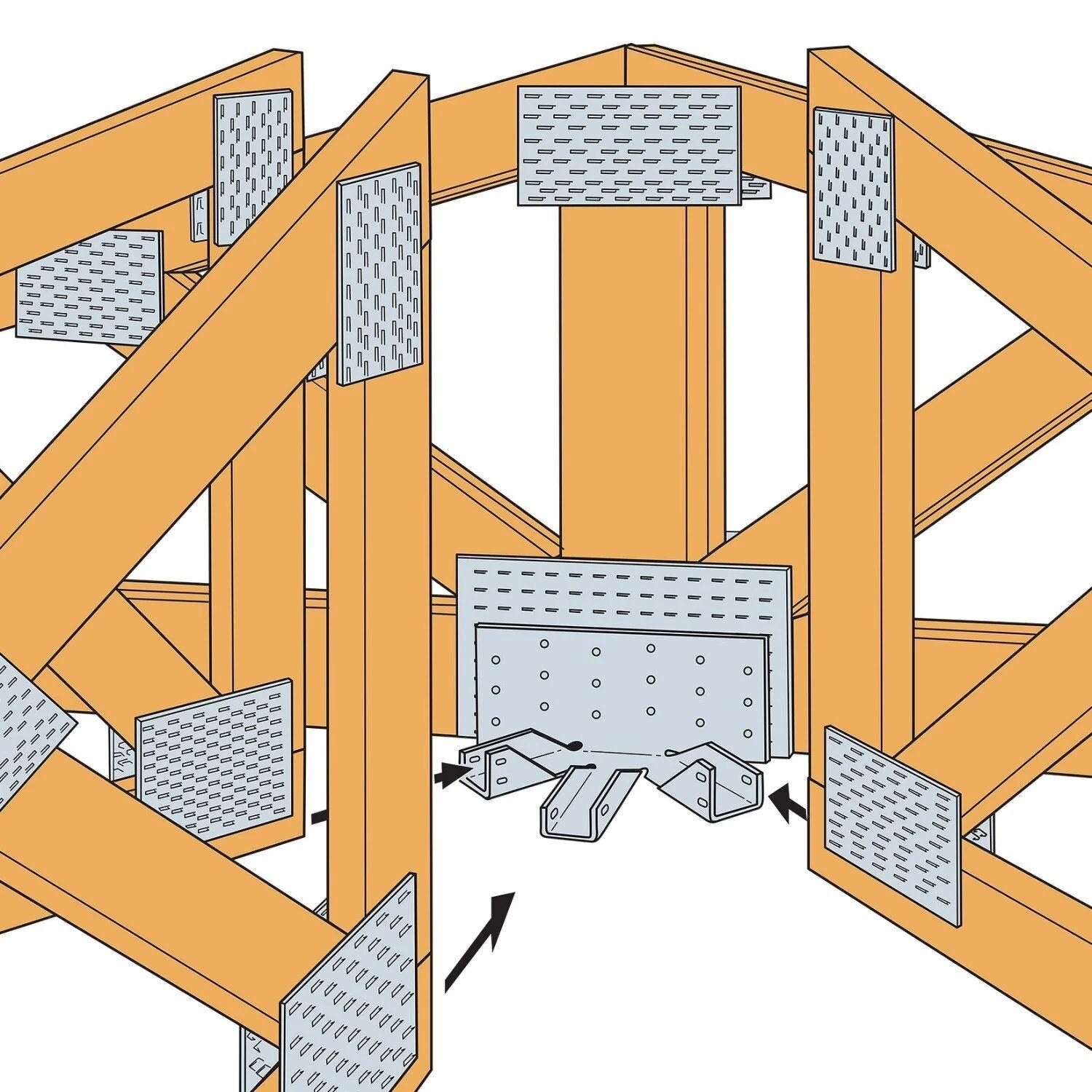

Simpson Strong-Tie LTHMA Installation Overview
- Use all specified fasteners as per guidelines
- Ensure symmetrical load distribution to avoid eccentric loading
- Fill round holes for girder trusses with 2x4 bottom chords
- Fill round and triangle holes for girder trusses with 2x6 bottom chords

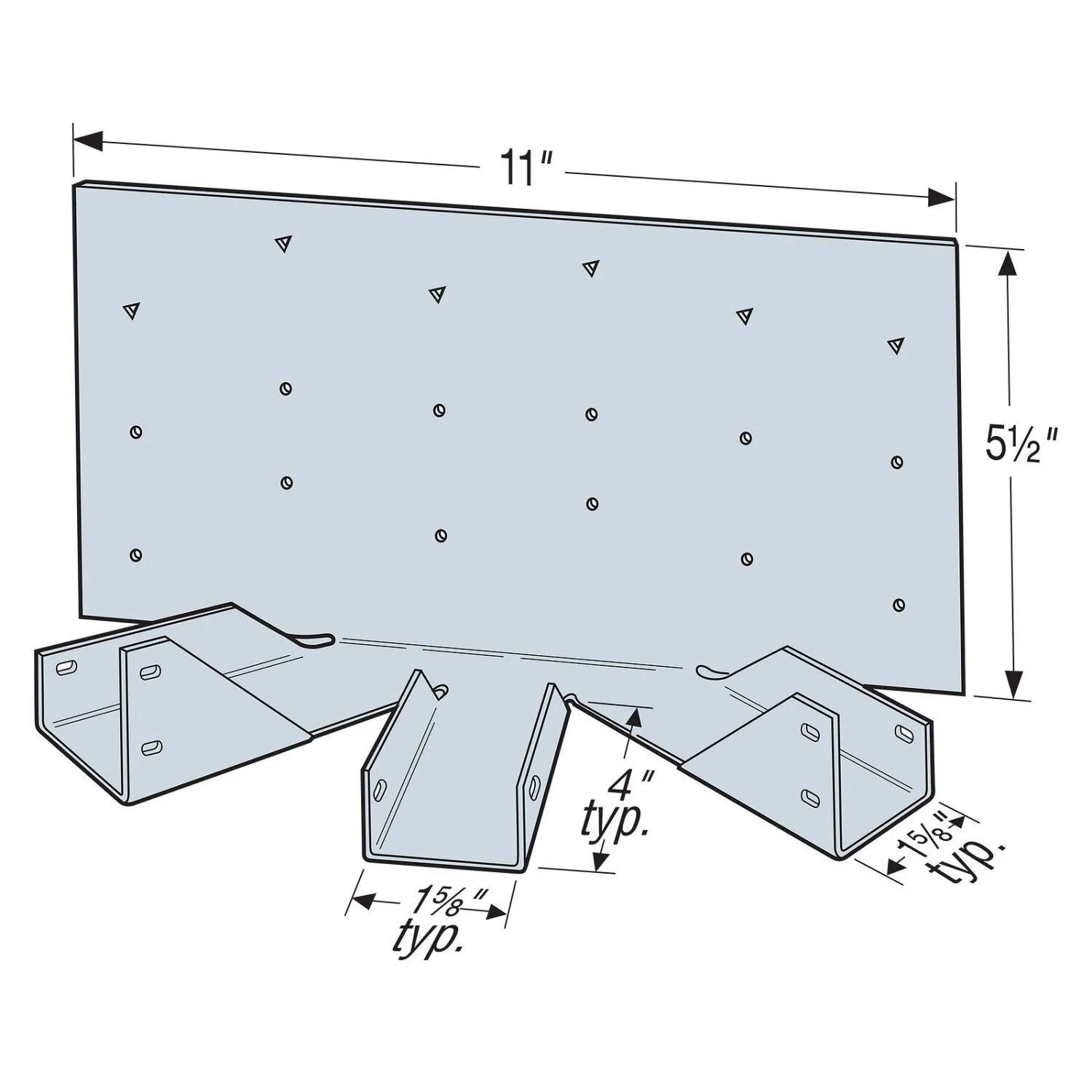

Simpson Strong-Tie LTHMA Specifications
| Length | 11" Header |
| Width | 5-1/2" Header |
| Thickness | 16 Gauge |
| Fasteners required | See Product Spec Sheet |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
