Simpson Anchors | SKU:
LTP5

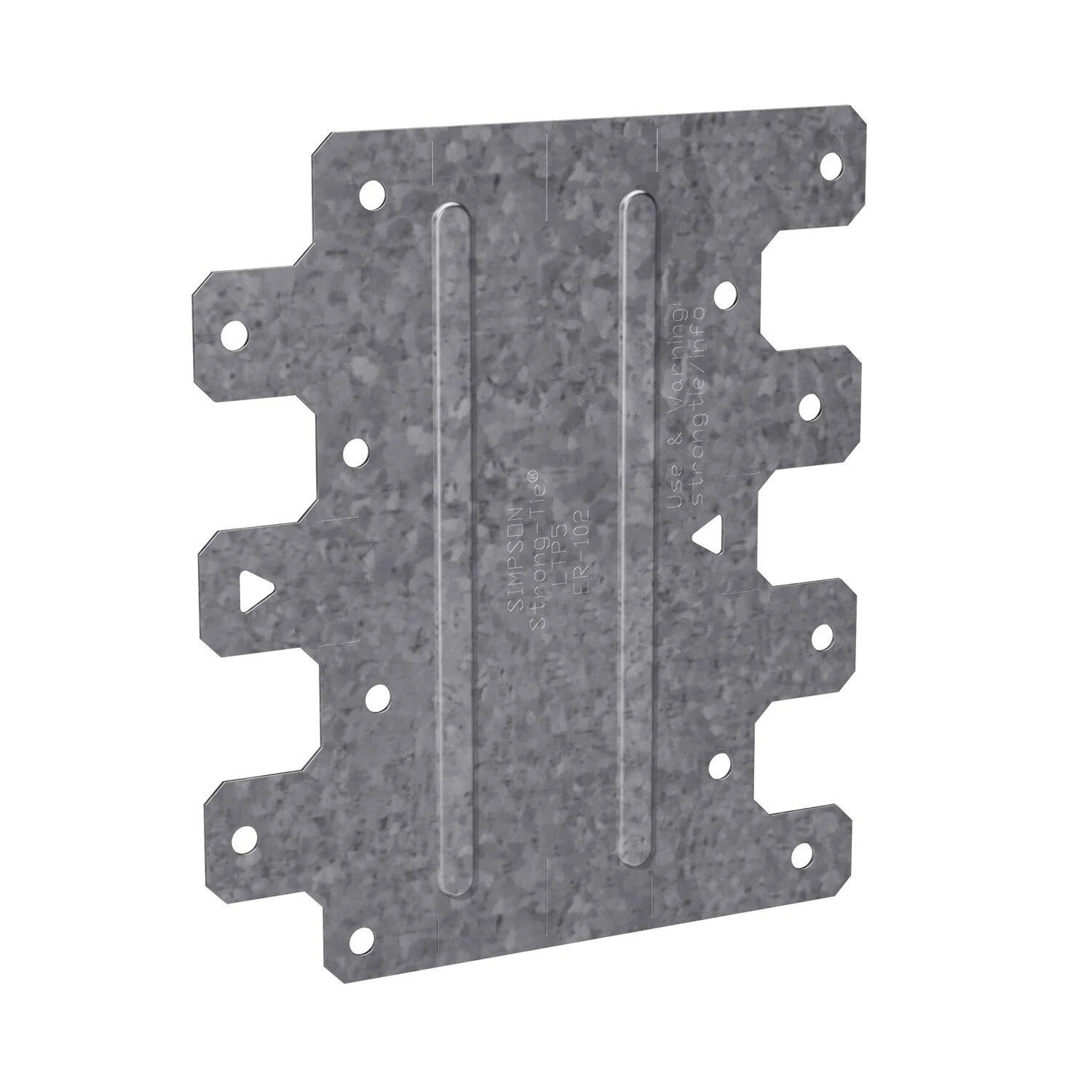

Simpson Strong-Tie LTP5 (4-1/2" x 5-1/8") Lateral Tie Plate for Wood Construction
$1.55
$2.12
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson LTP5 Description
The LTP5 Lateral Tie Plate transfers shear forces for top plate-to-rim joist or blocking connections, featuring a G90 galvanized finish for dry interior use.
Simpson LTP5 Includes
- (1) Lateral Tie Plate for Wood Construction
Simpson LTP5 Features
- Load rated for shear resistance
- Staggered nail patterns to minimize wood splitting

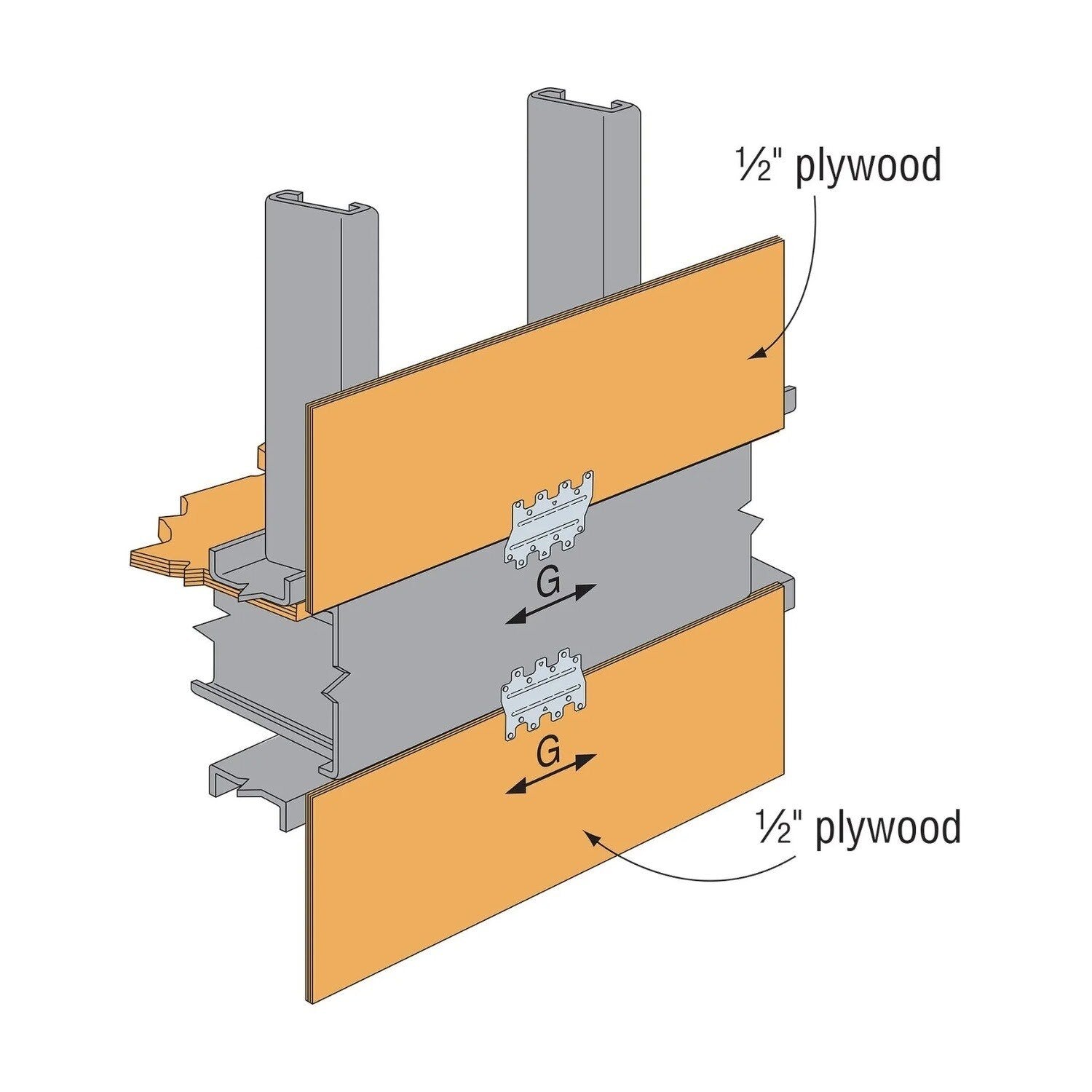

- Can be installed over plywood sheathing
- Compatible with nails and SD screws
Simpson LTP5 Applications

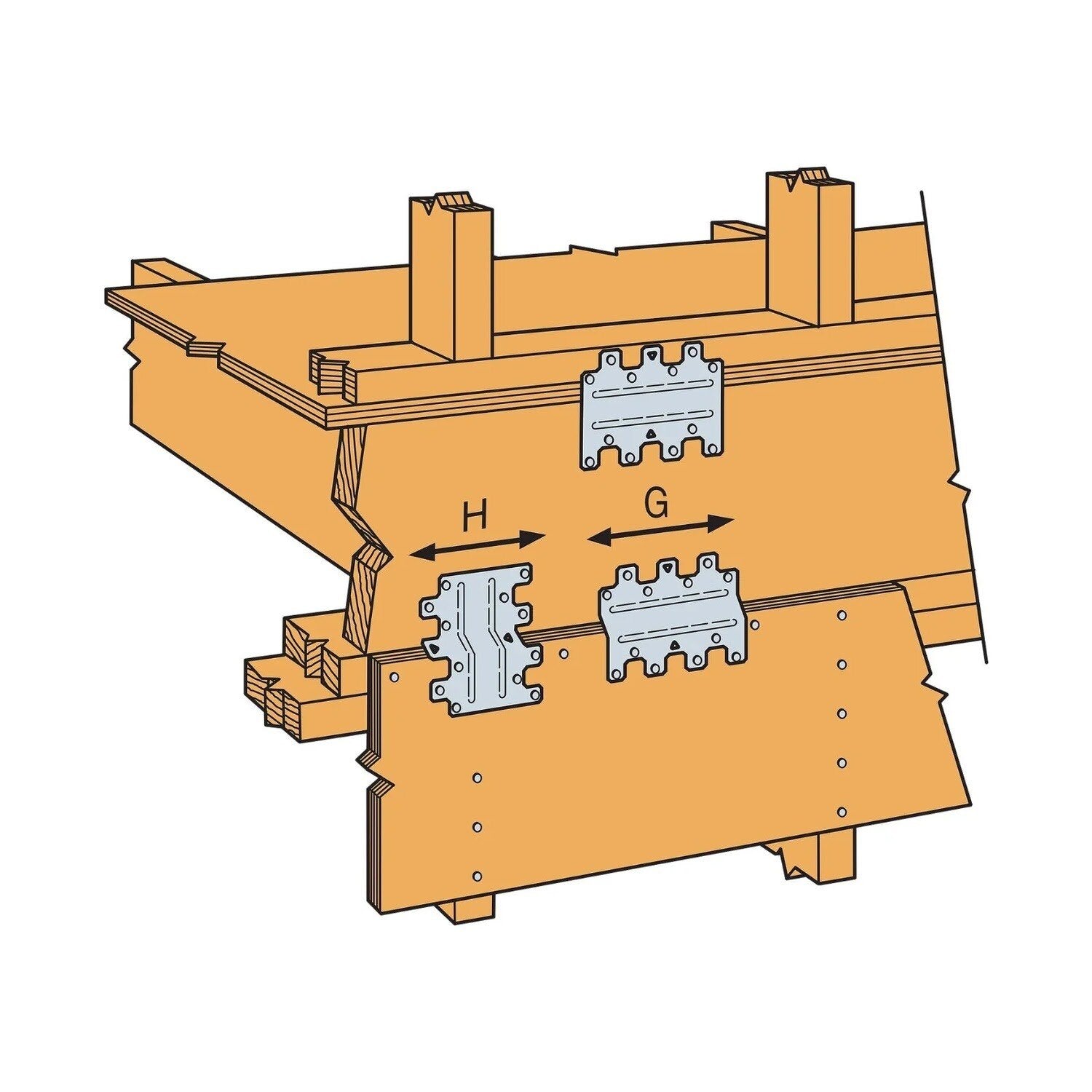

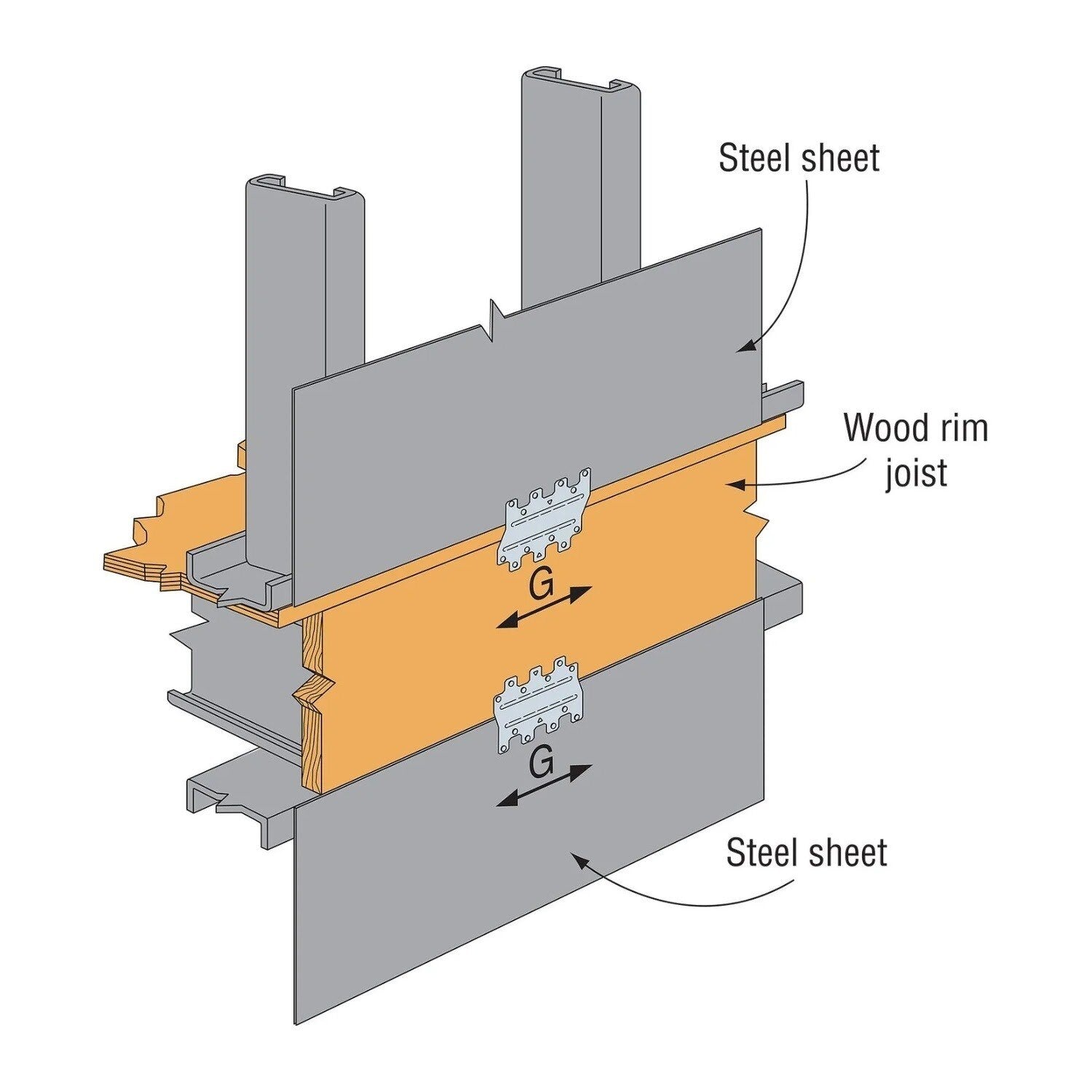

- Top plate-to-rim joist connections
- Blocking connections
- Single and double top plate applications
- Dry interior use
Simpson LTP5 Installation Overview
- Use all specified fasteners
- Install over plywood sheathing if required
- Ensure correct fasteners are used for load values

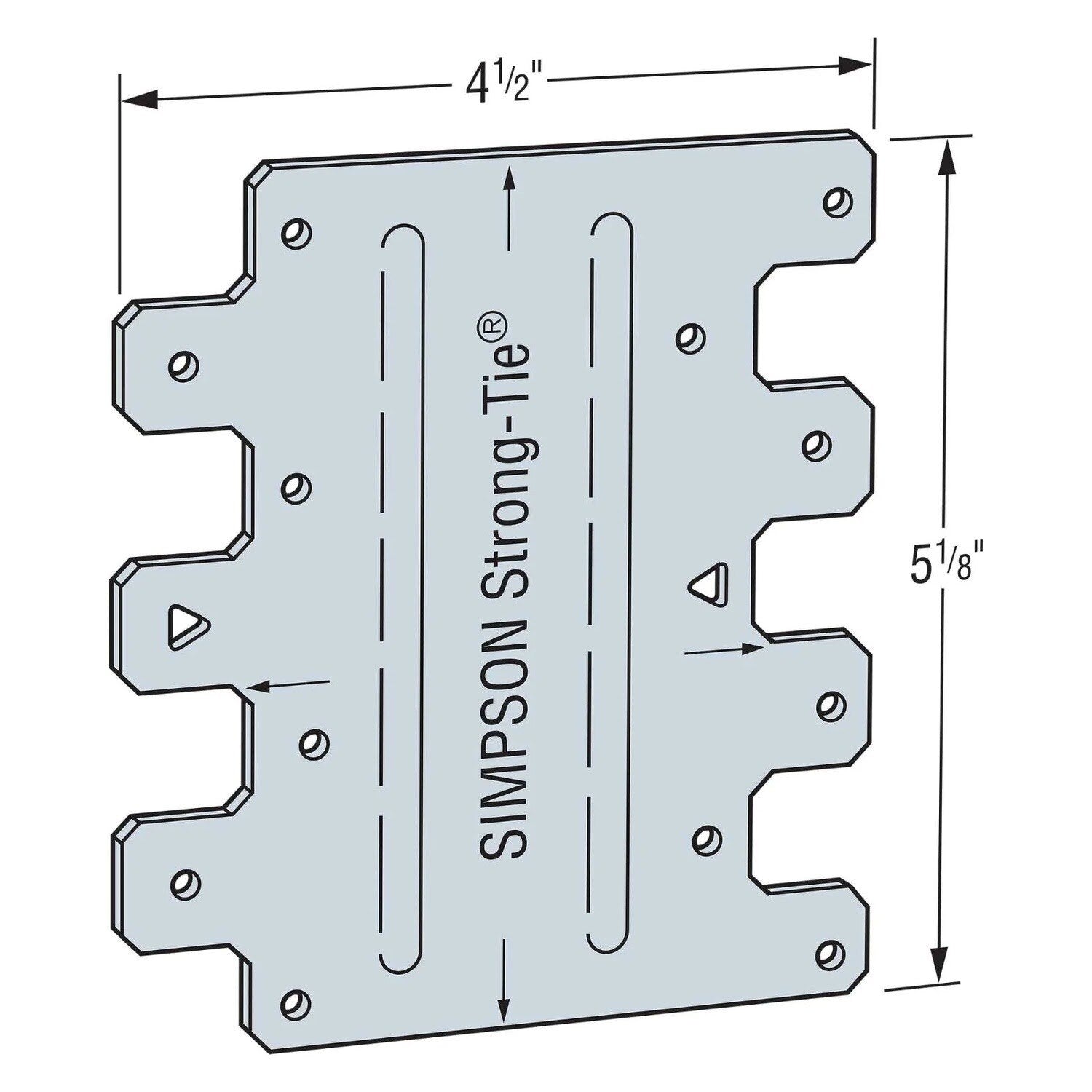

Simpson LTP5 Specifications
| Material | 20 ga (33 mil) |
| Finish | G90 Galvanized |
| Width | 4-1/2" |
| Length | 5-1/8" |
| Weight | 0.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
