Simpson Anchors | SKU:
LTS12

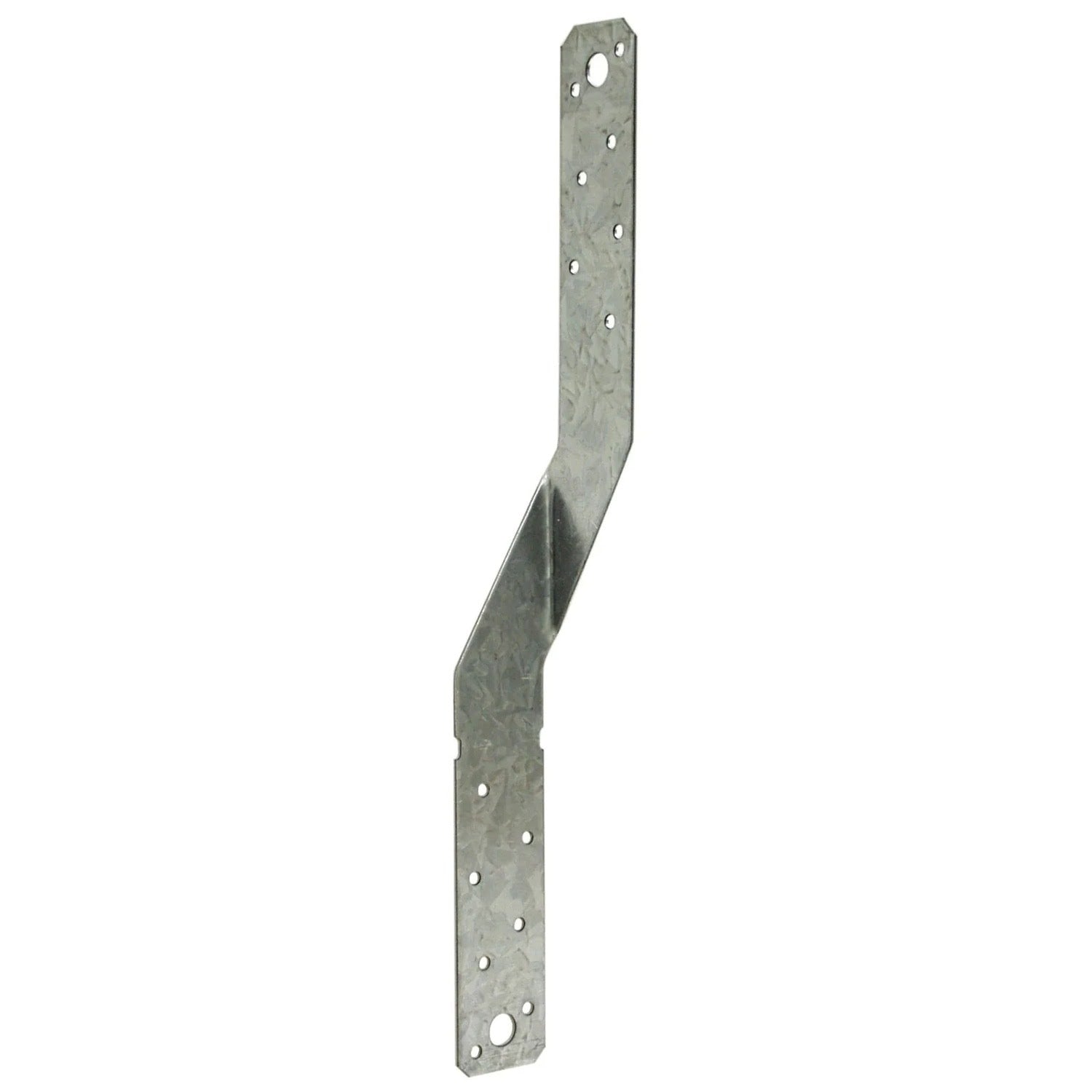

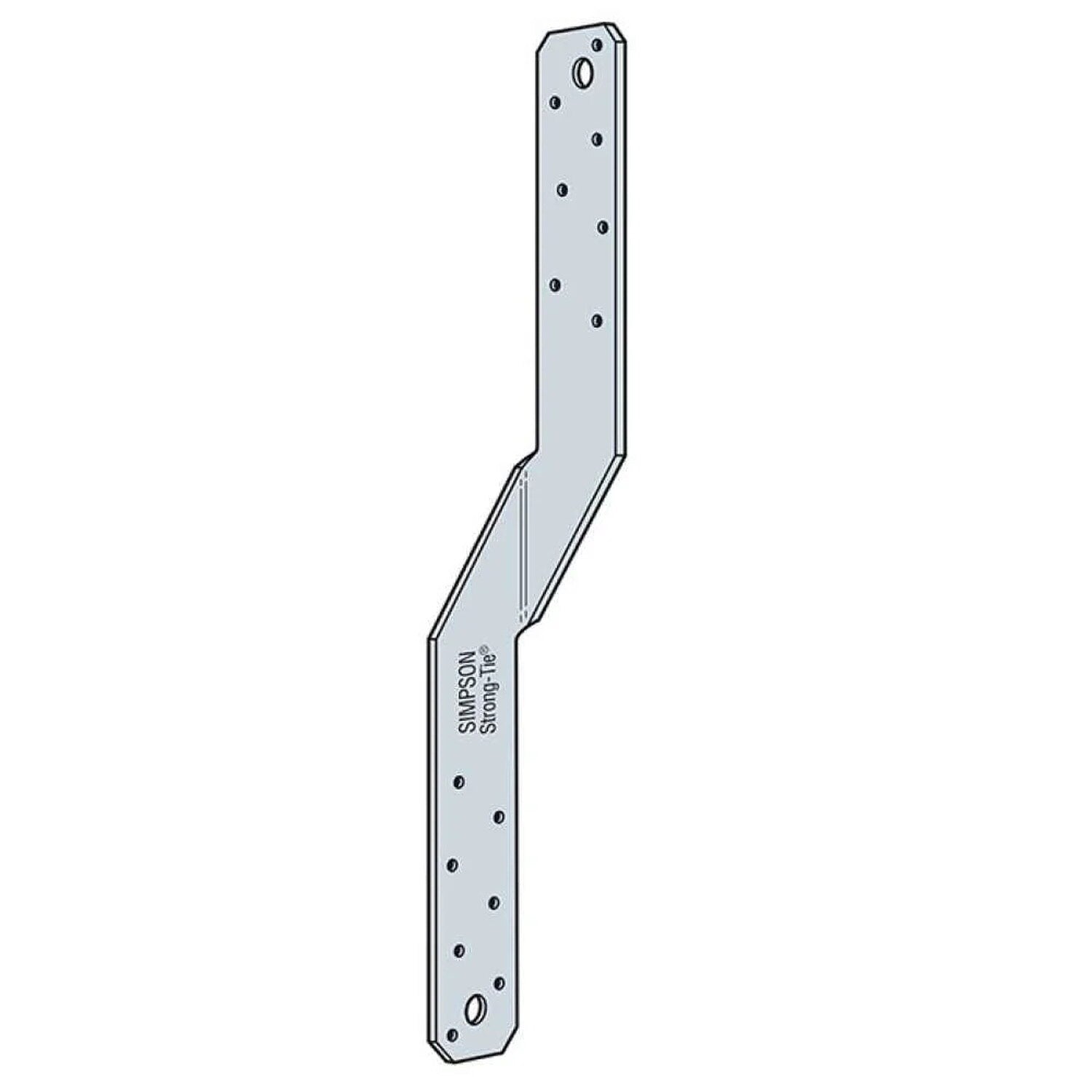

Simpson Strong-Tie LTS12 (12") 18-Gauge Galvanized Twist Strap
$1.38
$1.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LTS12 Description
The Simpson Strong-Tie LTS12 Twist Strap provides a tension connection between two wood members, resisting uplift at the heel of a truss economically.
Simpson Strong-Tie LTS12 Includes
- (1) 12" Twist Strap
Simpson Strong-Tie LTS12 Features
- Available with the bend reversed
- Versatile with many lengths offered to fit the specific application
- Straps do not need to be wrapped over the truss to achieve the allowable load
Simpson Strong-Tie LTS12 Applications
- High-Wind Construction: Provides tension connection between wood members
- Truss Uplift Resistance: Economically resists uplift at the heel of a truss
Simpson Strong-Tie LTS12 Installation Overview
- Use all specified fasteners, with half into each member being connected, to achieve the listed loads
- Available with the bend reversed. Specify "-REV" after the model number, such as LTS16-REV
Simpson Strong-Tie LTS12 Specifications
| Material | 18 gauge |
| Finish | G90 Galvanized |
| Length | 12" |
| Weight | 0.2 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
