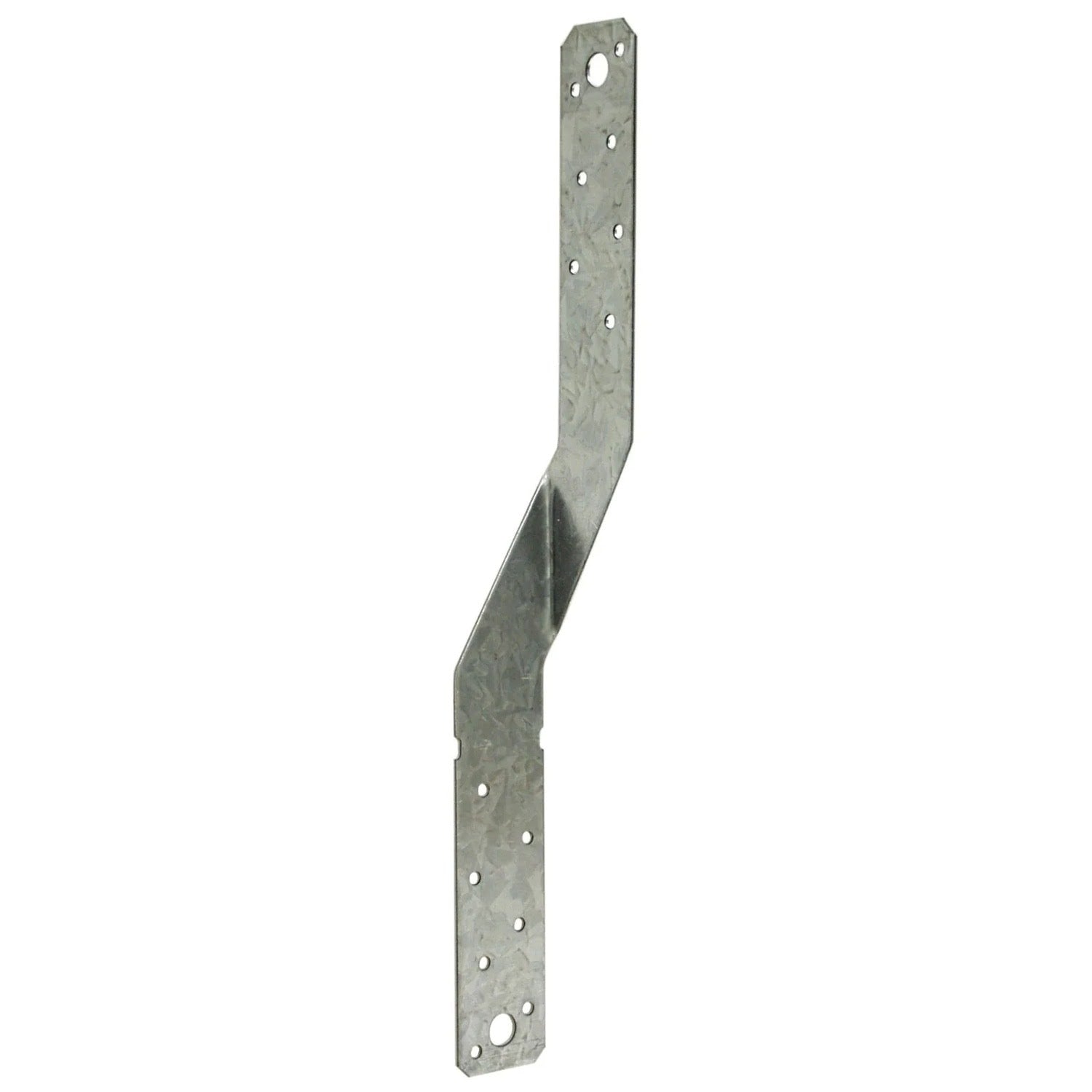

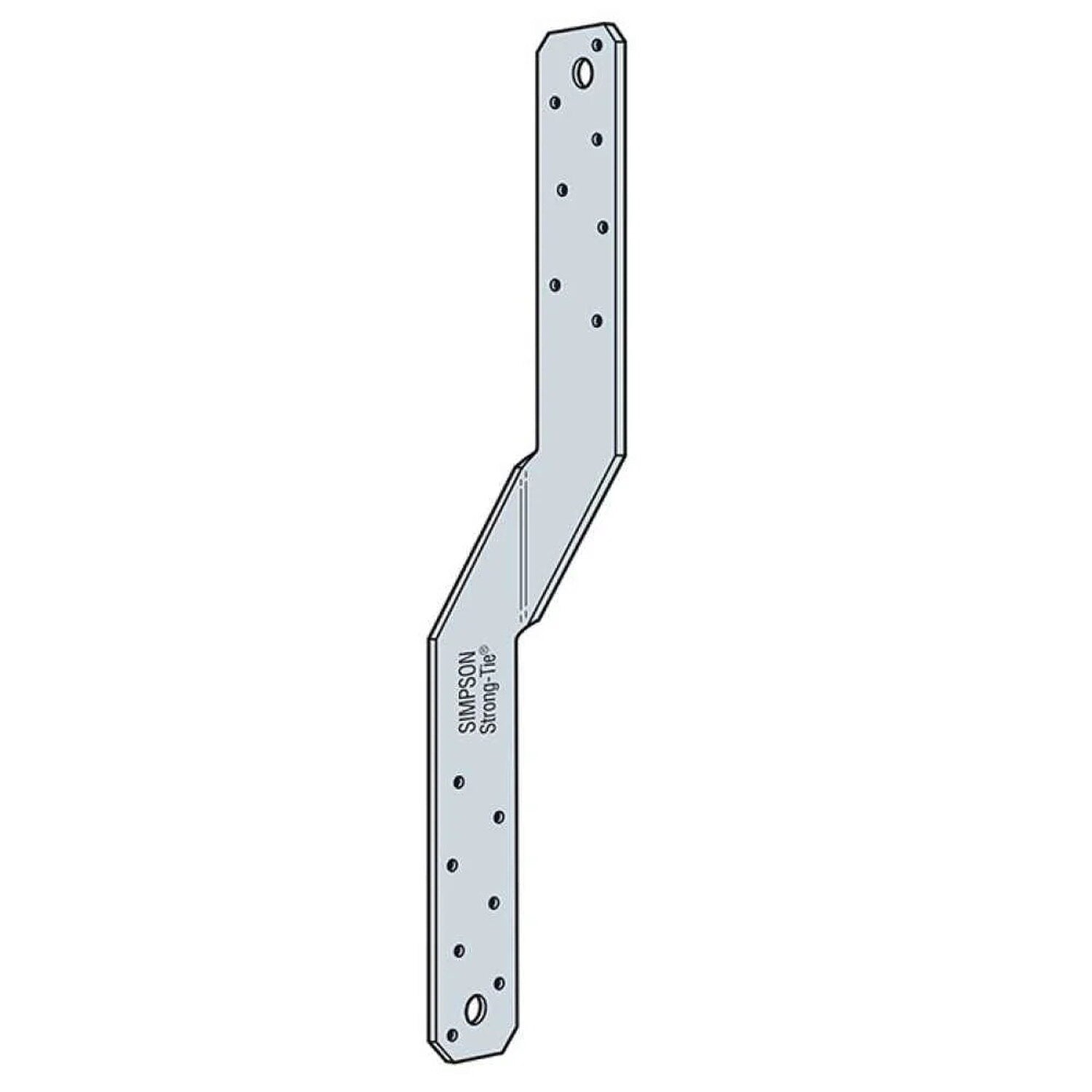

Simpson Strong-Tie LTS12SS Description
The Simpson Strong-Tie LTS12SS Twist Strap provides a reliable tension connection between wood members, resisting uplift at truss heels and ensuring durability in harsh conditions.
Simpson Strong-Tie LTS12SS Includes
- (1) 12" Stainless Steel Twist Strap
Simpson Strong-Tie LTS12SS Features
- Made of 316L stainless steel for maximum corrosion resistance
- Designed for high-wind construction applications
- Eliminates interference at transition points with a 2" bend section
- Does not require wrapping over the truss to achieve allowable load
- Versatile design with multiple lengths available
Simpson Strong-Tie LTS12SS Applications
- High-wind construction
- Connecting wood members in truss systems
- Providing tension connections in structural framing
Simpson Strong-Tie LTS12SS Installation Overview
- Use all specified fasteners, with half into each member being connected
- Ensure the first seven nail holes on each side of the bend are filled with specified nails
- May be installed on the inside face of the stud
- Follow manufacturer guidelines for simultaneous loads in multiple directions
Simpson Strong-Tie LTS12SS Specifications
| Material | 316L Stainless Steel |
| Gauge | 18 |
| Length | 12" |
| Weight | 0.2 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
