Simpson Anchors | SKU:
LTTI31

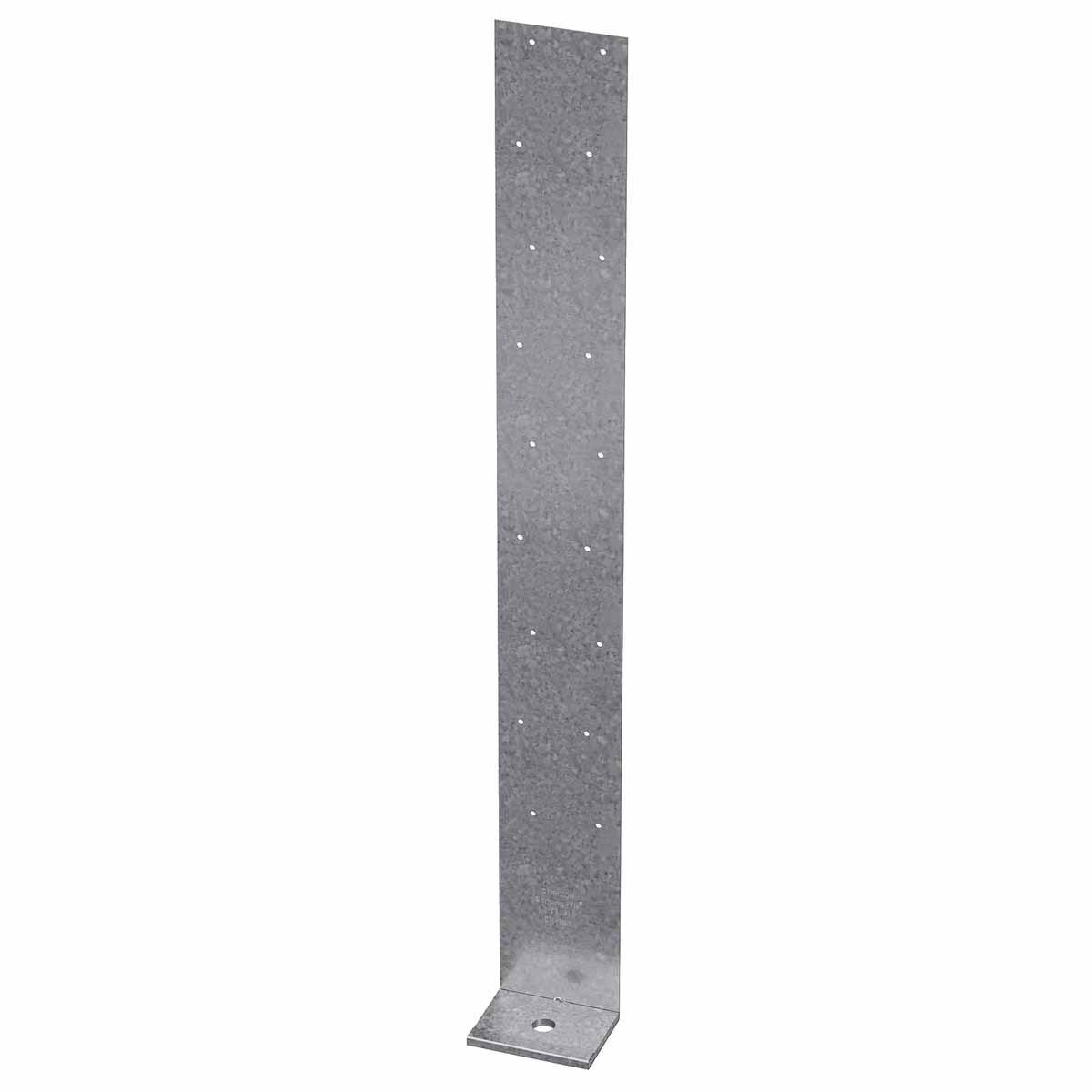

Simpson Strong-Tie LTTI31 (31") 18-Gauge Light Tension Tie for Wood-to-Concrete or Masonry Connections
$88.53
$123.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LTTI31 Description
The Simpson LTTI31 Light Tension Tie model, for wood-chord open-web truss attachments, features a built-in load transfer plate washer for increased performance.
Simpson Strong-Tie LTTI31 Includes
- (1) 31" 18 Gauge Light Tension Tie
Simpson Strong-Tie LTTI31 Features
- Nailing patterns to accommodate different purlin/rafter/truss types
- Low-profile seat to reduce visibility of tie
- Tested with different anchor bolt diameters to meet code-required applications based on substrate
Simpson Strong-Tie LTTI31 Applications

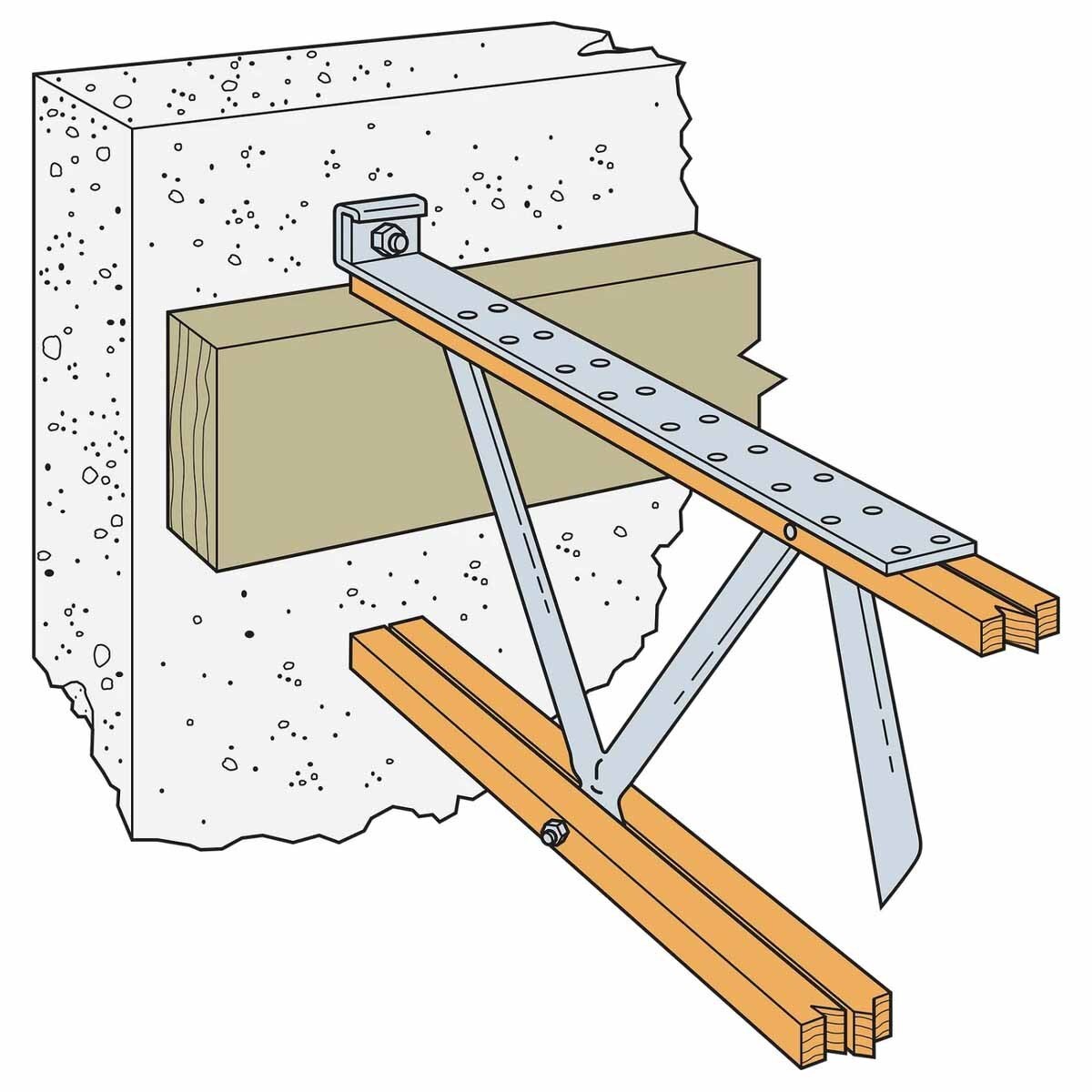

- Wood-to-concrete or masonry connections
- Framing applications requiring tension ties
Simpson Strong-Tie LTTI31 Installation Overview
- Install vertically on a minimum 2x6 stud with nails
- Use specified nailing patterns for different purlin/rafter/truss types
- Ensure correct fasteners are installed in the correct position

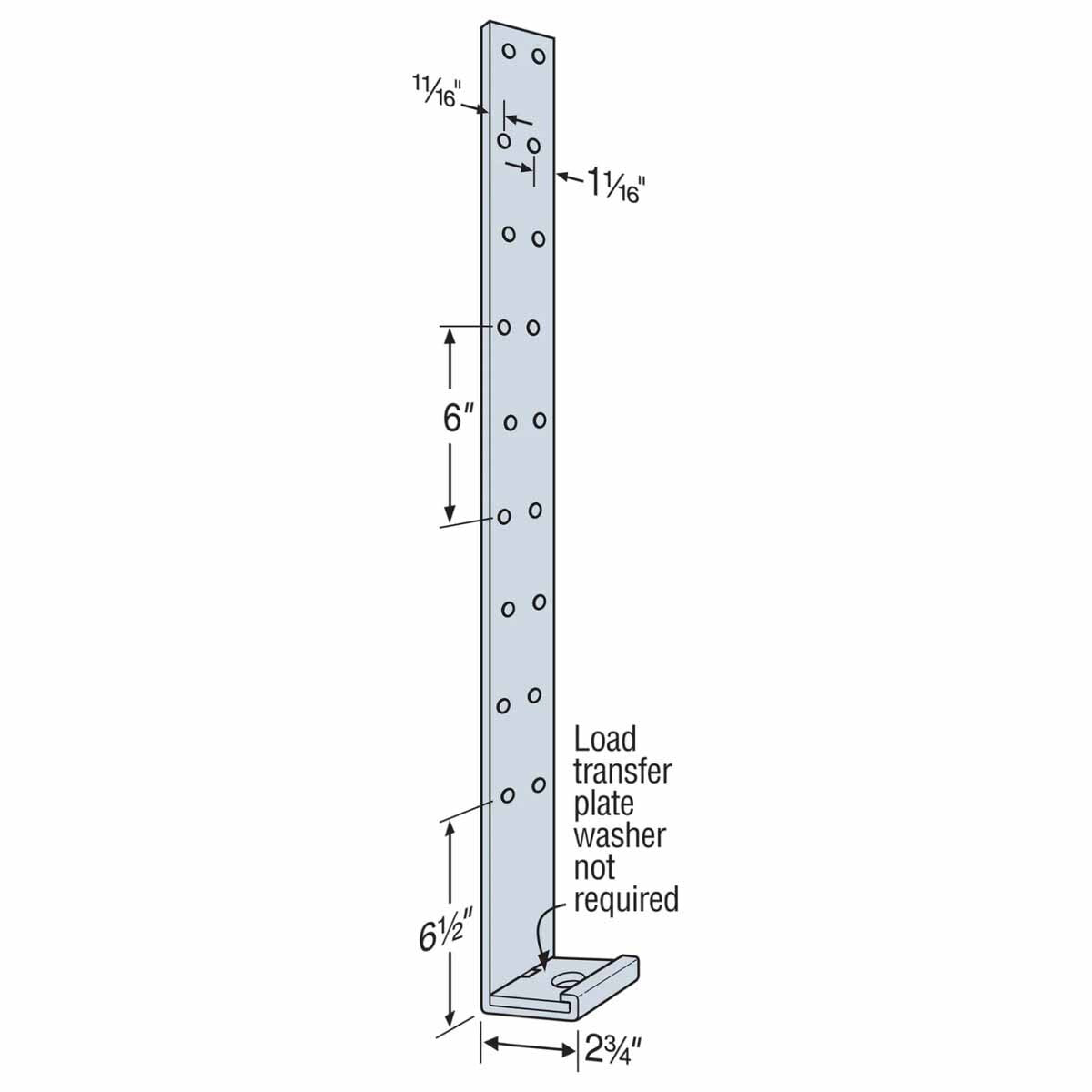

Simpson Strong-Tie LTTI31 Specifications
| Gauge | 18 |
| Length | 31" |
| Width | 3 3/4" |
| Material | Zinc Galvanized, G90 |
| Weight | 2.4 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
