Simpson Hangers | SKU: LU210 | Barcode: 044315680007

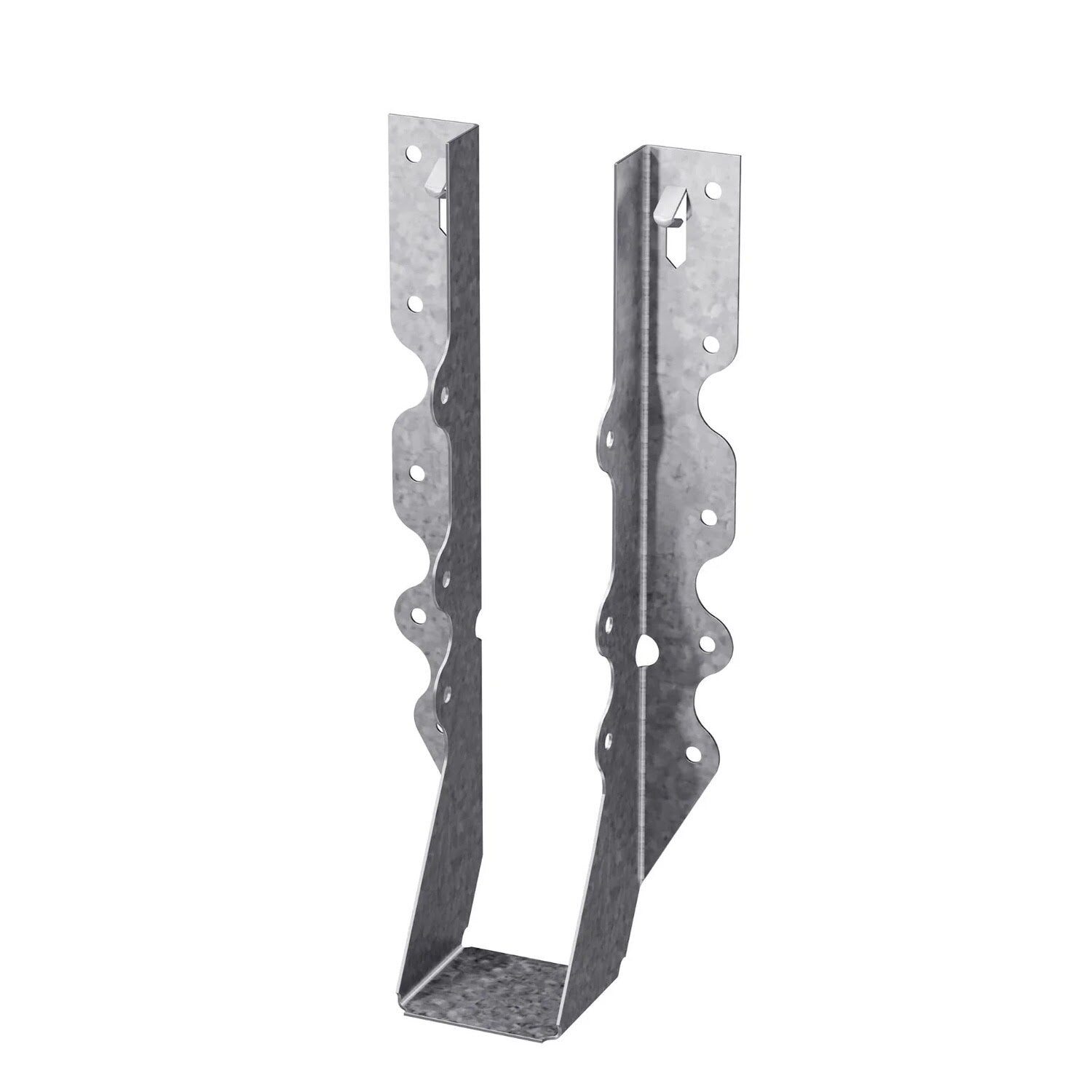

Simpson Strong-Tie LU210 (2" x 10") Face Mount Joist Hanger, G90 Galvanized

Name: Simpson Strong-Tie LU210 (2" x 10") Face Mount Joist Hanger, G90 Galvanized
Brand: Simpson Hangers
SKU: 746446
Price: 1.4 USD
Availability: InStock

$1.40 ~~$2.01~~

Description

Simpson LU210 Description

The Simpson LU210 2x10 Face Mount Joist Hanger is engineered for standard dimensional lumber, ensuring a strong and reliable connection between joists and headers.

Simpson LU210 Includes

(1) 2x10 Face Mount Joist Hanger

Simpson LU210 Features

Designed for Nominal Lumber: Optimized for use with standard-sized dimensional lumber.
Face-Mount Installation: Provides a secure connection between joists and headers.
Durable Construction: Made from high-quality steel with corrosion-resistant coatings.
Speed Prongs: Built-in prongs help position the hanger for faster and more precise installations.

Simpson LU210 Applications

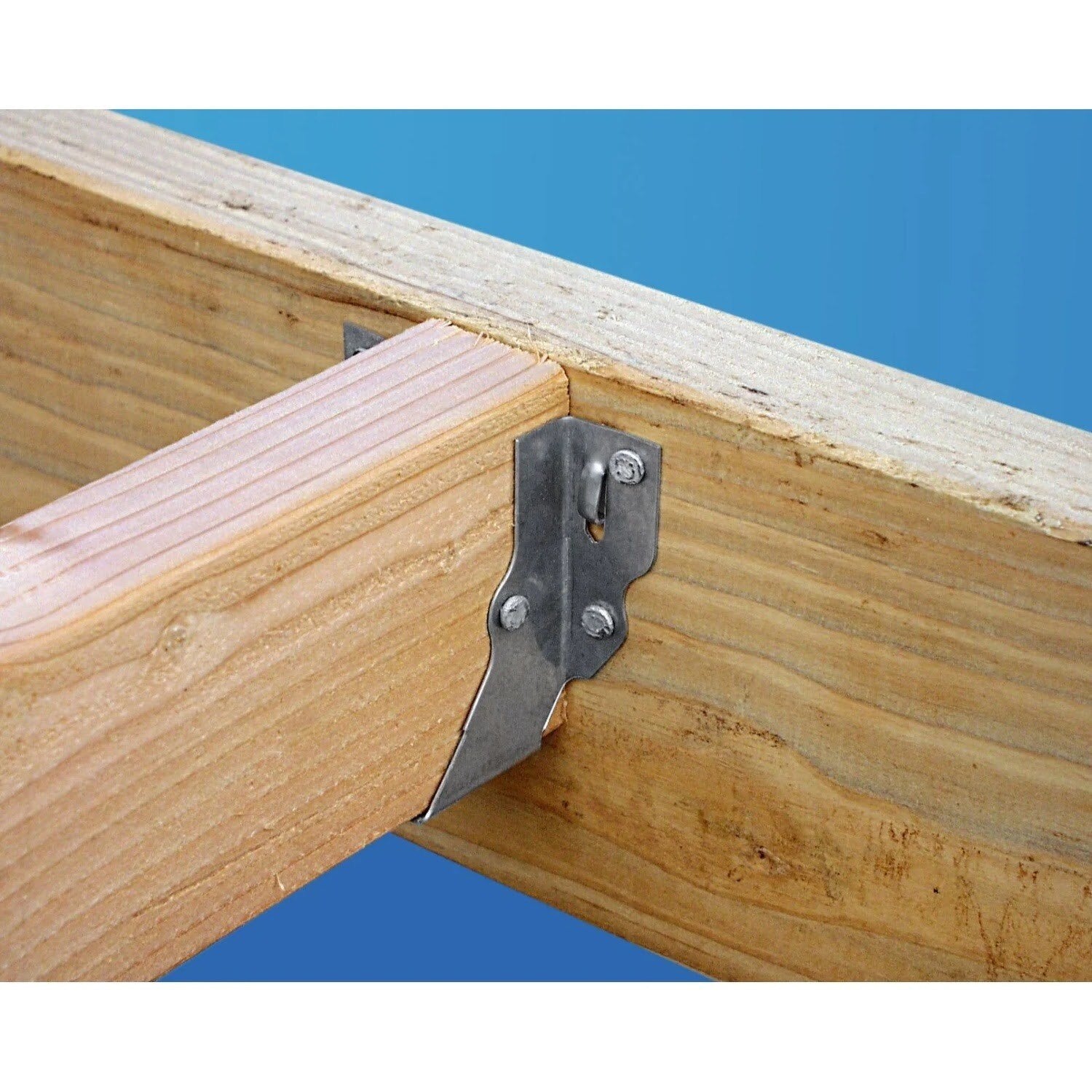

Deck Framing: Provides critical support for deck joists, ensuring a stable and long-lasting structure.
Floor Joist Connections: Securely fastens floor joists to headers for improved load-bearing capacity.
Roof Framing: Strengthens roof structures by connecting joists and rafters to beams.
General Wood Construction: Ideal for any light framing project that requires a dependable joist-to-header connection.

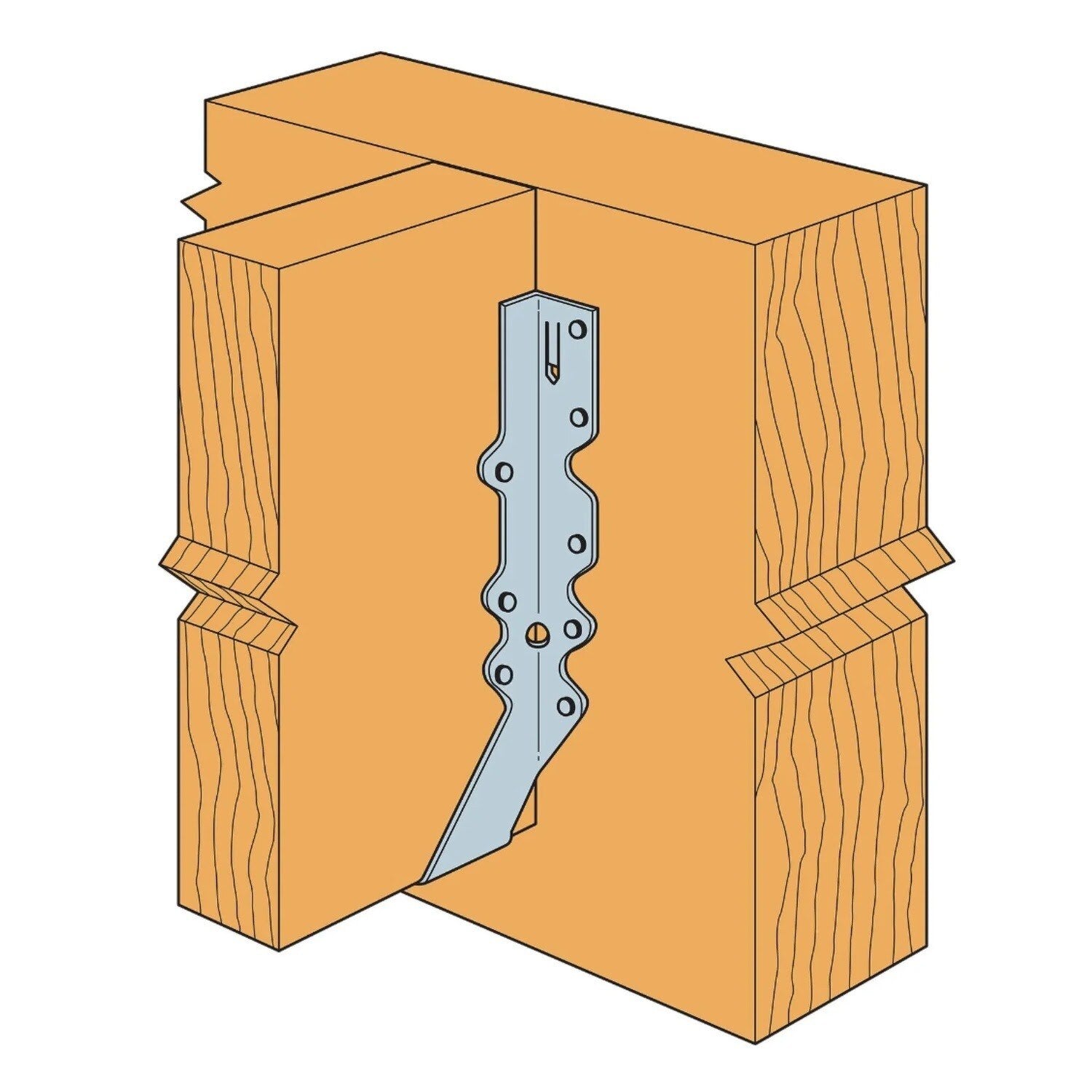

Simpson LU210 Installation Overview

Fastener Requirements: Use the manufacturer’s recommended nails or screws for optimal performance and load capacity.
Proper Placement: Ensure the hanger is aligned with the joist and securely attached to the header before fastening.
Full Fastener Installation: Drive all required fasteners completely into place to maintain structural integrity.

Simpson LU210 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (10) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	7-13/16"
Joist size	2" X 10"
Thickness	20 Gauge
Width	1-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
