Simpson Hangers | SKU: LU24 | Barcode: 044315680205

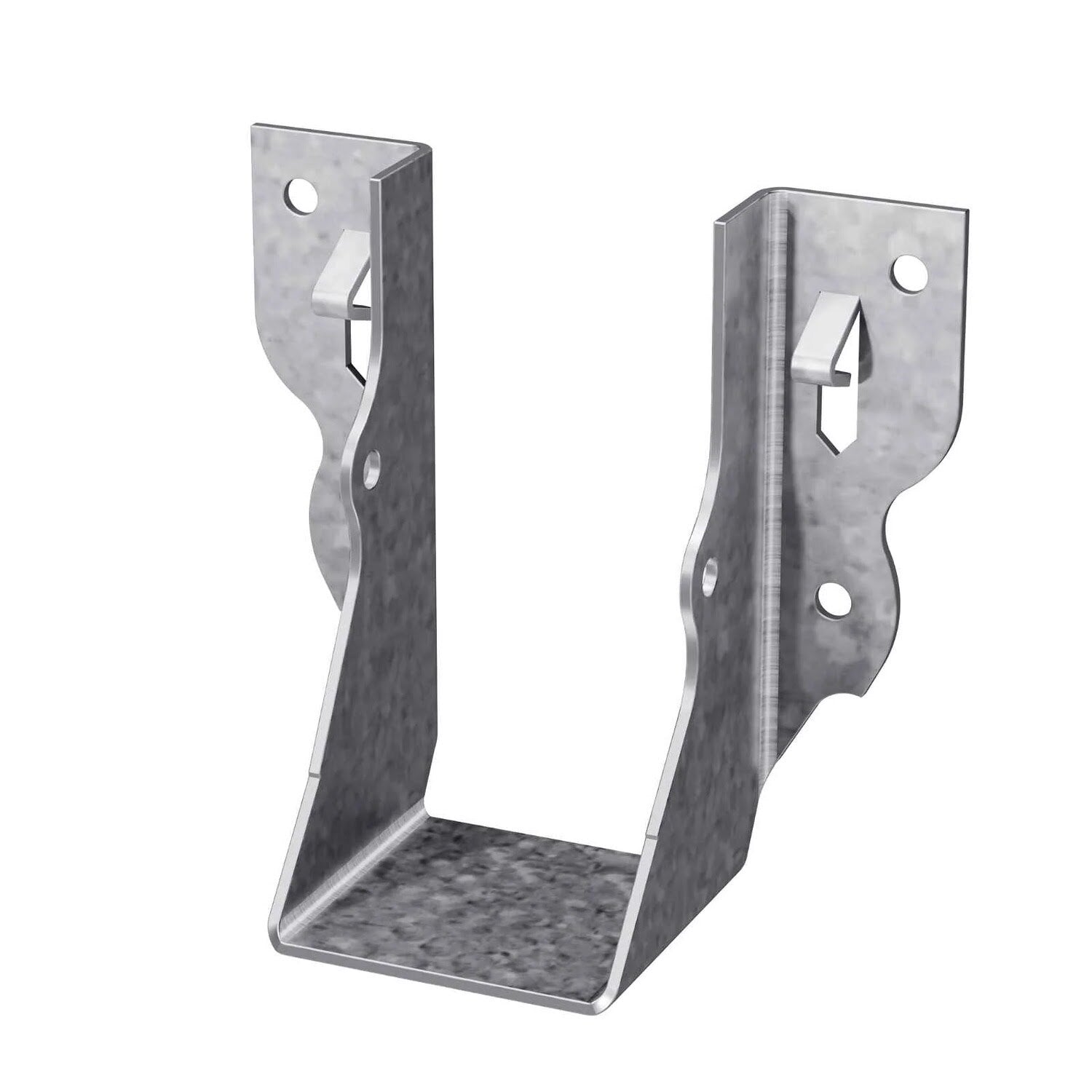

Simpson Strong-Tie LU24 (2" x 4") Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie LU24 (2" x 4") Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 683212
Price: 0.85 USD
Availability: InStock

$0.85 ~~$1.22~~

Description

Simpson LU24 Description

The Simpson LU24 Galvanized Face-Mount Joist Hanger is designed for nominal lumber, providing a secure connection between joists and headers for light framing applications.

Simpson LU24 Includes

(1) Galvanized Face-Mount Joist Hanger for 2x4

Simpson LU24 Features

Designed for Nominal Lumber: Optimized for use with standard-sized dimensional lumber.

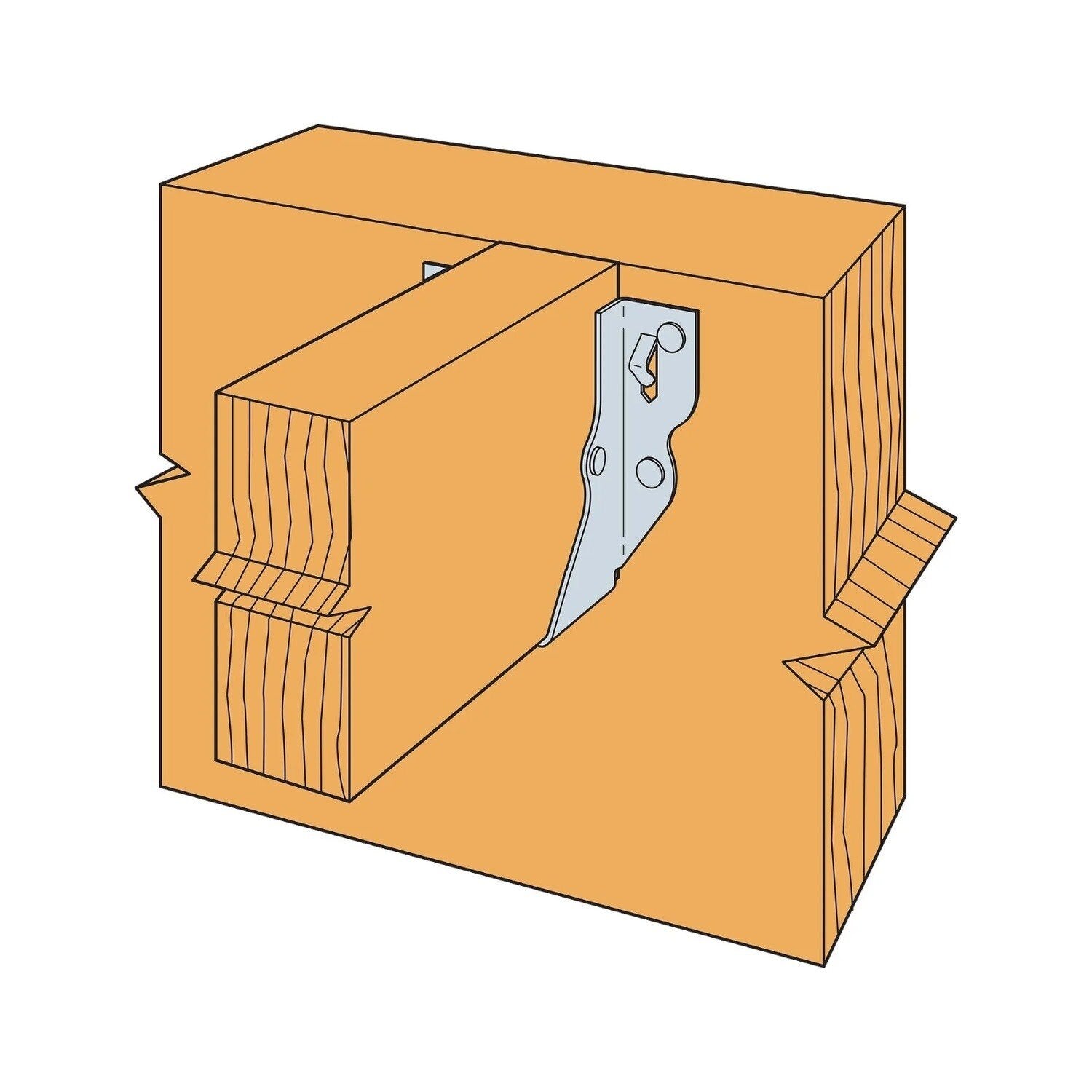

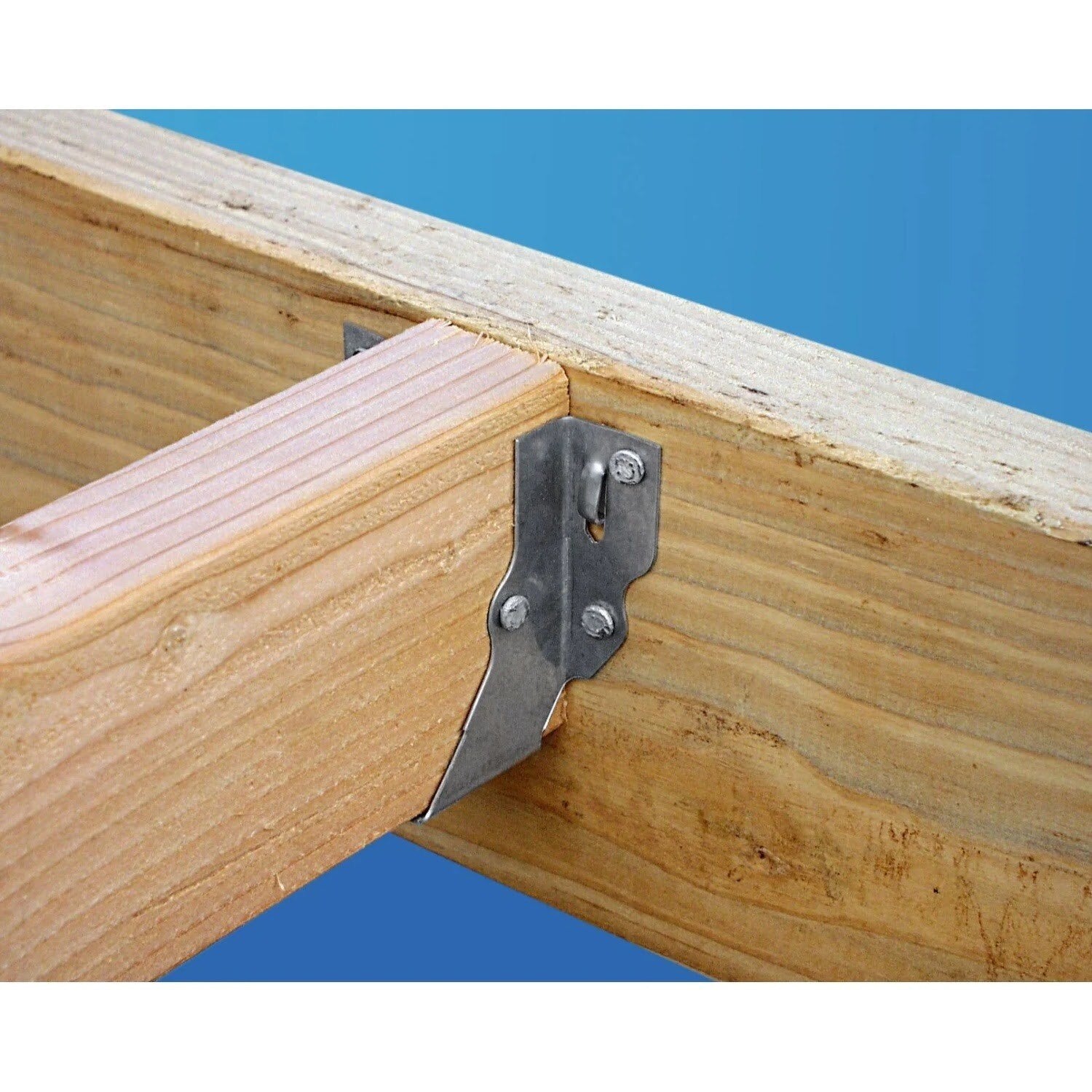

Face-Mount Installation: Provides a secure connection between joists and headers.
Durable Construction: Made from high-quality steel with corrosion-resistant coatings.
Speed Prongs: Built-in prongs help position the hanger for faster and more precise installations.

Simpson LU24 Applications

Deck Framing: Provides critical support for deck joists, ensuring a stable and long-lasting structure.
Floor Joist Connections: Securely fastens floor joists to headers for improved load-bearing capacity.
Roof Framing: Strengthens roof structures by connecting joists and rafters to beams.
General Wood Construction: Ideal for any light framing project that requires a dependable joist-to-header connection.

Simpson LU24 Installation Overview

Fastener Requirements: Use the manufacturer’s recommended nails or screws for optimal performance and load capacity.
Proper Placement: Ensure the hanger is aligned with the joist and securely attached to the header before fastening.
Full Fastener Installation: Drive all required fasteners completely into place to maintain structural integrity.

Simpson LU24 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	3-1/8"
Joist size	2" X 4"
Thickness	20 Gauge
Width	1-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
