Simpson Hangers | SKU:
LU24R-18
Simpson Strong-Tie LU24R-18 (2" x 4") Rough Cut Face Mount Joist Hanger - G90 Galvanized
$3.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LU24R-18 Description

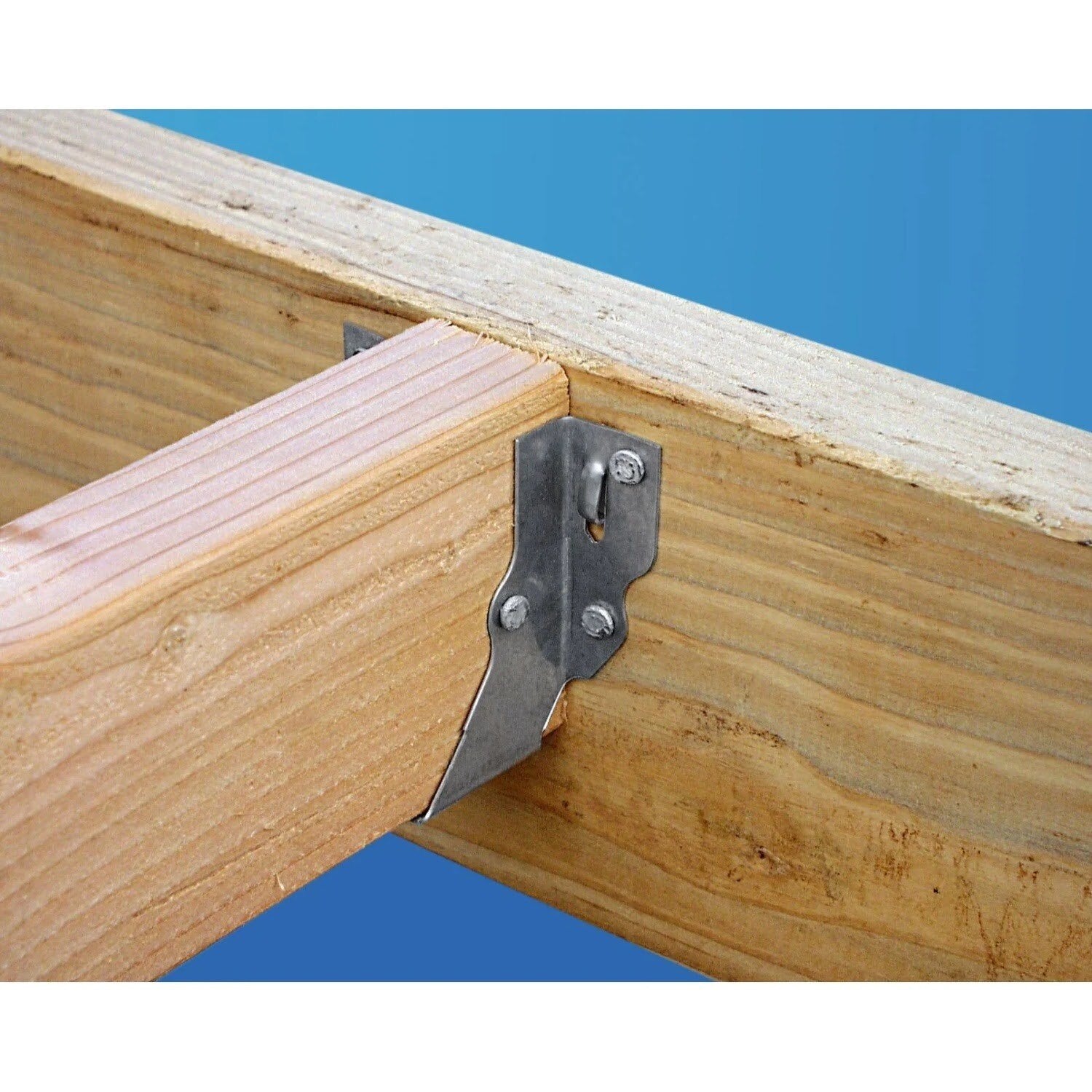

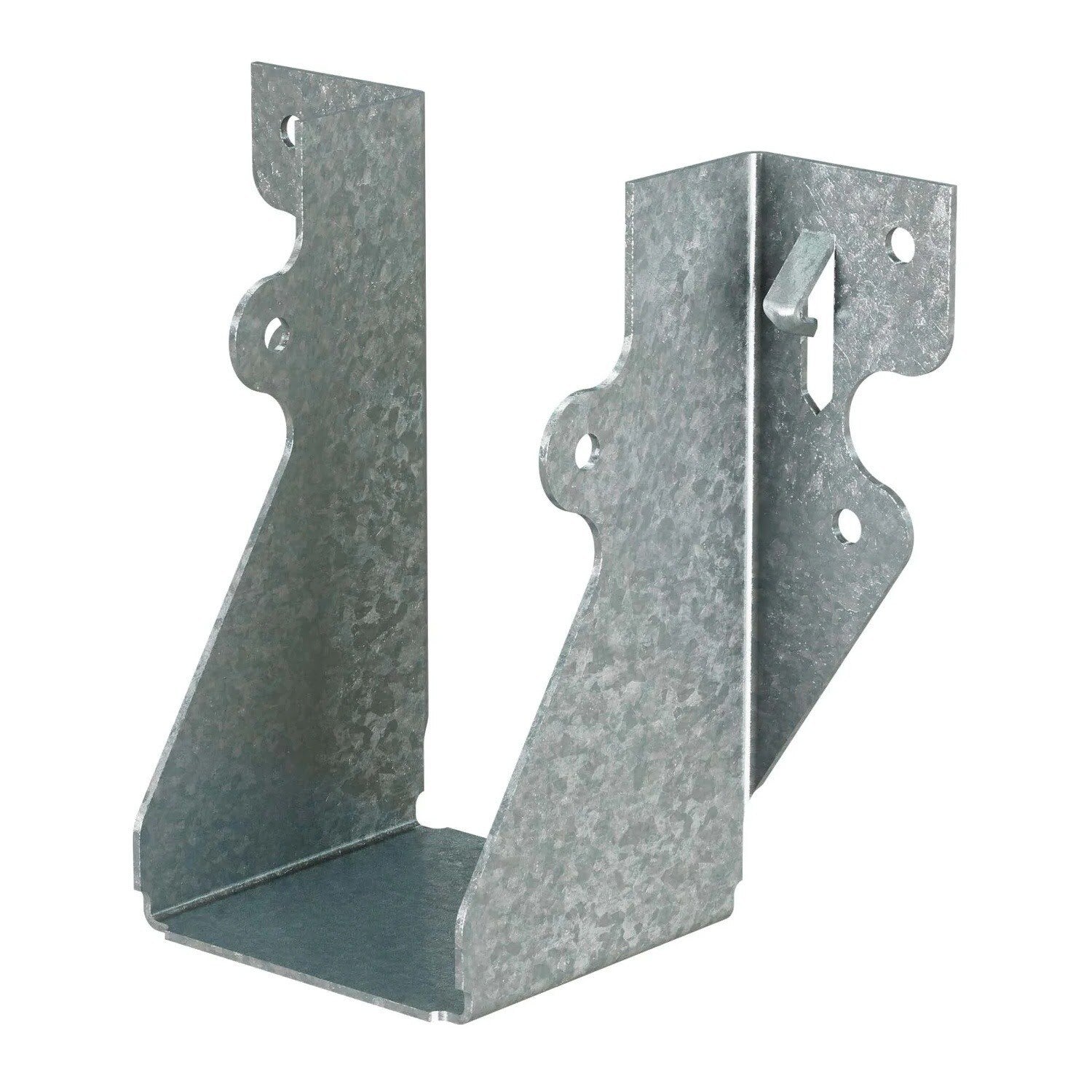

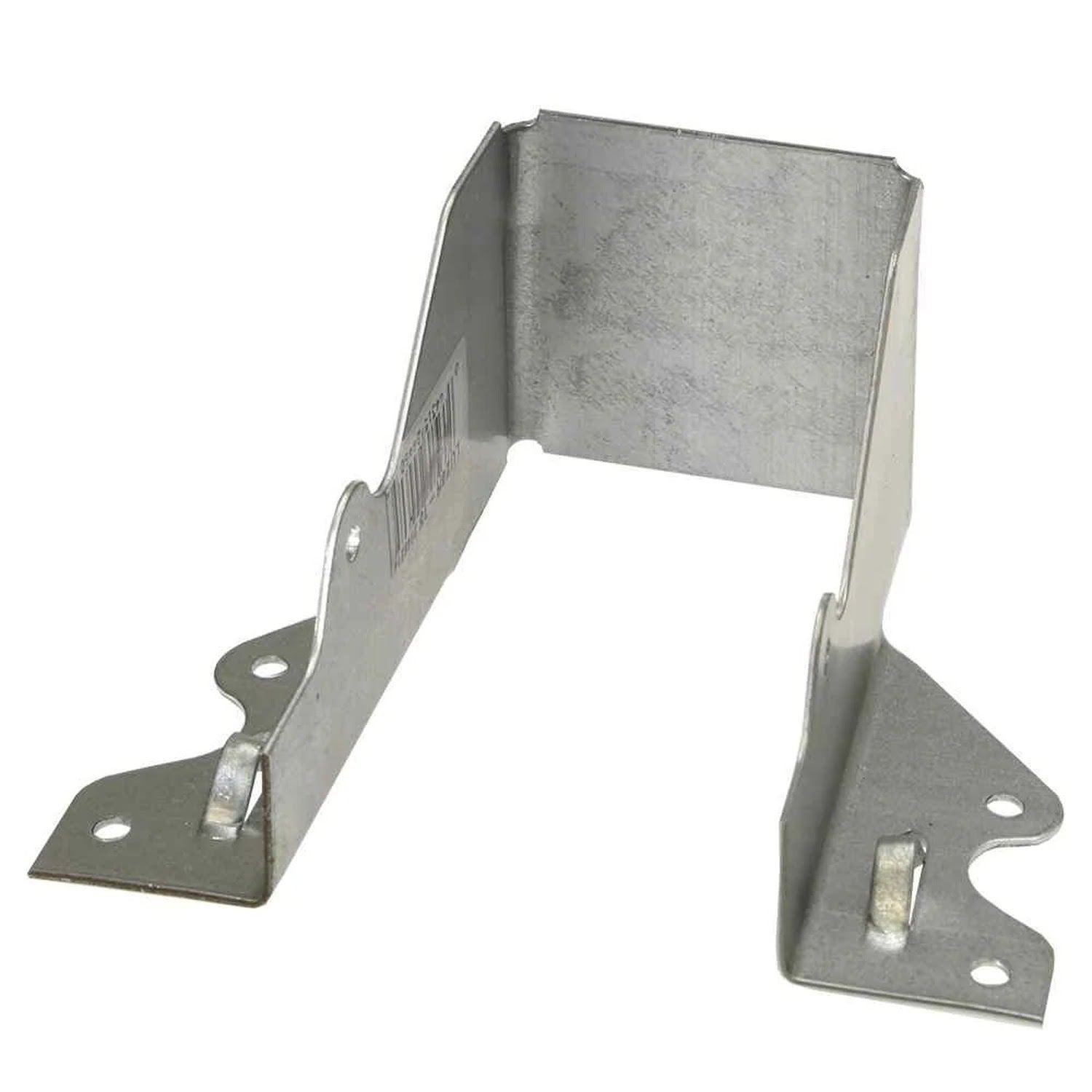

Designed for applications using rough cut lumber, the Simpson LU24R-18 Light Face-Mount Joist Hanger delivers strong, reliable connections between joists and headers.
Simpson Strong-Tie LU24R-18 Includes
- (1) Rough Cut 2x4 Face Mount Joist Hanger
Simpson Strong-Tie LU24R-18 Features
- Optimized for Rough Cut Lumber: Specifically designed to fit non-standard, rough sawn wood sizes.
- Heavy-Duty Performance: Manufactured from durable steel with corrosion-resistant coating.
- Face-Mount Installation: Provides a solid, reinforced connection for framed structures.
Simpson Strong-Tie LU24R-18 Applications
- Timber Framing: Ensures a secure fit for rough cut beams and joists.
- Deck Framing: Provides a strong connection for oversized joists in custom deck builds.
- Barn & Agricultural Structures: Ideal for rough cut lumber used in barn framing.
- Custom Woodworking Projects: Supports structurally sound connections in handcrafted wood structures.
Simpson Strong-Tie LU24R-18 Installation Overview
- Fastener Compatibility: Use specified nails or screws recommended by the manufacturer.
- Proper Fit: Position the hanger correctly to accommodate rough cut lumber dimensions.
- Secure Attachment: Fully drive all fasteners into the joist and header for maximum stability.
Simpson Strong-Tie LU24R-18 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 3-11/16" |
| Joist size | 2" X 4" Rough |
| Thickness | 18 Gauge |
| Width | 2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
