Simpson Strong-Tie LU26 (2" x 6") Face Mount Joist Hanger, G90 Galvanized

Name: Simpson Strong-Tie LU26 (2" x 6") Face Mount Joist Hanger, G90 Galvanized
Brand: Simpson Hangers
SKU: 683331
Price: 0.94 USD
Availability: InStock

$0.94 ~~$1.35~~

Description

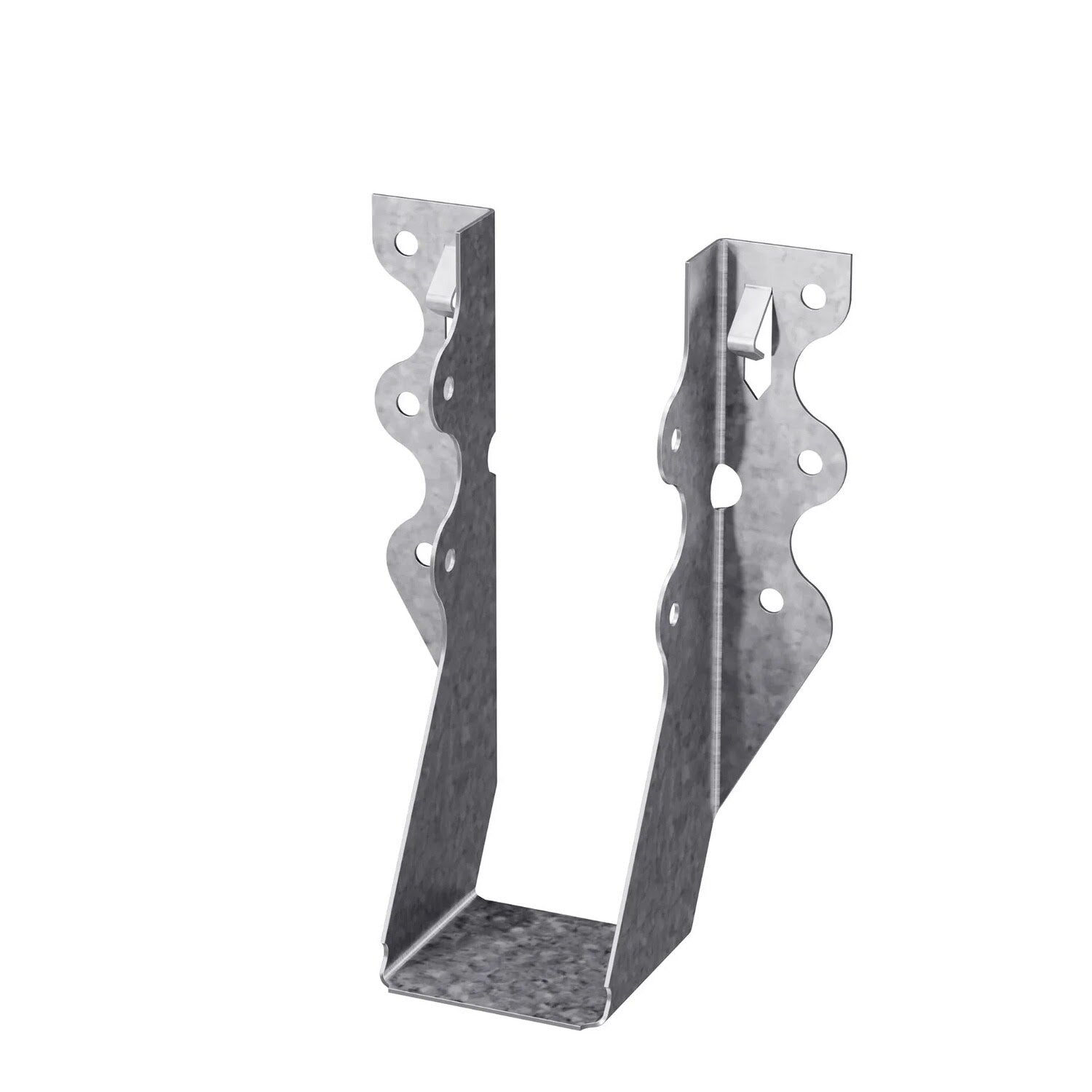

Simpson LU26 Description

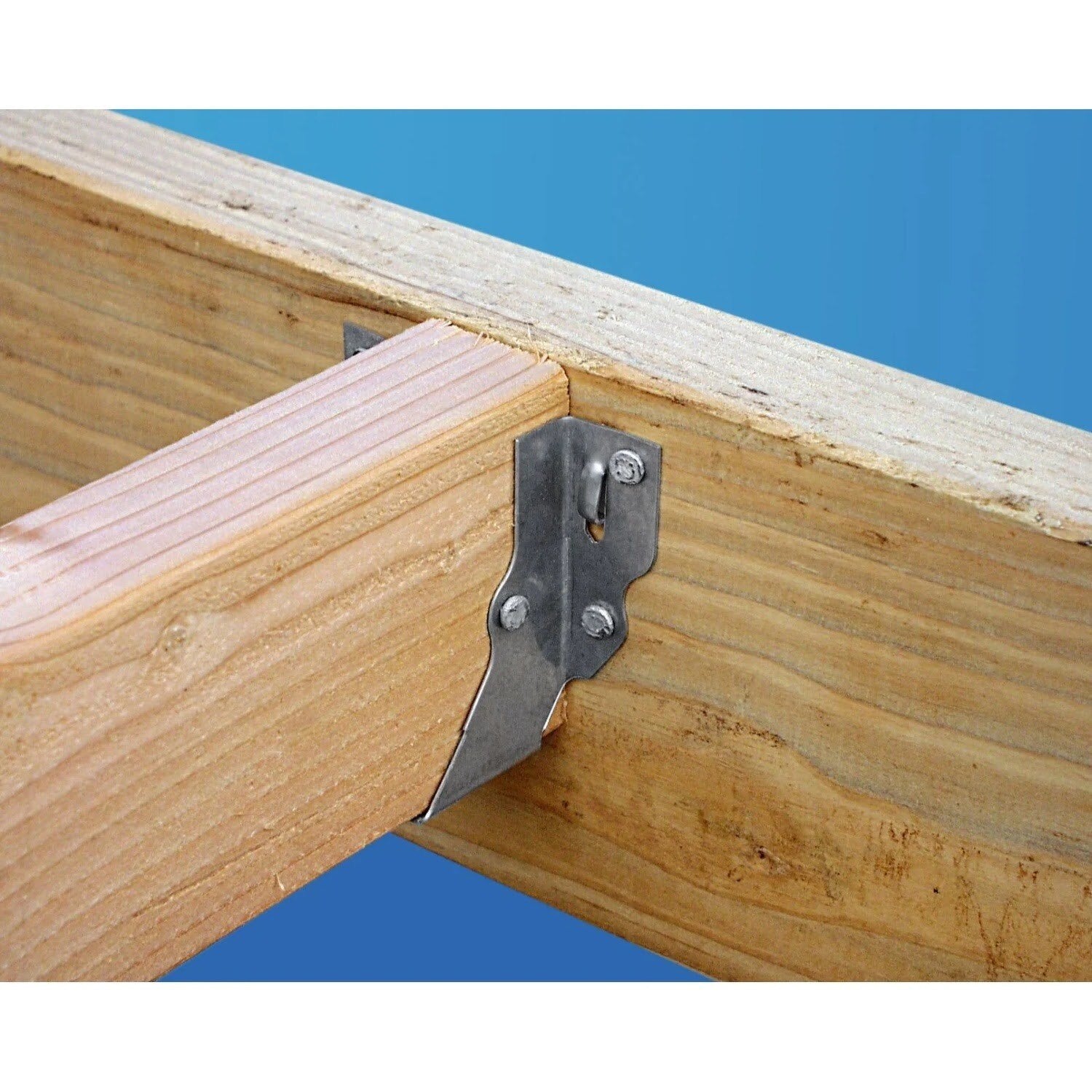

The Simpson LU26 2x6 Face Mount Joist Hanger is engineered for standard dimensional lumber, providing a strong and reliable connection between joists and headers. Its precision-fit design ensures essential support for light framing applications, improving structural stability in decks, floors, and roofing systems.

Simpson LU26 Includes

(1) 2x6 Face Mount Joist Hanger

Simpson LU26 Features

Designed for Nominal Lumber: Optimized for use with standard-sized dimensional lumber.
Face-Mount Installation: Provides a secure connection between joists and headers.
Durable Construction: Made from high-quality steel with corrosion-resistant coatings.
Speed Prongs: Built-in prongs help position the hanger for faster and more precise installations.

Simpson LU26 Applications

Deck Framing: Provides critical support for deck joists, ensuring a stable and long-lasting structure.
Floor Joist Connections: Securely fastens floor joists to headers for improved load-bearing capacity.
Roof Framing: Strengthens roof structures by connecting joists and rafters to beams.
General Wood Construction: Ideal for any light framing project that requires a dependable joist-to-header connection.

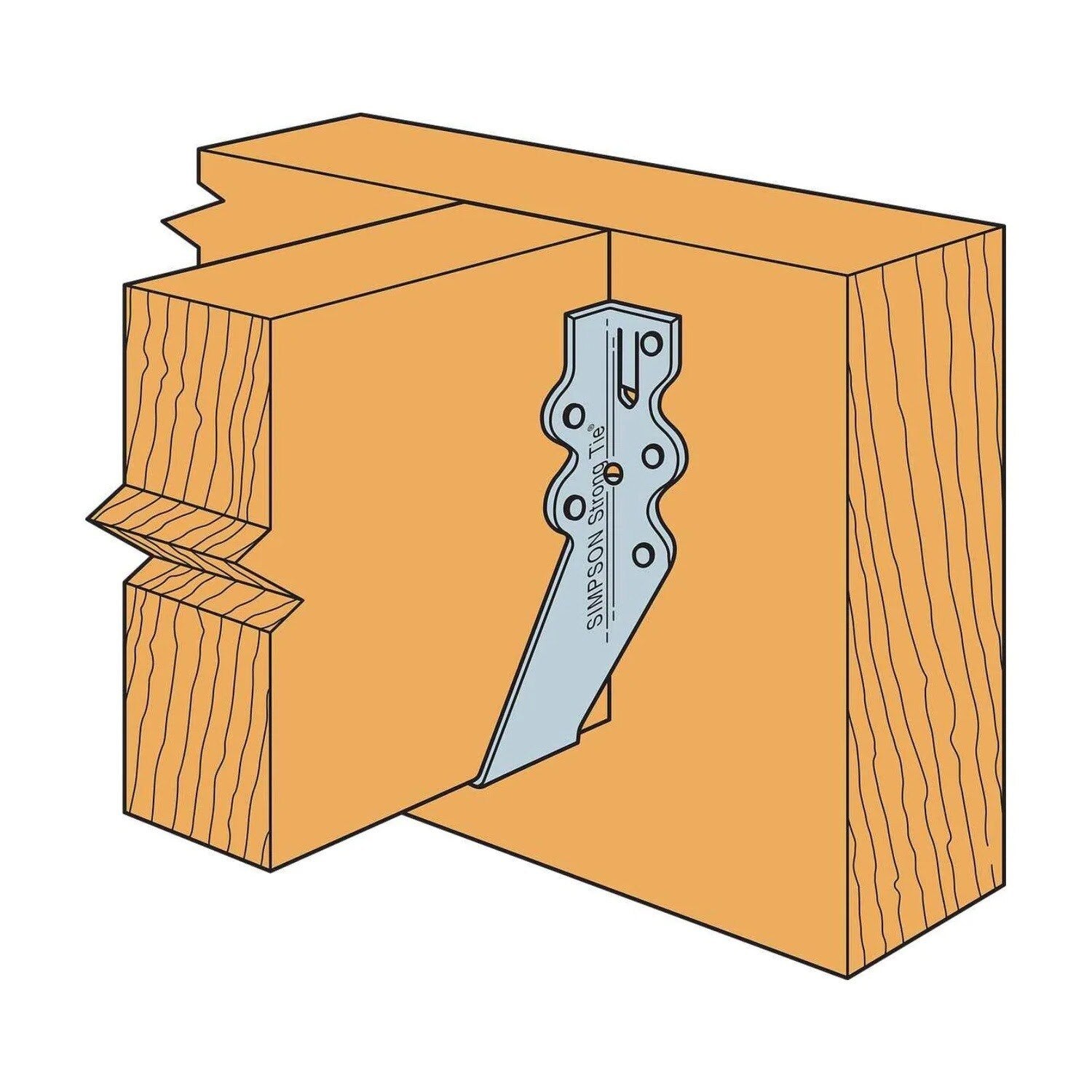

Simpson LU26 Installation Overview

Fastener Requirements: Use the manufacturer’s recommended nails or screws for optimal performance and load capacity.
Proper Placement: Ensure the hanger is aligned with the joist and securely attached to the header before fastening.
Full Fastener Installation: Drive all required fasteners completely into place to maintain structural integrity.

Simpson LU26 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (6) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	4-3/4"
Joist size	2" X 6"
Thickness	20 Gauge
Width	1-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
