Simpson Hangers | SKU:
LU26R-18
Simpson Strong-Tie LU26R-18 (2" x 6") Rough Cut Face Mount Joist Hanger - G90 Galvanized
$4.78
$6.48
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LU26R-18 Description

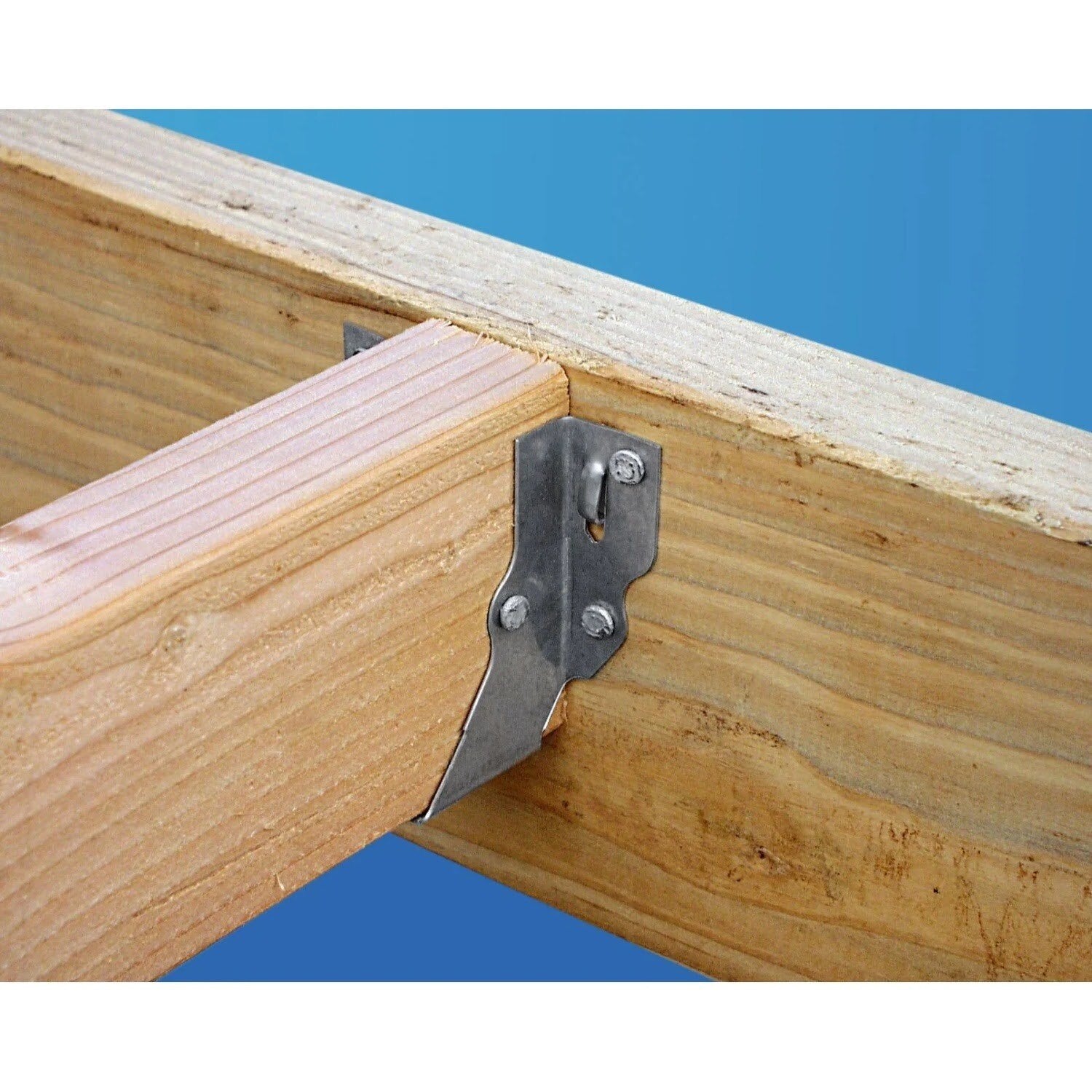

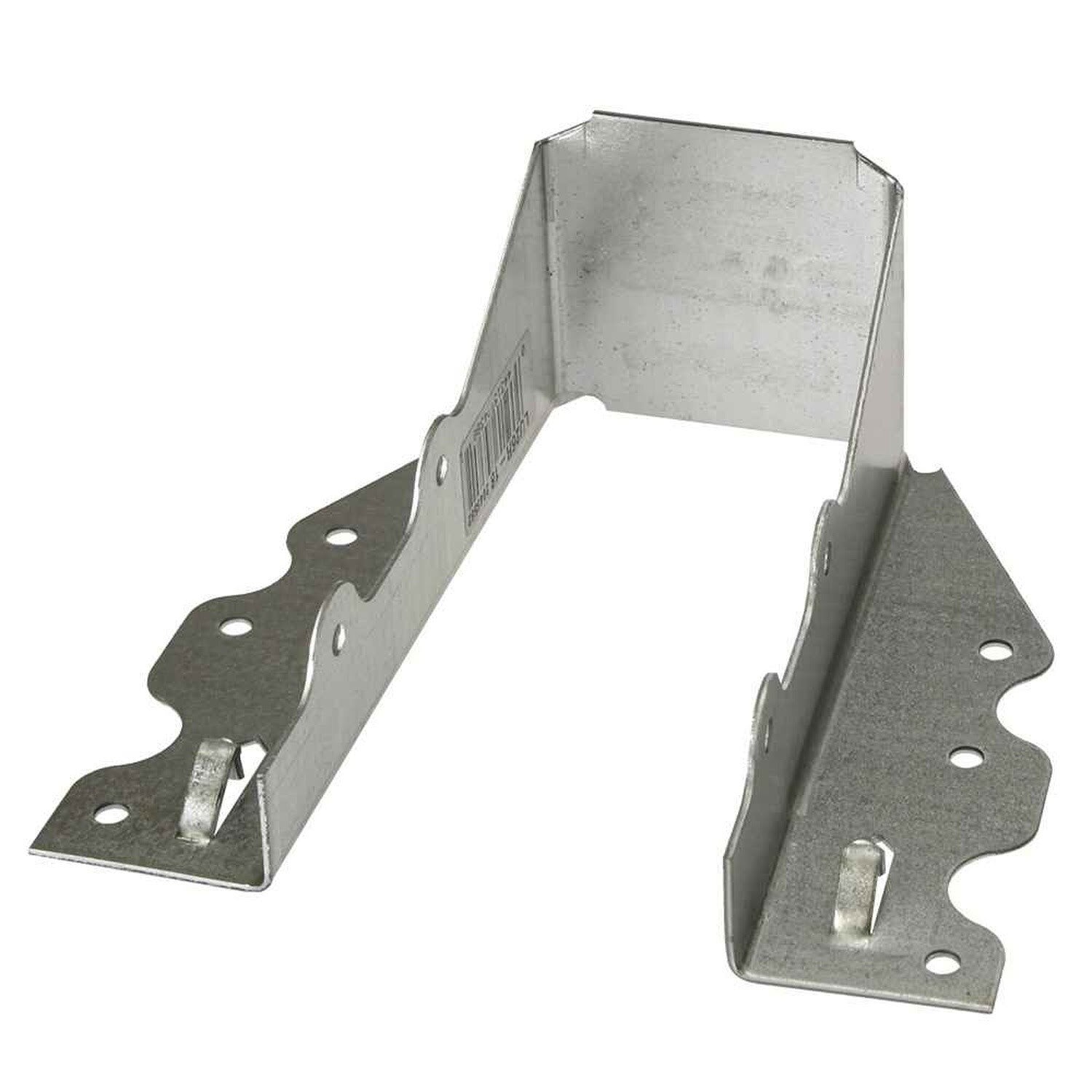

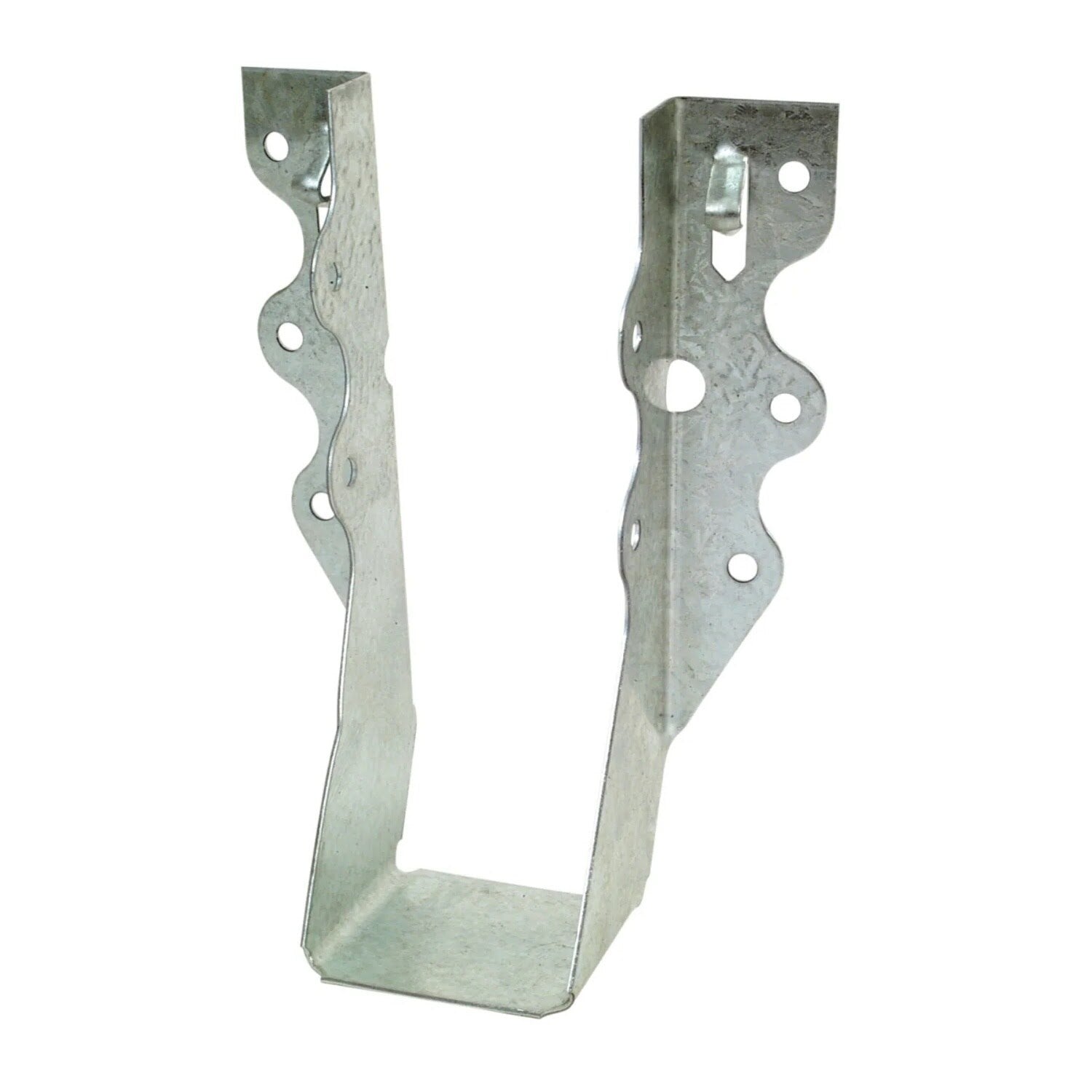

The Simpson LU26R-18 Rough Cut 2x6 Face Mount Joist Hanger is designed for rough cut lumber, providing strong and reliable connections with a G90 galvanized finish for durability.
Simpson Strong-Tie LU26R-18 Includes
- (1) Rough Cut 2x6 Face Mount Joist Hanger
Simpson Strong-Tie LU26R-18 Features
- Optimized for rough cut lumber
- Heavy-duty performance with corrosion-resistant coating
- Face-mount installation for enhanced stability
Simpson Strong-Tie LU26R-18 Applications
- Timber framing: Ensures a secure fit for rough cut beams and joists in traditional timber construction.
- Deck framing: Provides a strong connection for oversized joists in custom or rustic deck builds.
- Barn and agricultural structures: Ideal for rough cut lumber used in barn framing and other heavy-duty applications.
- Custom woodworking projects: Supports structurally sound connections in handcrafted and specialized wood structures.
Simpson Strong-Tie LU26R-18 Installation Overview
- Use specified nails or screws recommended by the manufacturer.
- Ensure the hanger is positioned correctly for rough cut lumber.
- Fully drive all fasteners into the joist and header for maximum strength.
Simpson Strong-Tie LU26R-18 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (6) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 4-9/16" |
| Joist size | 2" X 6" Rough |
| Thickness | 18 Gauge |
| Width | 2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
