Simpson Hangers | SKU: LU28 | Barcode: 044315680601

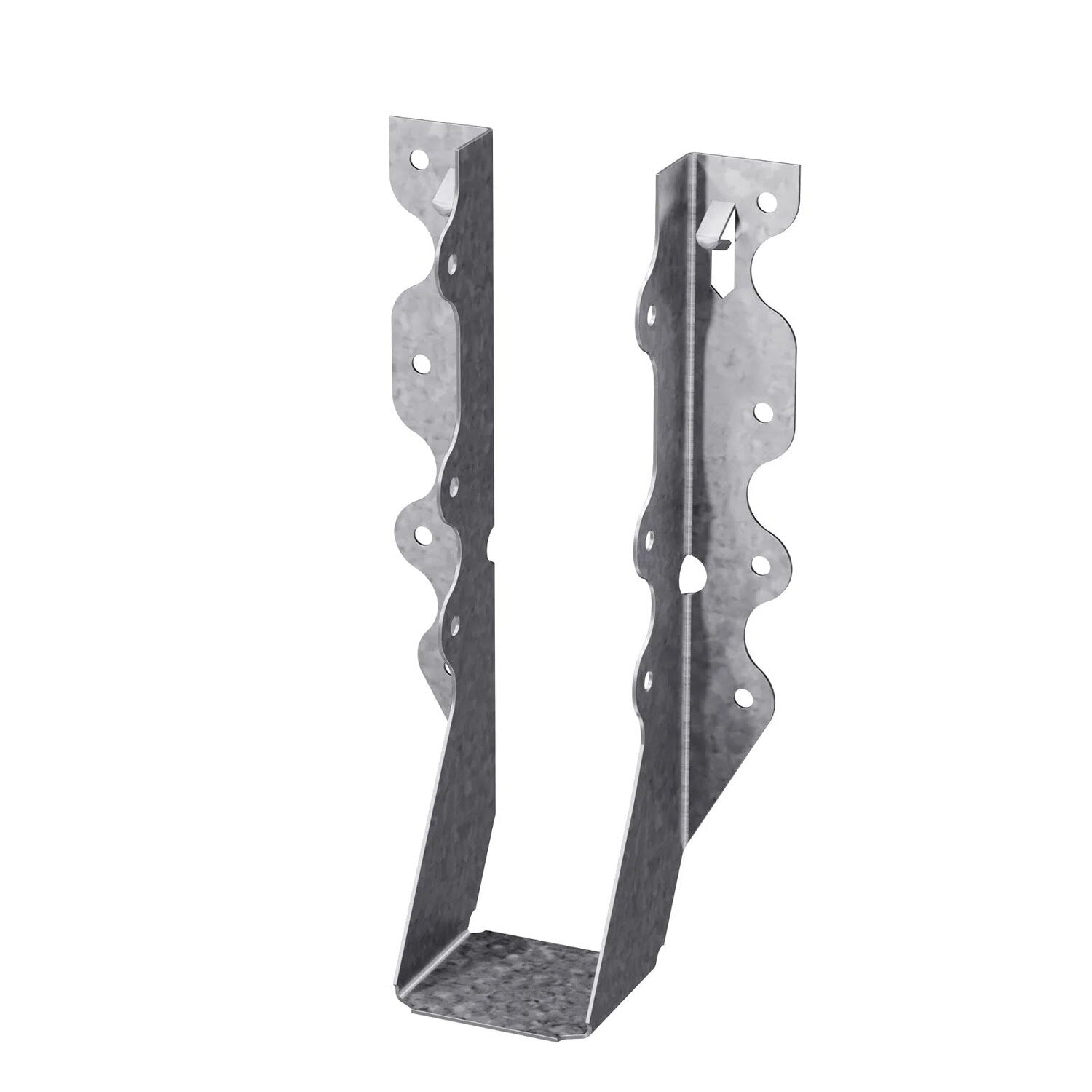

Simpson Strong-Tie LU28 (2" x 8") Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie LU28 (2" x 8") Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 683332
Price: 1.22 USD
Availability: InStock

$1.22 ~~$1.76~~

Description

Simpson LU28 Description

The Simpson LU28 Galvanized Face-Mount Joist Hanger is engineered for standard dimensional lumber, ensuring a strong and reliable connection between joists and headers.

Simpson LU28 Includes

(1) Galvanized Face-Mount Joist Hanger for 2x8

Simpson LU28 Features

Designed for Nominal Lumber: Optimized for use with standard-sized dimensional lumber.

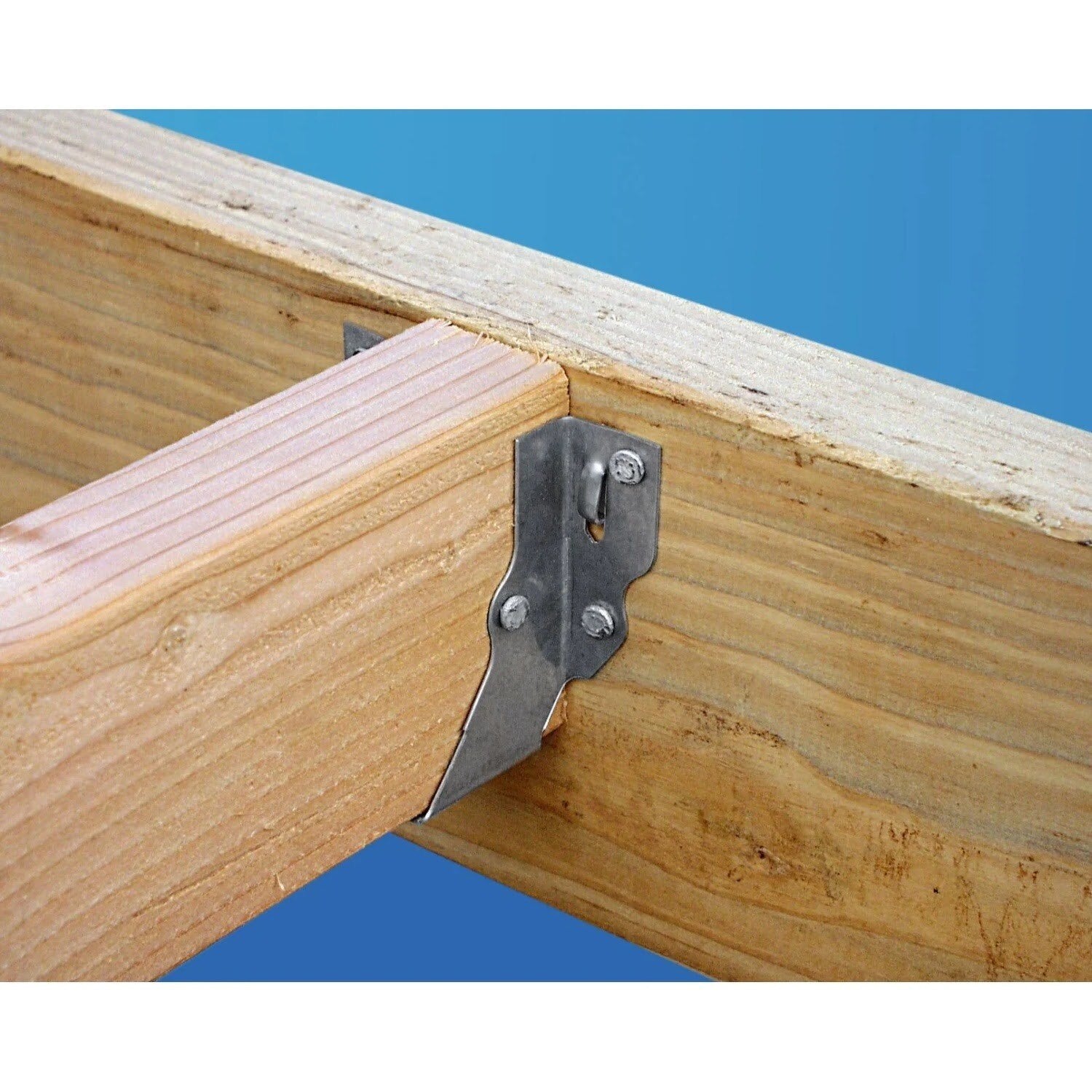

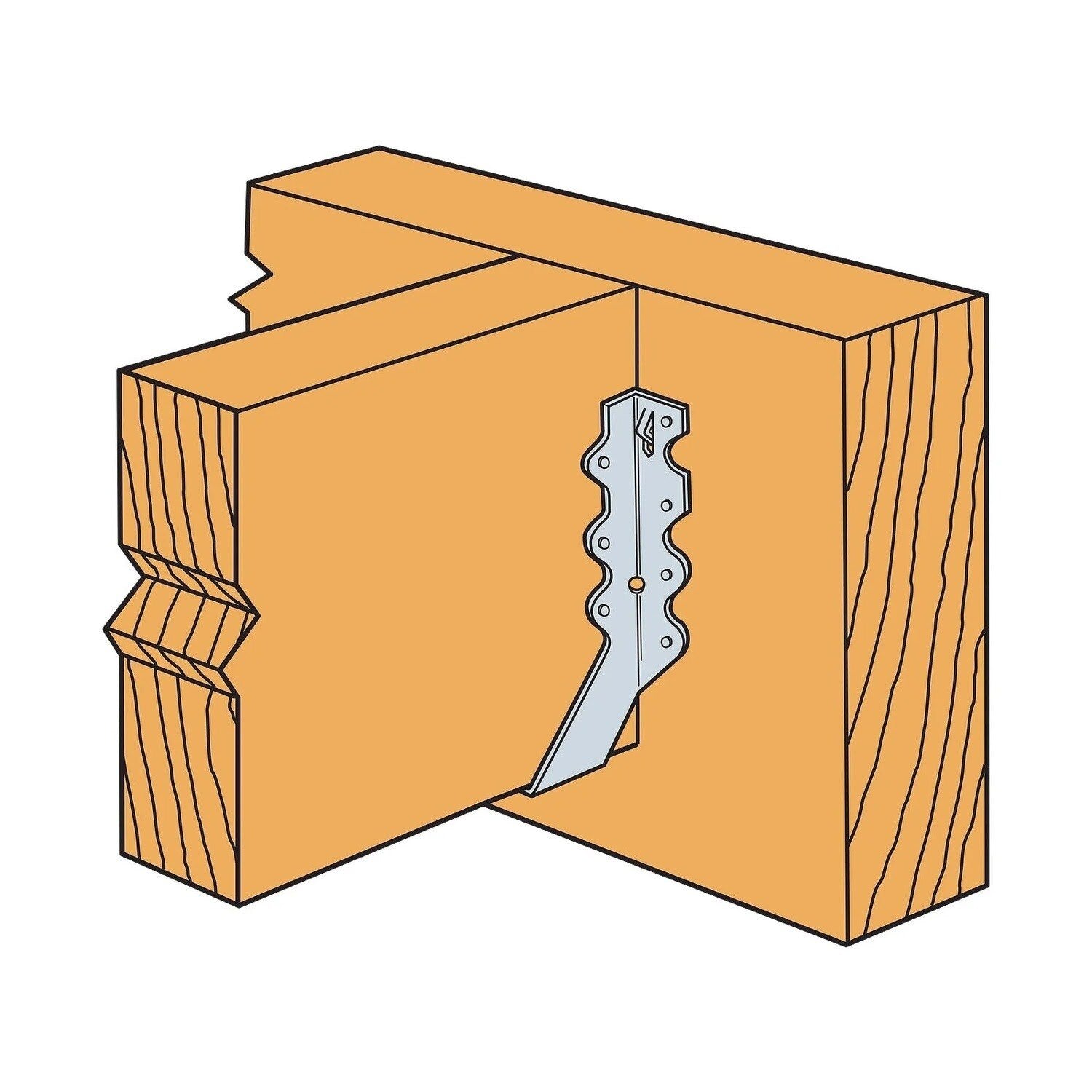

Face-Mount Installation: Provides a secure connection between joists and headers.
Durable Construction: Made from high-quality steel with corrosion-resistant coatings.
Speed Prongs: Built-in prongs help position the hanger for faster and more precise installations.

Simpson LU28 Applications

Deck Framing: Provides critical support for deck joists, ensuring a stable and long-lasting structure.
Floor Joist Connections: Securely fastens floor joists to headers for improved load-bearing capacity.
Roof Framing: Strengthens roof structures by connecting joists and rafters to beams.
General Wood Construction: Ideal for any light framing project that requires a dependable joist-to-header connection.

Simpson LU28 Installation Overview

Fastener Requirements: Use the manufacturer’s recommended nails or screws for optimal performance and load capacity.
Proper Placement: Ensure the hanger is aligned with the joist and securely attached to the header before fastening.
Full Fastener Installation: Drive all required fasteners completely into place to maintain structural integrity.

Simpson LU28 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (8) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	6-3/8"
Joist size	2" X 8"
Thickness	20 Gauge
Width	1-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
