Simpson Hangers | SKU:
LU28R-18
Simpson Strong-Tie LU28R-18 (2" x 8") Rough Cut Face Mount Joist Hanger - G90 Galvanized
$6.09
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LU28R-18 Description

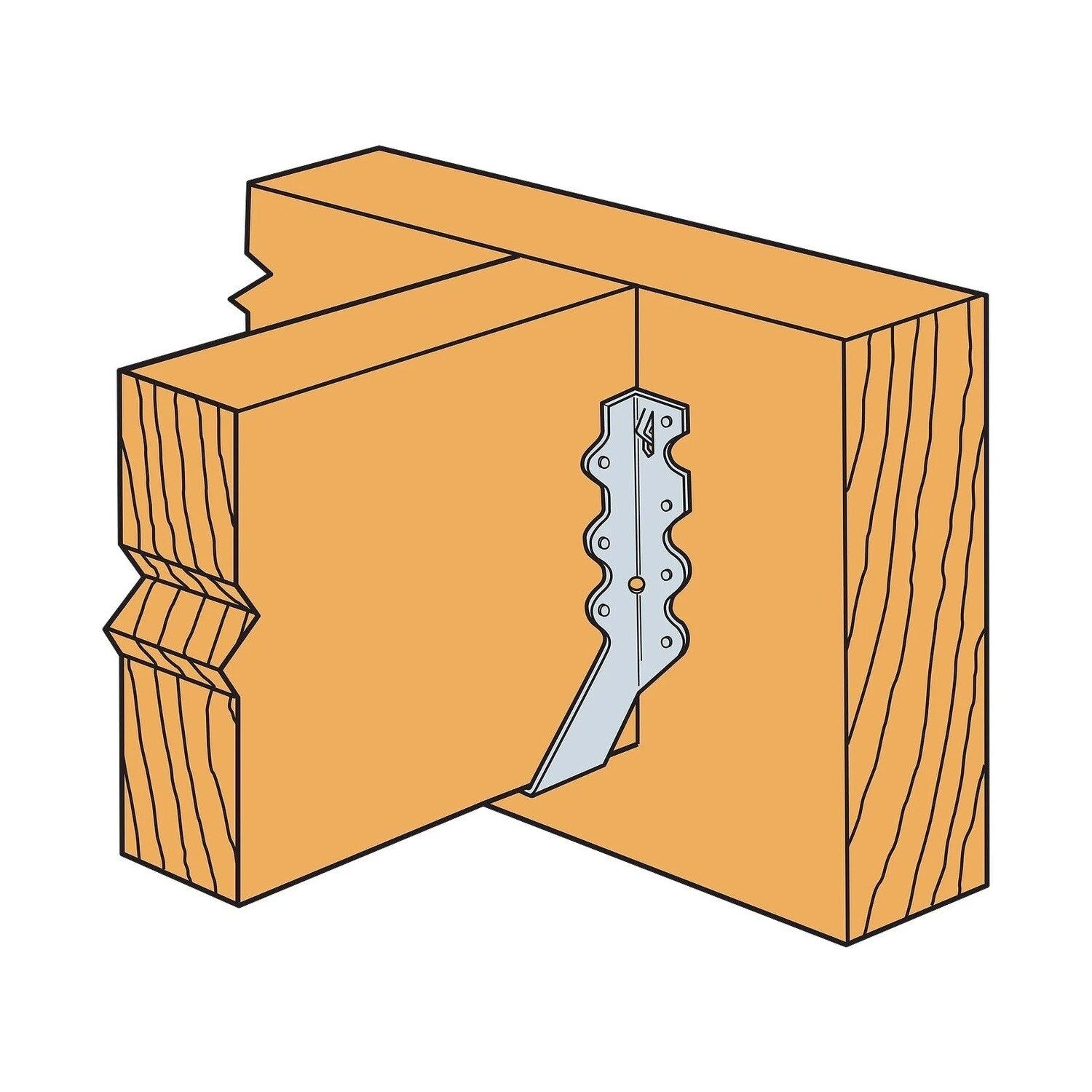

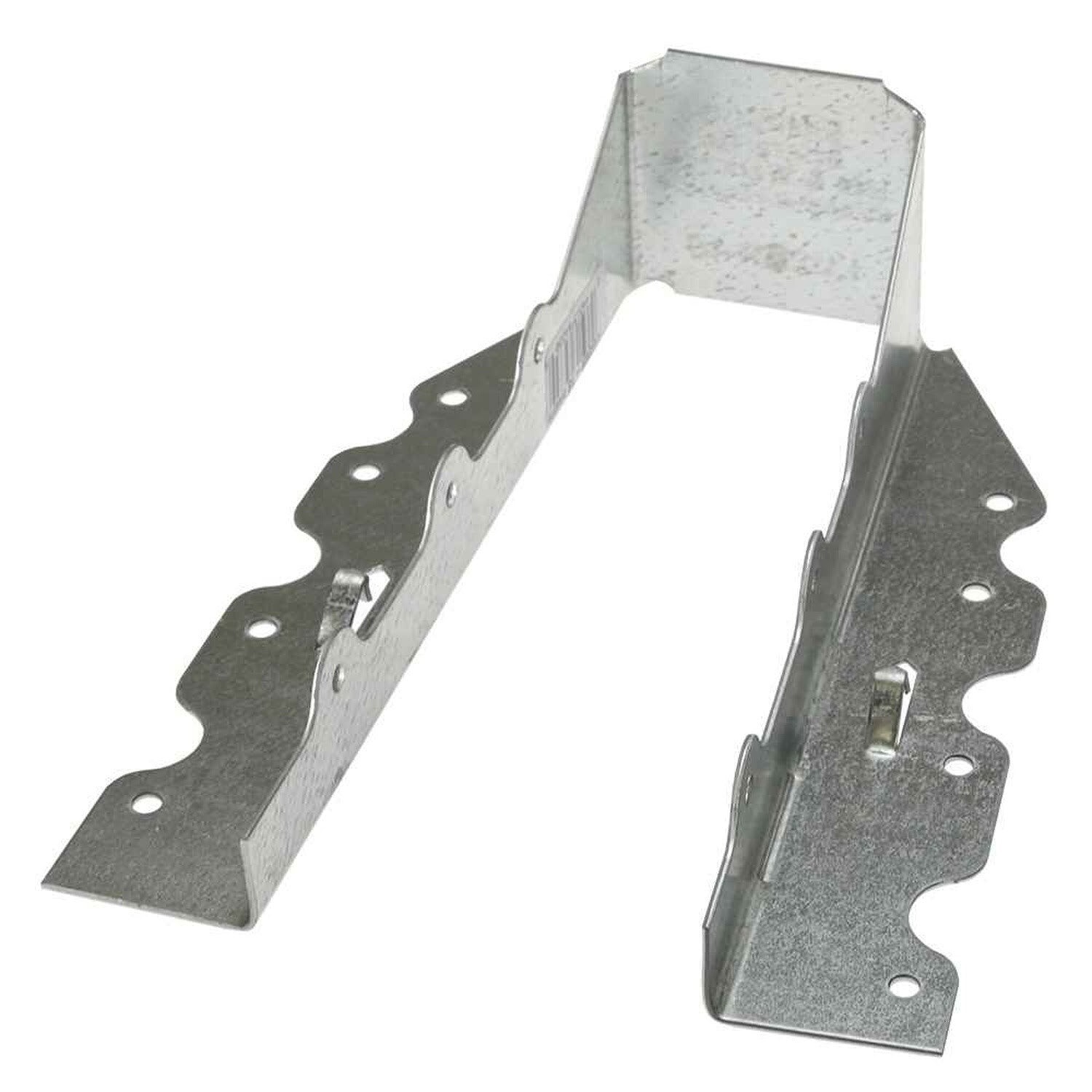

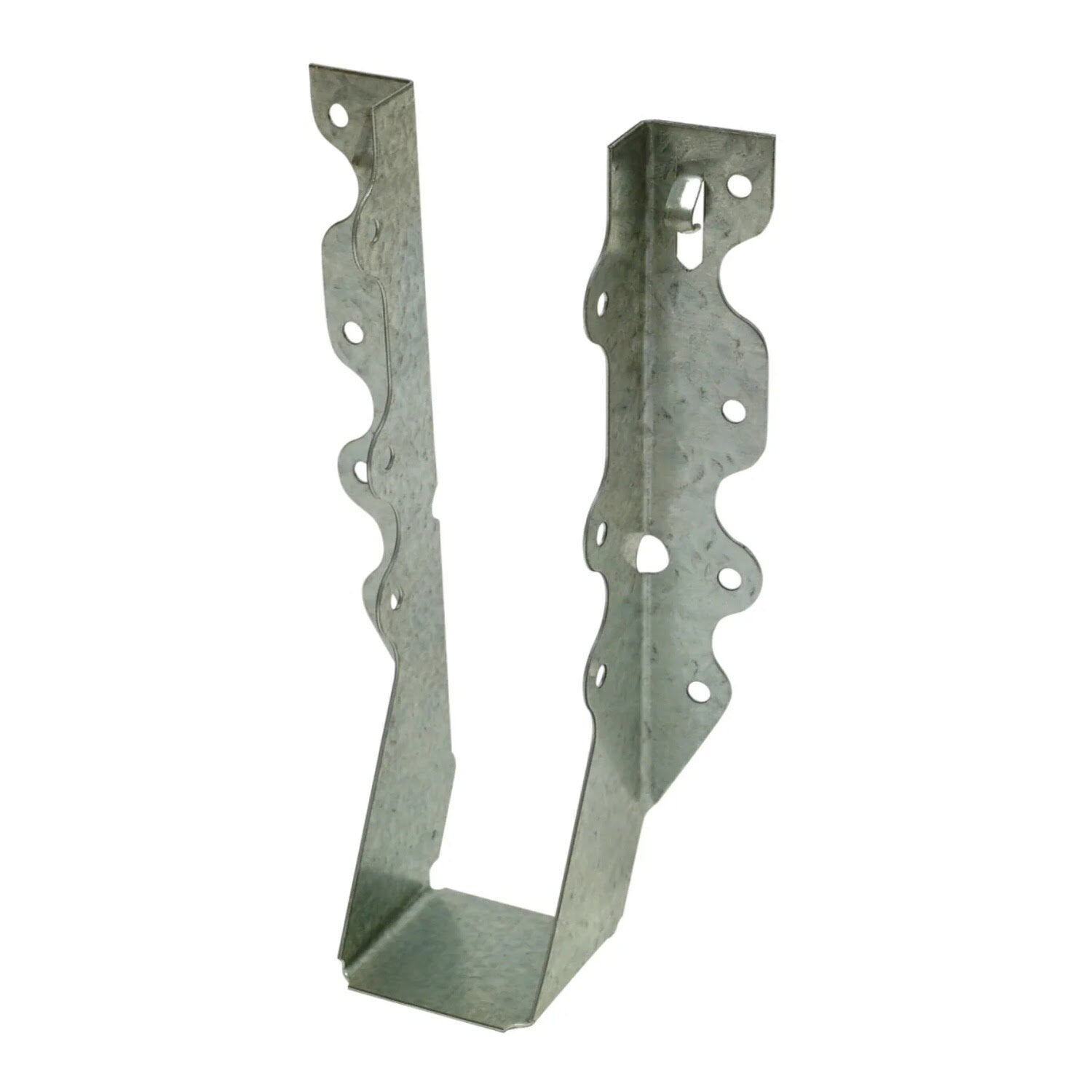

The Simpson LU28R-18 Rough Cut 2x8 Face Mount Joist Hanger is designed for rough cut lumber, providing strong and reliable connections for various structural applications.
Simpson Strong-Tie LU28R-18 Includes
- (1) Rough Cut 2x8 Face Mount Joist Hanger
Simpson Strong-Tie LU28R-18 Features
- Optimized for rough cut lumber
- Heavy-duty performance with corrosion-resistant coating
- Face-mount installation for enhanced structural stability
Simpson Strong-Tie LU28R-18 Applications
- Timber framing for rough cut beams and joists
- Deck framing for custom or rustic builds
- Barn and agricultural structures using rough cut lumber
- Custom woodworking projects requiring strong connections

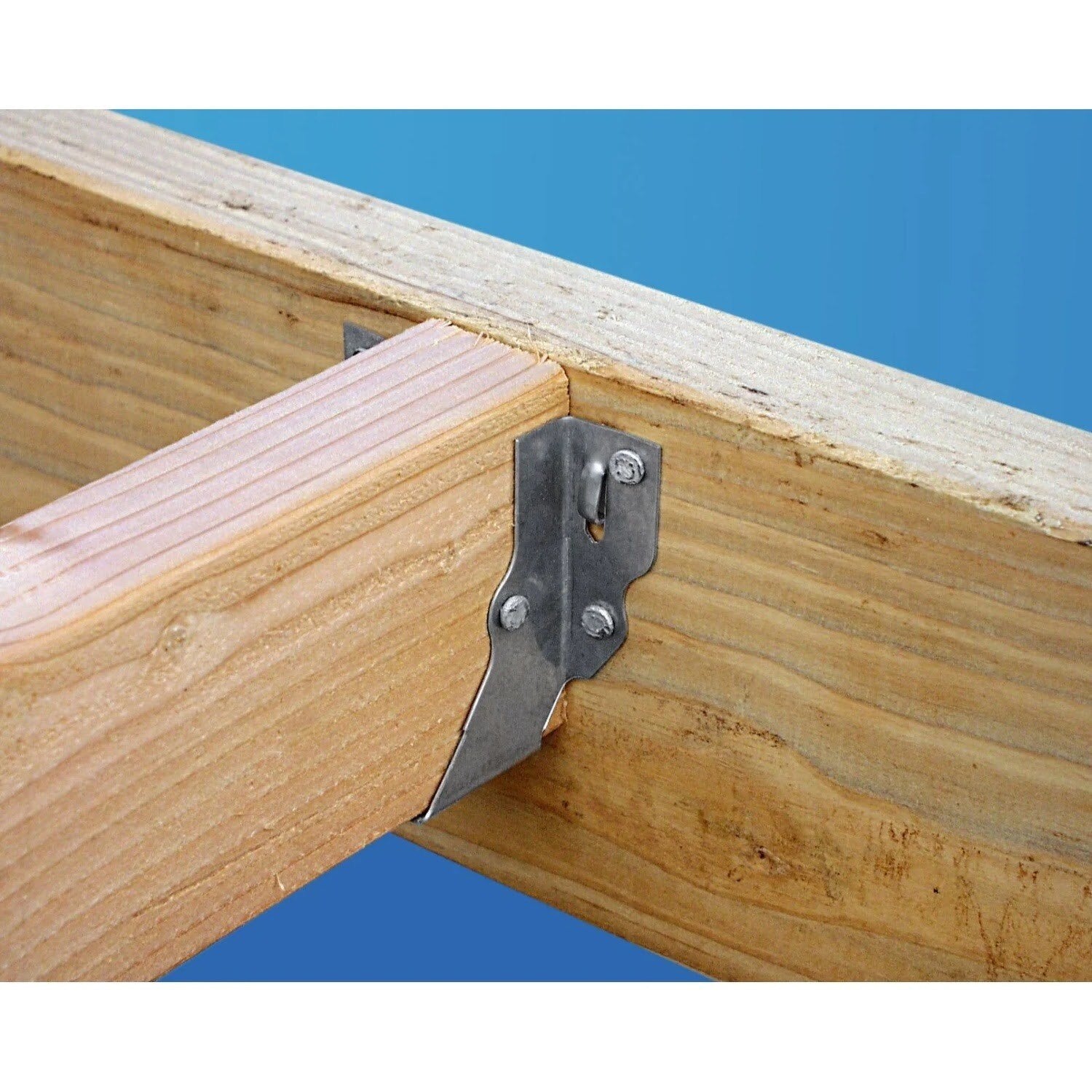

Simpson Strong-Tie LU28R-18 Installation Overview
- Use specified nails or screws for required load capacities
- Position hanger correctly for rough cut lumber dimensions
- Fully drive all fasteners into joist and header for maximum strength
Simpson Strong-Tie LU28R-18 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 6-3/8" |
| Joist size | 2" X 8" Rough |
| Thickness | 18 Gauge |
| Width | 2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
