Simpson Hangers | SKU:
LUC210SS

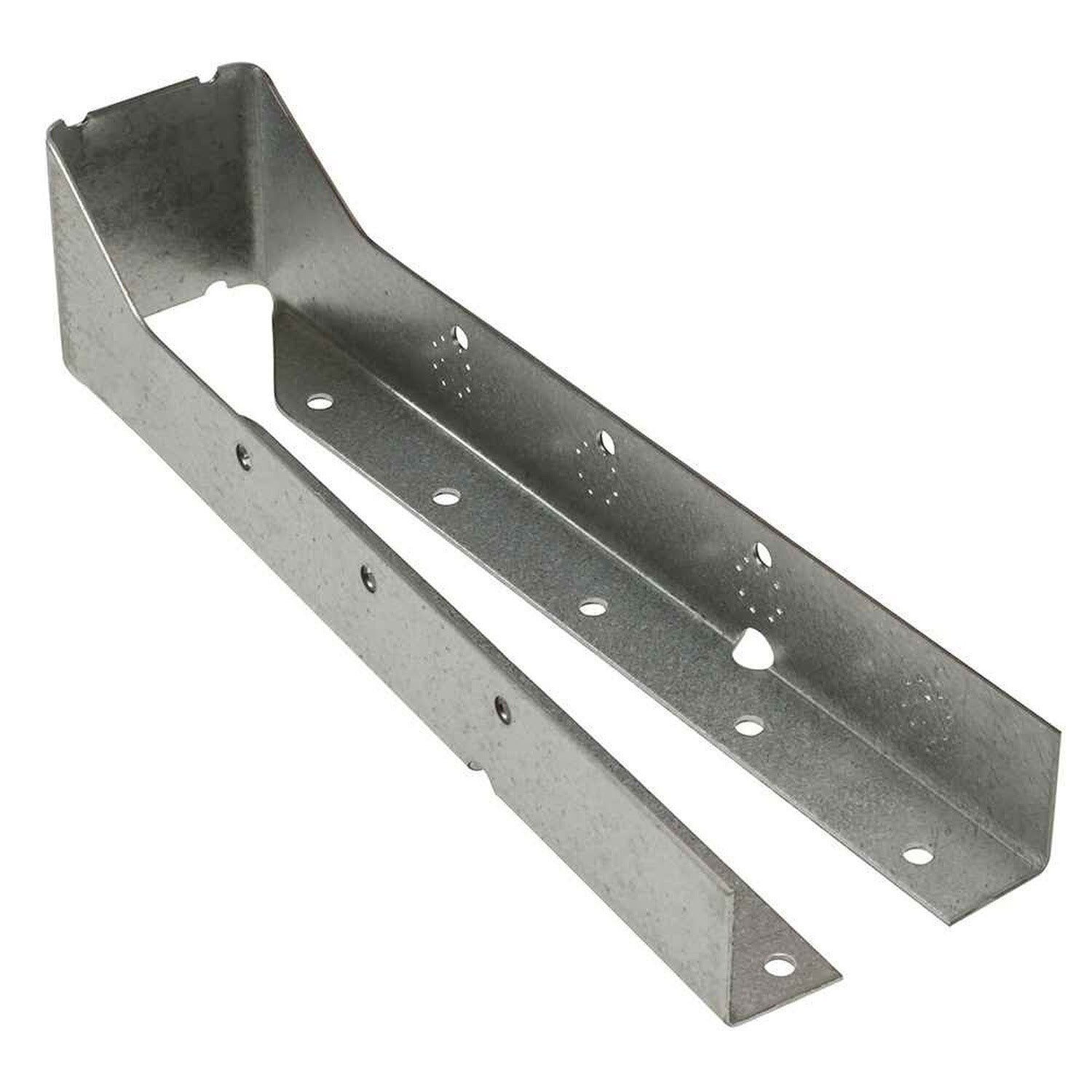

Simpson Strong-Tie LUC210SS Stainless-Steel Face-Mount Concealed-Flange Joist Hanger for 2x10
$37.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUC210SS Description
The Simpson Strong-Tie LUC Concealed Flange Stainless Steel Light Face-Mount Joist Hanger is engineered for superior durability in high-moisture and corrosive environments. Constructed from high-quality stainless steel, this hanger provides exceptional resistance to rust and deterioration, making it an ideal choice for coastal, marine, and chemically treated wood applications.
Simpson Strong-Tie LUC210SS Includes
- (1) Stainless-Steel Face-Mount Concealed-Flange Joist Hanger for 2x10
Simpson Strong-Tie LUC210SS Features
- Stainless Steel Construction: Provides superior corrosion resistance for coastal, marine, and chemically treated wood applications.
- Concealed Flange Design: Allows for a clean, professional look with enhanced versatility.
- Strong Face-Mount Connection: Ensures a durable and secure hold for wood-to-wood framing.
- Long-Lasting Durability: Ideal for environments exposed to moisture, salt, or harsh chemicals.
- Versatile Compatibility: Suitable for various framing configurations, from decks to structural supports.
Simpson Strong-Tie LUC210SS Applications
- Coastal & Marine Construction: Withstands exposure to saltwater, humidity, and coastal weather conditions.
- Pressure-Treated Lumber: Prevents corrosion when used with ACQ, CA, or MCQ-treated wood.
- Outdoor Deck Framing: Ensures long-lasting performance in decks exposed to rain and humidity.
- Pergolas & Gazebos: Maintains structural integrity in outdoor structures.

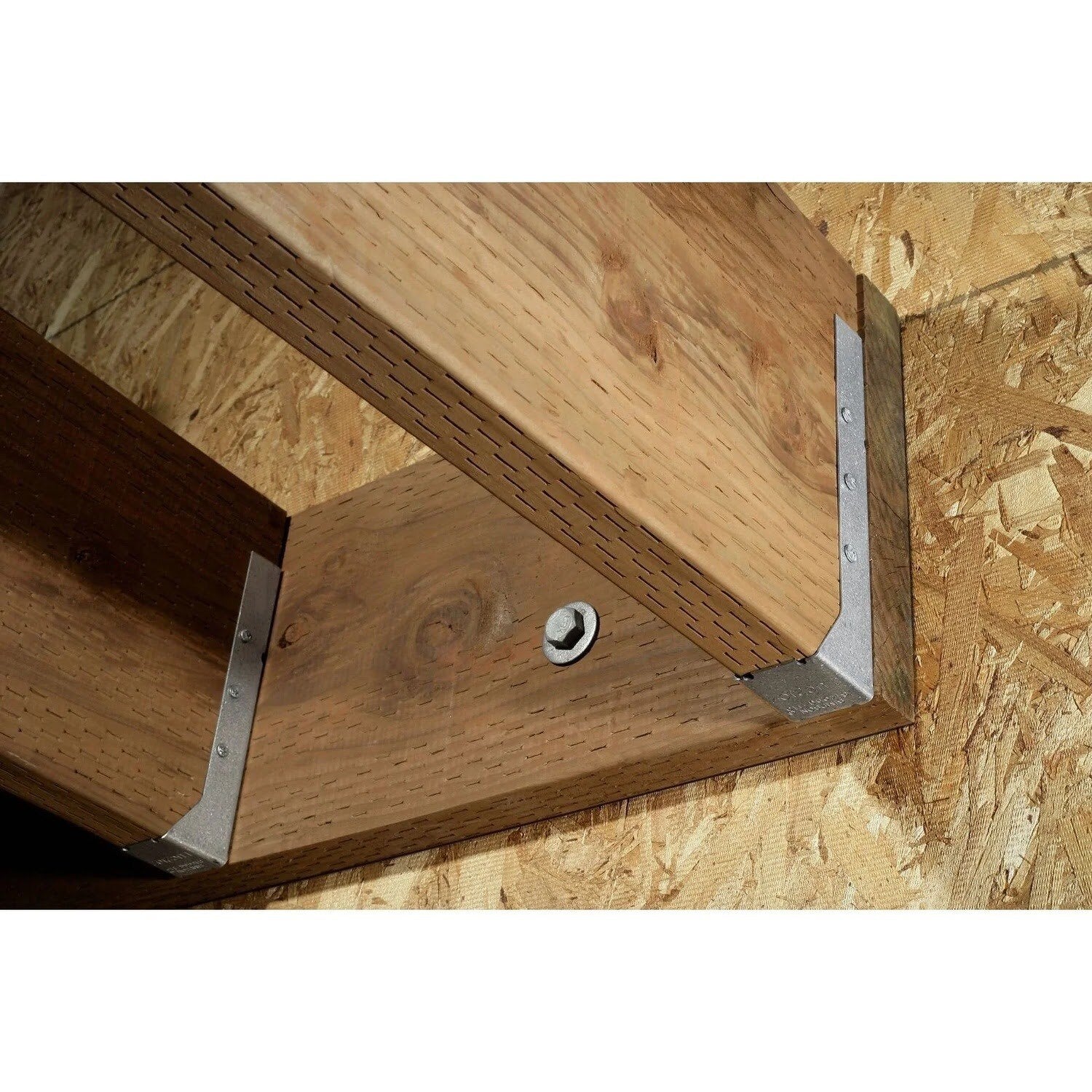

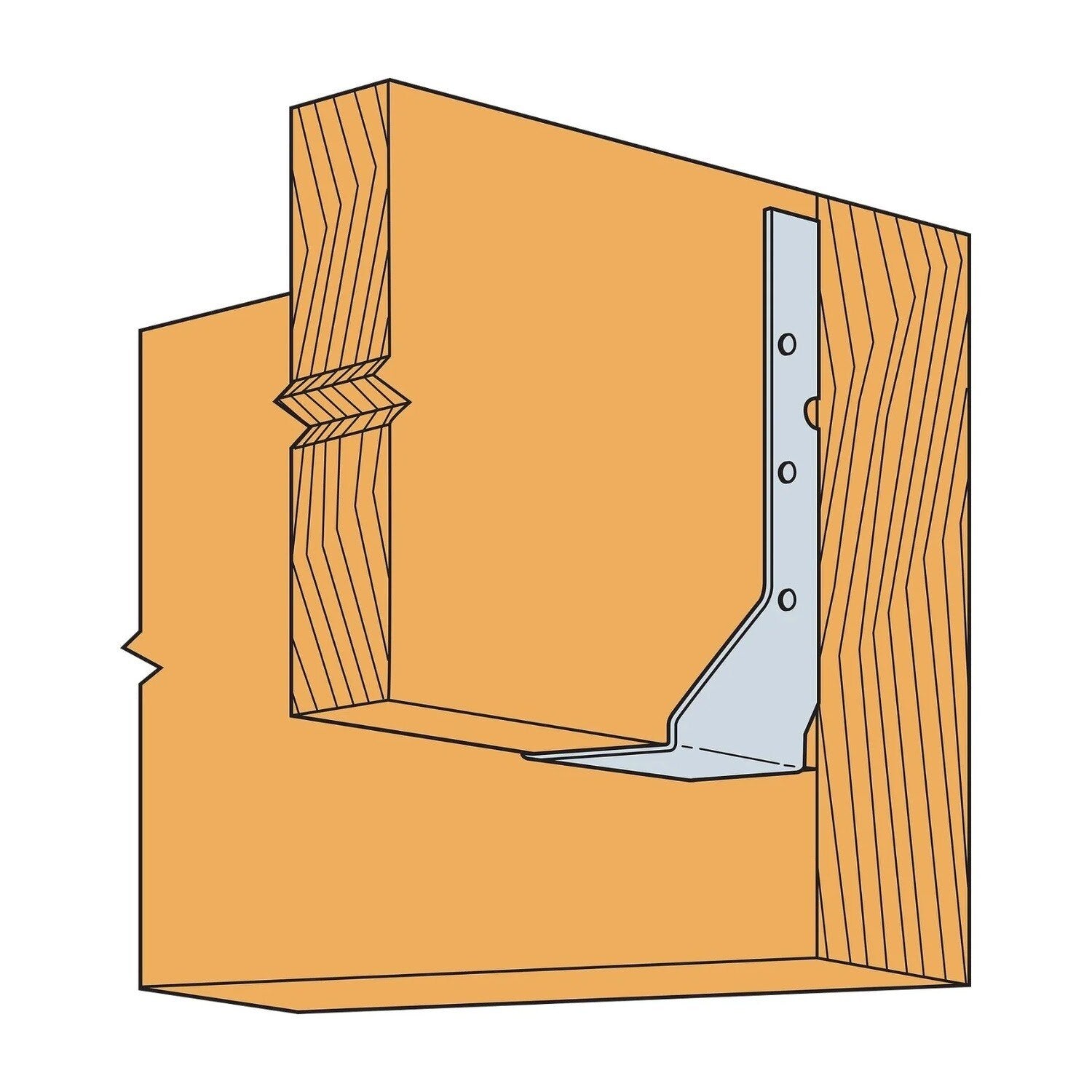

Simpson Strong-Tie LUC210SS Installation Overview
- Use stainless steel nails or Simpson Strong-Tie stainless steel structural screws to maintain corrosion resistance and structural integrity.
- Flush Fit: Ensure the joist hanger is properly seated against the header for optimal load distribution.
- Nail Pattern: Drive nails or screws into all pre-punched holes to achieve the full listed load capacity.
- Material Compatibility: Designed specifically for pressure-treated lumber, coastal applications, and environments requiring enhanced corrosion resistance.
Simpson Strong-Tie LUC210SS Specifications
| Material | Stainless Steel |
| Fasteners required | Header - (10) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 7-3/4" |
| Joist size | 2" X 10" |
| Thickness | 21 Gauge |
| Width | 1-9/16" |
