Simpson Hangers | SKU:
LUS210-2SS

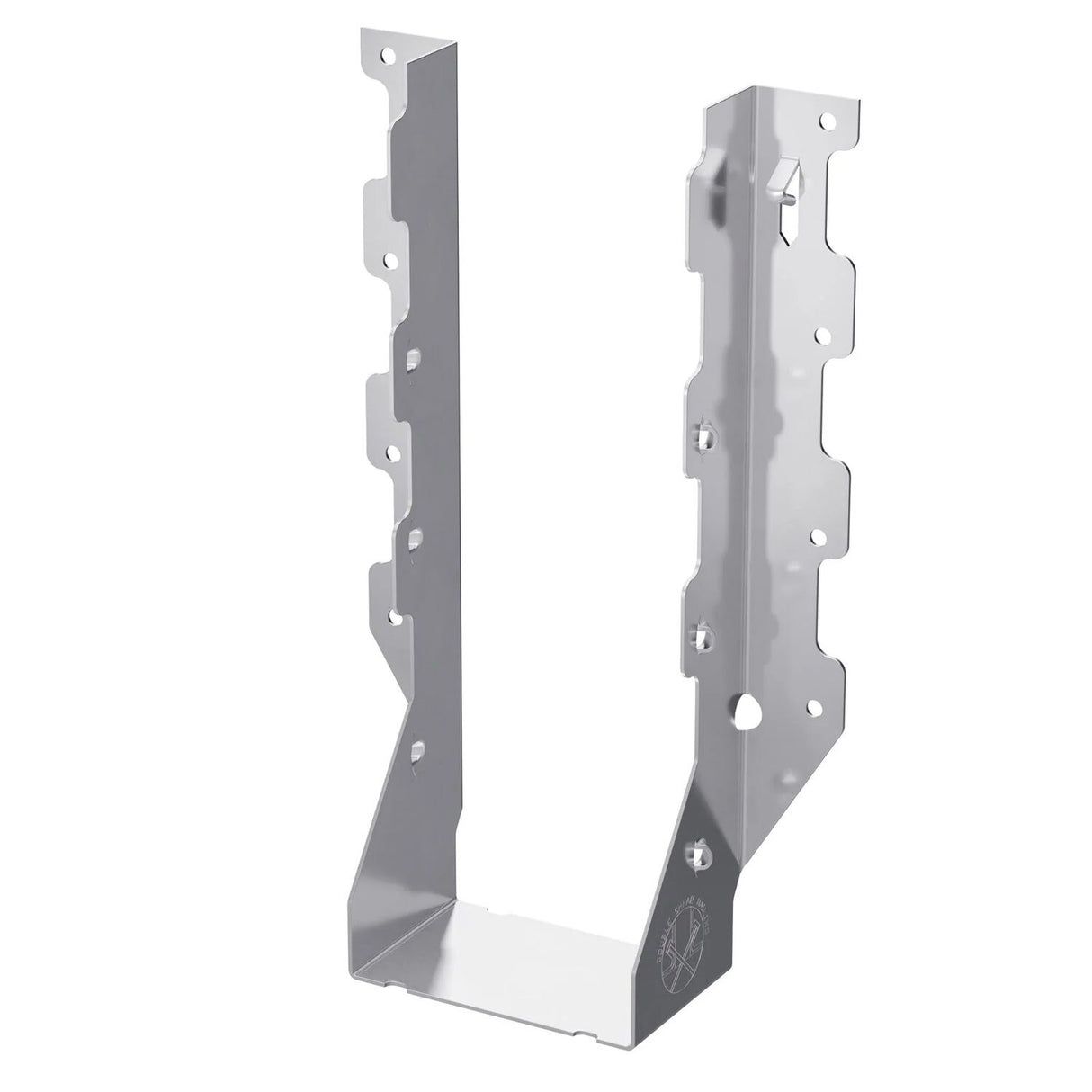

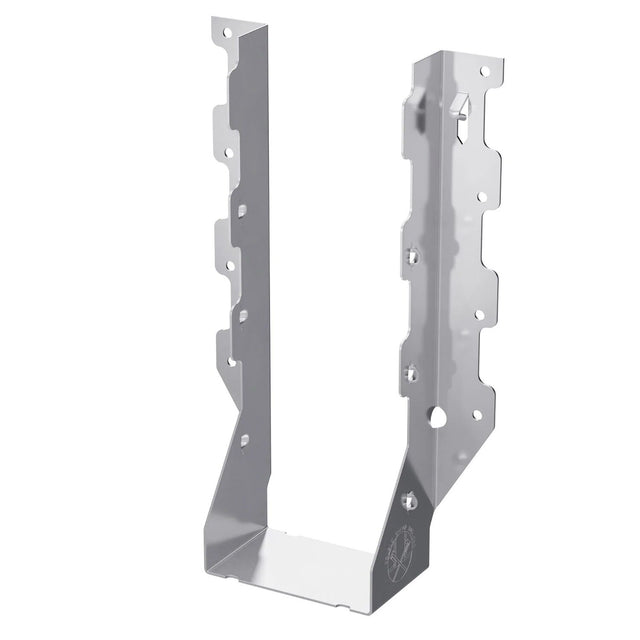

Simpson Strong-Tie LUS210-2SS (Double 2" x 10") Stainless-Steel Face-Mount Joist Hanger
$23.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUS210-2SS Description
The Simpson Strong-Tie LUS210-2SS Stainless Steel Face-Mount Joist Hanger provides exceptional corrosion resistance and structural strength for demanding construction environments.
Simpson Strong-Tie LUS210-2SS Includes
- (1) Stainless Steel Face-Mount Joist Hanger
Simpson Strong-Tie LUS210-2SS Features
- Superior corrosion resistance with Type 316 Stainless Steel
- Double-shear nailing for improved load distribution
- Tested and load-rated for solid sawn lumber and engineered wood
- Complies with building codes for reliable connections
Simpson Strong-Tie LUS210-2SS Applications

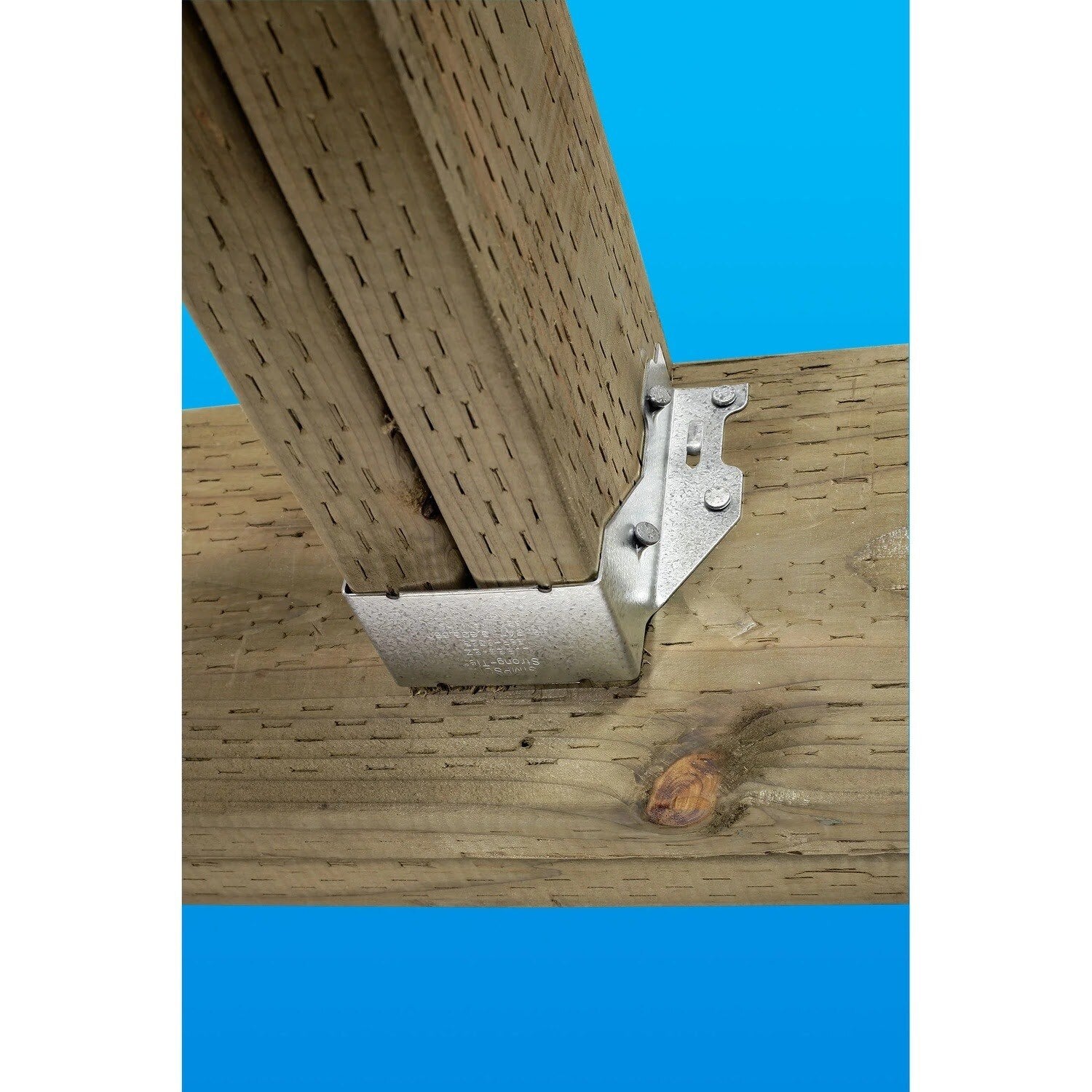

- Deck Framing: Provides strong, corrosion-resistant connections for joists and beams in outdoor decks.
- Roof Construction: Ensures secure attachment of rafters and ceiling joists.
- Pergolas & Outdoor Structures: Perfect for use in exposed wood structures.
- Marine & Dock Construction: Ideal for piers, docks, and marine applications.
- Pool Enclosures & Fencing: Reliable for securing framing components in high-humidity areas.
- General Wood Framing: Enhances structural integrity and longevity.

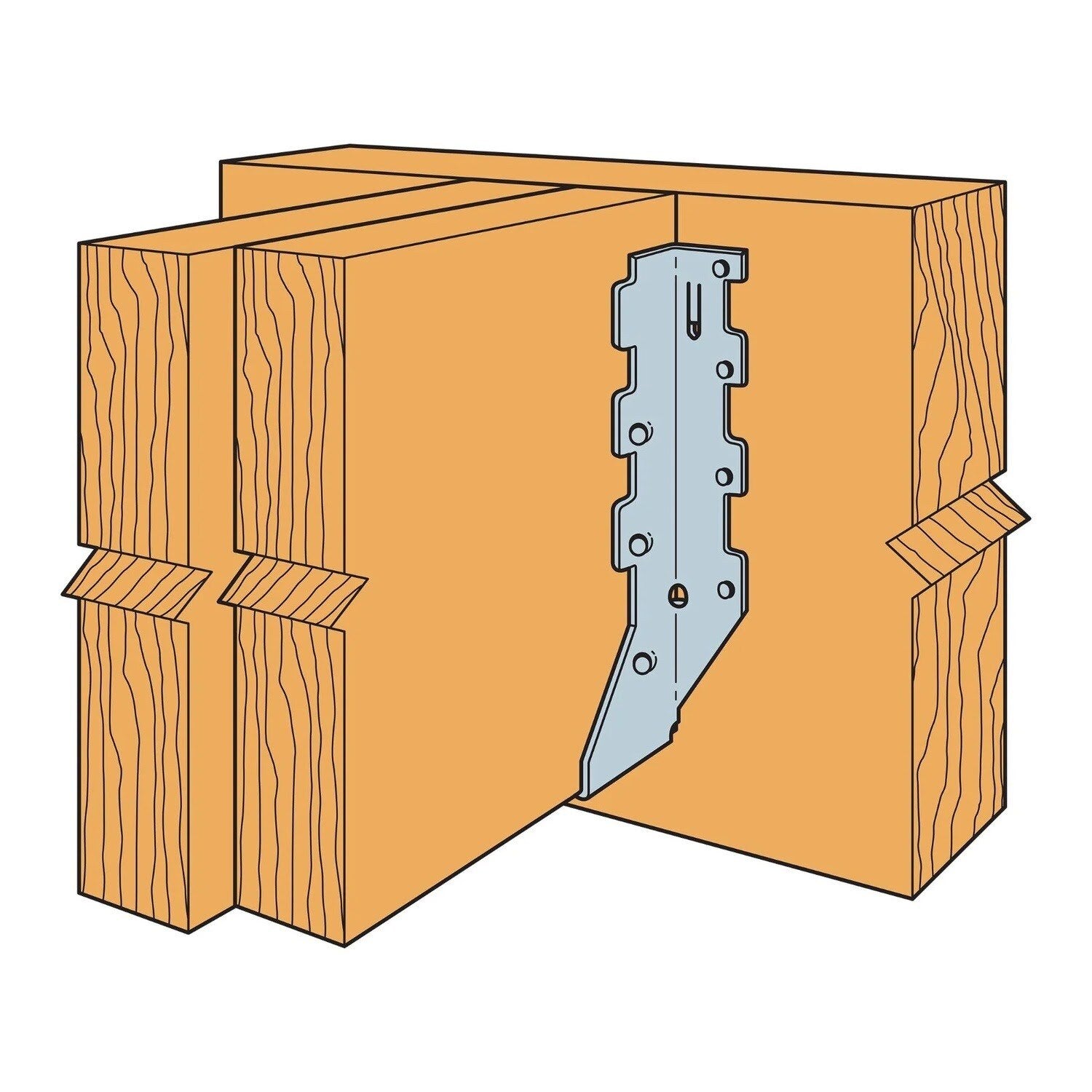

Simpson Strong-Tie LUS210-2SS Installation Overview
- Use Type 316 Stainless Steel nails or fasteners.
- Ensure proper nail placement to achieve the highest load capacity.
- Ideal for marine environments.
Simpson Strong-Tie LUS210-2SS Specifications
| Material | Stainless Steel |
| Fasteners required | Header - (8) 0.162 x 3-1/2" Nails, Joist - (6) 0.162 x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 9" |
| Joist size | Double 2" X 10" |
| Thickness | 18 Gauge |
| Width | 3-1/8" |
NOTE: Ensure proper nail placement to achieve the highest load capacity.
