Simpson Hangers | SKU:
LUS210-2Z
Simpson Strong-Tie LUS210-2Z (Double 2" x 10") ZMAX Galvanized Face-Mount Joist Hanger
$3.99
Unit price
/
Unavailable
Description
Description
Simpson LUS210-2Z Description

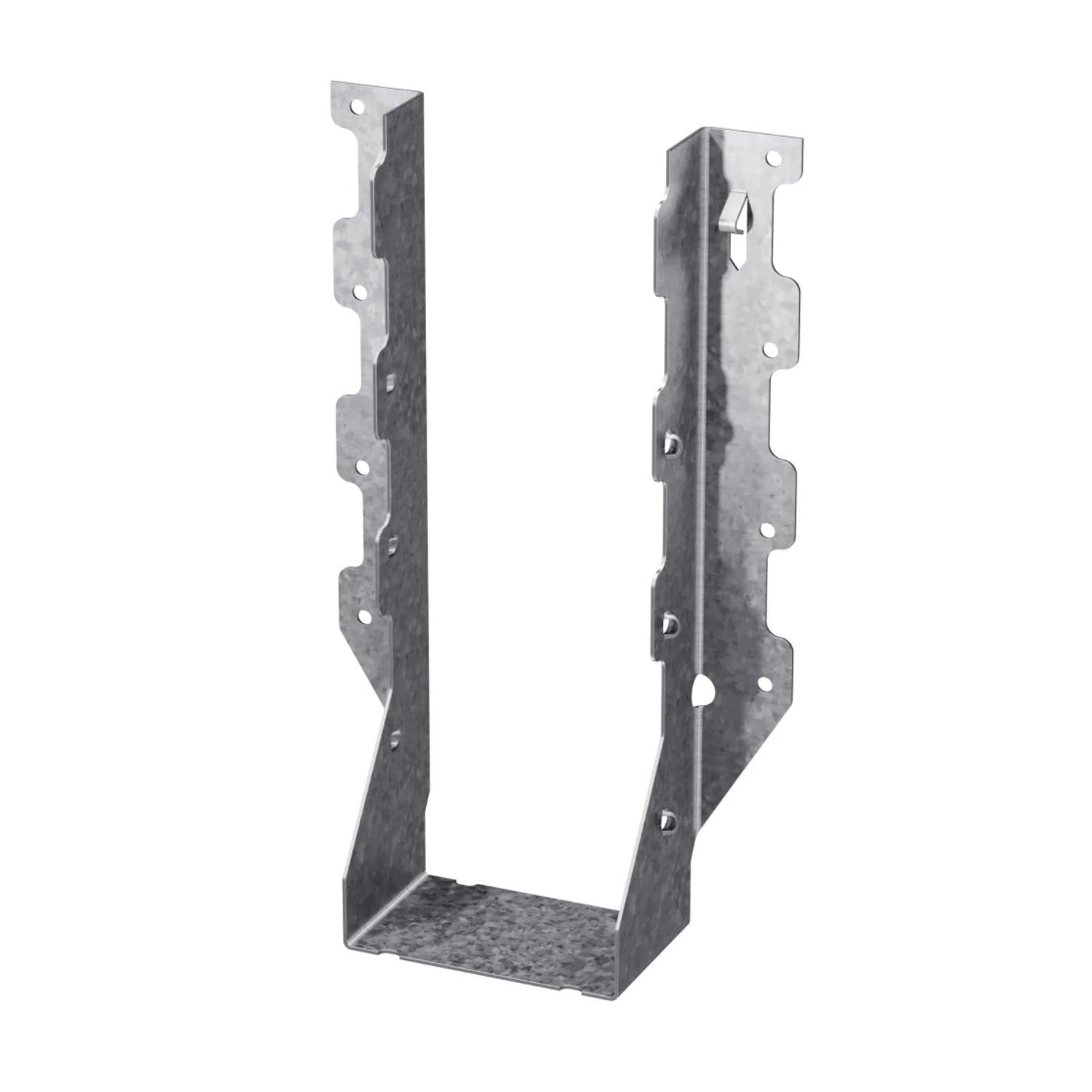

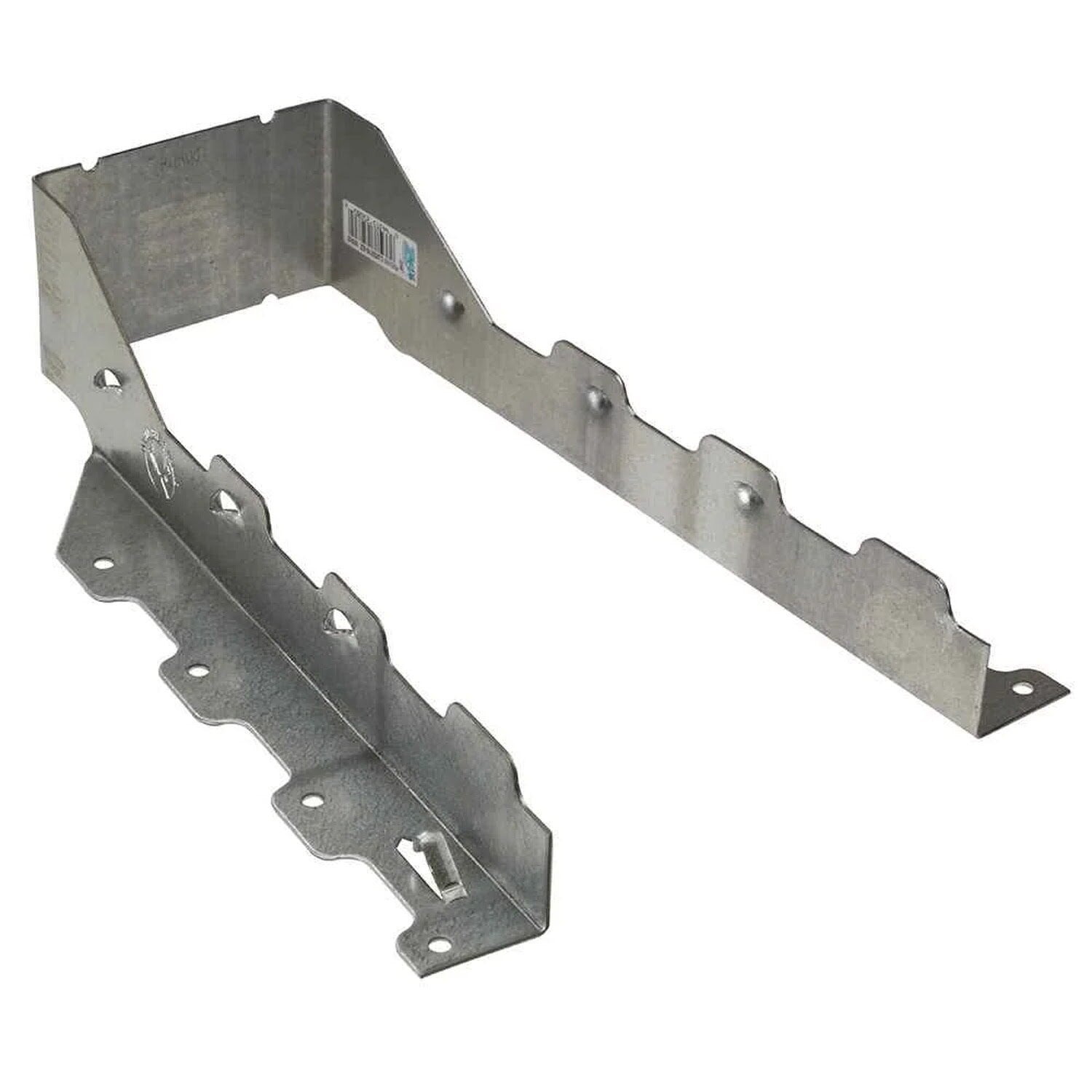

The Simpson Strong-Tie LUS210-2Z is a ZMAX galvanized face-mount joist hanger designed for double 2x10 lumber, offering superior corrosion resistance and structural integrity.
Simpson LUS210-2Z Includes
- (1) ZMAX Galvanized Face-Mount Joist Hanger for Double 2x10
Simpson LUS210-2Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson LUS210-2Z Applications

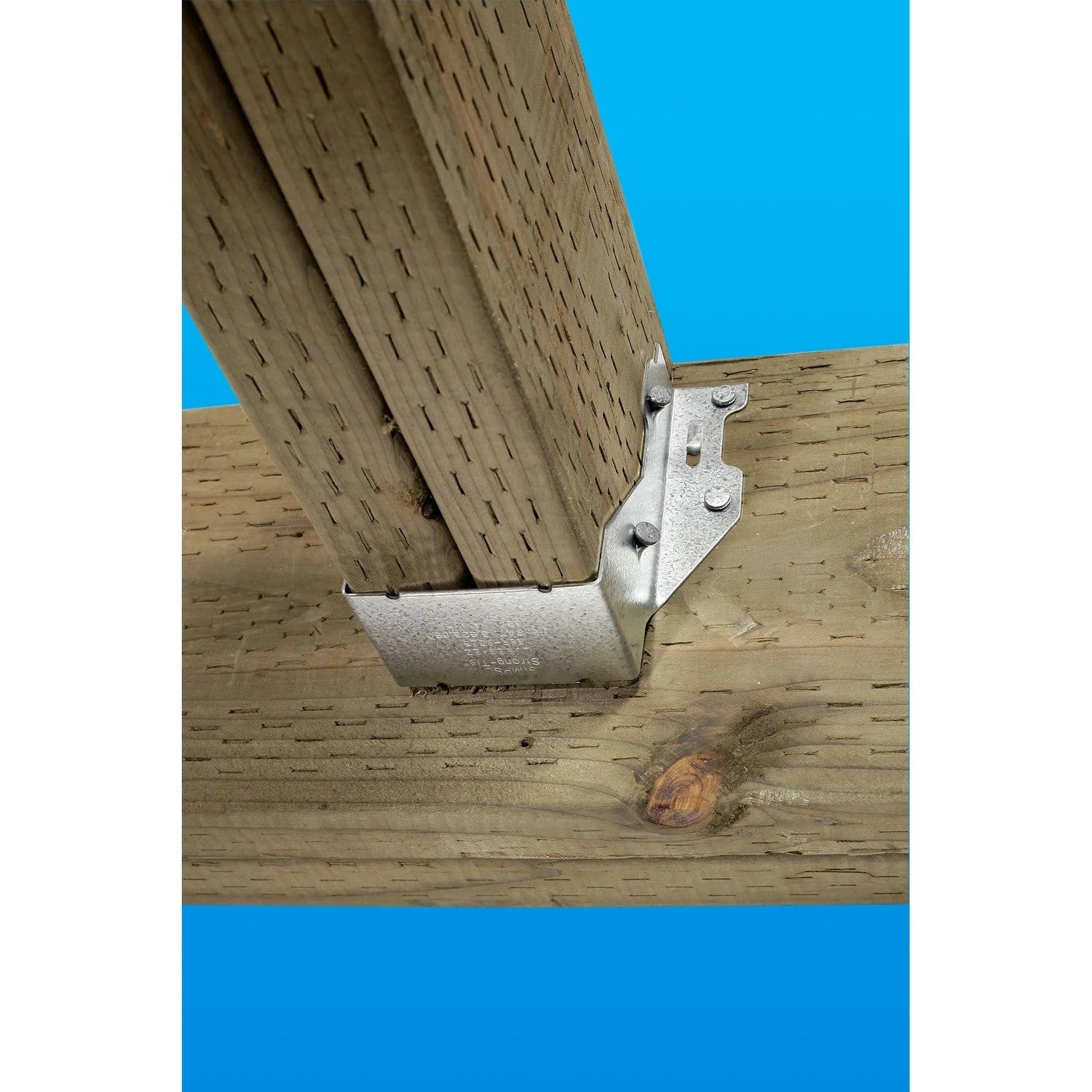

- Deck Framing: Securely fastens joists to beams for added structural support.
- Roofing Structures: Provides reliable connections for rafters and beams.
- Outdoor Wood Projects: Ideal for porches, gazebos, and other exterior constructions.

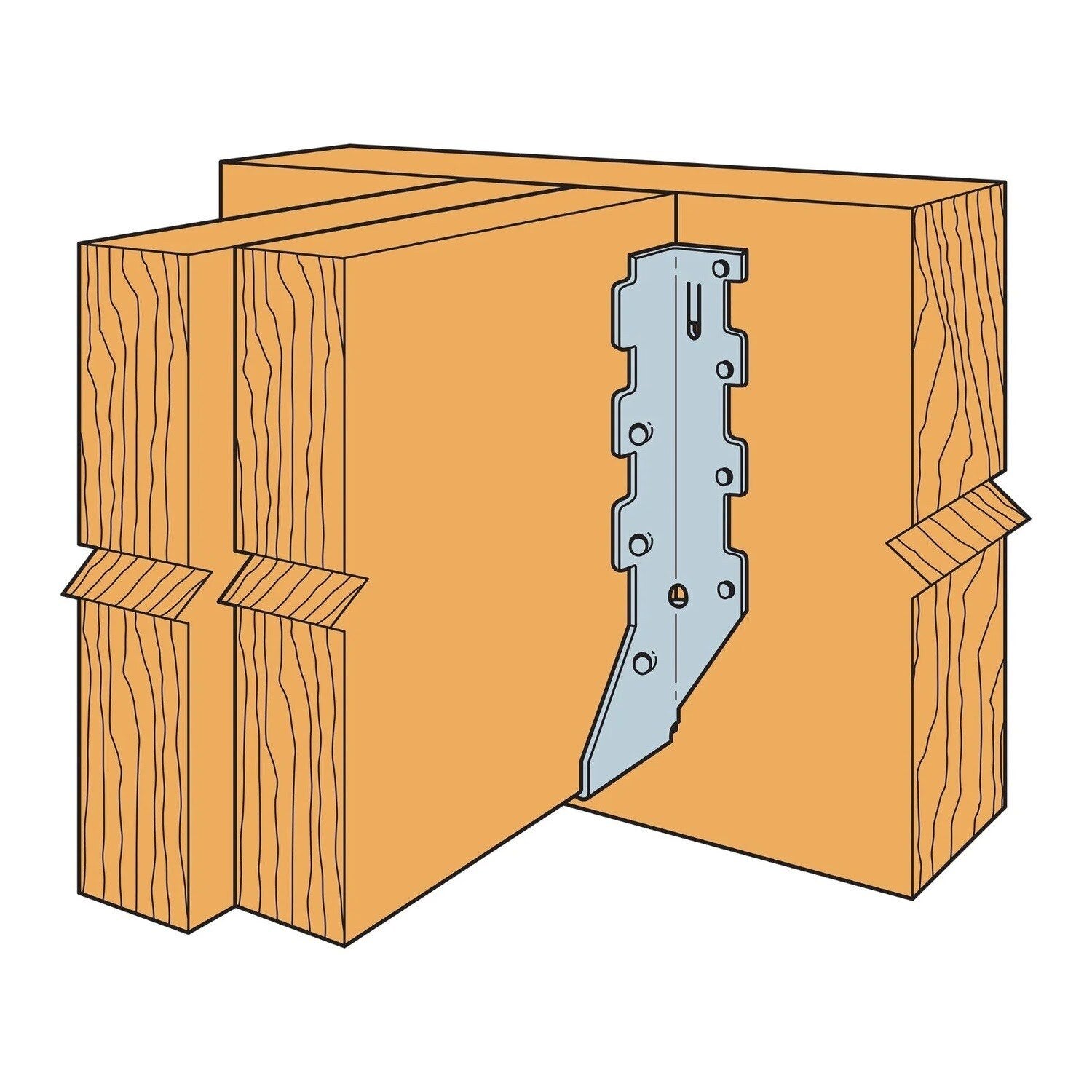

Simpson LUS210-2Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper alignment and secure fastening for structural integrity.
Simpson LUS210-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162 x 3-1/2" Nails OR (8) #9 x 1-1/2" SD Connector Screws; Joist - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 9" |
| Joist size | Double 2" X 10" |
| Thickness | 18 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
