Simpson Hangers | SKU:
LUS210-3Z
Simpson Strong-Tie LUS210-3Z (Triple 2" x 10") Face Mount Hanger ZMAX Finish
$8.37
Unit price
/
Unavailable
Description
Description
Simpson LUS210-3Z Description
The Simpson LUS210-3Z Triple 2x10 Face Mount Hanger features a ZMAX corrosion-resistant finish and double-shear nailing technology for enhanced strength and durability.
Simpson LUS210-3Z Includes
- (1) Triple 2x10 Face Mount Hanger
Simpson LUS210-3Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson LUS210-3Z Applications

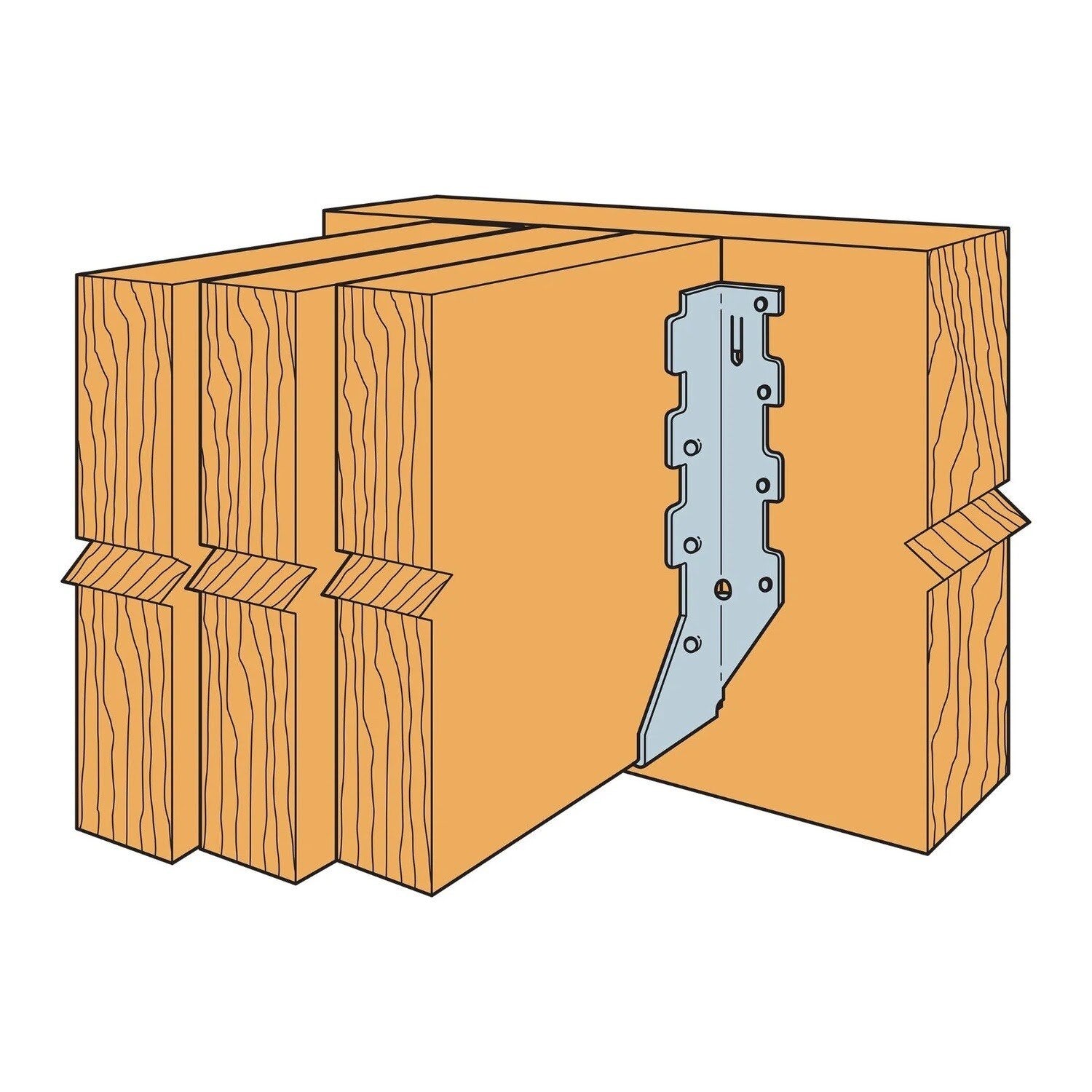

- Deck Framing: Securely fastens joists to beams for added structural support.
- Roofing Structures: Provides reliable connections for rafters and beams.
- Floor Framing: Ensures stability and strength in wood-framed floors.
- Outdoor Construction: Ideal for porches, gazebos, and other exterior wood structures.
Simpson LUS210-3Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper nail driving to enhance load distribution and structural security.
Simpson LUS210-3Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162 x 3-1/2" Nails OR (8) #9 x 1-1/2" SD Connector Screws; Joist - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 8-3/16" |
| Joist size | Triple 2" X 10" |
| Thickness | 18 Gauge |
| Width | 4-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
