Simpson Hangers | SKU:
LUS210Z

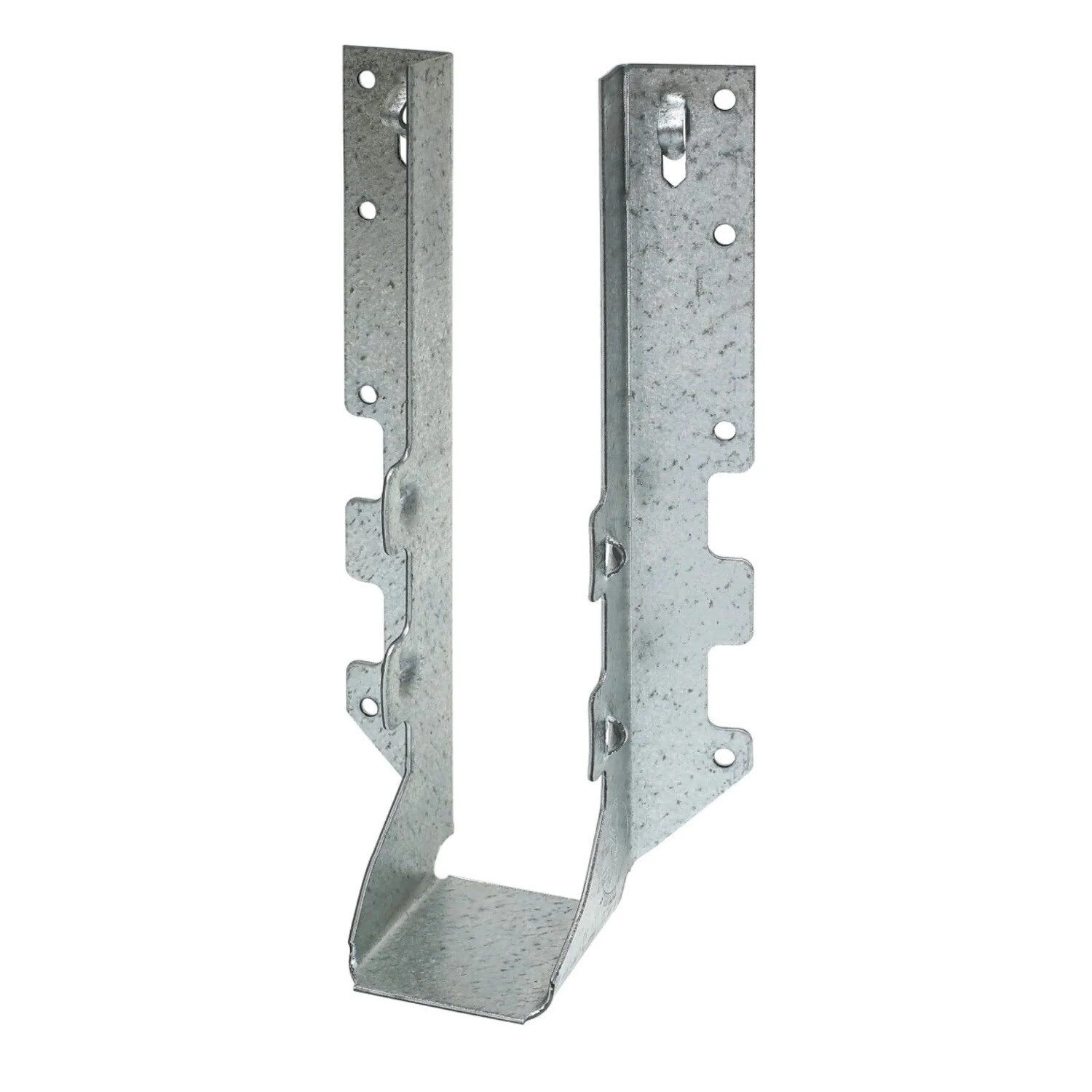

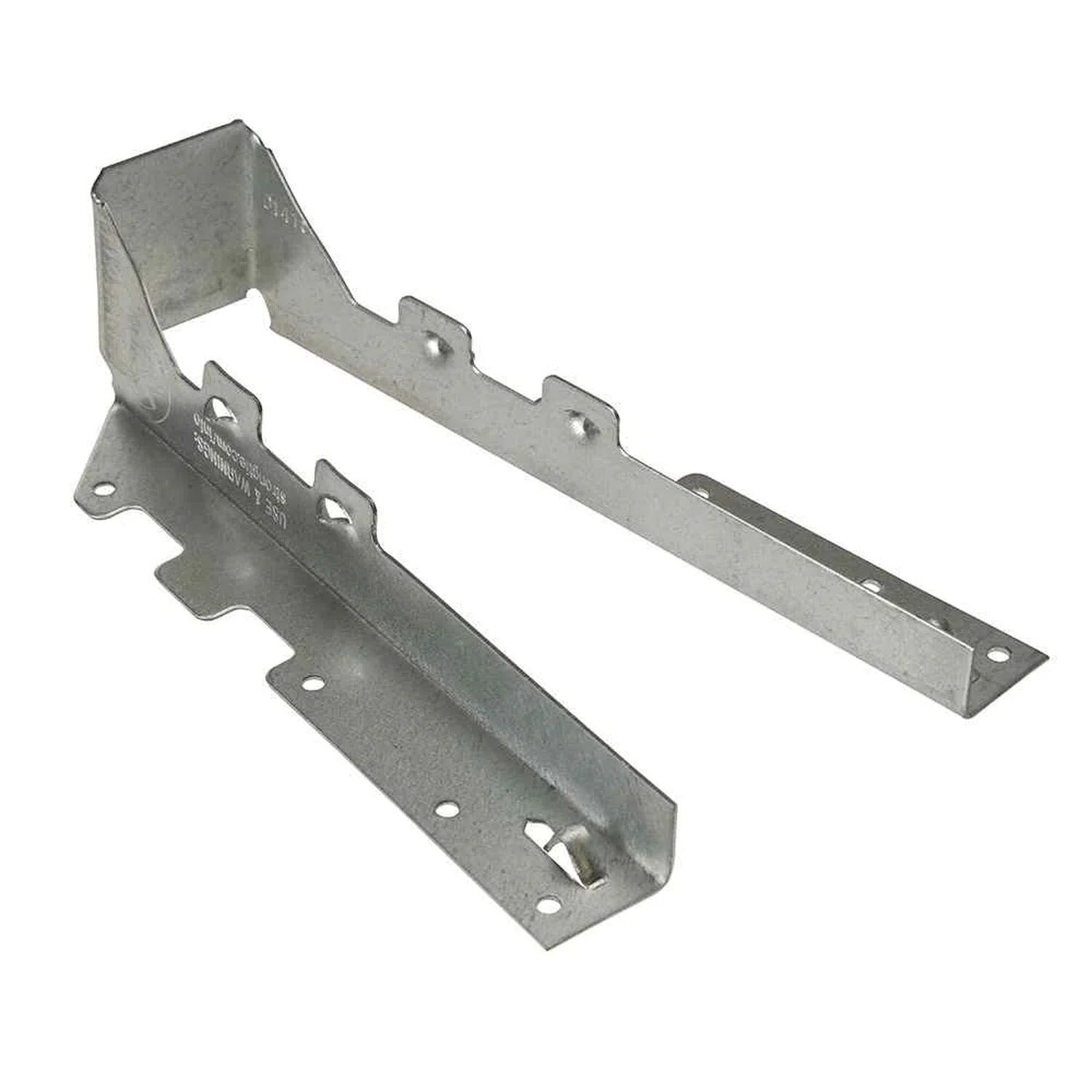

Simpson Strong-Tie LUS210Z (2" x 10") Face-Mount Joist Hanger
$2.22
Unit price
/
Unavailable
Description
Description
Simpson LUS210Z Description
The Simpson LUS210Z Face-Mount Joist Hanger is designed for 2x10 joists, featuring ZMAX corrosion-resistant coating and double-shear nailing technology for enhanced strength and durability.
Simpson LUS210Z Includes
- (1) Face-Mount Joist Hanger for 2x10
Simpson LUS210Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson LUS210Z Applications

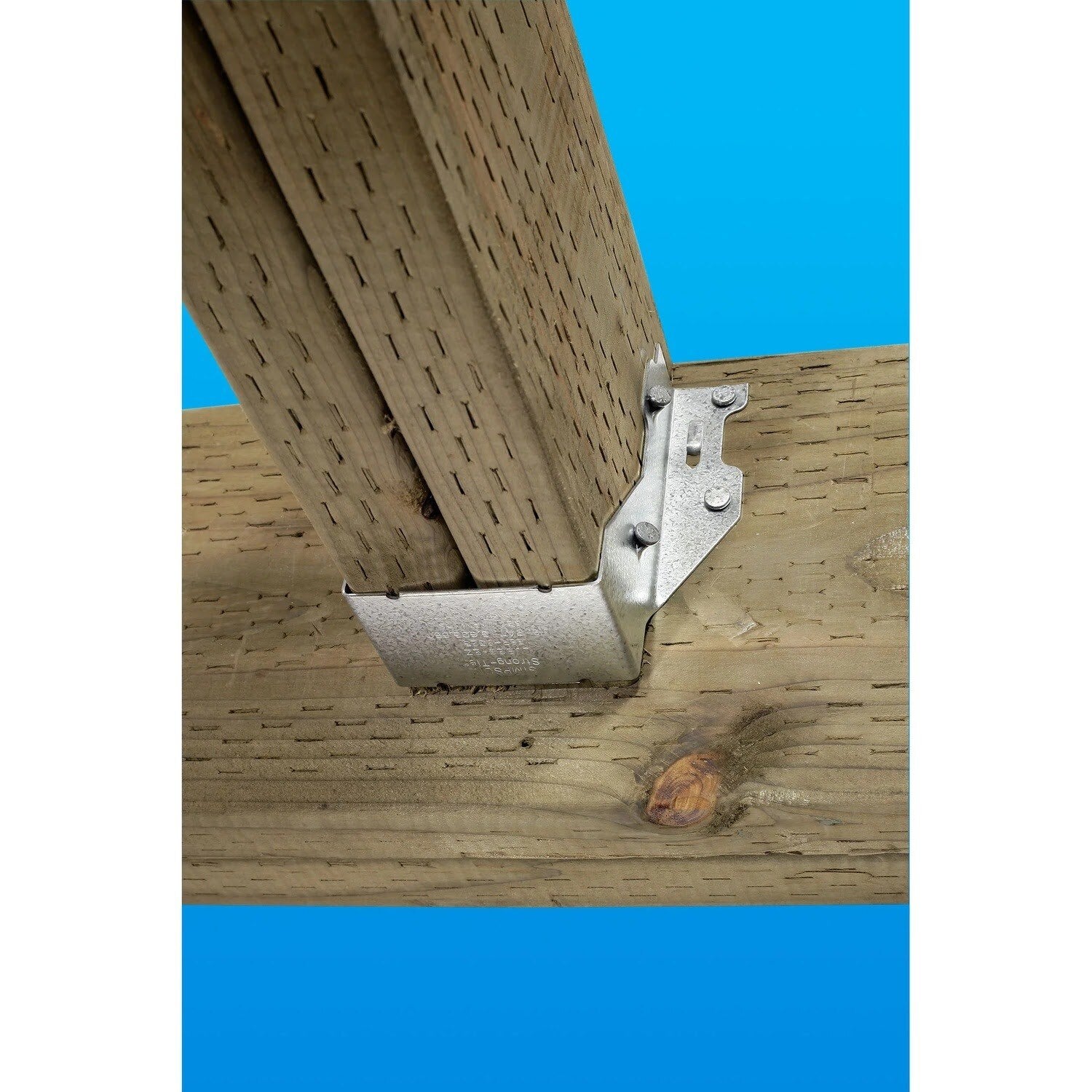

- Deck Framing: Securely fastens joists to beams for added structural support.
- Roofing Structures: Provides reliable connections for rafters and beams.
- Outdoor Wood Projects: Ideal for porches, gazebos, and other exterior constructions.
Simpson LUS210Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper alignment and secure fastening to achieve published load values.
Simpson LUS210Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.148 x 3" Nails OR (8) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.148 x 3" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 7-13/16" |
| Joist size | 2" X 10" |
| Thickness | 18 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
