Simpson Hangers | SKU:
LUS214-2
Simpson Strong-Tie LUS214-2 Double (2" x 14") Face Mount Hanger - G90 Galvanized
$11.30
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUS214-2 Description

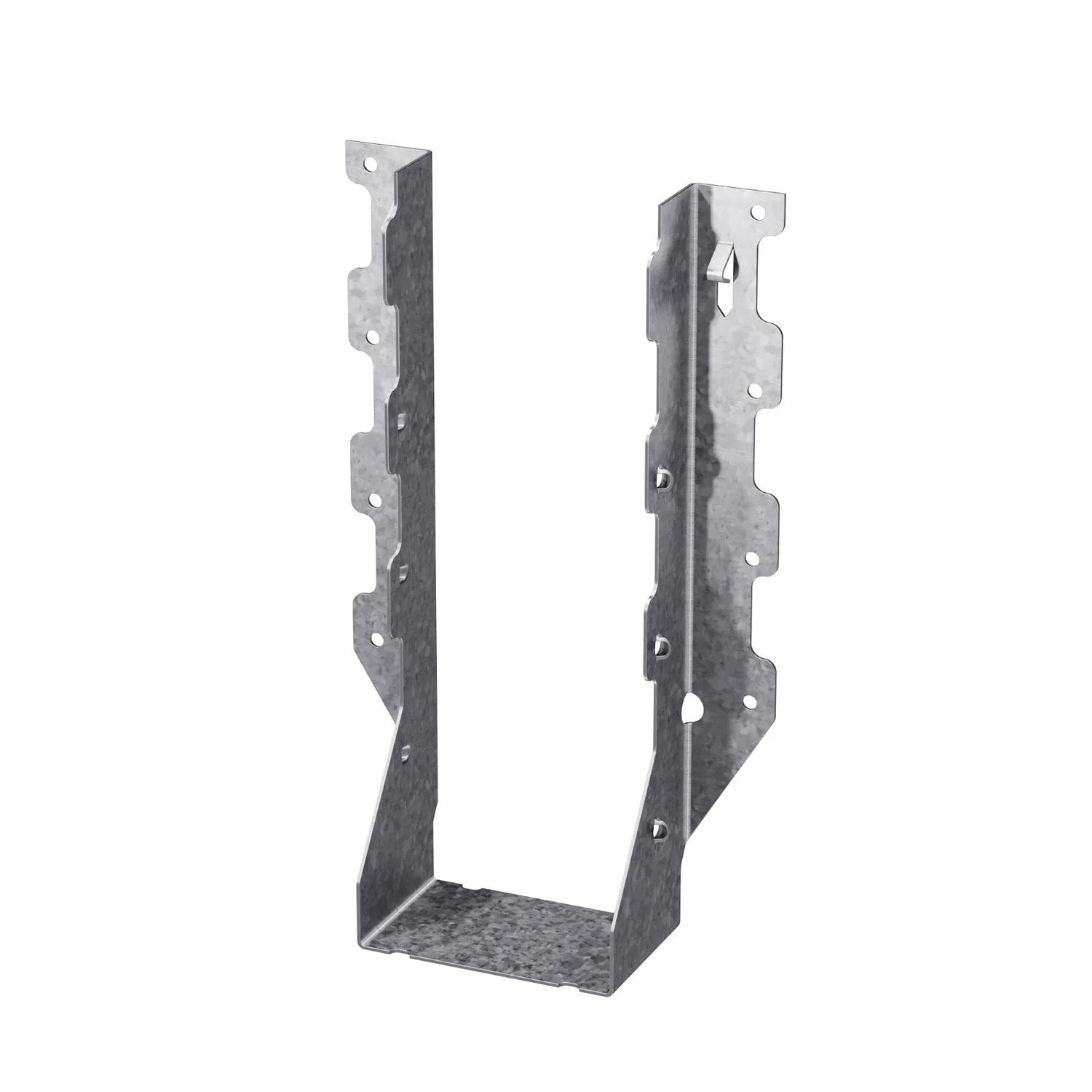

The Simpson Strong-Tie LUS214-2 is a double 2x14 face mount hanger with a G90 galvanized finish, designed for secure joist, rafter, and beam connections in wood-framed structures.
Simpson Strong-Tie LUS214-2 Includes
- (1) Double 2x14 Face Mount Hanger
Simpson Strong-Tie LUS214-2 Features
- G90 Galvanized Finish: Provides reliable corrosion resistance for interior and exterior applications.
- Double-Shear Nailing: Enhances load distribution and reduces installation time.
- Versatile Applications: Suitable for solid sawn lumber and select engineered wood products.
- Code-Compliant Design: Meets building code requirements for safe and durable connections.
Simpson Strong-Tie LUS214-2 Applications
- Deck Construction: Provides strong, secure joist connections for elevated decks and patios.
- Floor Framing: Ensures stable load-bearing support for residential and commercial flooring systems.
- Roof Framing: Used to attach rafters and ceiling joists to beams, increasing stability in pitched roof structures.
- Pergolas & Outdoor Structures: Ideal for assembling pergolas, gazebos, and pavilions.
- General Wood Construction: Suitable for a variety of framing applications.

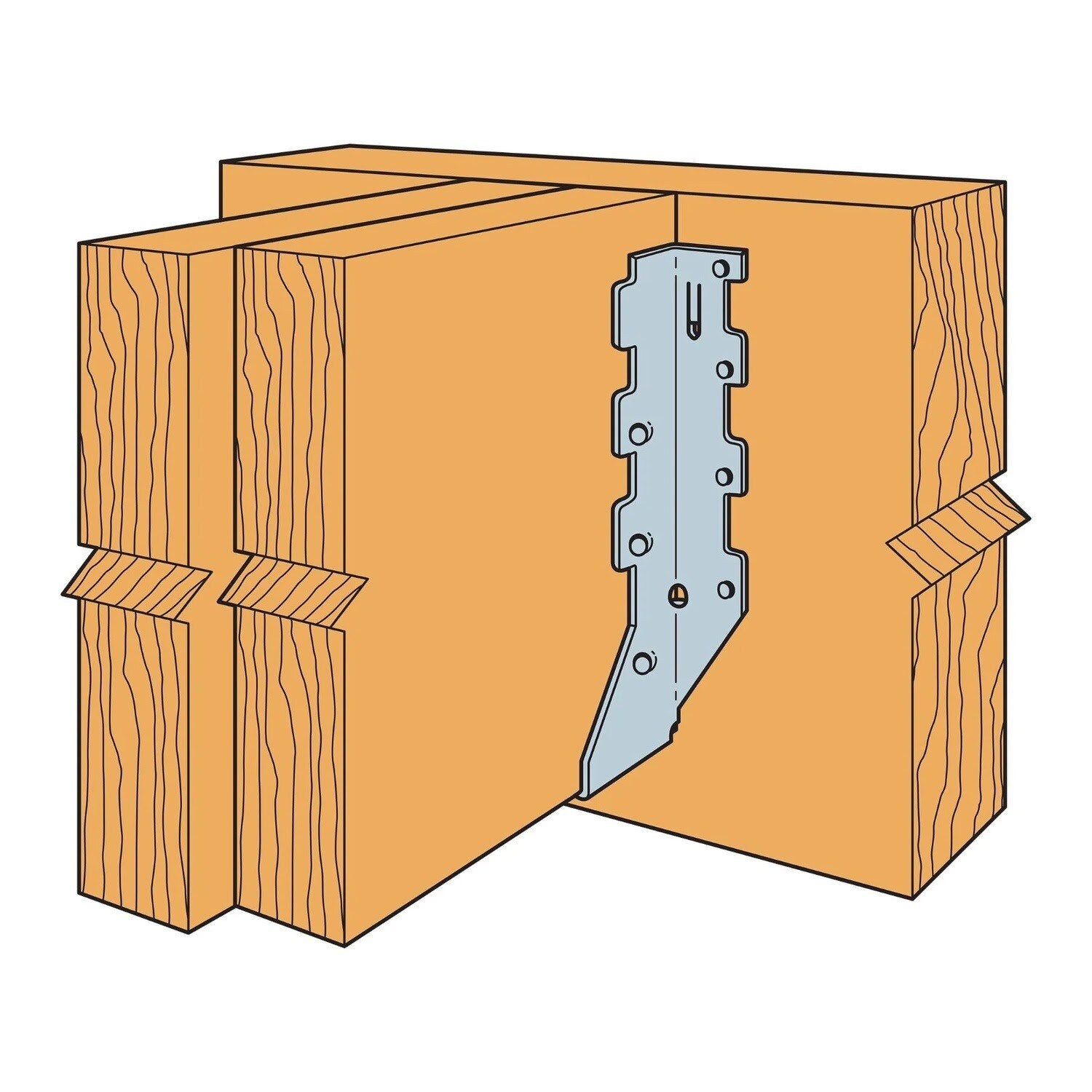

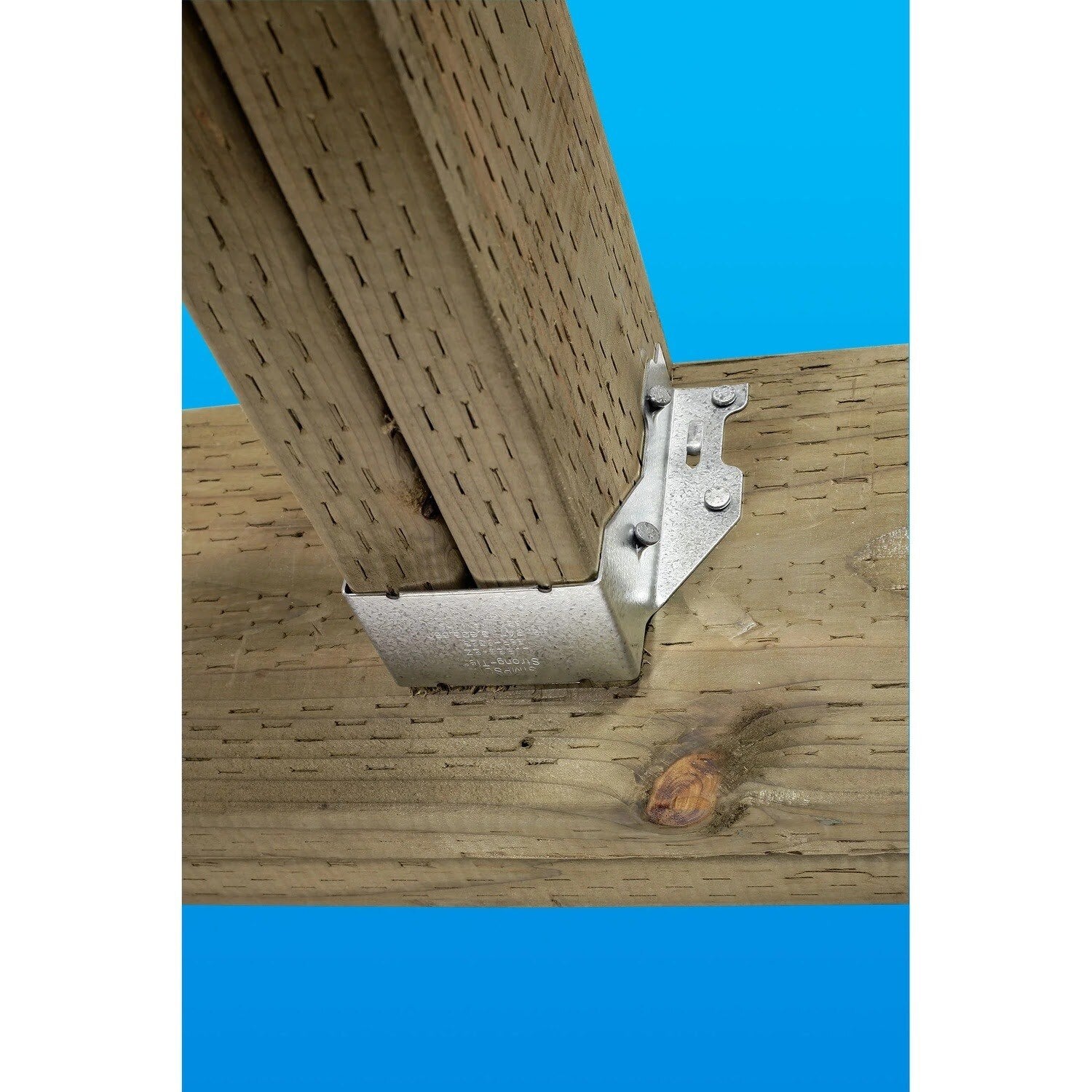

Simpson Strong-Tie LUS214-2 Installation Overview
- Use hot-dip galvanized nails or fasteners to maintain corrosion resistance.
- Ensure nails are installed at the proper angle to optimize load-bearing capacity.
- Designed for face-mount applications on headers, beams, and other structural supports.
Simpson Strong-Tie LUS214-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (10) 0.162 x 3-1/2" Nails OR (10) #9 x 1-1/2" SD Connector Screws; Joist - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | No |
| Height | 10-15/16" |
| Joist size | Double 2" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
