Simpson Strong-Tie LUS26-2 (Double 2" x 6") Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie LUS26-2 (Double 2" x 6") Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 41956
Price: 2.28 USD
Availability: InStock

$2.28 ~~$3.29~~

NOTE: This item is ineligible for free shipping

Description

Simpson Strong-Tie LUS26-2 Description

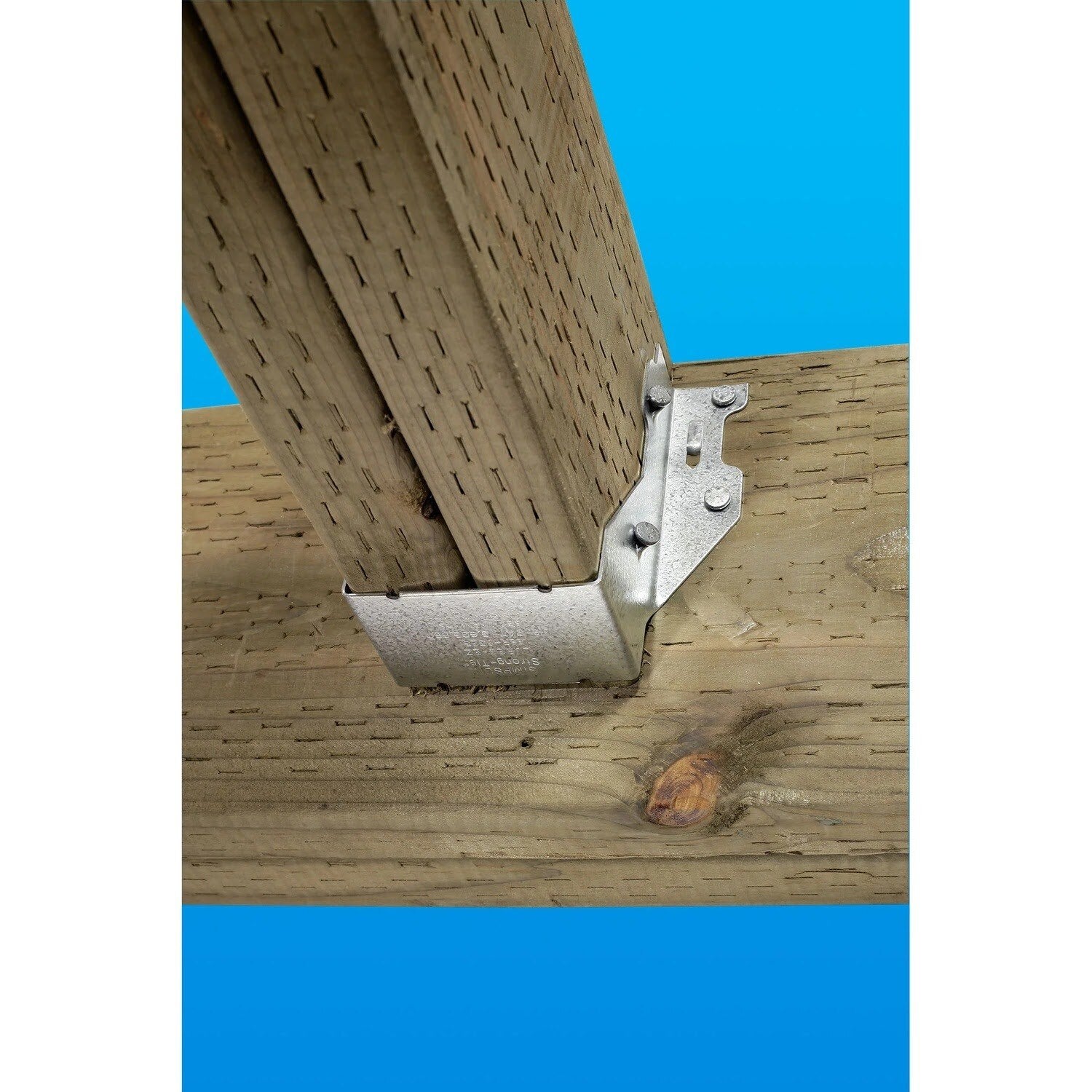

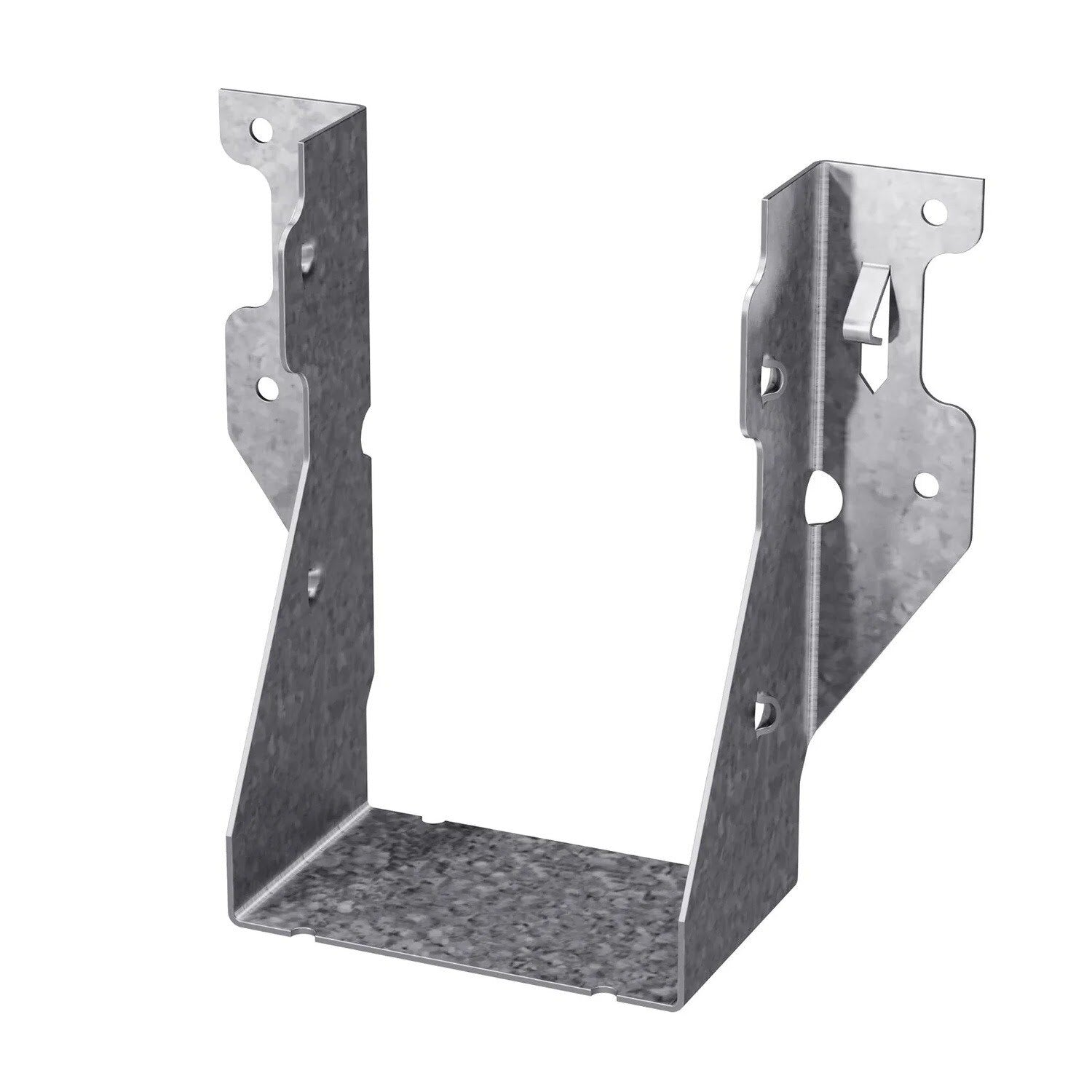

The Simpson Strong-Tie LUS26-2 is a galvanized face-mount joist hanger designed for double 2x6 lumber, offering reliable structural support and corrosion resistance.

Simpson Strong-Tie LUS26-2 Includes

(1) Galvanized Face-Mount Joist Hanger for Double 2x6

Simpson Strong-Tie LUS26-2 Features

G90 Galvanized Finish for corrosion resistance
Double-Shear Nailing for efficient load distribution
Versatile Applications for various wood construction projects
Code-Compliant Design ensuring safety and durability

Simpson Strong-Tie LUS26-2 Applications

Deck Construction: Provides strong, secure joist connections for elevated decks and patios.
Floor Framing: Ensures stable load-bearing support for residential and commercial flooring systems.
Roof Framing: Used to attach rafters and ceiling joists to beams, increasing stability in pitched roof structures.
Pergolas & Outdoor Structures: Ideal for assembling pergolas, gazebos, and pavilions where solid wood connections are required.
General Wood Construction: Suitable for a variety of framing applications, ensuring durability and compliance with structural requirements.

Simpson Strong-Tie LUS26-2 Installation Overview

Use hot-dip galvanized nails or fasteners to maintain corrosion resistance and performance.
Ensure nails are installed at the proper angle to optimize load-bearing capacity.
Designed for face-mount applications on headers, beams, and other structural supports.

Simpson Strong-Tie LUS26-2 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Header - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 2-1/2" SD Connector Screws
For Treated Lumber	No
Height	4-7/8"
Joist size	Double 2" X 6"
Thickness	18 Gauge
Width	3-1/8"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
