Simpson Hangers | SKU:
LUS26-2Z

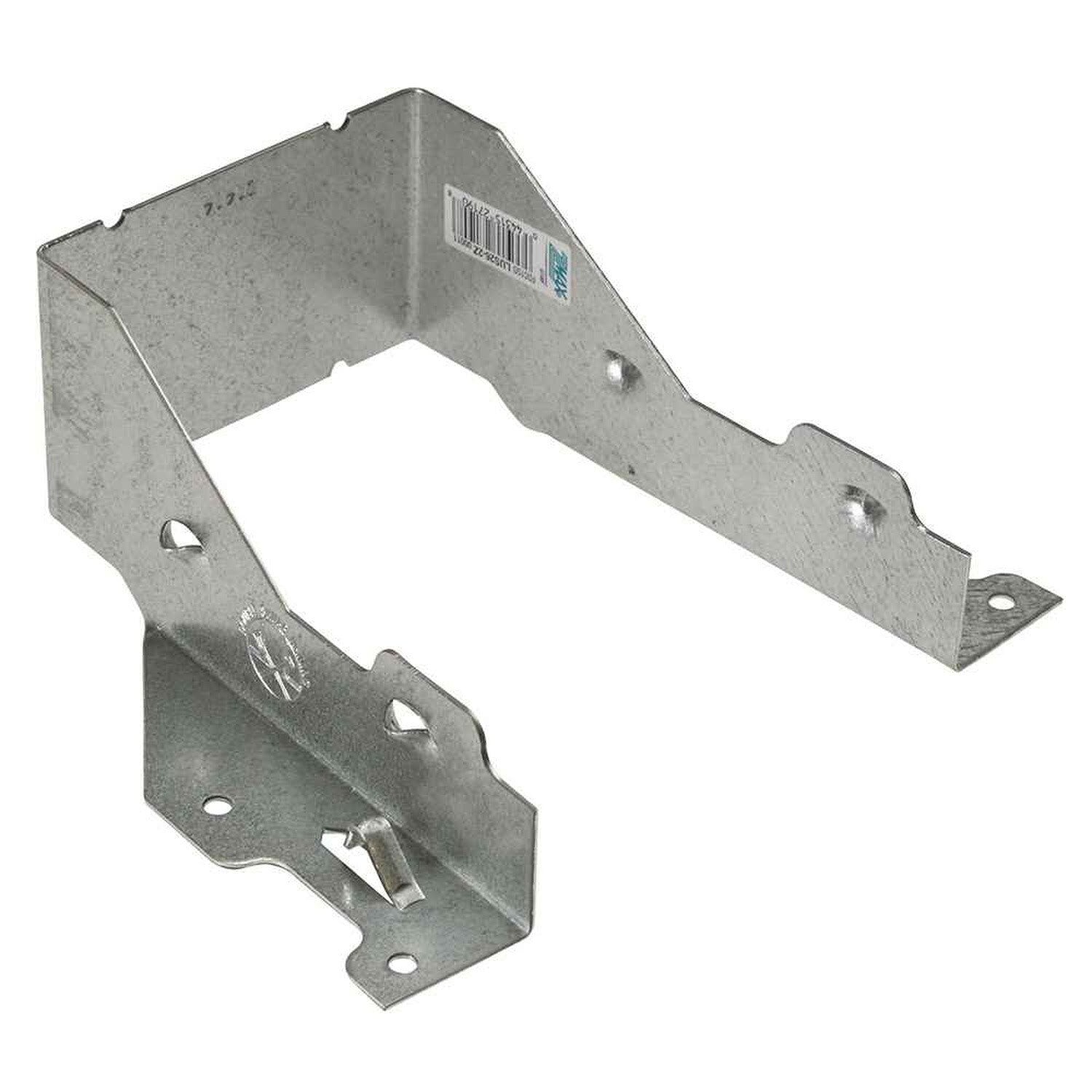

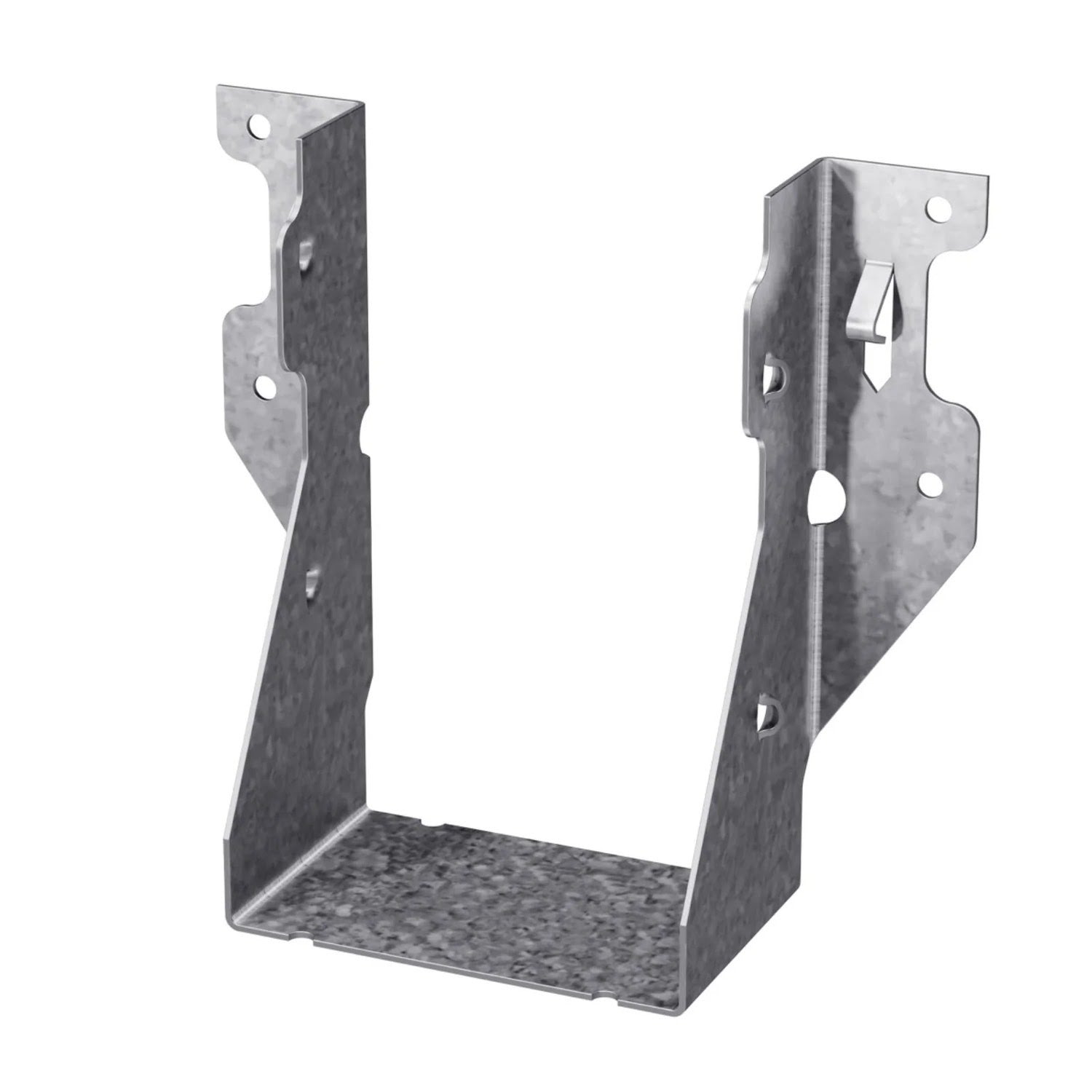

Simpson Strong-Tie LUS26-2Z (Double 2" x 6") Face Mount Hanger with ZMAX Finish
$3.01
Unit price
/
Unavailable
Description
Description
Simpson LUS26-2Z Description
The Simpson LUS26-2Z Double 2x6 Face Mount Hanger features a ZMAX corrosion-resistant finish and double-shear nailing technology for enhanced strength and durability.
Simpson LUS26-2Z Includes
- (1) Double 2x6 Face Mount Hanger with ZMAX Finish
Simpson LUS26-2Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson LUS26-2Z Applications

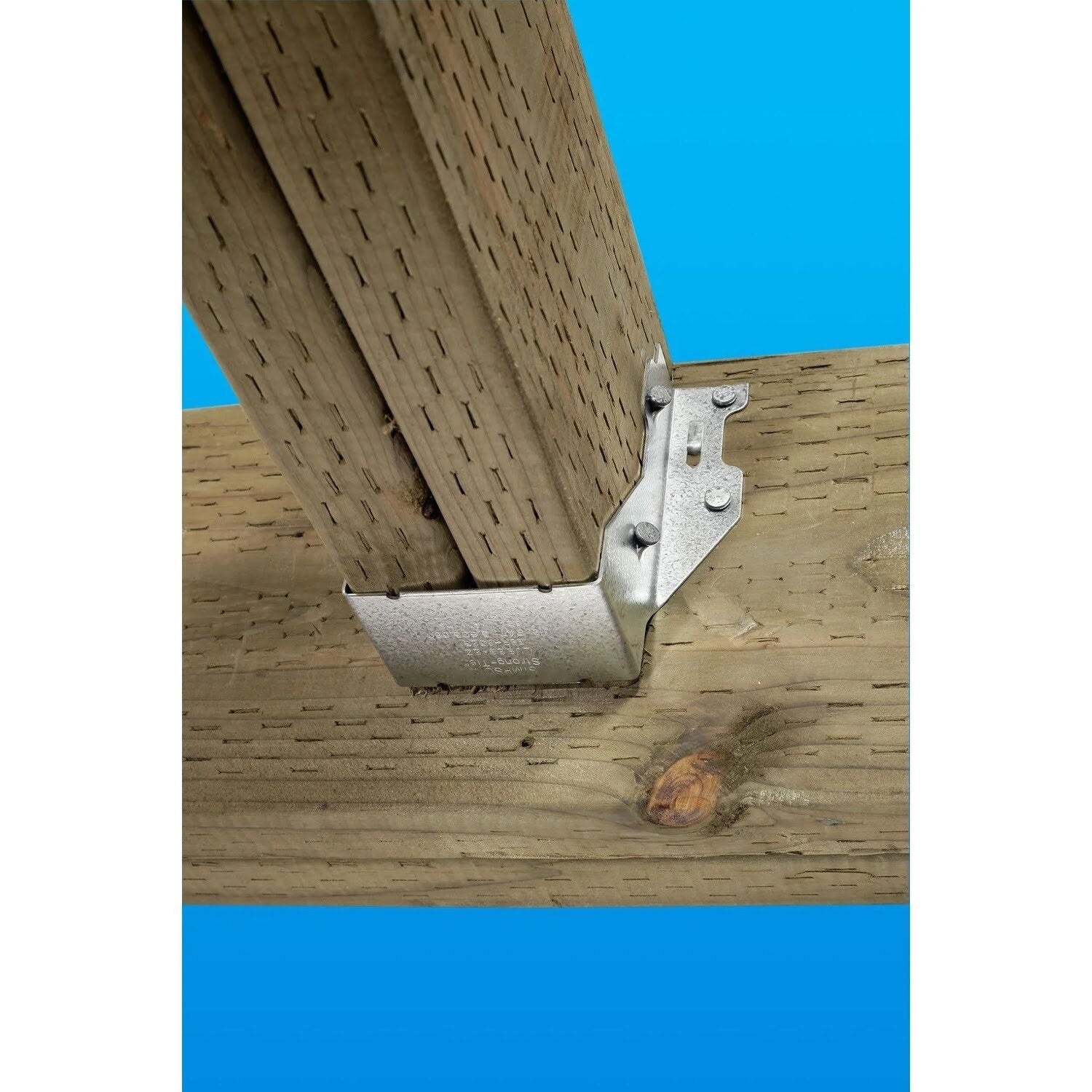

- Deck Framing: Securely fastens joists to beams for added structural support.
- Roofing Structures: Provides reliable connections for rafters and beams.
- Floor Construction: Ensures stability and strength in wood-framed floors.
- Outdoor Structures: Ideal for porches, gazebos, and other exterior wood applications.
Simpson LUS26-2Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper alignment and secure fastening for structural integrity.
Simpson LUS26-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 4-7/8" |
| Joist size | Double 2" X 6" |
| Thickness | 18 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
