Simpson Hangers | SKU:
LUS28-3Z

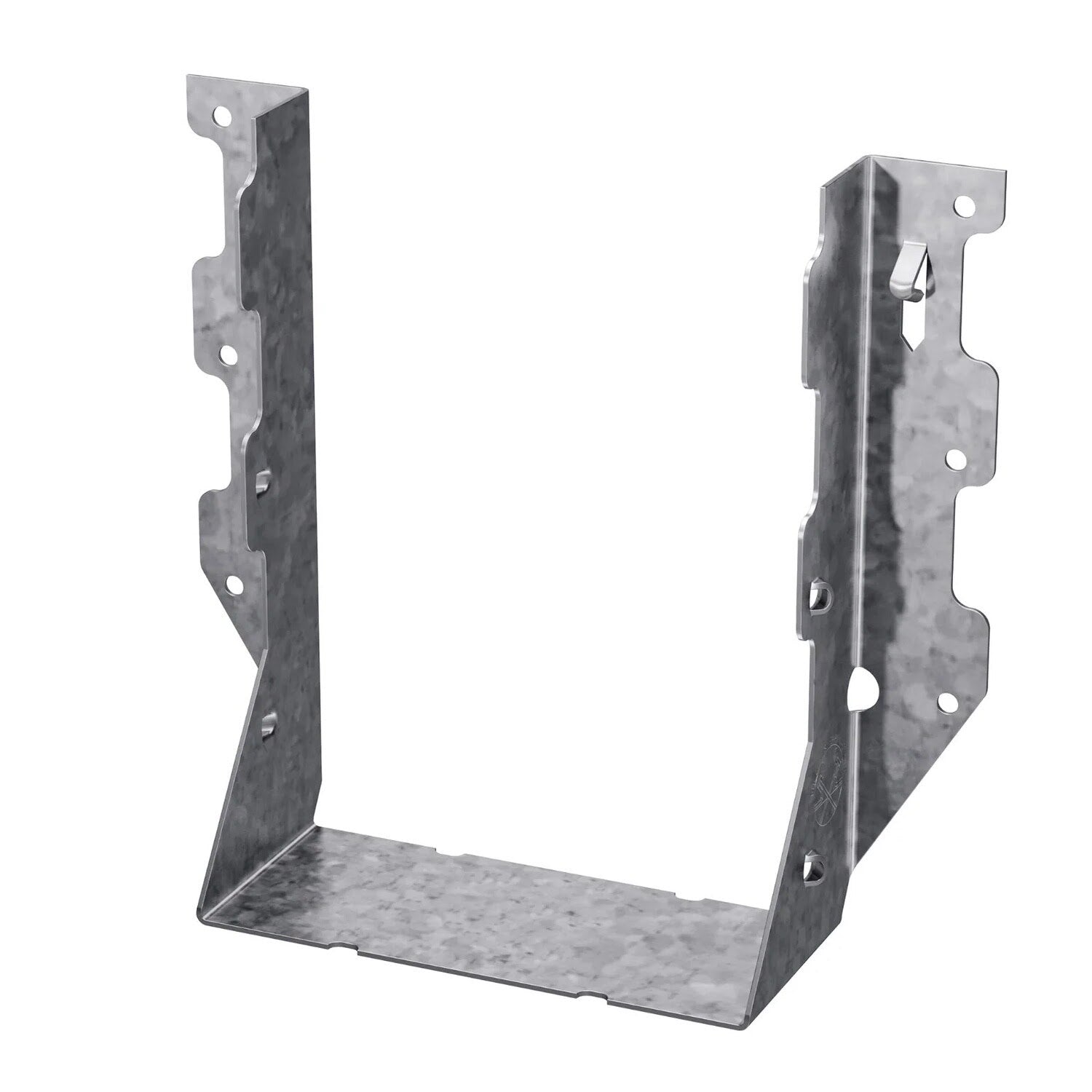

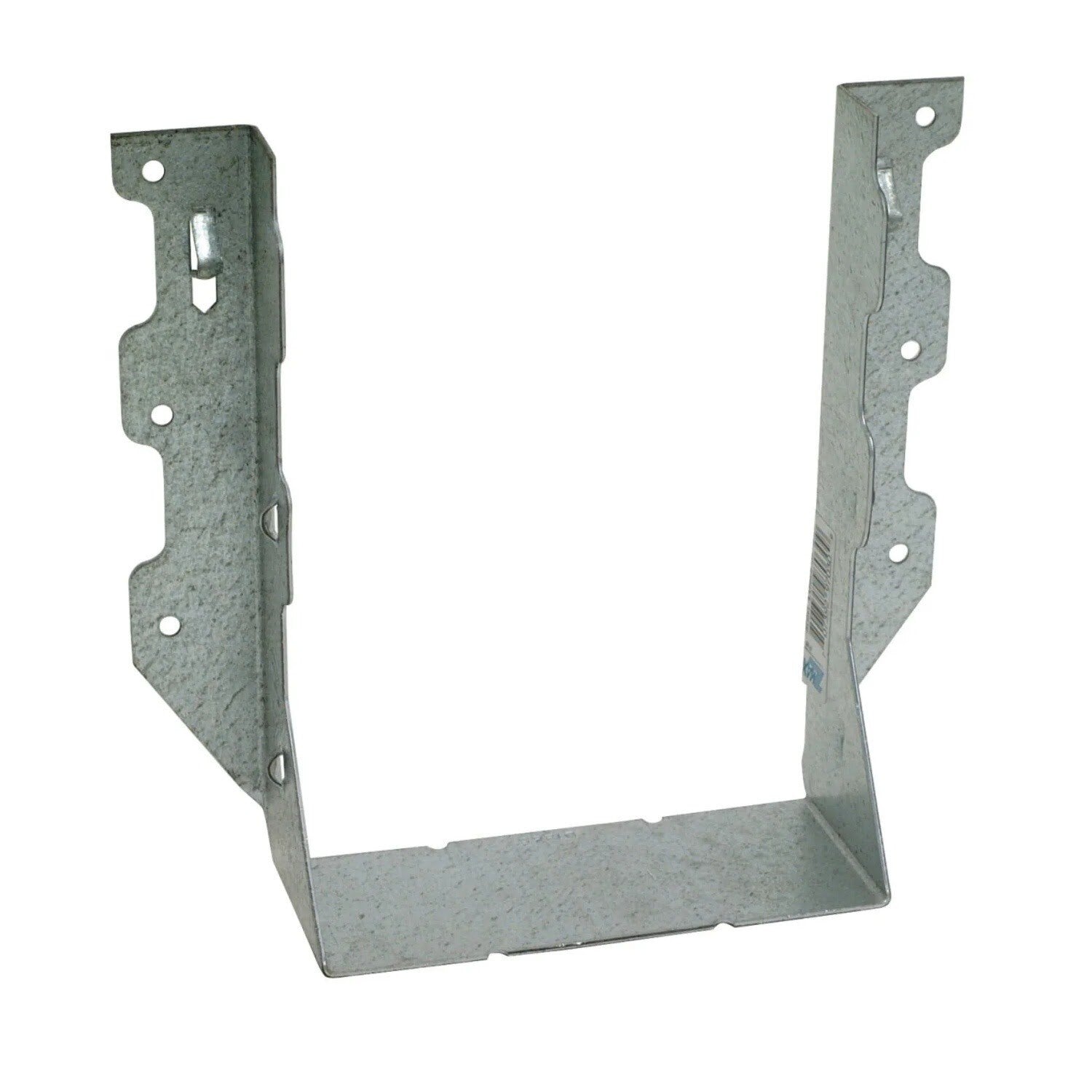

Simpson Strong-Tie LUS28-3Z (Triple 2" x 8") Face-Mount Joist Hanger with ZMAX Finish
$7.66
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUS28-3Z Description
The Simpson Strong-Tie LUS28-3Z is a triple 2x8 face-mount joist hanger with ZMAX finish, designed for superior performance in wood-framed construction.
Simpson Strong-Tie LUS28-3Z Includes
- (1) Triple 2x8 Face-Mount Joist Hanger
Simpson Strong-Tie LUS28-3Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson Strong-Tie LUS28-3Z Applications
- Decks: Provides secure connections for deck joists.
- Floors: Ensures structural integrity in flooring systems.
- Roofing: Suitable for rafters and beams in roofing structures.
- Outdoor Structures: Ideal for porches, gazebos, and other exterior wood constructions.

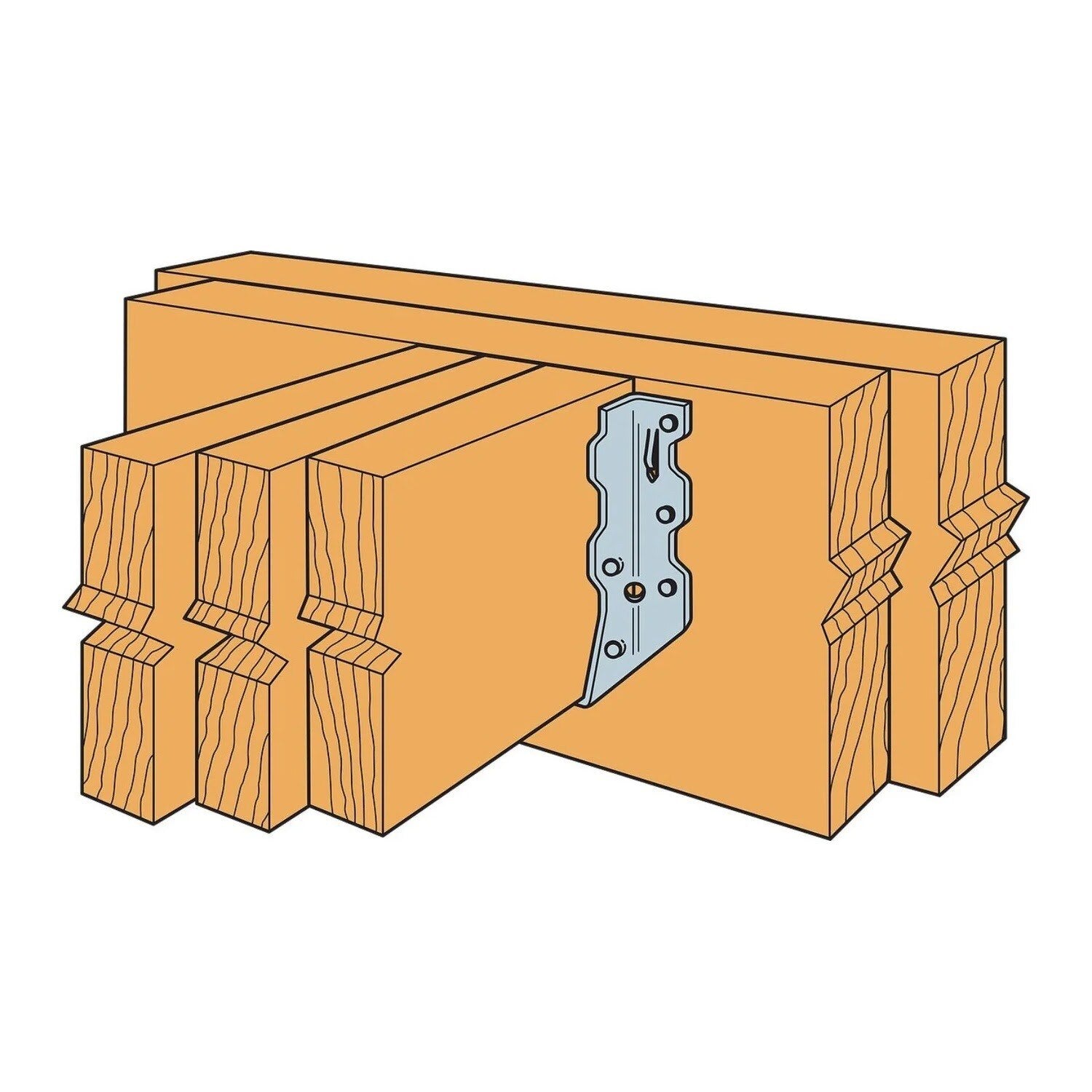

Simpson Strong-Tie LUS28-3Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper alignment and secure fastening for structural integrity.
Simpson Strong-Tie LUS28-3Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 6-1/4" |
| Joist size | Triple 2" X 8" |
| Thickness | 18 Gauge |
| Width | 4-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
