Simpson Hangers | SKU:
LUS28Z
Simpson Strong-Tie LUS28Z ( 2" x 8") Face-Mount Joist Hanger
$1.83
$2.77
Unit price
/
Unavailable
Description
Description
Simpson LUS28Z Description
The Simpson Strong-Tie LUS28Z is a face-mount joist hanger designed for 2x8 lumber, featuring a ZMAX finish for corrosion resistance and double-shear nailing technology for enhanced strength.
Simpson LUS28Z Includes
- (1) Face-Mount Joist Hanger for 2x8
Simpson LUS28Z Features
- ZMAX Coating for Corrosion Resistance
- Double-Shear Nailing Technology
- Versatile Applications
- Code-Compliant Strength
Simpson LUS28Z Applications

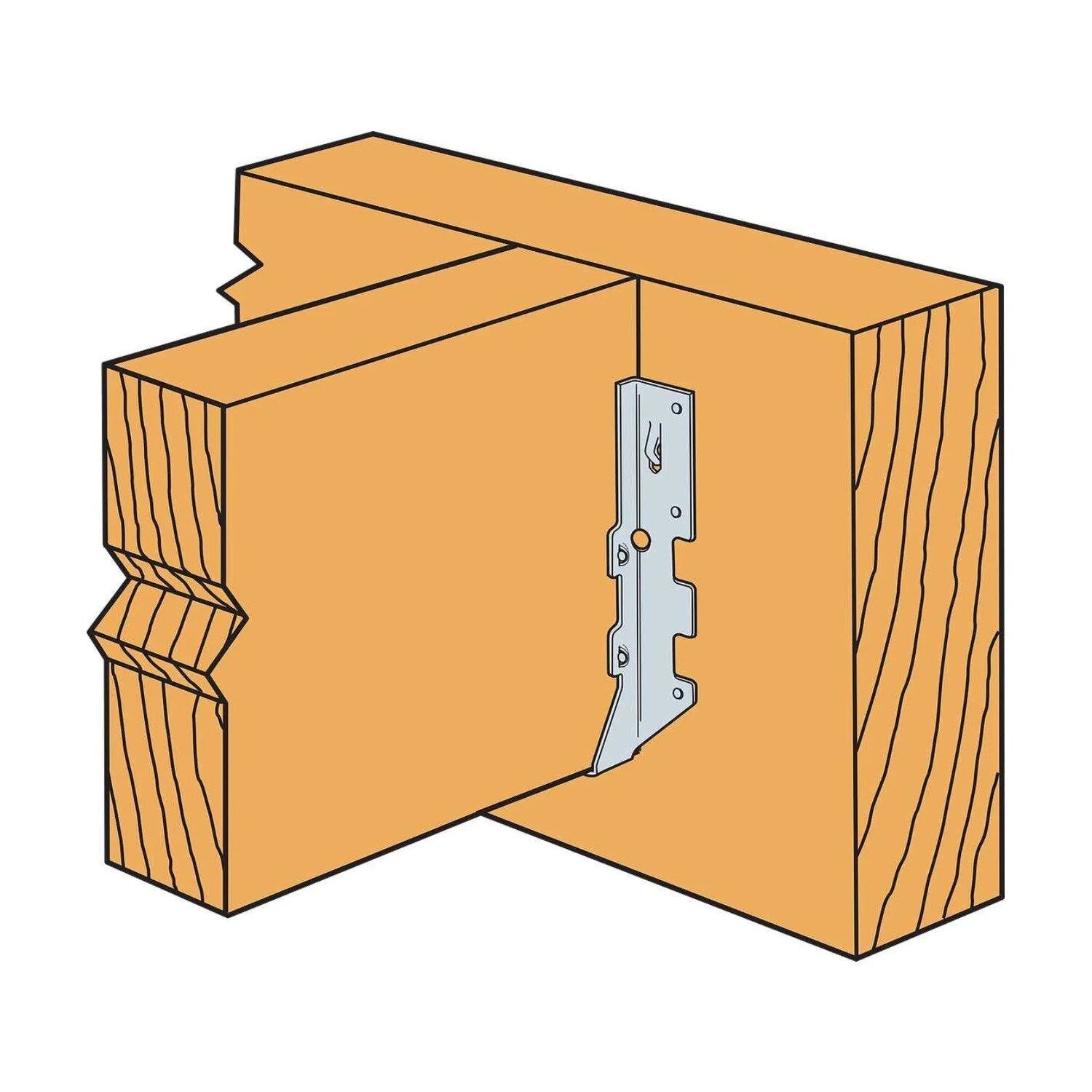

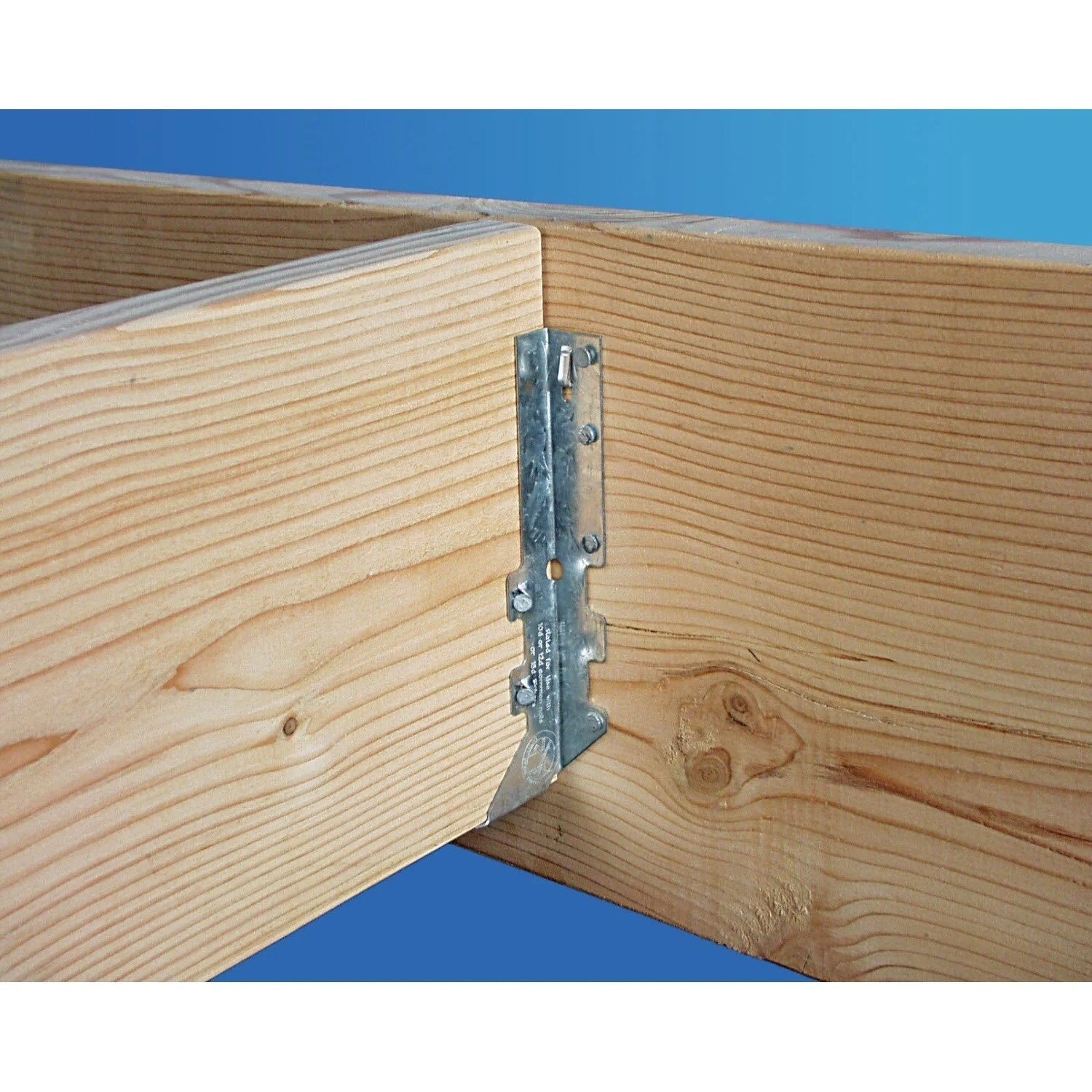

- Deck Framing: Securely fastens joists to beams for added structural support.
- Roofing Structures: Provides reliable connections for rafters and beams.
- Outdoor Wood Projects: Ideal for porches, gazebos, and other exterior constructions.
Simpson LUS28Z Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Angle nail placement for optimal strength.
- Ensure proper fastener installation to achieve published load values.

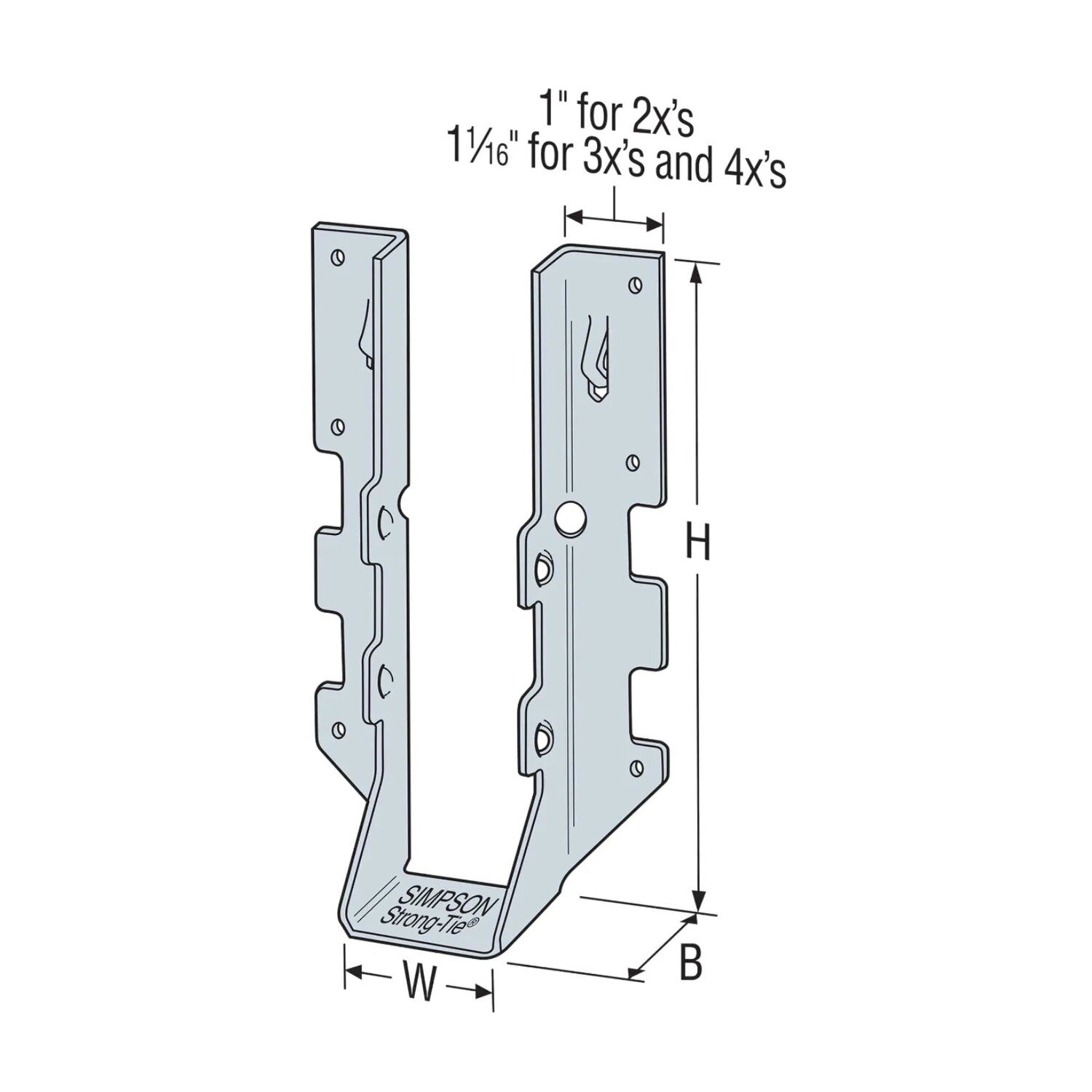

Simpson LUS28Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (6) 0.148 x 3" Nails OR (6) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.148 x 3" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 6-5/8" |
| Joist size | 2" X 8" |
| Thickness | 18 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
