Simpson Hangers | SKU:
LUS36
Simpson Strong-Tie LUS36 (3" x 6") Face Mount Hanger - G90 Galvanized
$3.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUS36 Description

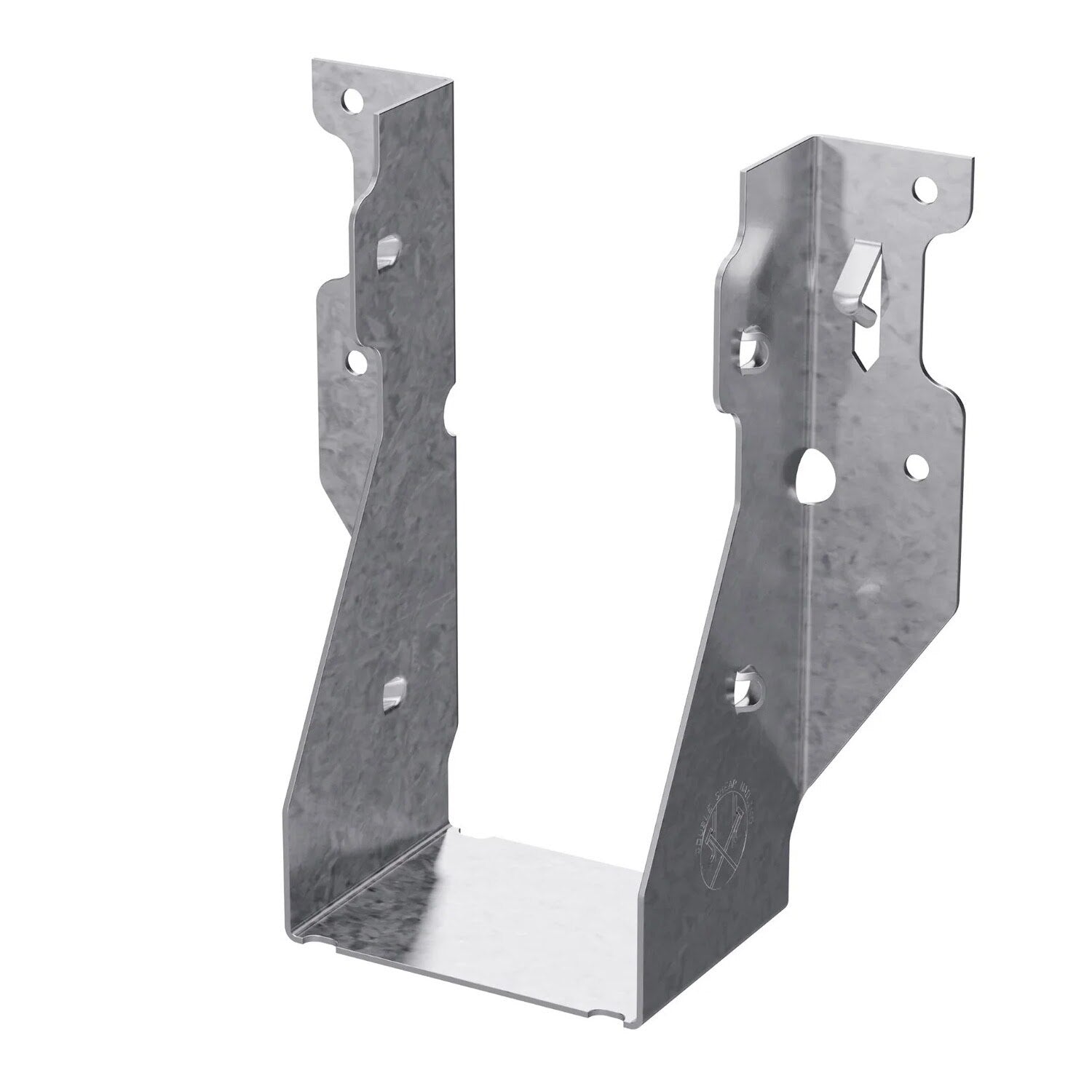

The Simpson Strong-Tie LUS36 is a light-capacity U-shaped hanger designed for securing joists, rafters, and beams in wood-framed structures. It features a G90 galvanized finish for corrosion resistance and double-shear nailing for enhanced load distribution.
Simpson Strong-Tie LUS36 Includes
- (1) 3x6 Face Mount Hanger
Simpson Strong-Tie LUS36 Features
- G90 Galvanized Finish: Provides reliable corrosion resistance for interior and exterior applications.
- Double-Shear Nailing: Enhances load distribution and reduces installation time.
- Versatile Applications: Suitable for solid sawn lumber and select engineered wood products.
- Code-Compliant Design: Meets building code requirements for safe and durable connections.
Simpson Strong-Tie LUS36 Applications
- Deck Construction: Provides strong, secure joist connections for elevated decks and patios.
- Floor Framing: Ensures stable load-bearing support for residential and commercial flooring systems.
- Roof Framing: Used to attach rafters and ceiling joists to beams, increasing stability in pitched roof structures.
- Pergolas & Outdoor Structures: Ideal for assembling pergolas, gazebos, and pavilions.
- General Wood Construction: Suitable for a variety of framing applications.
Simpson Strong-Tie LUS36 Installation Overview
- Use hot-dip galvanized nails or fasteners to maintain corrosion resistance.
- Ensure nails are installed at the proper angle to optimize load-bearing capacity.

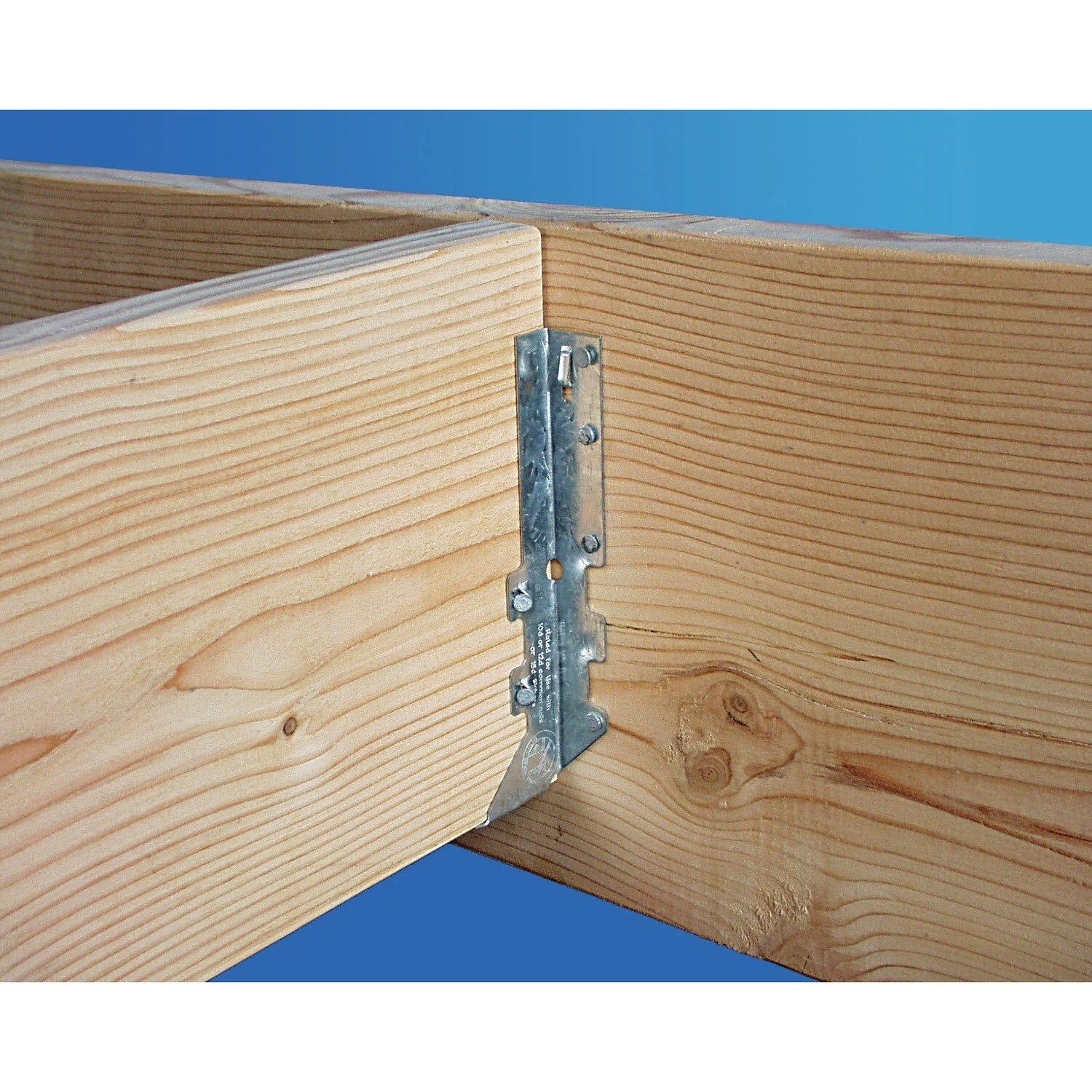

- Designed for face-mount applications on headers, beams, and other structural supports.
Simpson Strong-Tie LUS36 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | No |
| Height | 5-1/4" |
| Joist size | 3" X 6" |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
