Simpson Hangers | SKU:
LUS36Z
Simpson Strong-Tie LUS36Z (3" x 6") Face-Mount Joist Hanger
$5.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUS36Z Description

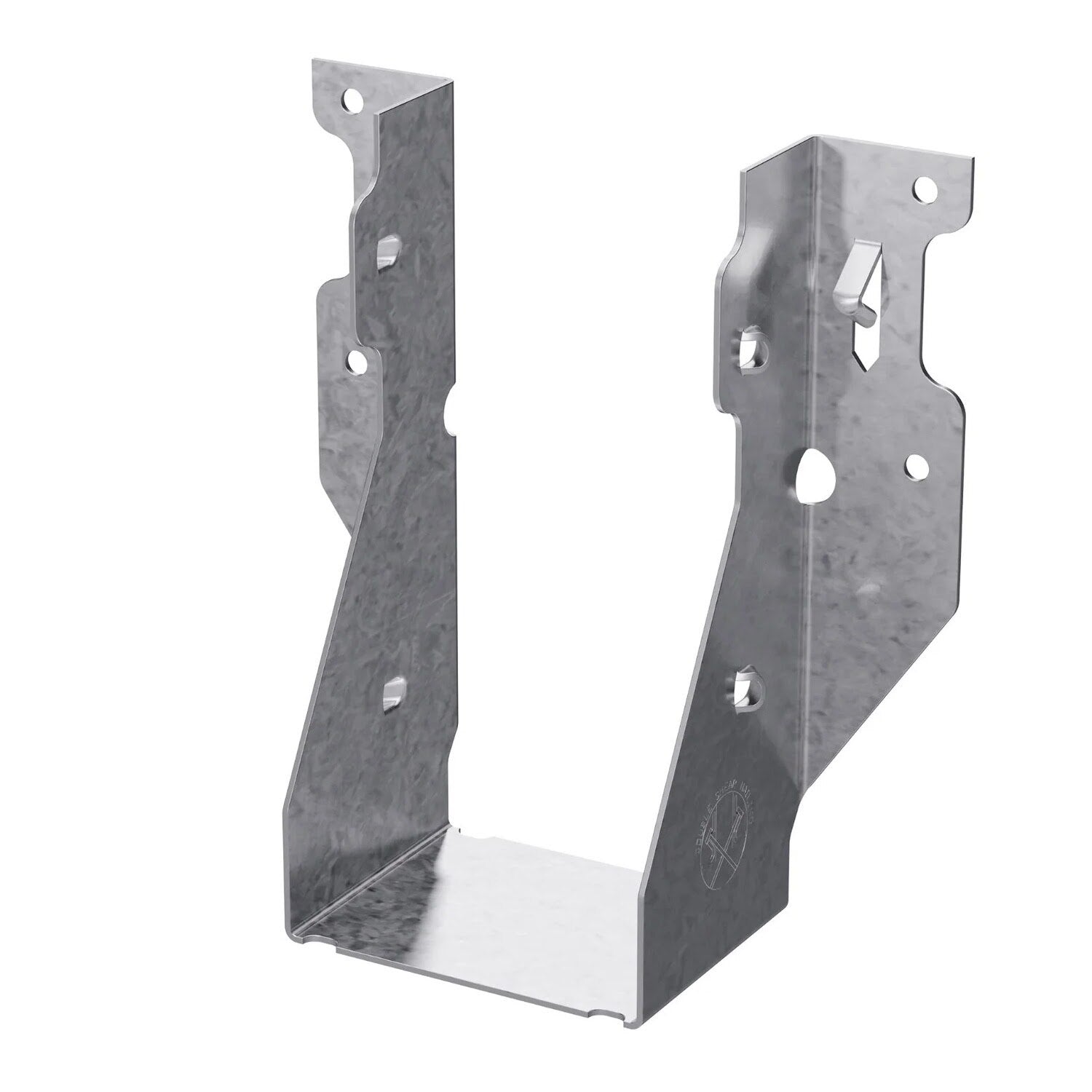

The Simpson Strong-Tie LUS36Z is a face-mount joist hanger designed for 3x6 lumber, featuring a ZMAX corrosion-resistant finish for durability in outdoor and high-moisture environments.
Simpson Strong-Tie LUS36Z Includes
- (1) Face-Mount Joist Hanger
Simpson Strong-Tie LUS36Z Features
- ZMAX Coating for corrosion resistance
- Double-shear nailing technology for enhanced strength
- Versatile applications for solid sawn lumber and engineered wood
- Code-compliant strength tested and rated by Simpson Strong-Tie
Simpson Strong-Tie LUS36Z Applications

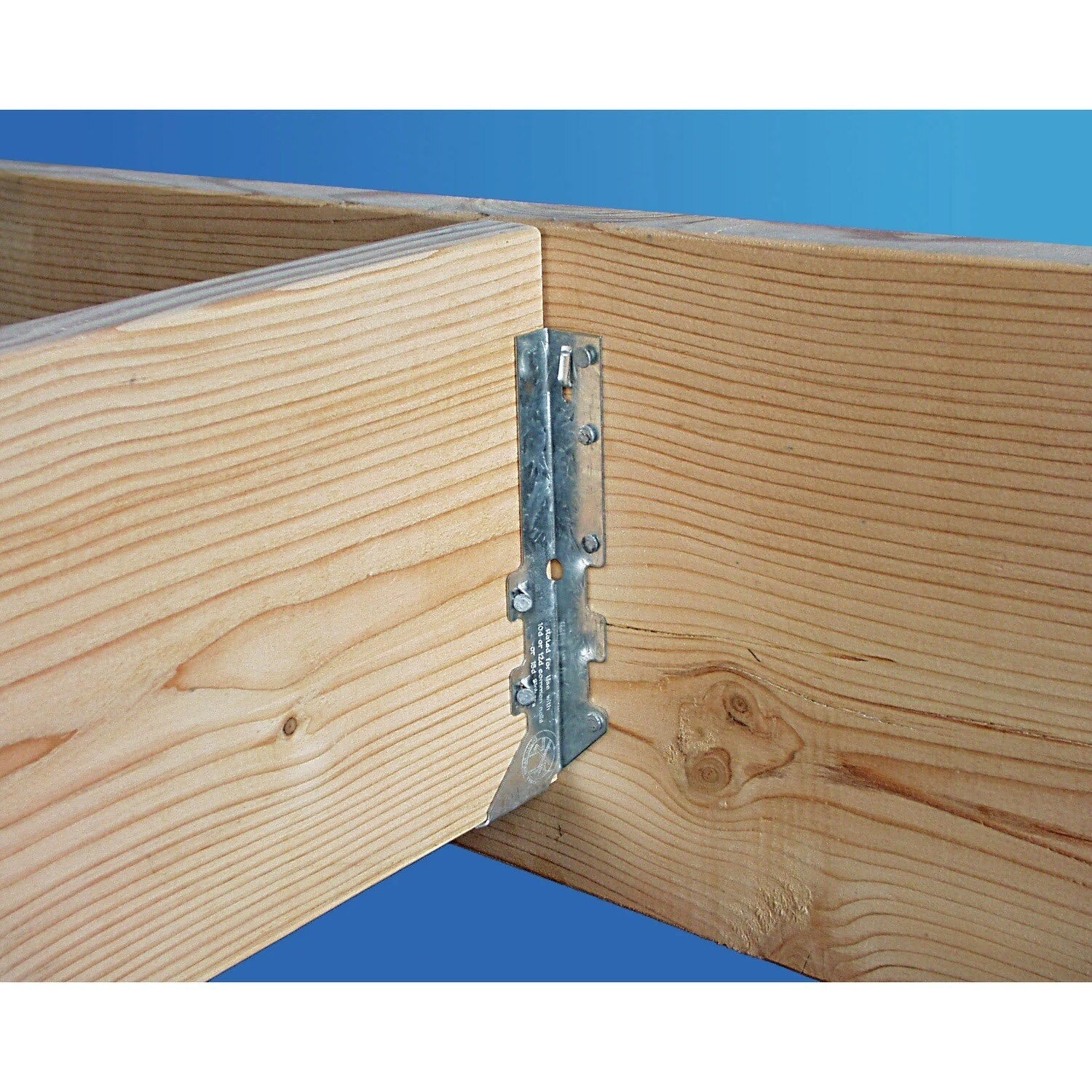

- Decks: Securely fastens joists to beams for outdoor structures
- Floors: Provides structural support for wood-framed flooring
- Roofing: Ensures stability in wood-framed roof structures
Simpson Strong-Tie LUS36Z Installation Overview
- Use hot-dip galvanized nails or SD connector screws for maximum corrosion resistance
- Angle nail placement for optimal strength and load distribution
- Ensure proper alignment and secure fastening for structural integrity
Simpson Strong-Tie LUS36Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 5-1/4" |
| Joist size | 3" X 6" |
| Thickness | 18 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
