Simpson Hangers | SKU:
LUS410
Simpson Strong-Tie LUS410 (4" x 10") Galvanized Face-Mount Joist Hanger
$3.46
Unit price
/
Unavailable
Description
Description
Simpson LUS410 Description
The Simpson LUS410 is a galvanized face-mount joist hanger designed for 4x10 lumber, offering reliable structural support and corrosion resistance.
Simpson LUS410 Includes
- (1) Galvanized Face-Mount Joist Hanger for 4x10
Simpson LUS410 Features
- G90 Galvanized Finish for corrosion resistance
- Double-Shear Nailing for enhanced load distribution
- Versatile applications for decks, floors, and roofs
- Code-compliant design for safe and durable connections
Simpson LUS410 Applications

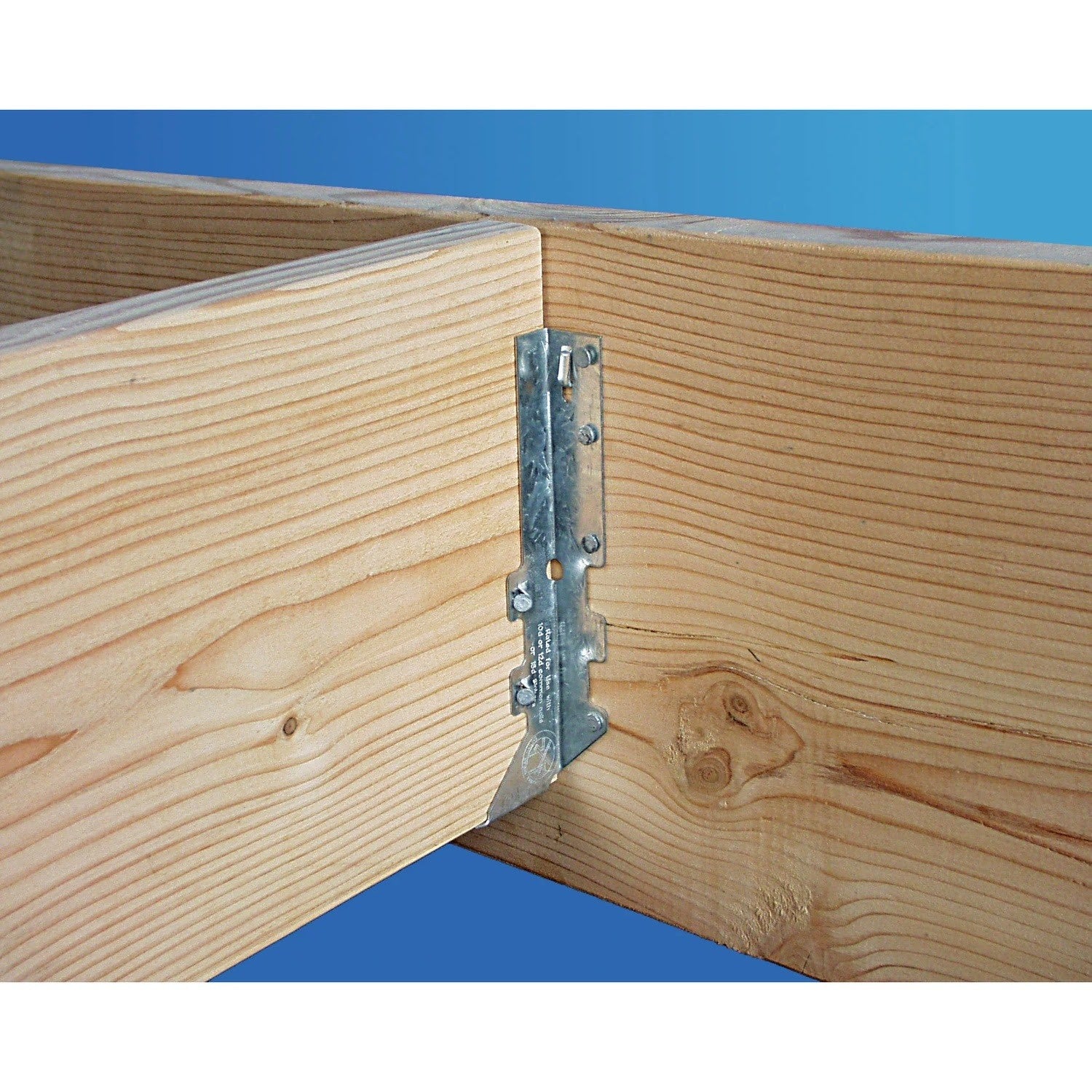

- Deck Construction: Provides strong, secure joist connections for elevated decks and patios.
- Floor Framing: Ensures stable load-bearing support for residential and commercial flooring systems.
- Roof Framing: Used to attach rafters and ceiling joists to beams, increasing stability in pitched roof structures.
- Pergolas & Outdoor Structures: Ideal for assembling pergolas, gazebos, and pavilions where solid wood connections are required.
- General Wood Construction: Suitable for a variety of framing applications, ensuring durability and compliance with structural requirements.
Simpson LUS410 Installation Overview
- Use hot-dip galvanized nails or fasteners to maintain corrosion resistance and performance.
- Ensure nails are installed at the proper angle to optimize load-bearing capacity.
- Designed for face-mount applications on headers, beams, and other structural supports.
Simpson LUS410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162 x 3-1/2" Nails OR (8) #9 x 1-1/2" SD Connector Screws; Joist - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | No |
| Height | 8-3/4" |
| Joist size | 4" X 10" |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
