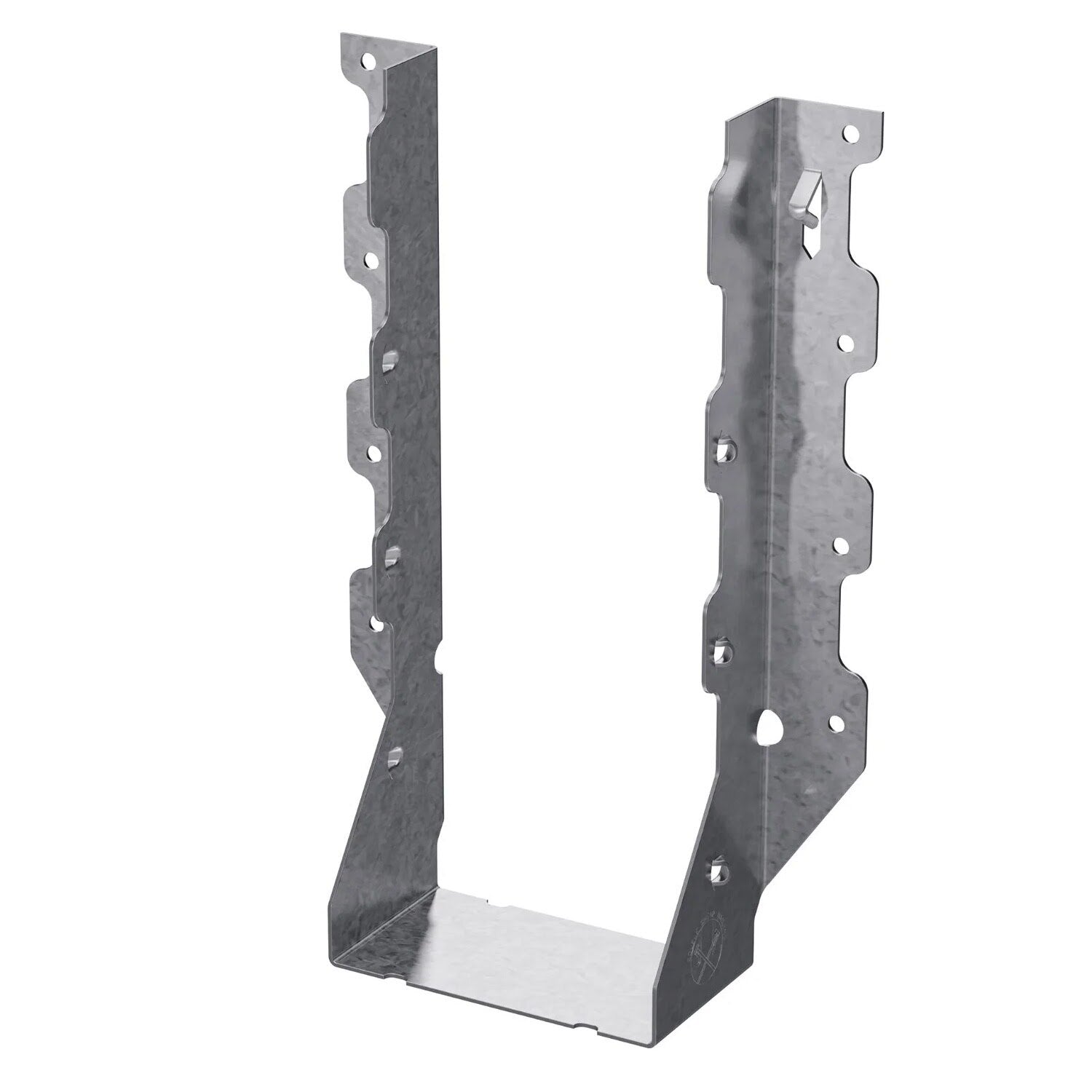

Simpson Strong-Tie LUS410Z Description
The Simpson Strong-Tie LUS410Z is a face-mount joist hanger designed for 4x10 lumber, featuring a ZMAX corrosion-resistant finish for durability in outdoor and treated lumber applications.
Simpson Strong-Tie LUS410Z Includes
- (1) Face-Mount Joist Hanger
Simpson Strong-Tie LUS410Z Features
- ZMAX Coating for corrosion resistance
- Double-shear nailing technology for enhanced strength
- Versatile applications for solid sawn lumber and engineered wood products
- Code-compliant strength tested to meet building standards
Simpson Strong-Tie LUS410Z Applications

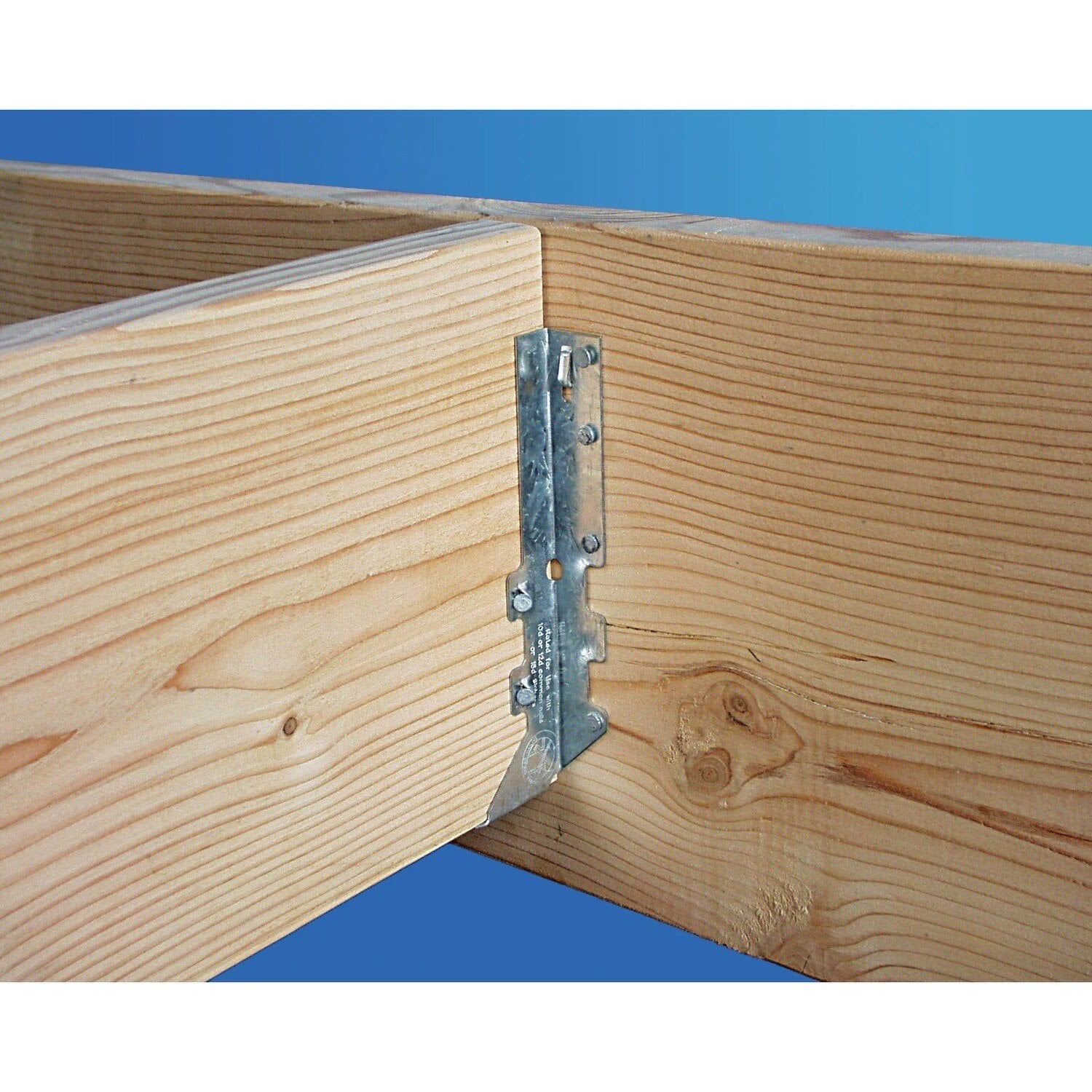

- Decks: Securely fastens joists to beams for outdoor structures
- Floors: Provides structural support for wood-framed flooring
- Roofing: Ensures stability in wood-framed roof constructions
Simpson Strong-Tie LUS410Z Installation Overview
- Use hot-dip galvanized nails or SD connector screws for maximum corrosion resistance
- Angle nail placement for optimal strength and load distribution
- Ensure proper alignment and secure fastening to achieve published load values
Simpson Strong-Tie LUS410Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (8) 0.162 x 3-1/2" Nails OR (8) #9 x 1-1/2" SD Connector Screws; Joist - (6) 0.162 x 3-1/2" Nails OR (6) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 8-3/4" |
| Joist size | 4" X 10" |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
824339
