Simpson Hangers | SKU:
LUS44
Simpson Strong-Tie LUS44 (4" x 4") Galvanized Face-Mount Joist Hanger
$3.07
$4.41
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie LUS44 Description

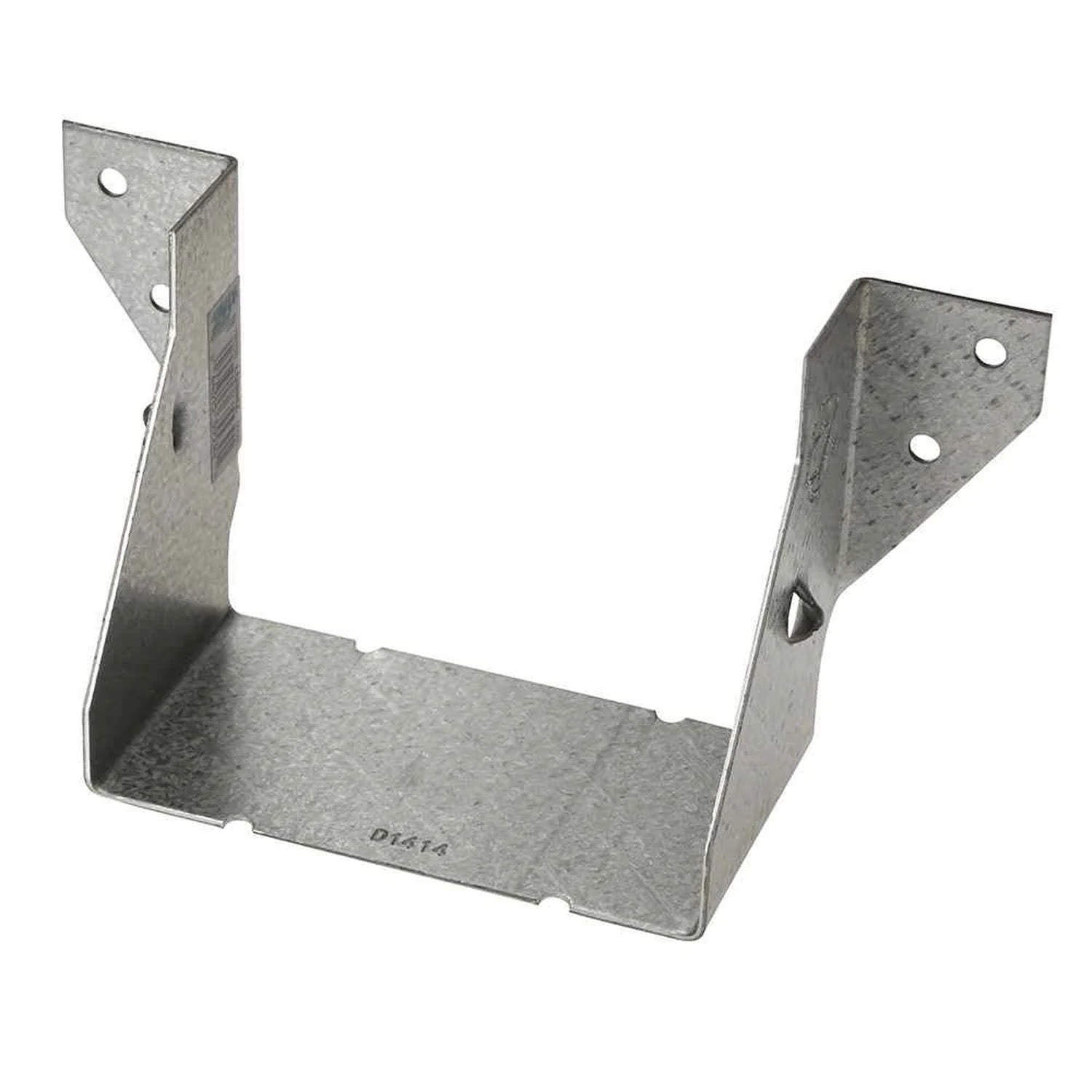

The Simpson Strong-Tie LUS44 is a galvanized face-mount joist hanger designed for 4x4 lumber, offering reliable structural support and corrosion resistance.
Simpson Strong-Tie LUS44 Includes
- (1) Galvanized Face-Mount Joist Hanger for 4x4
Simpson Strong-Tie LUS44 Features
- G90 Galvanized Finish for corrosion resistance
- Double-Shear Nailing for efficient load distribution
- Versatile for decks, floors, and roof framing
- Code-compliant design for safety and durability
Simpson Strong-Tie LUS44 Applications
- Deck Construction: Provides strong, secure joist connections for elevated decks and patios.
- Floor Framing: Ensures stable load-bearing support for residential and commercial flooring systems.
- Roof Framing: Used to attach rafters and ceiling joists to beams, increasing stability in pitched roof structures.
- Pergolas & Outdoor Structures: Ideal for assembling pergolas, gazebos, and pavilions where solid wood connections are required.
- General Wood Construction: Suitable for a variety of framing applications, ensuring durability and compliance with structural requirements.

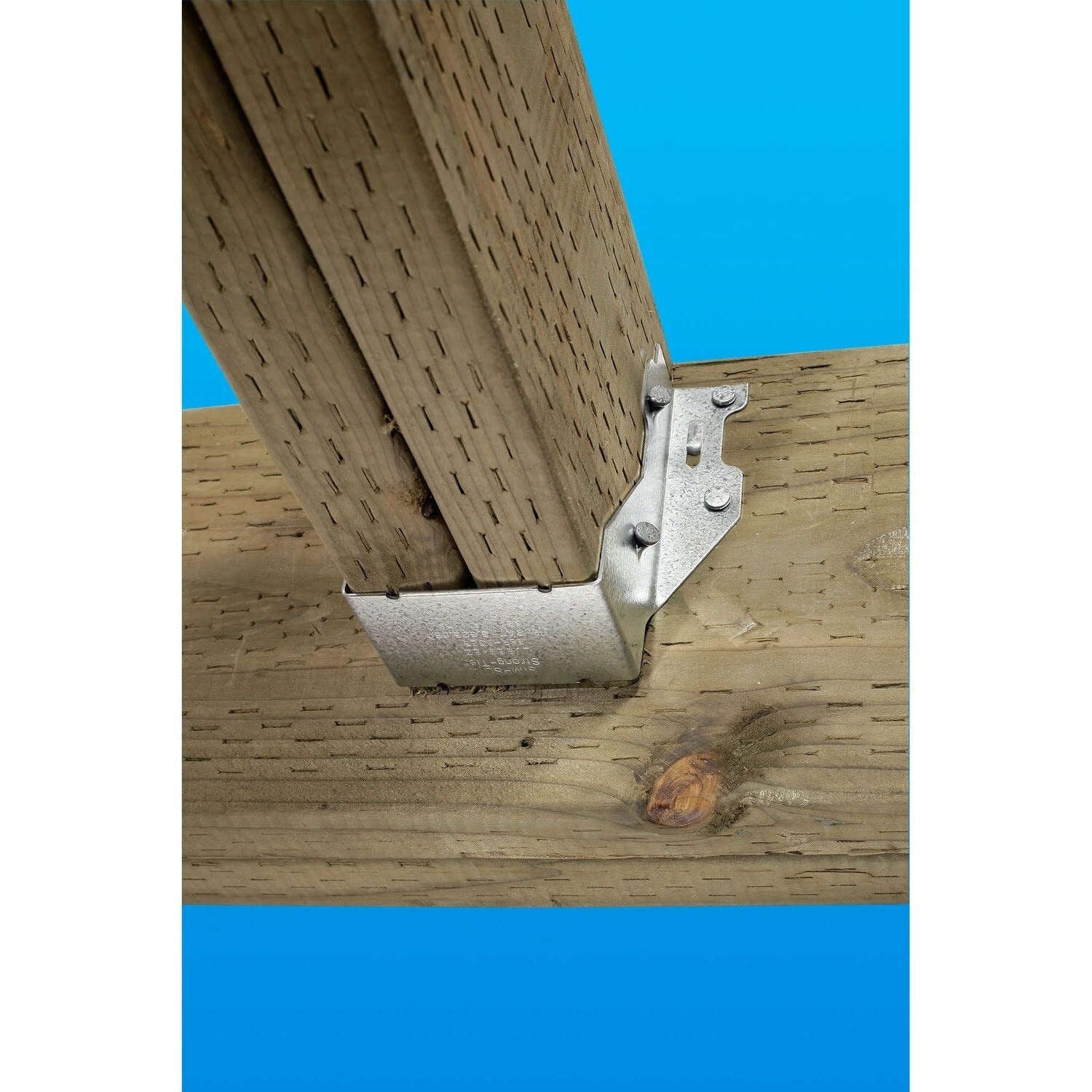

Simpson Strong-Tie LUS44 Installation Overview
- Use hot-dip galvanized nails or fasteners to maintain corrosion resistance and performance.
- Ensure nails are installed at the proper angle to optimize load-bearing capacity.

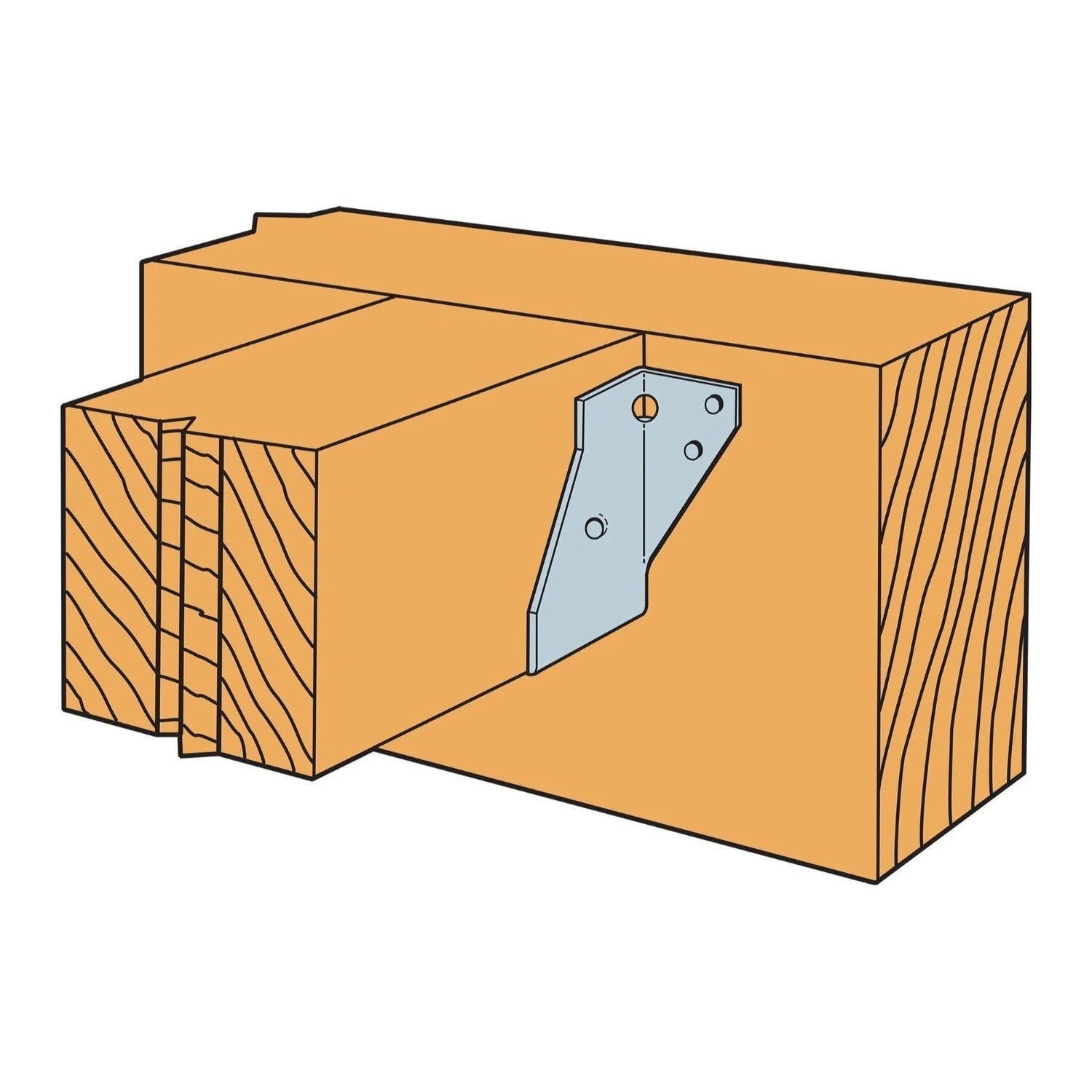

- Designed for face-mount applications on headers, beams, and other structural supports.
Simpson Strong-Tie LUS44 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 1-1/2" SD Connector Screws; Joist - (2) 0.162 x 3-1/2" Nails OR (2) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | No |
| Height | 3" |
| Joist size | 4" X 4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
