Simpson Strong-Tie LUS46Z Description

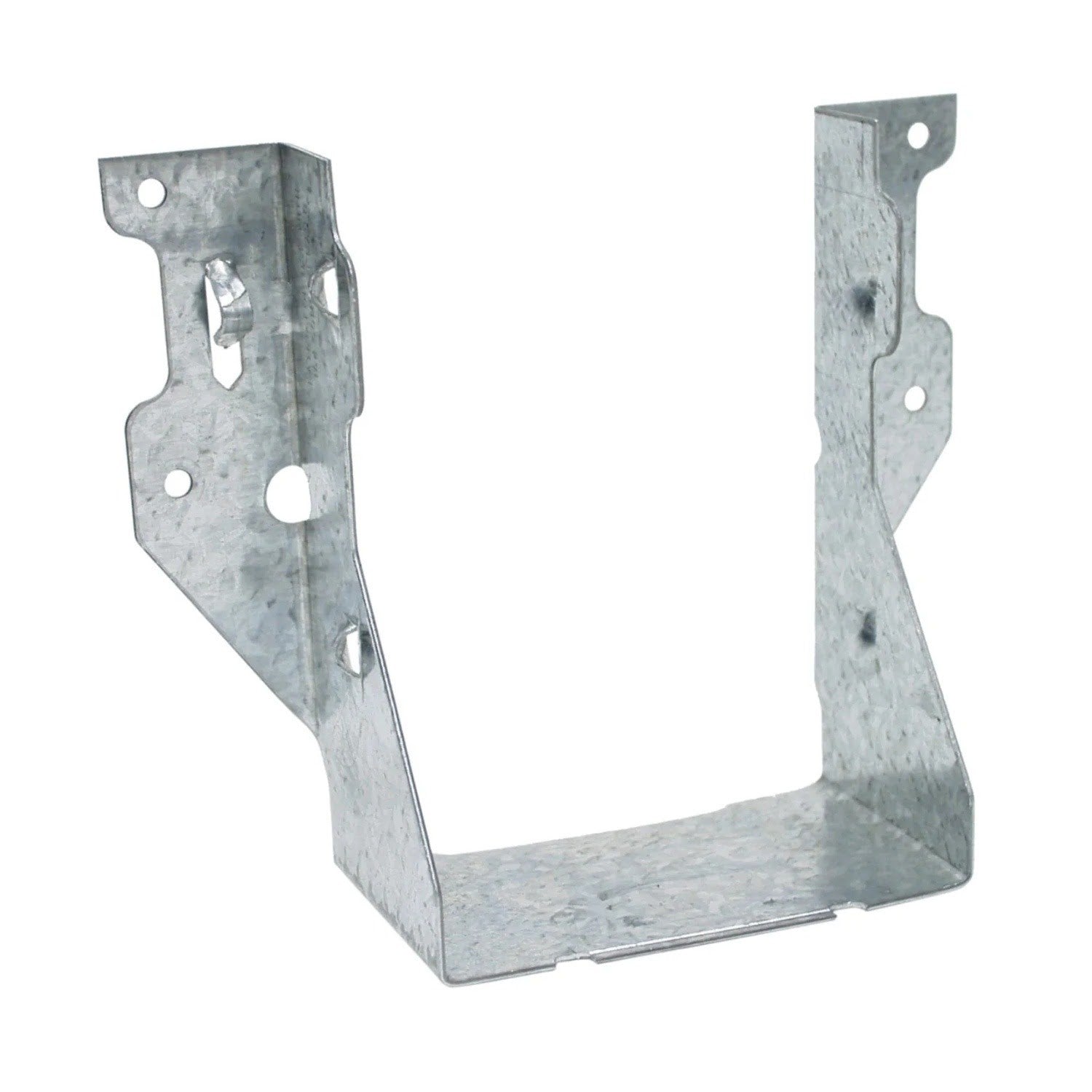

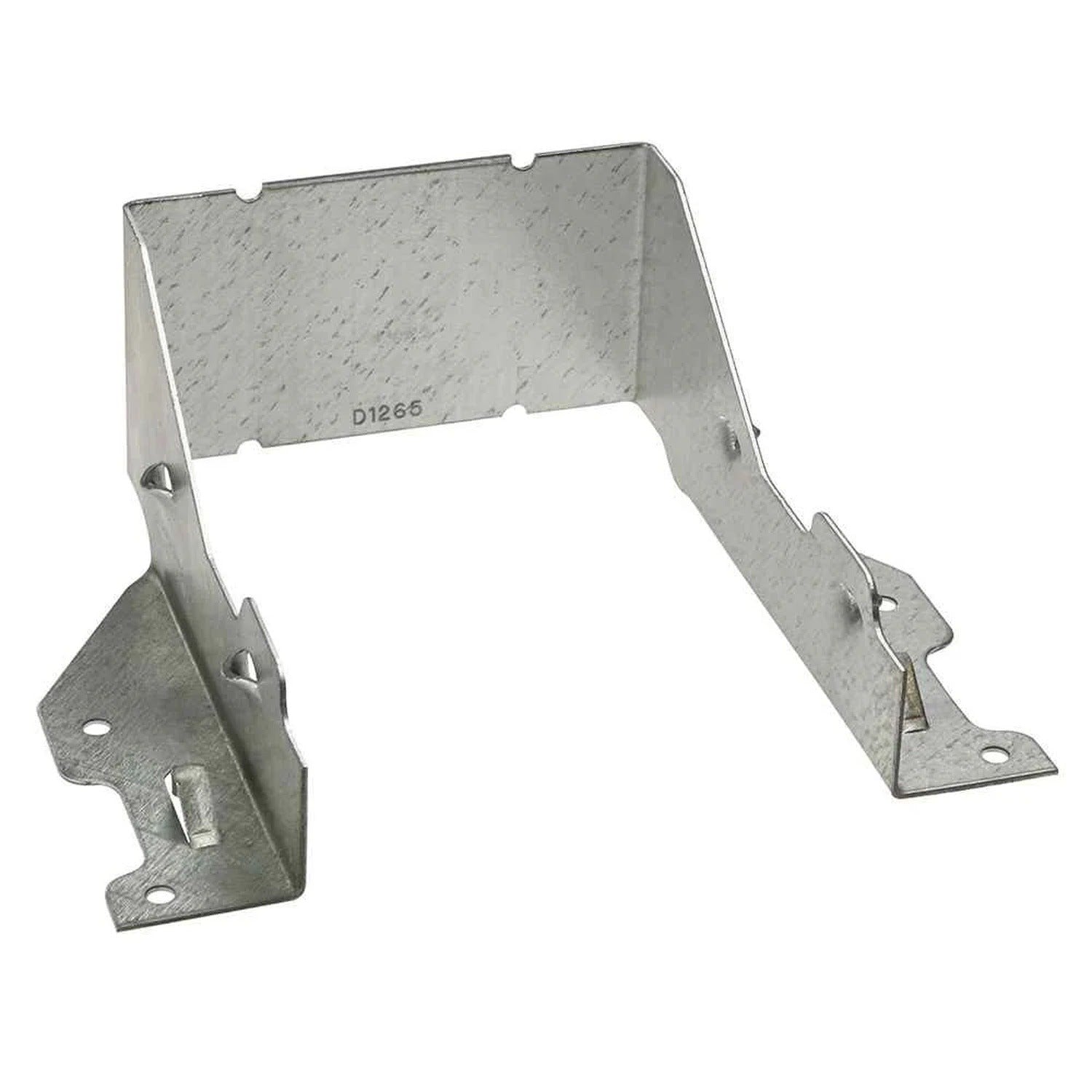

The Simpson Strong-Tie LUS46Z is a ZMAX galvanized face-mount joist hanger designed for 4x6 lumber, offering superior corrosion resistance and structural integrity.
Simpson Strong-Tie LUS46Z Includes
- (1) LUS46Z Joist Hanger
Simpson Strong-Tie LUS46Z Features
- ZMAX Coating for enhanced corrosion resistance
- Double-shear nailing technology for improved strength
- Designed for solid sawn lumber and engineered wood products
- Code-compliant and rigorously tested for strength
Simpson Strong-Tie LUS46Z Applications
- Decks: Securely fastens joists to beams for outdoor structures
- Floors: Provides reliable support for floor joists
- Roofing: Ensures structural integrity in roof framing

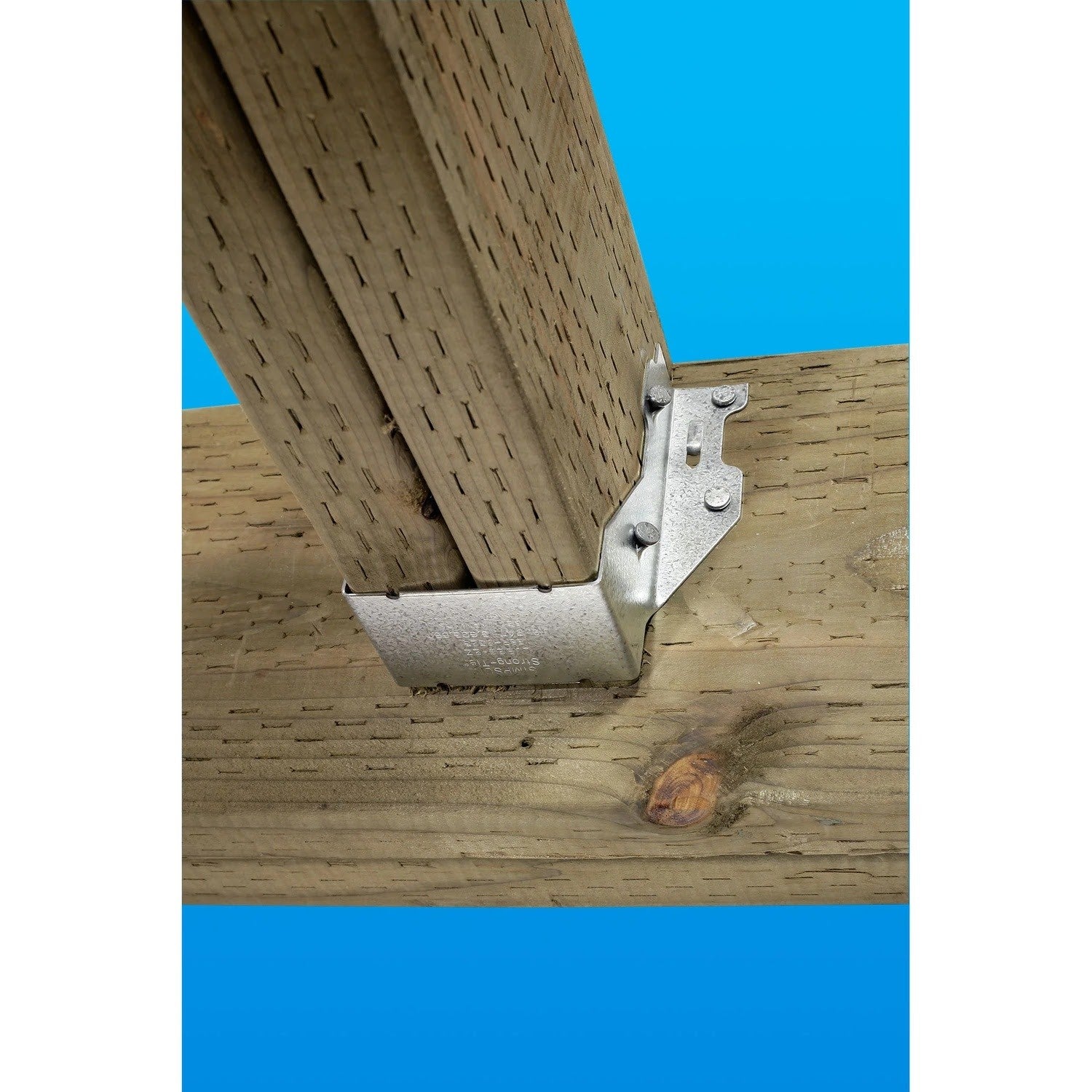

Simpson Strong-Tie LUS46Z Installation Overview
- Use hot-dip galvanized nails or SD connector screws for maximum corrosion resistance
- Angle nail placement for optimal strength and load distribution
- Ensure proper alignment and secure fastening for structural stability
Simpson Strong-Tie LUS46Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Header - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 1-1/2" SD Connector Screws; Joist - (4) 0.162 x 3-1/2" Nails OR (4) #9 x 2-1/2" SD Connector Screws |
| For Treated Lumber | Yes |
| Height | 4-3/4" |
| Joist size | 4" X 6" |
| Thickness | 18 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
