Simpson Strong-Tie MASA-B Description

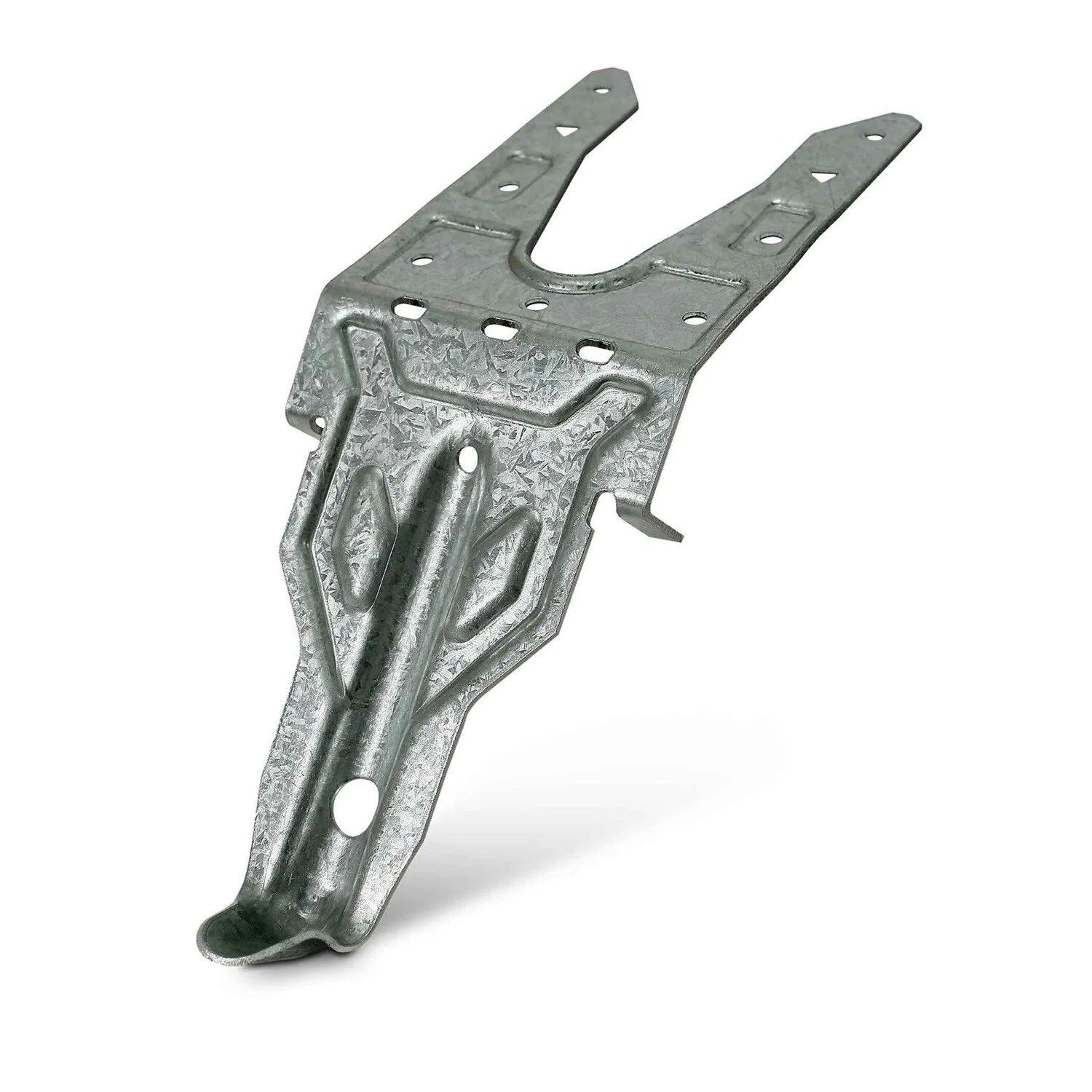

The MASA Mudsill Anchor is a 16-gauge galvanized connector designed for quick and efficient installation in concrete forms, eliminating the need for anchor bolts.
Simpson Strong-Tie MASA-B Includes
- (2500) MASA Mudsill Anchor
Simpson Strong-Tie MASA-B Features

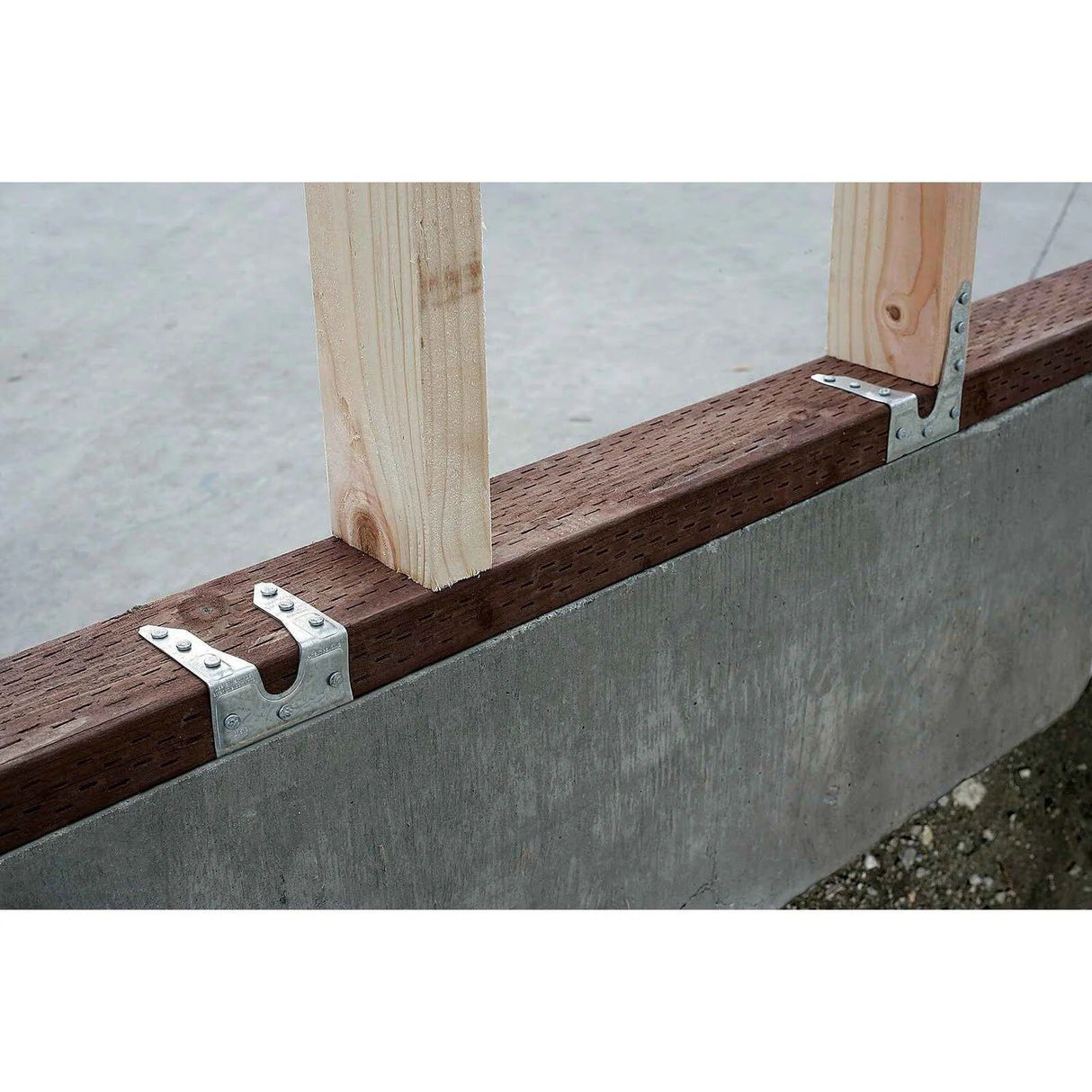

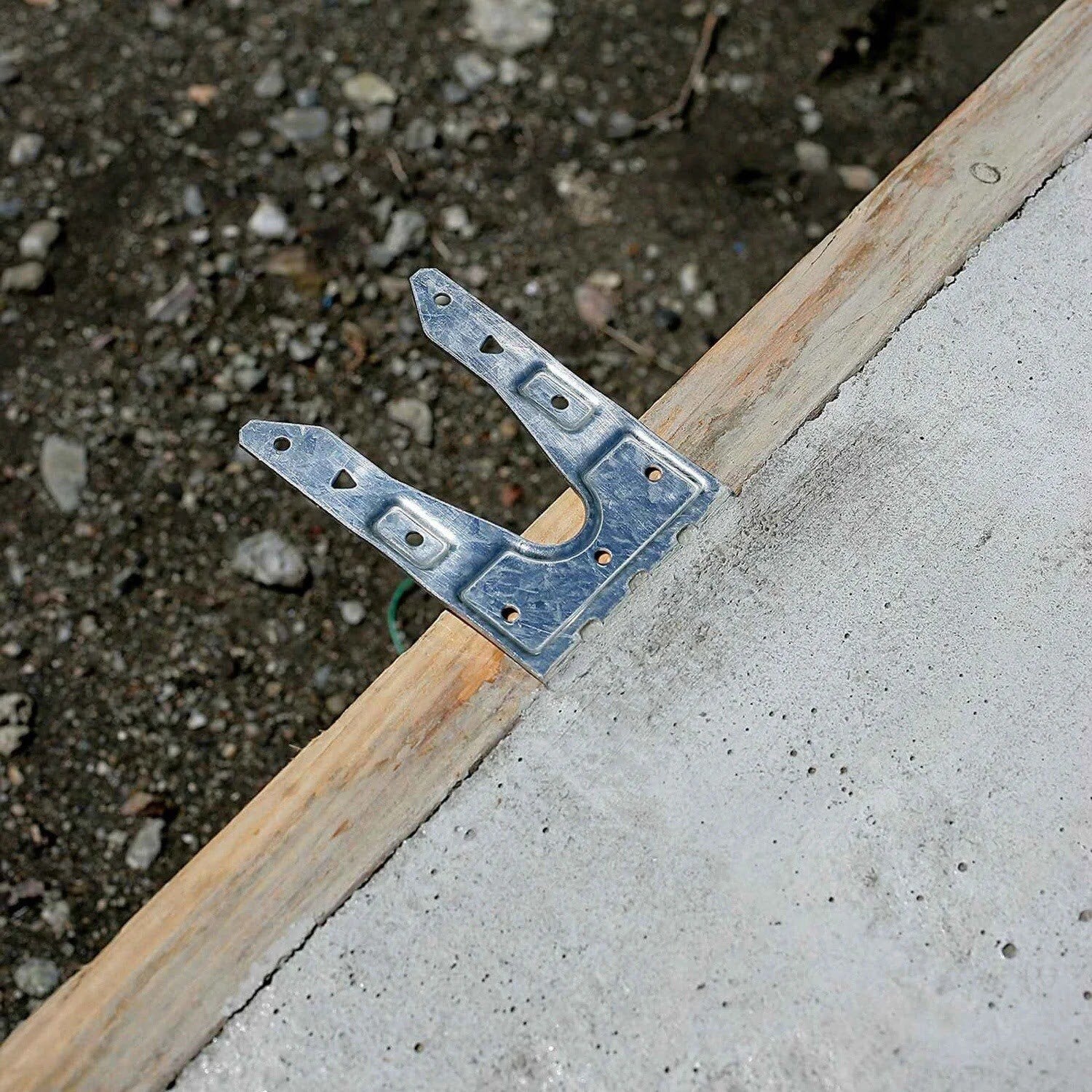

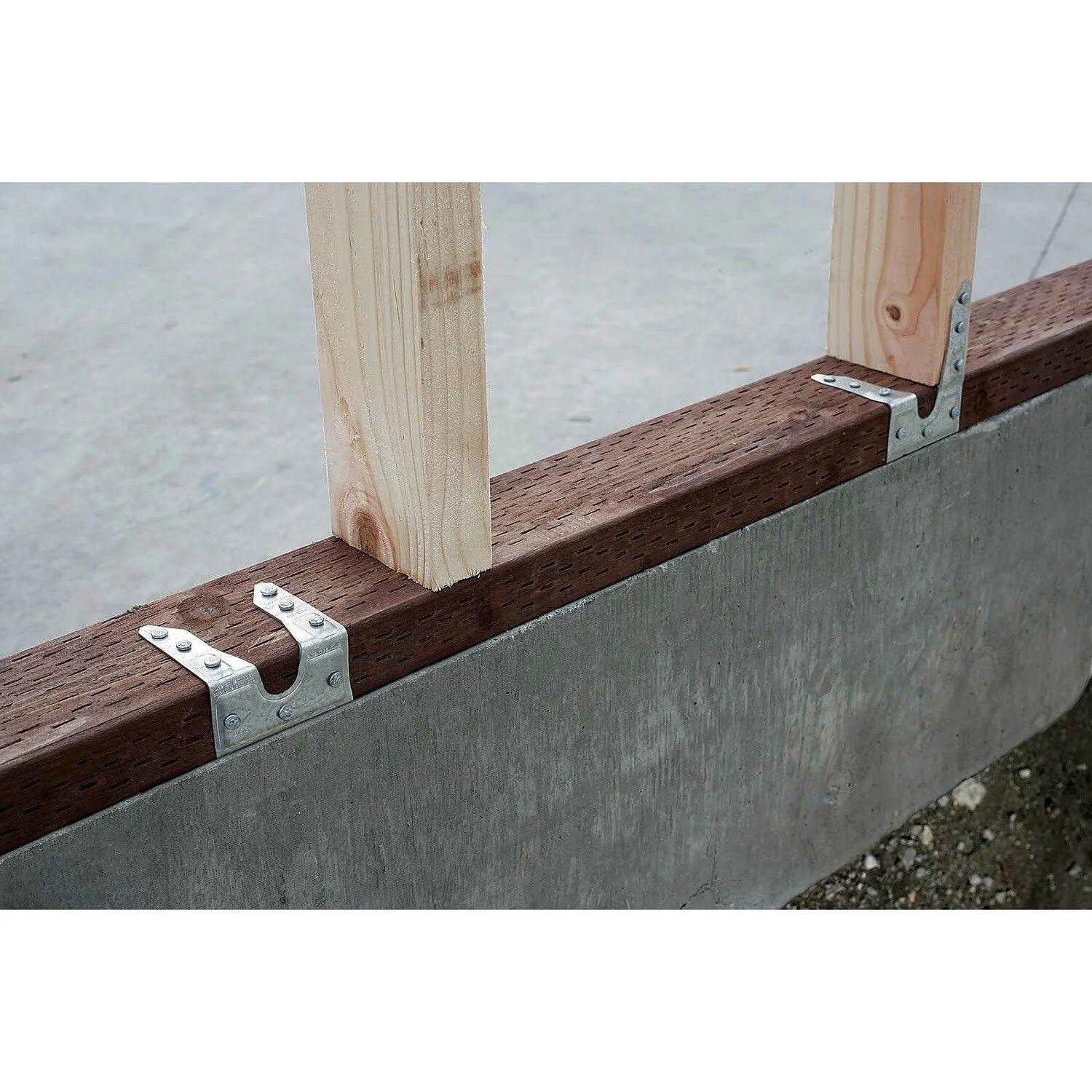

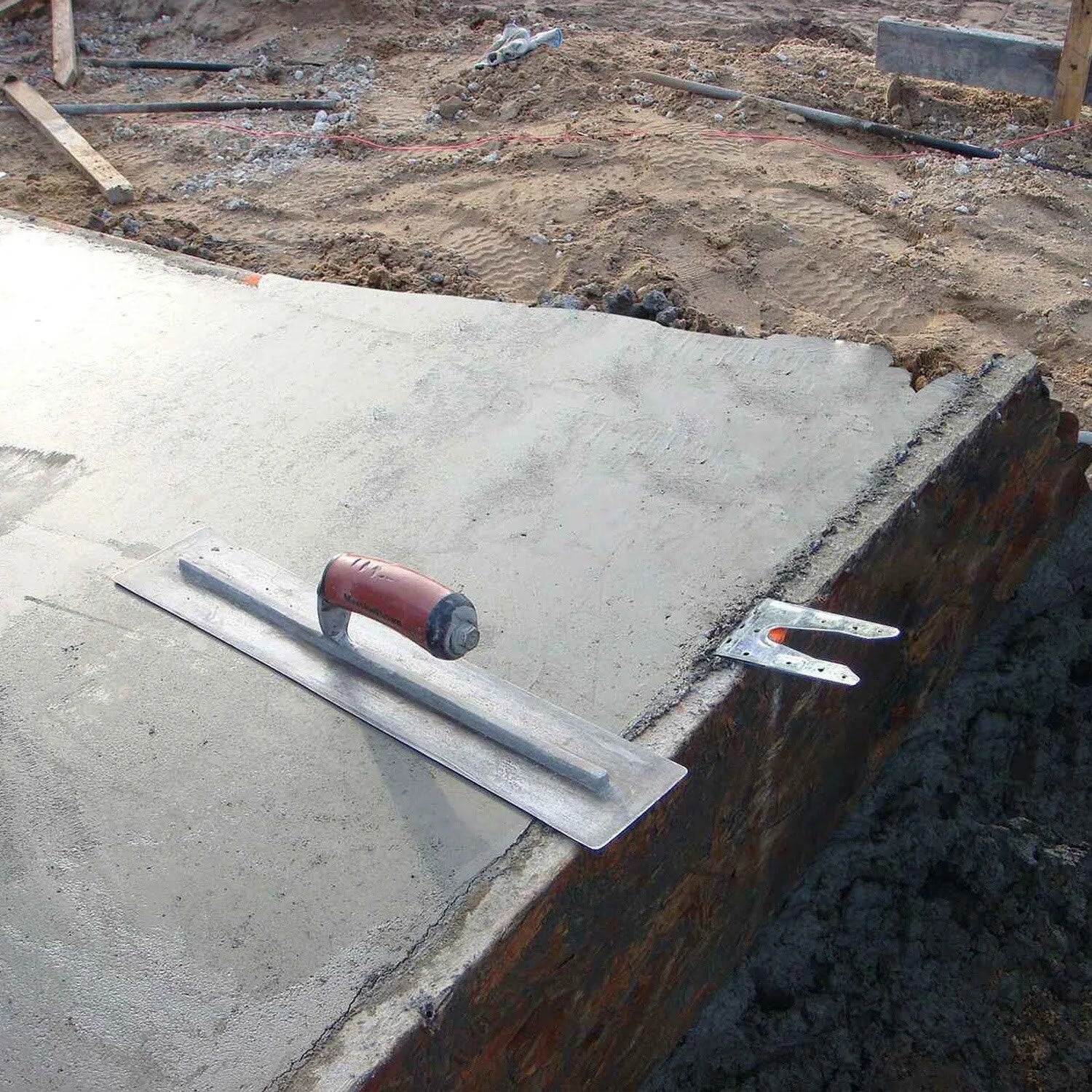

- Attaches easily to the concrete form for quick installation
- Lays flat on the form board so there is no anchor bolt to finish around
- None of the labor costs involved in drilling plates and aligning holes
- Flat design eliminates chances of modification in prefabricated walls
- Eliminates the need to notch studs because of intersection with anchor bolt placement
- Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
Simpson Strong-Tie MASA-B Applications
- High-Wind Construction: Provides secure anchoring in high-wind areas
- Seismic Zones: Suitable for use in high seismic zones as a replacement for anchor bolts

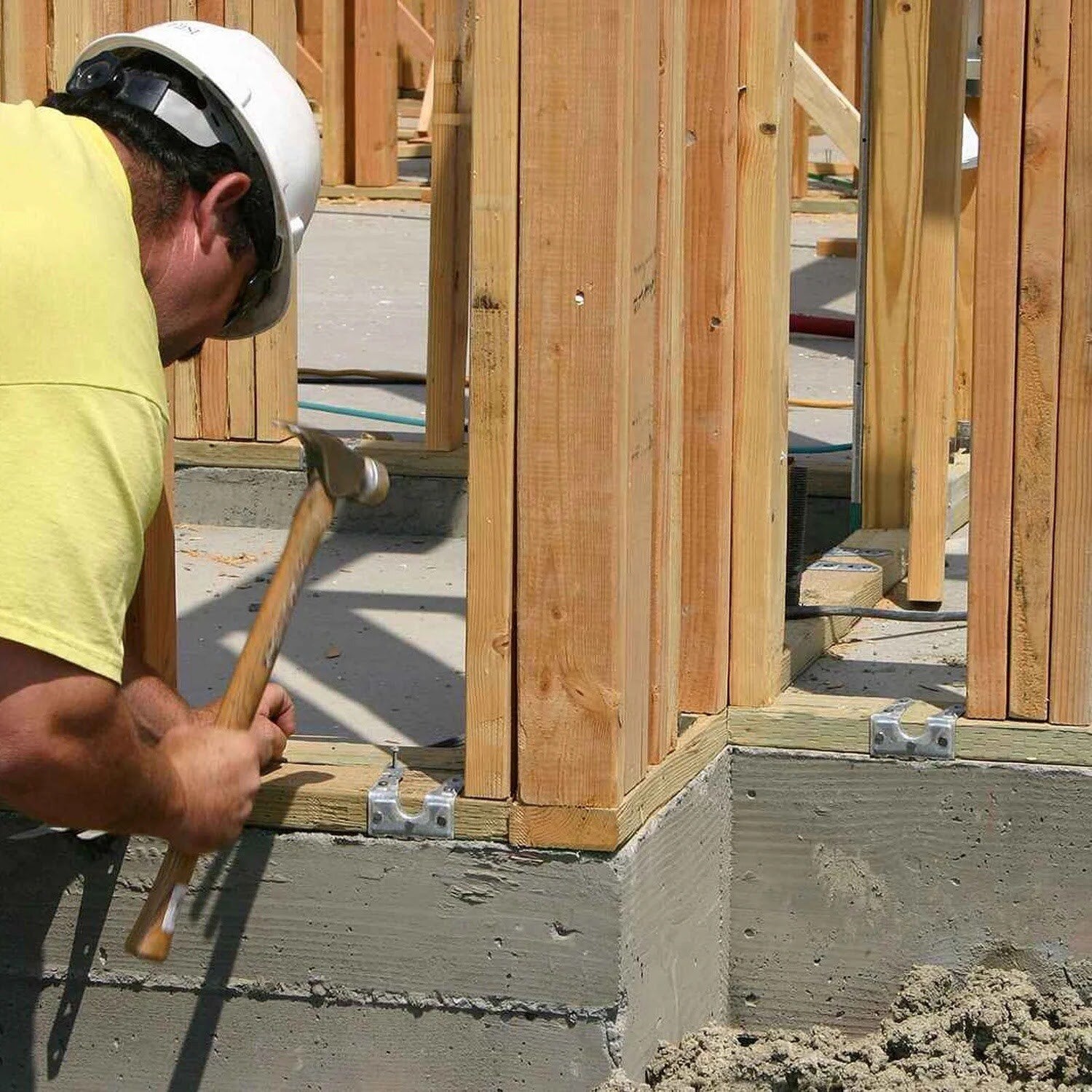

Simpson Strong-Tie MASA-B Installation Overview
- Use all specified fasteners as per guidelines
- Ensure concrete has a minimum compressive strength of 2,500 psi
- Protect any exposed portion of the anchor against corrosion
- Follow spacing and end distance requirements for full load capacity
- Install on the same side of the wall as uplift connectors for a continuous load path

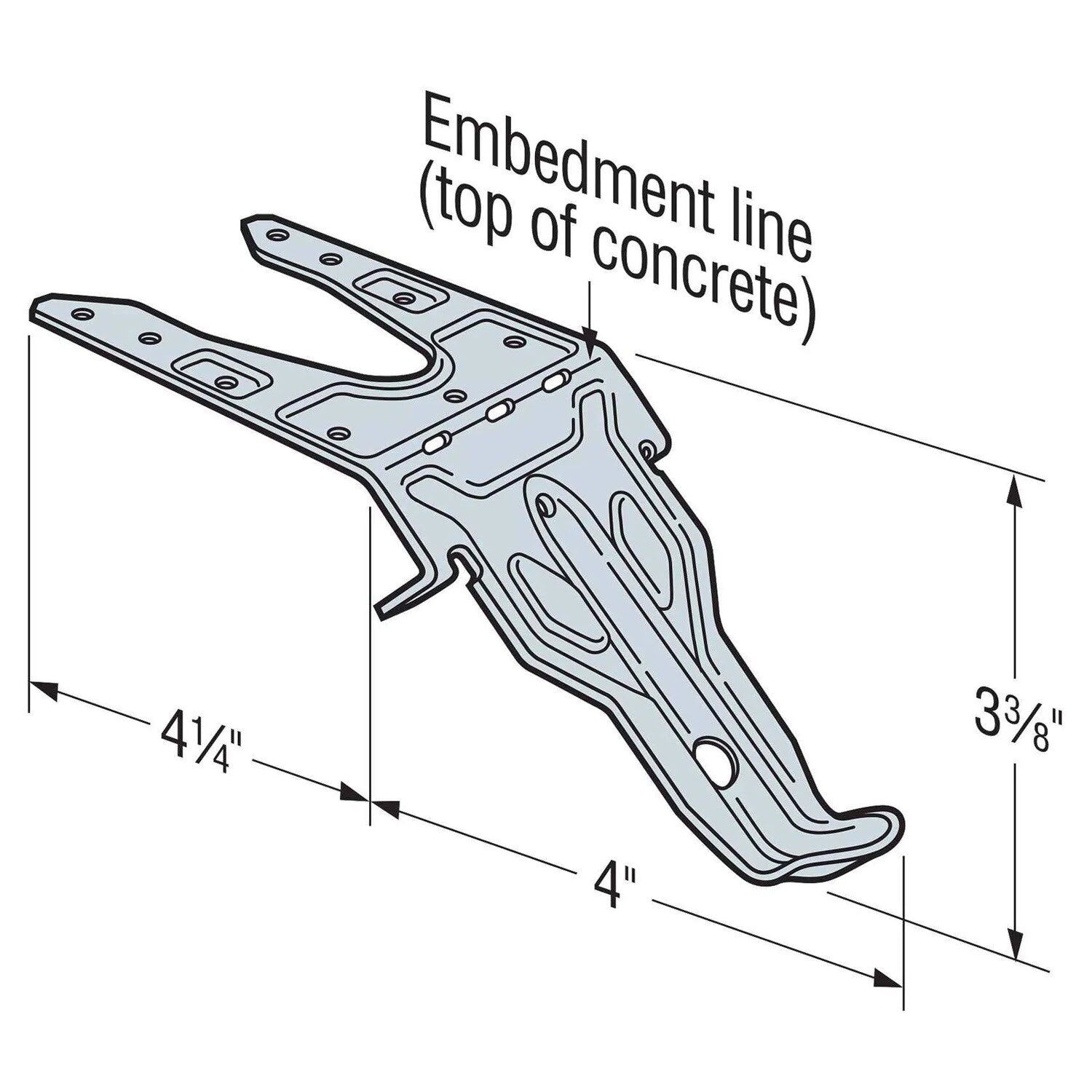

Simpson Strong-Tie MASA-B Specifications
| Material | 16 gauge |
| Finish | Galvanized or ZMAX coating |
Toolup Part # :
826252
