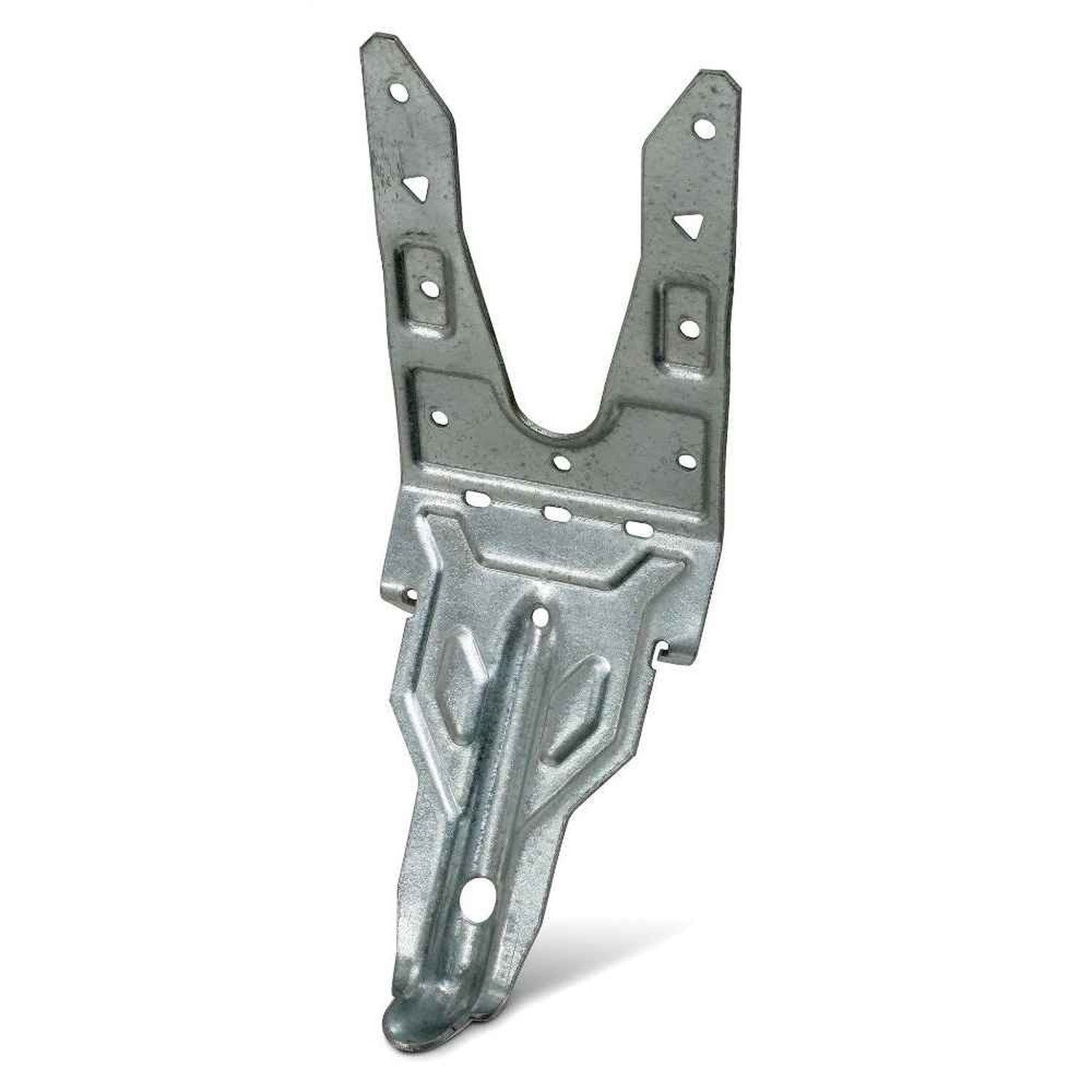

Simpson Strong-Tie MASAPZ Description
The MASAPZ Mudsill Anchor offers a high load-carrying capacity alternative to traditional anchor bolts, designed for panelized forms with a Zmax finish.
Simpson Strong-Tie MASAPZ Includes
- (1) MASAPZ Mudsill Anchor
Simpson Strong-Tie MASAPZ Features
- High load-carrying capacity alternative to anchor bolts
- Eliminates the need for 3" square plate washers for seismic design
- Code listed by ICC-ES under the 2006, 2009, and 2012 IBC and IRC
- Tested to meet ICC-ES acceptance criteria AC-398 for cracked and uncracked concrete
- Designed for use with 2x, double-2x, and 3x mudsills
Simpson Strong-Tie MASAPZ Applications
- Seismic design applications
- Panelized forms anchoring
- Construction requiring high load-carrying capacity anchors
Simpson Strong-Tie MASAPZ Installation Overview
- Use all specified fasteners included
- Ensure concrete has a minimum f'c = 2500 psi
- Protect exposed portions of the anchor against corrosion
- Follow prescriptive anchor spacing guidelines
- Install on the same side of the wall as uplift connectors for continuous load path
Simpson Strong-Tie MASAPZ Specifications
| Finish | ZMAX |
| For Treated Lumber | Yes |
| Manufacturer Name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
825235
