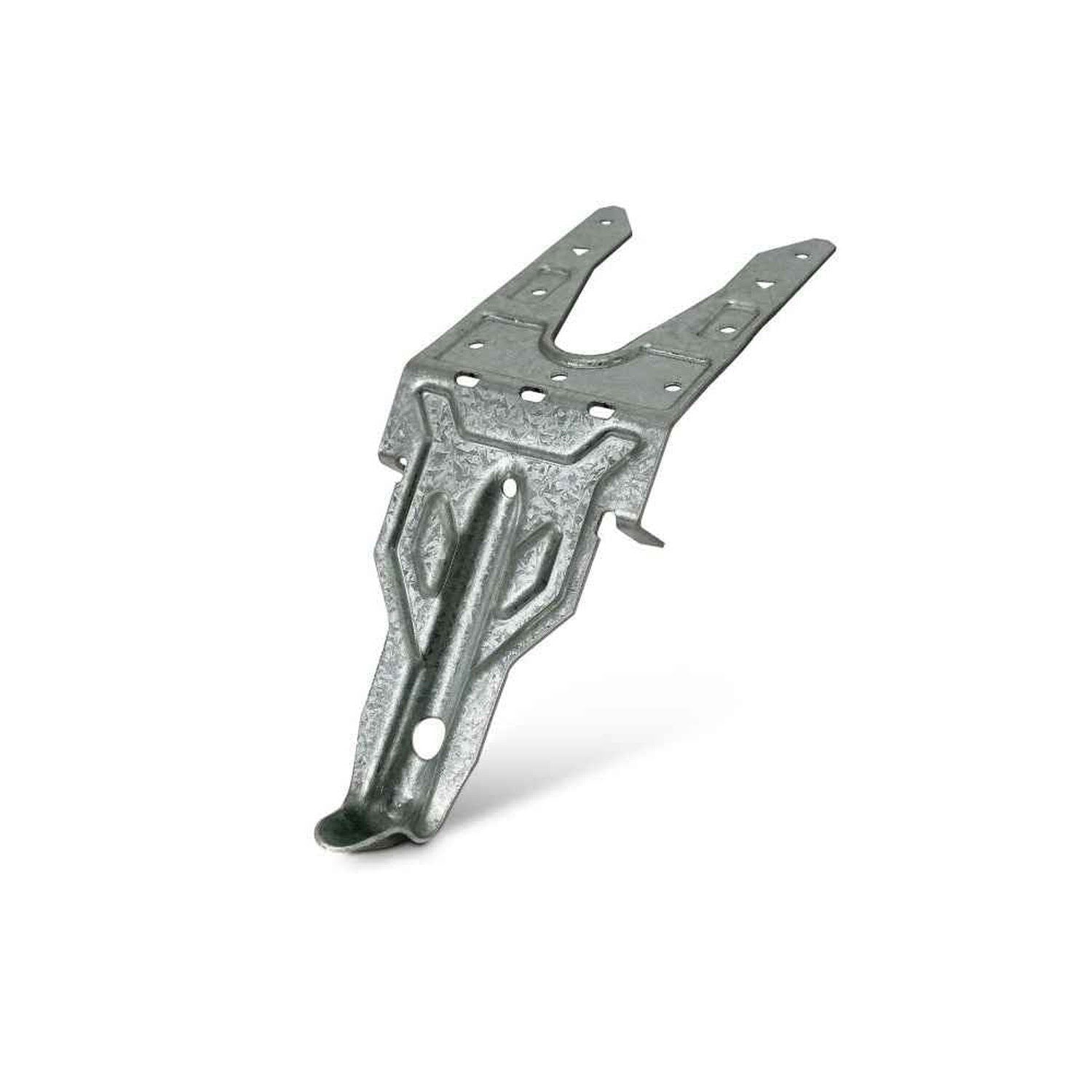

Simpson MASAZ Description
The MASAZ Mudsill Anchor offers a time-saving alternative to traditional anchor bolts, providing enhanced load-carrying capacity and eliminating the need for square plate washers in seismic designs.
Simpson MASAZ Includes
- (1) Mudsill Anchor For Standard Forms - Zmax Finish
Simpson MASAZ Features
- Time-saving alternative to anchor bolts
- Enhanced load-carrying capacity
- Eliminates need for square plate washers in seismic designs
- Code listed by ICC-ES under IBC and IRC
- Tested for cracked and uncracked concrete
Simpson MASAZ Applications
- Seismic design applications
- Standard and panelized forms anchoring
- High seismic zone construction
Simpson MASAZ Installation Overview
- Use all specified fasteners
- Ensure concrete has a minimum f'c = 2500 psi
- Protect exposed portions against corrosion
- Follow prescriptive anchor spacing guidelines
- Install on the same side of wall as uplift connectors for continuous load path
Simpson MASAZ Specifications
| Finish | ZMAX |
| For Treated Lumber | Yes |
| Weight | 0.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
823333
