Simpson Strong-Tie MASOPZ-R25 Description

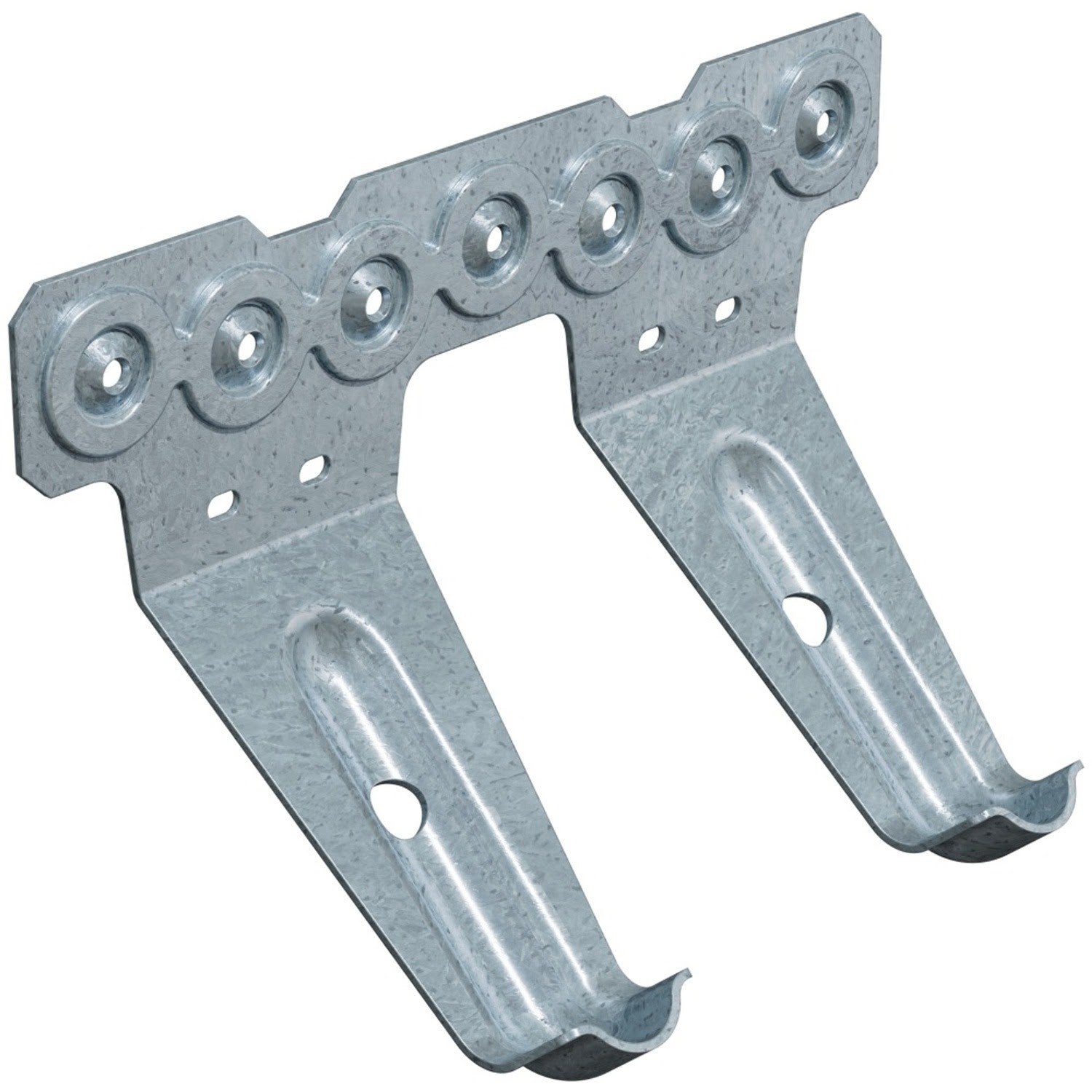

The MASOPZ-R25 is a ZMAX galvanized 16-gauge mudsill anchor designed for panelized forms, providing a reliable and efficient solution for concrete anchoring.
Simpson Strong-Tie MASOPZ-R25 Includes
- (25) MASOPZ Mudsill Anchors
Simpson Strong-Tie MASOPZ-R25 Features
- Attaches easily to the concrete form for quick installation
- Strategic nail hole placement and bend-line locations work with sheathing flush or overhanging at foundation edge
- Eliminates the labor costs of drilling sill plates and aligning holes for anchor bolts
- Raised embossments surrounding the nail holes facilitate speedy nail installation with a power framing nailer
- Patent pending
Simpson Strong-Tie MASOPZ-R25 Applications
- Concrete anchoring for panelized forms
- Suitable for use in construction projects requiring reliable mudsill anchoring
Simpson Strong-Tie MASOPZ-R25 Installation Overview
- Attach the MASOPZ to the concrete form as per the installation guide.
- Ensure compatibility with power framing nailers and nails.
- Use only nails with concentric, full-round heads that comply with ASTM F1667.
- Do not use 28° wire-weld nails, or any nails with offset, clipped, or D heads.
- Place the tool's nosepiece in the MASOPZ fastener feature and ensure proper nail placement.
- Use all specified fasteners and ensure concrete has a minimum f’c = 2,500 psi.
- Protect any exposed portion of the mudsill anchor against corrosion.
Simpson Strong-Tie MASOPZ-R25 Specifications
| Material | 16 gauge |
| Finish | ZMAX coating |
| Application | Concrete |
| API Approval | Approved - Full |
| Value Engineered | TRUE |
NOTE: The MASOPZ is designed to be attached through wood structural panel sheathing. For direct attachment to the sill plate, use MASAP.
