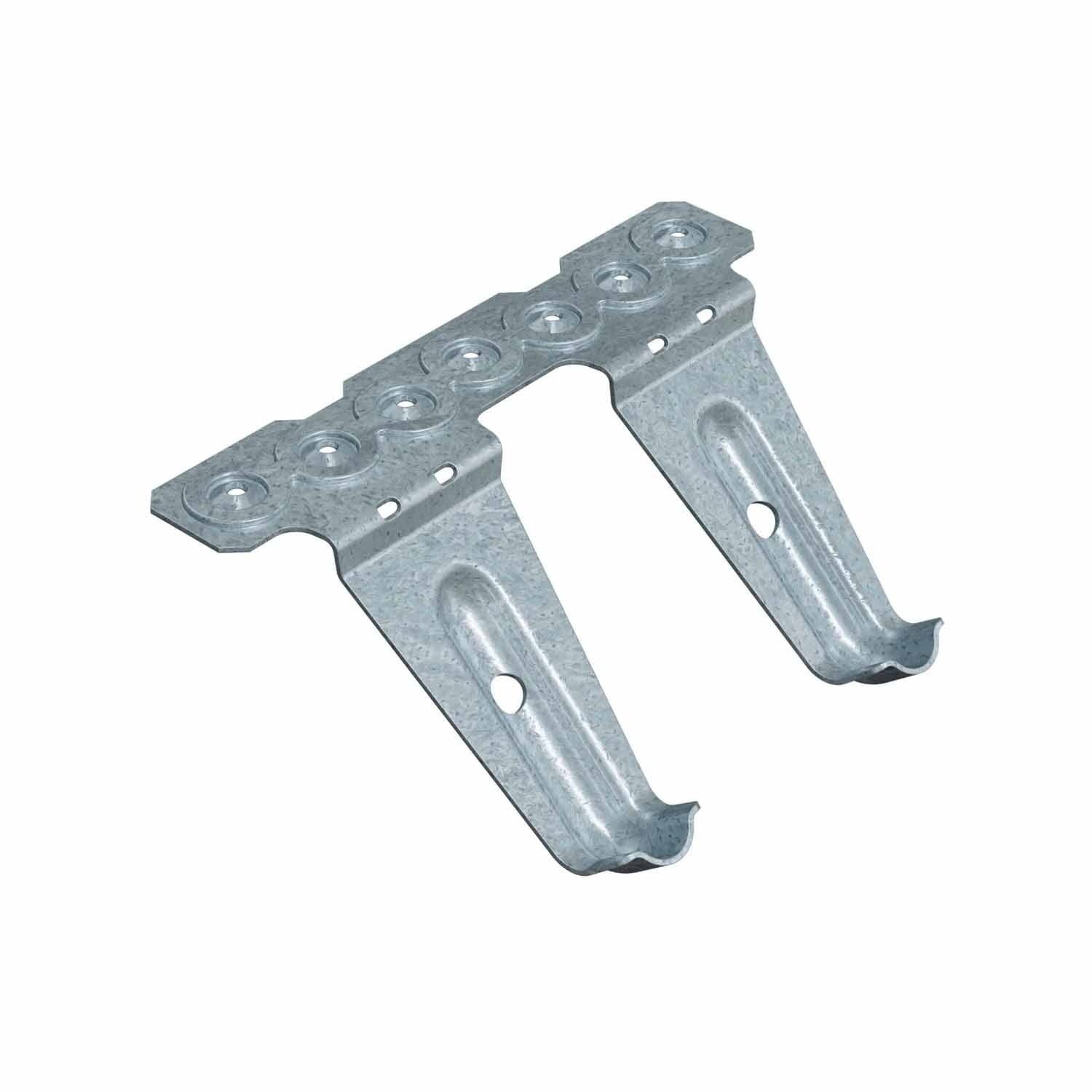

Simpson Strong-Tie MASOZ-R25 Description
The MASOZ mudsill anchor is designed for factory-built, sheathed wall panels, offering quick installation and reduced labor costs.
Simpson Strong-Tie MASOZ-R25 Includes
- (25) MASOZ Mudsill Anchors
Simpson Strong-Tie MASOZ-R25 Features
- Easily attaches to the concrete form for quick installation
- Strategic nail hole placement and bend-line locations accommodate sheathing flush or overhanging the foundation edge
- Reduces labor costs by eliminating the need to drill sill plates and align holes for anchor bolts
- Raised embossments around the nail holes allow for fast nail installation with a power framing nailer
Simpson Strong-Tie MASOZ-R25 Applications

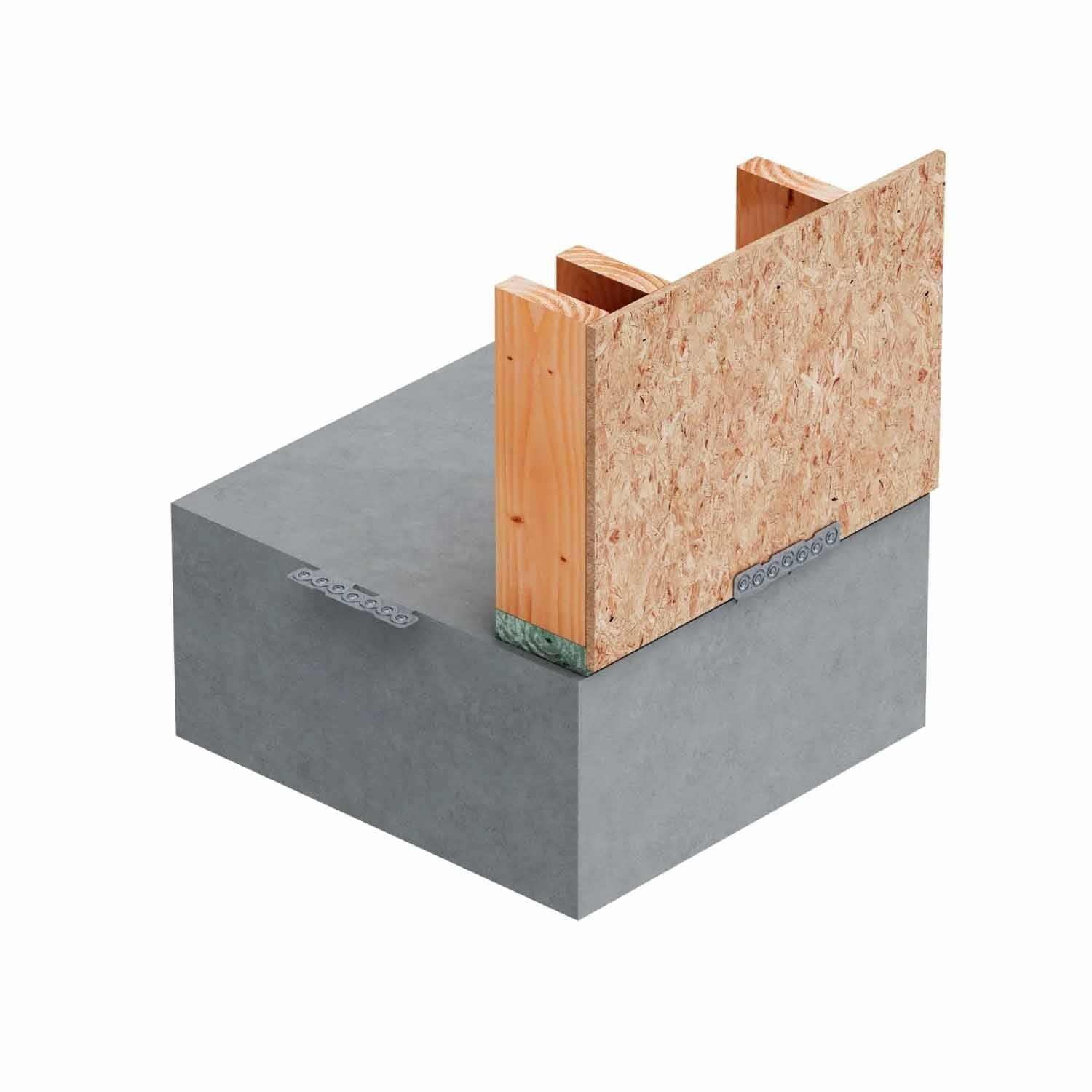

- Factory-built sheathed wall panels
- Concrete foundations
Simpson Strong-Tie MASOZ-R25 Installation Overview
- Attach the MASOZ to the concrete form before pouring concrete.
- Ensure concrete is fully consolidated around the anchor.
- Install sheathed wall panels after concrete cures.
- Use specified fasteners for secure attachment.
- Follow manufacturer guidelines for nailer compatibility and safety.

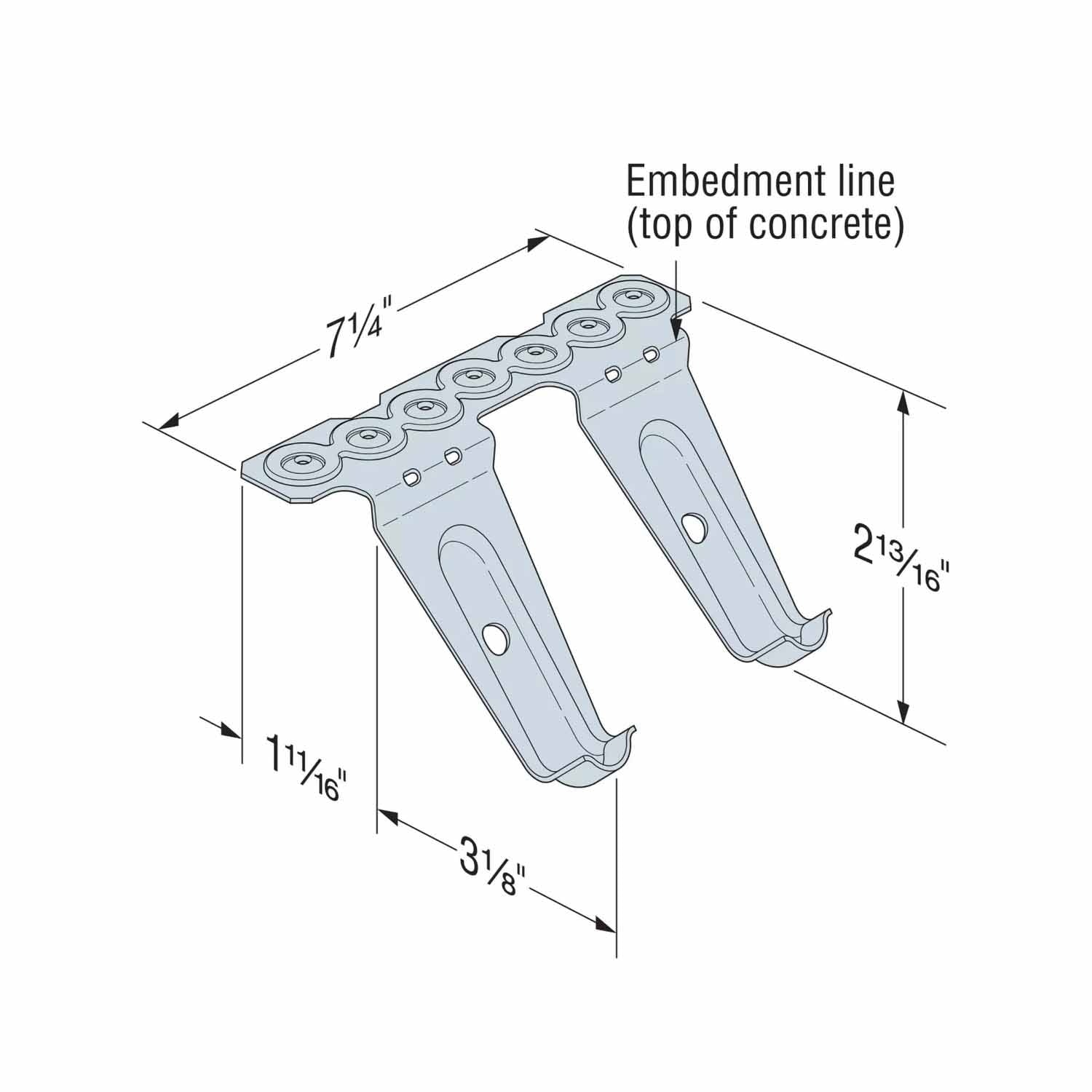

Simpson Strong-Tie MASOZ-R25 Specifications
| Finish | ZMAX coating |
| Material | 16 Gauge Steel |
| Fasteners required | (7) 0.148 x 2 1/2 |
| Quantity | 25 |
| Thickness | 16 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
822070
