Simpson Strong-Tie MBHU3.56/11.25SSKT Description

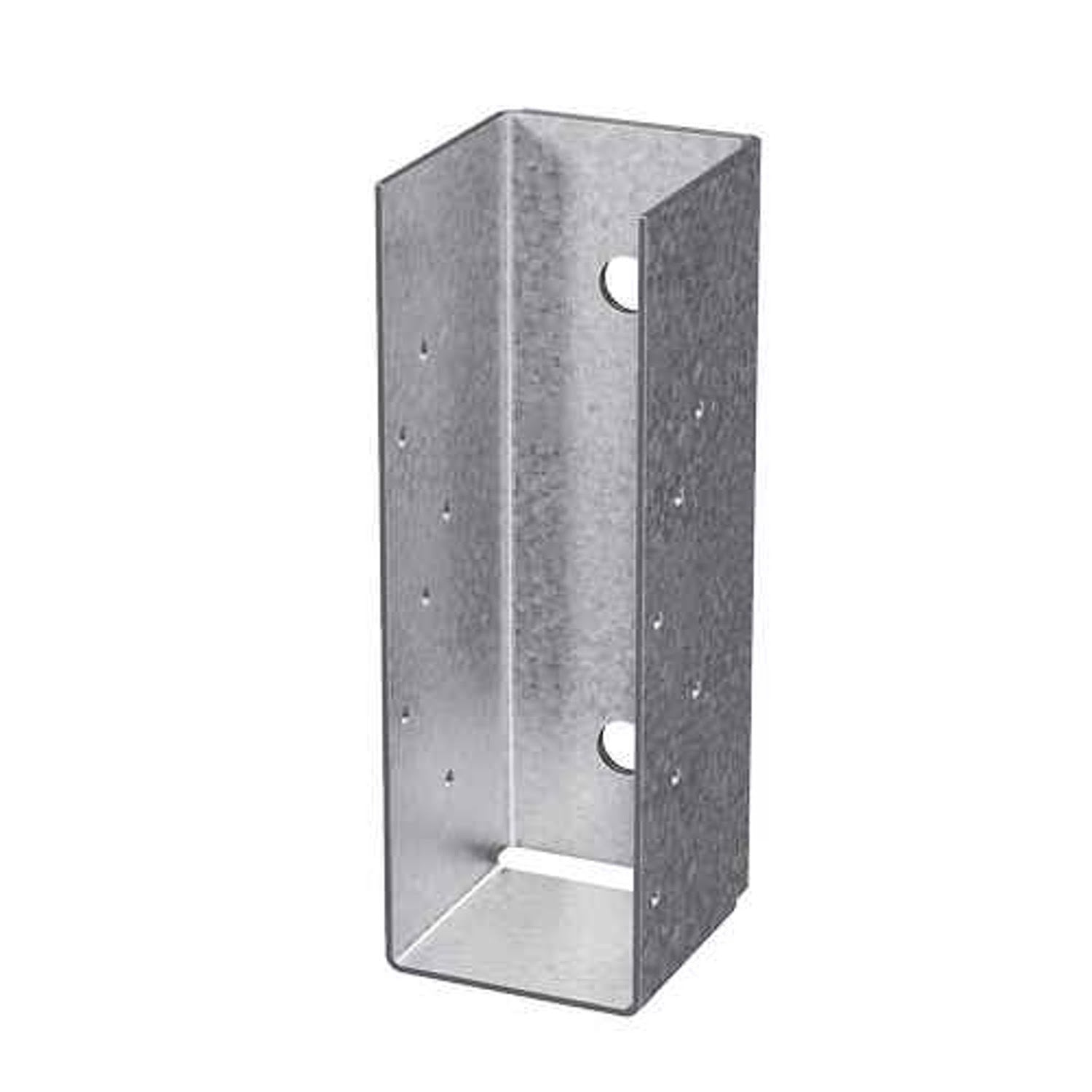

The MBHU Masonry Beam Face-Mount Hanger is a stainless steel connector designed for secure wood-to-masonry connections, featuring included fasteners for easy installation.
Simpson Strong-Tie MBHU3.56/11.25SSKT Includes
- (1) Strong-Tie Stainless-Steel Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU3.56/11.25SSKT Features
- Made from Type 316 stainless steel for high corrosion resistance
- Includes all necessary fasteners for installation
- Designed for face-mounted connections between beams and masonry or concrete walls
- Compatible with trusses and solid engineered wood beams
- Simplifies installation with post-construction anchor placement
Simpson Strong-Tie MBHU3.56/11.25SSKT Applications
- Wood-to-masonry connections in construction
- Securing beams to concrete or masonry walls
- Use in environments requiring high corrosion resistance
Simpson Strong-Tie MBHU3.56/11.25SSKT Installation Overview
- Use all specified fasteners included in the package.
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the anchor length.
- Avoid oversized holes to maintain load capacity.
- Provide a moisture barrier between the beam and wall as required.
Simpson Strong-Tie MBHU3.56/11.25SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
| Height | 11-1/4" |
| Fasteners Included | (2) 3/4" x 5" Titen HD anchors, (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners specified in the table.
