Simpson Strong-Tie MBHU3.56/14SSKT Description

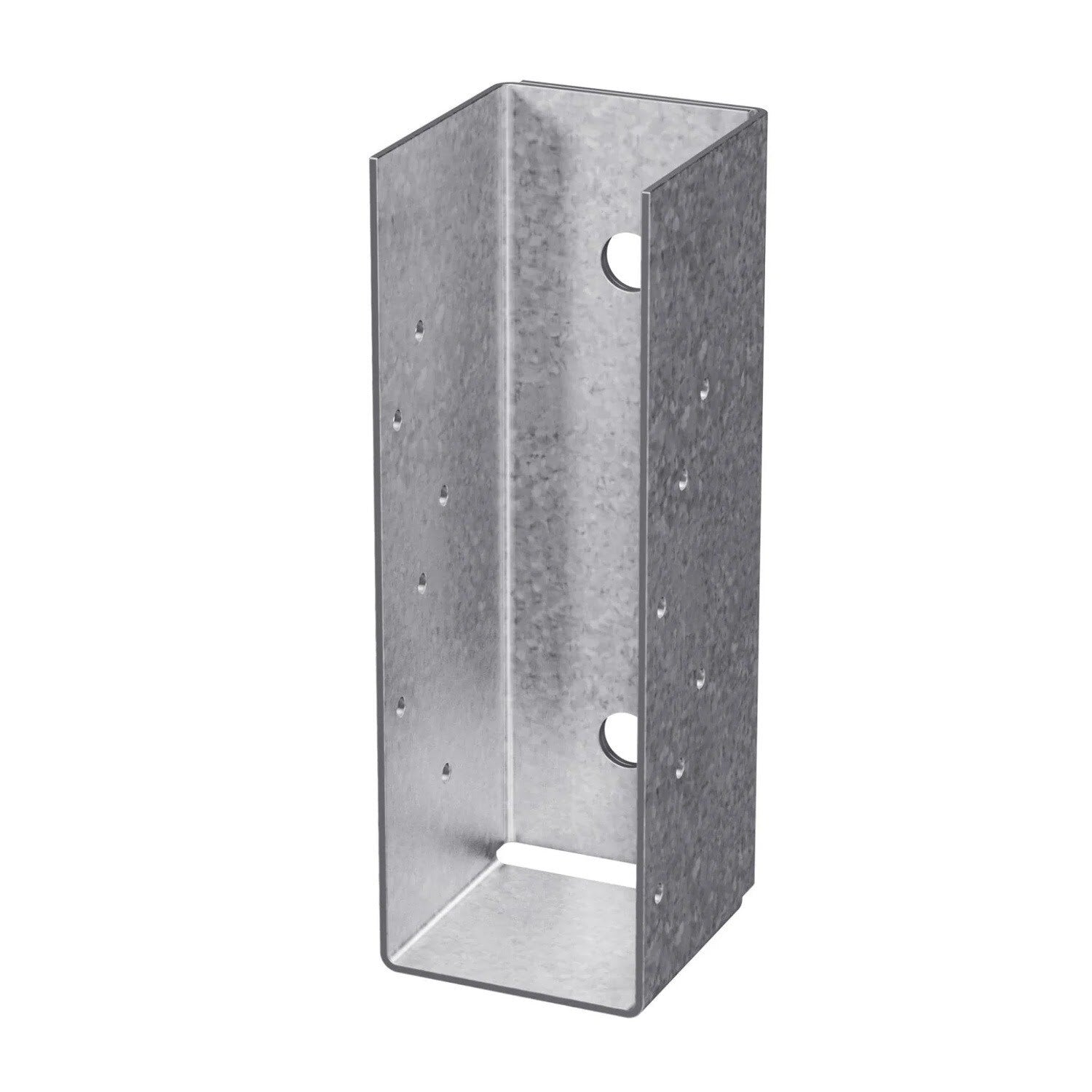

The MBHU Masonry Beam Face-Mount Hanger is a stainless steel connector designed for face-mounted connections between beams and masonry or concrete walls. It includes heavy-duty screws and anchors for secure installation.
Simpson Strong-Tie MBHU3.56/14SSKT Includes
- (1) Strong-Tie Stainless-Steel Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU3.56/14SSKT Features
- Made from Type 316 stainless steel for high corrosion resistance
- Includes heavy-duty screws and anchors for secure installation
- Designed for face-mounted connections between beams and masonry or concrete walls
- Compatible with trusses and solid engineered wood beams
- Simplifies installation compared to cast-in-place bolts
Simpson Strong-Tie MBHU3.56/14SSKT Applications

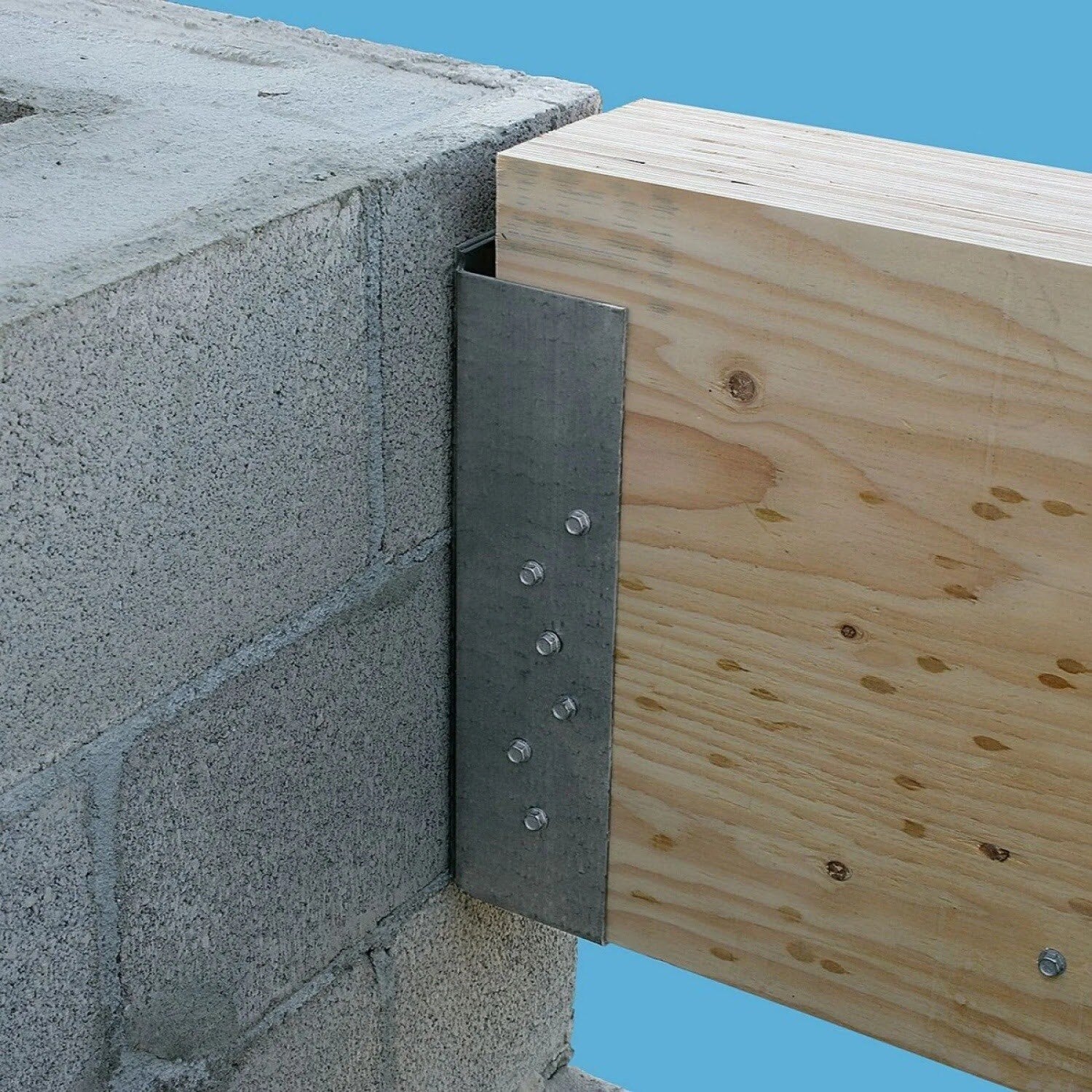

- Face-mounted connections between beams and masonry or concrete walls
- Use with trusses and solid engineered wood beams
- Suitable for environments requiring high corrosion resistance
Simpson Strong-Tie MBHU3.56/14SSKT Installation Overview
- Use all specified fasteners included in the kit.

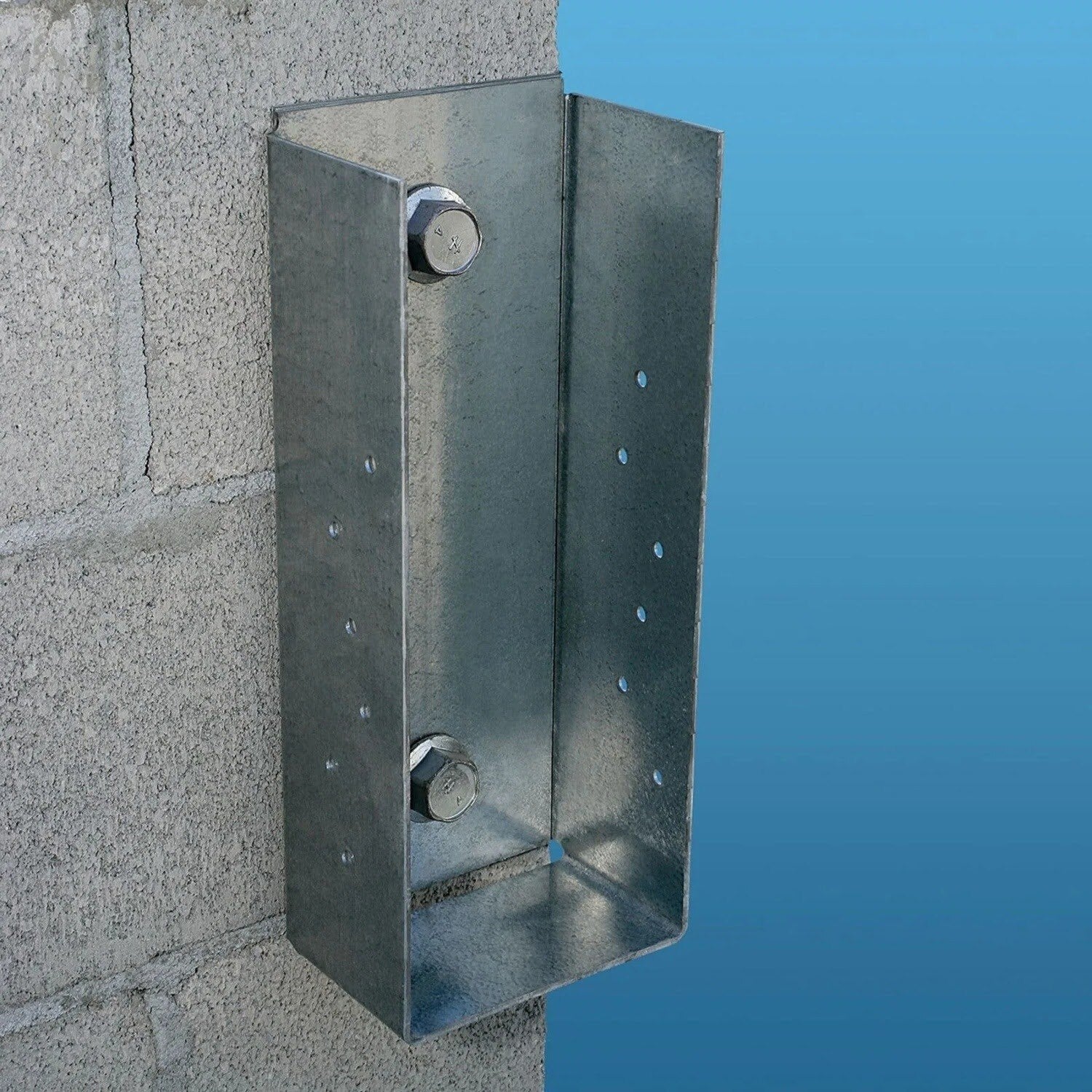

- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the specified Titen HD length.
- Provide moisture barrier between beam and wall as per jurisdictional requirements.

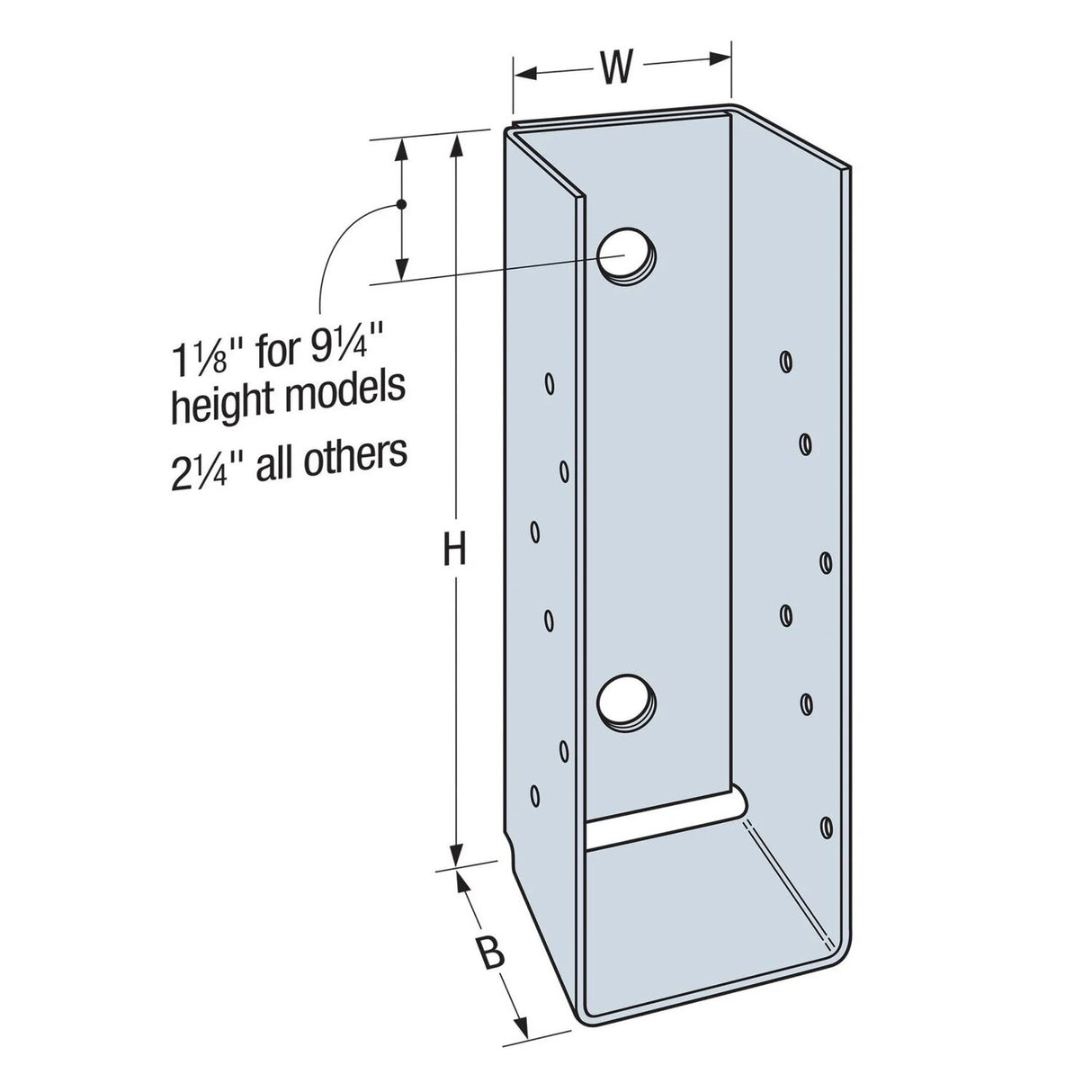

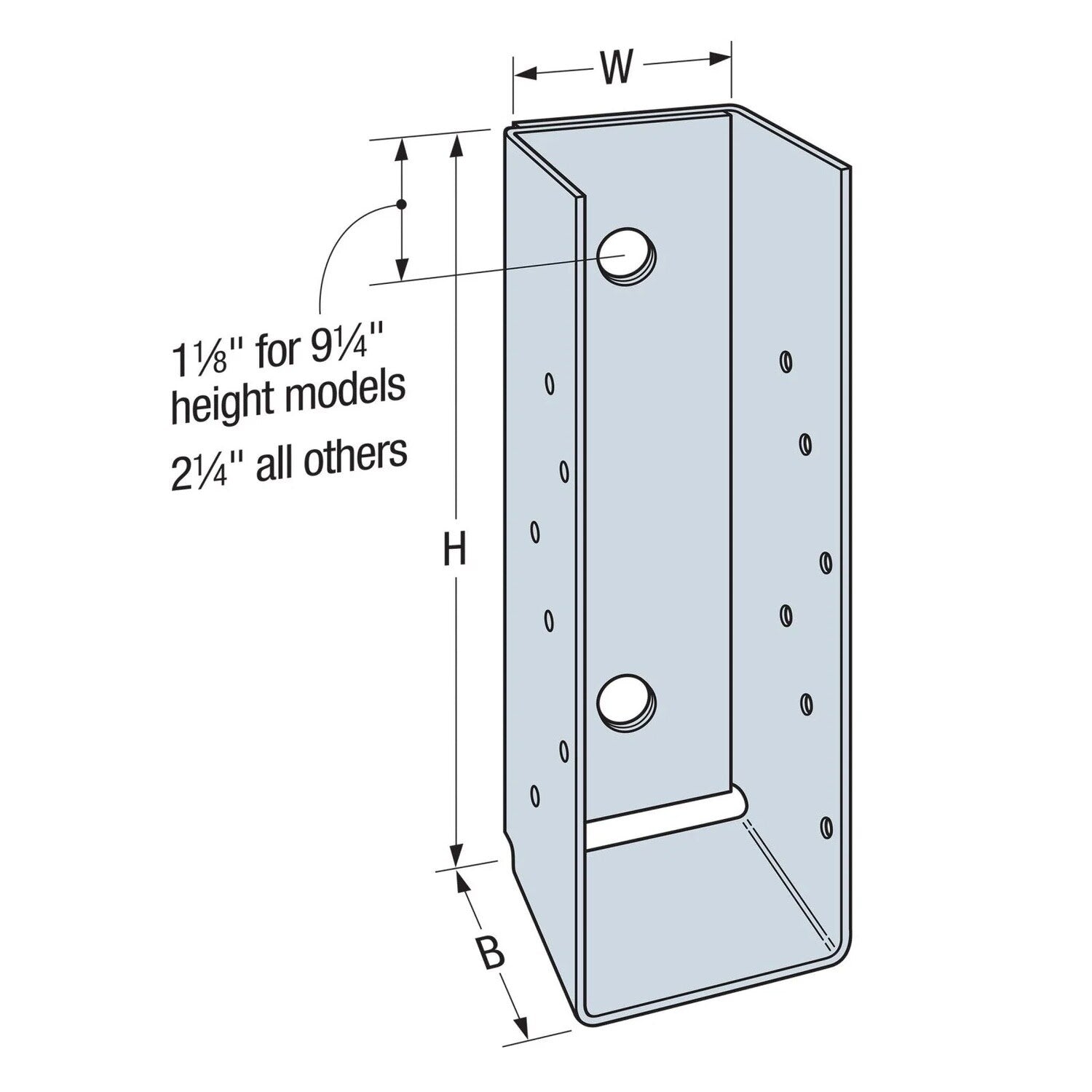

Simpson Strong-Tie MBHU3.56/14SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 3-9/16" |
| Height | 14" |
| Quantity | 1 |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners specified in the table.
