Simpson Strong-Tie MBHU5.50/11.25KT Description
The MBHU beam hanger provides a face-mounted solution for connecting beams to masonry or concrete walls, suitable for solid sawn and engineered wood beams as well as trusses.
Simpson Strong-Tie MBHU5.50/11.25KT Includes

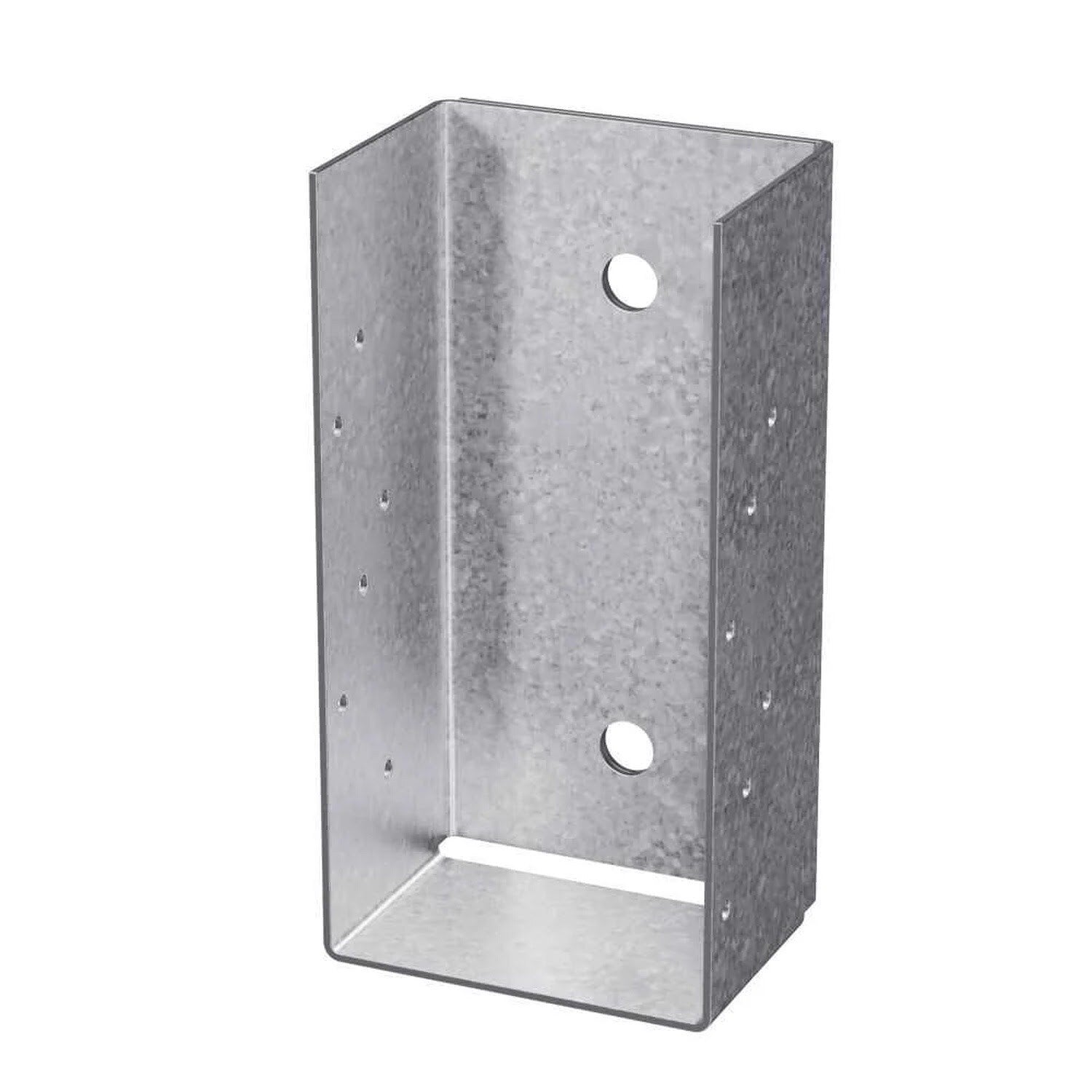

- (1) Strong-Tie Galvanized Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU5.50/11.25KT Features
- Face-mounted solution for connecting beams to masonry or concrete walls
- Suitable for solid sawn and engineered wood beams as well as trusses
- Includes Titen HD heavy-duty screw anchor and Strong-Drive SDS Heavy-Duty Connector screws
- Simplified installation process
Simpson Strong-Tie MBHU5.50/11.25KT Applications

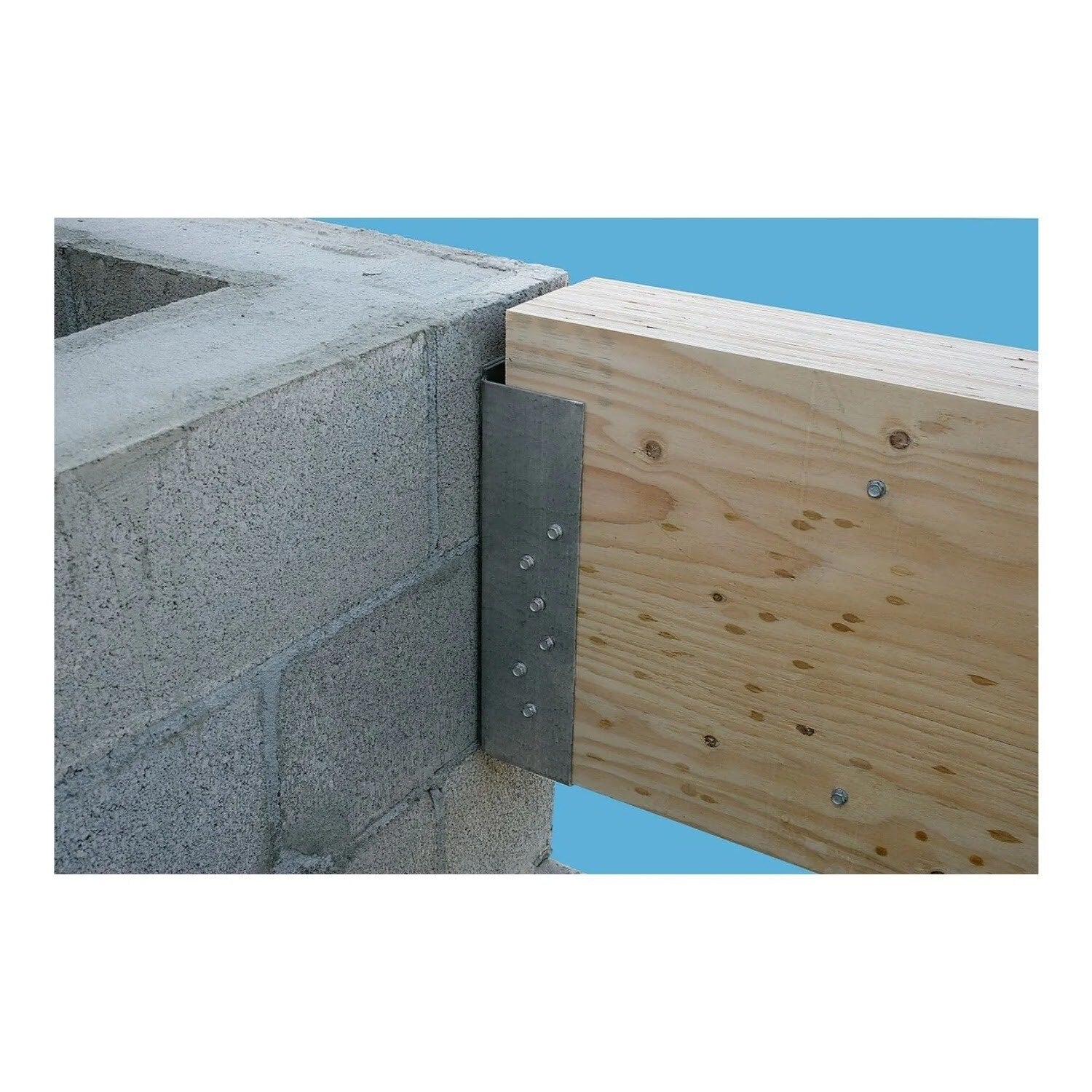

- Connecting beams to masonry or concrete walls
- Suitable for solid sawn and engineered wood beams
- Applicable for trusses

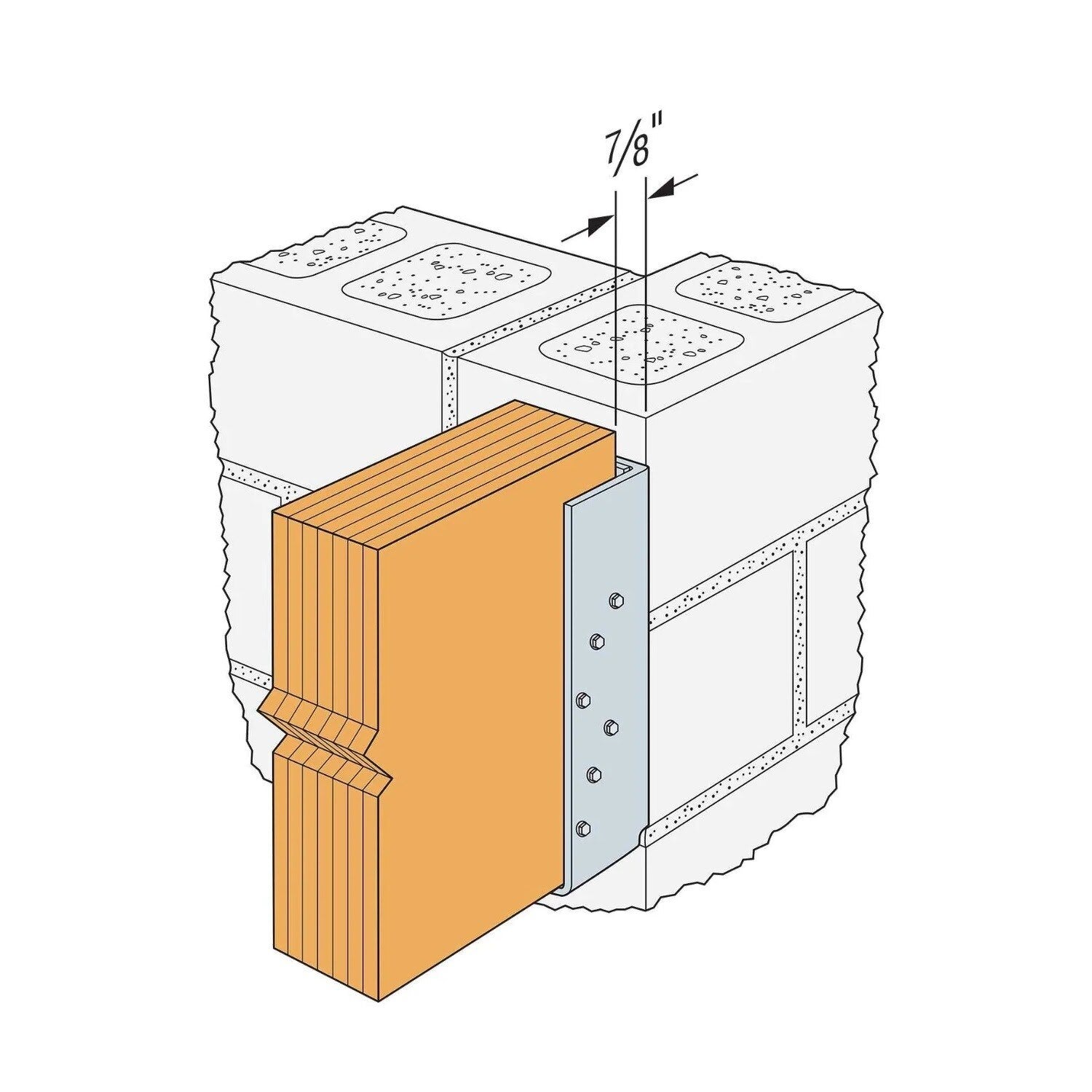

Simpson Strong-Tie MBHU5.50/11.25KT Installation Overview
- Use all specified fasteners (included).

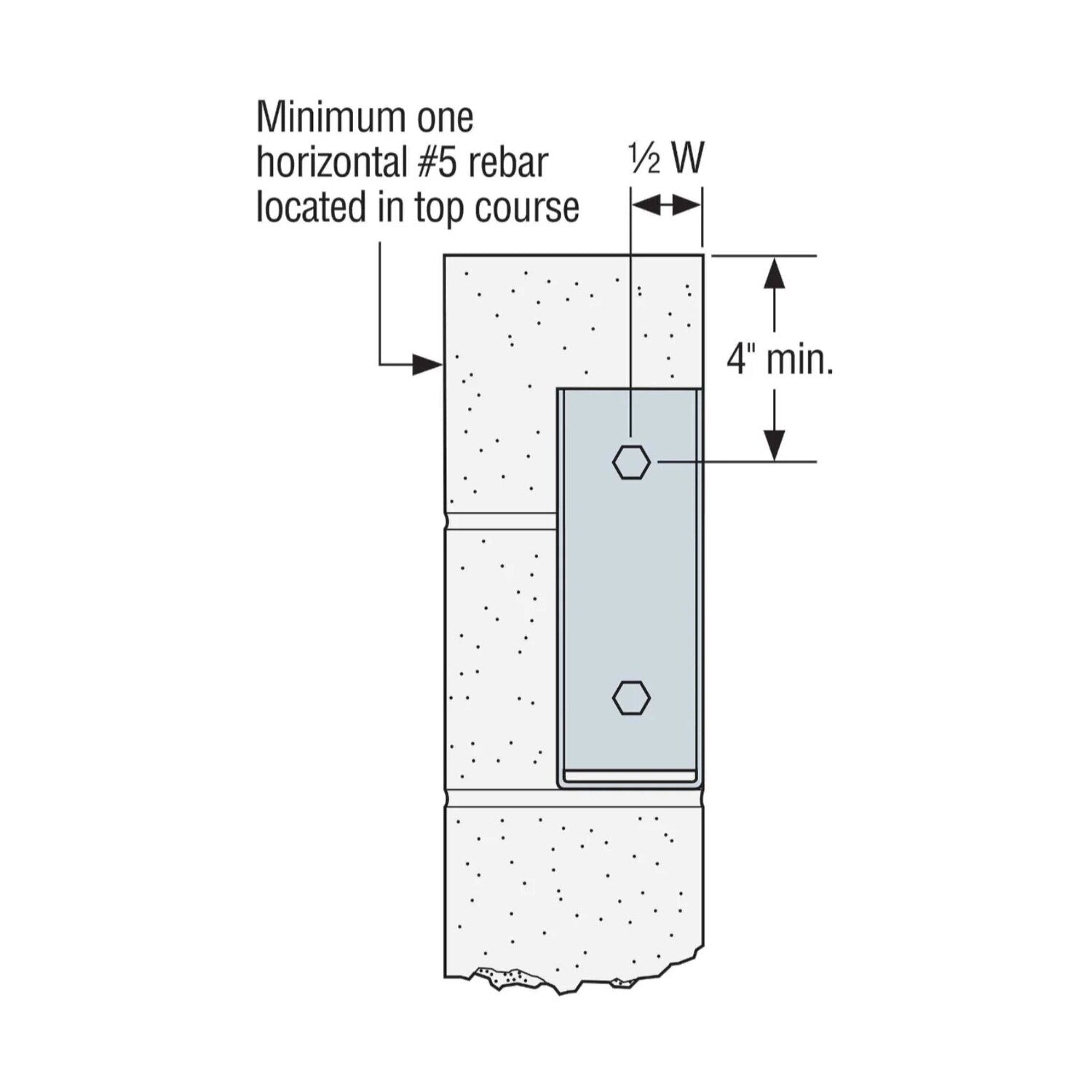

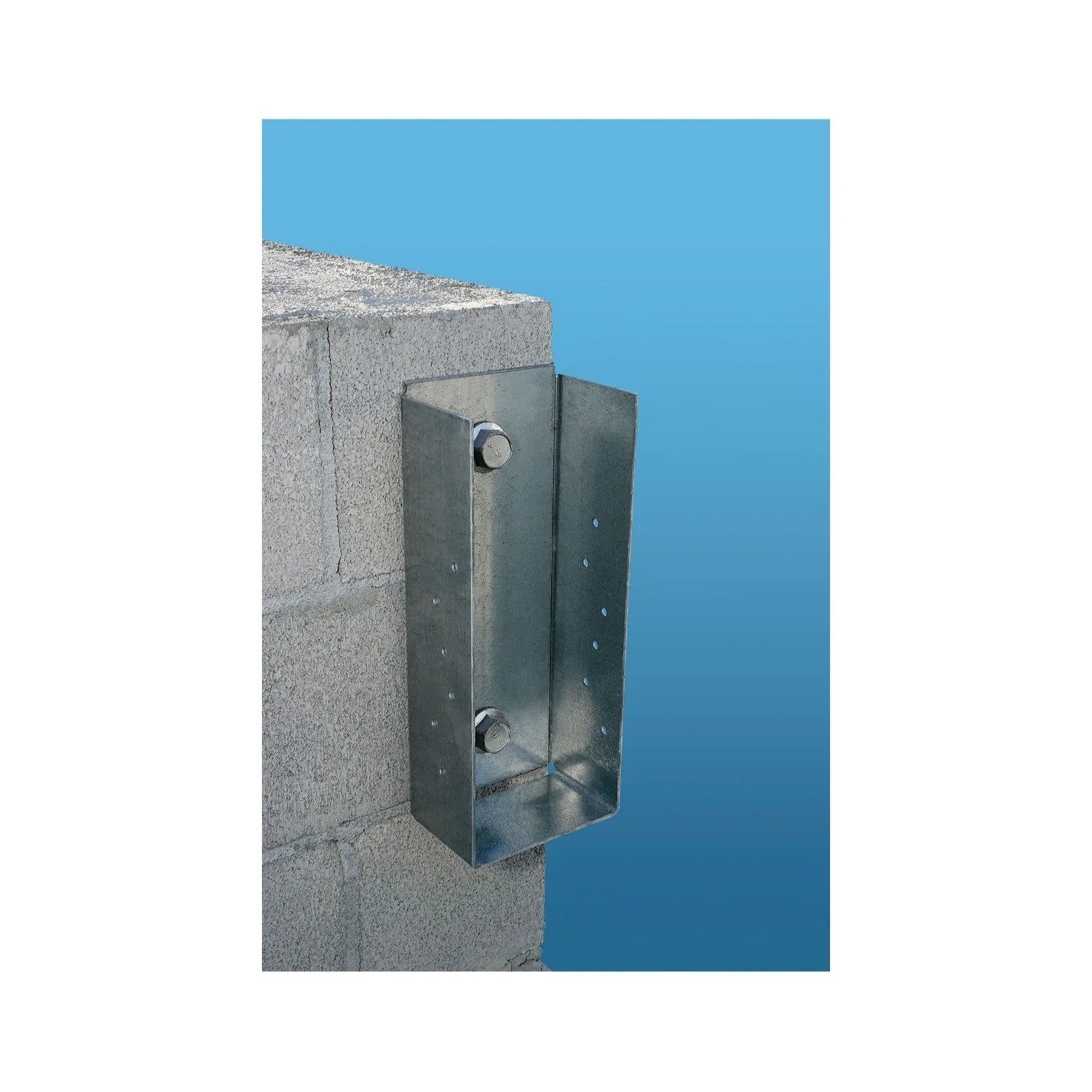

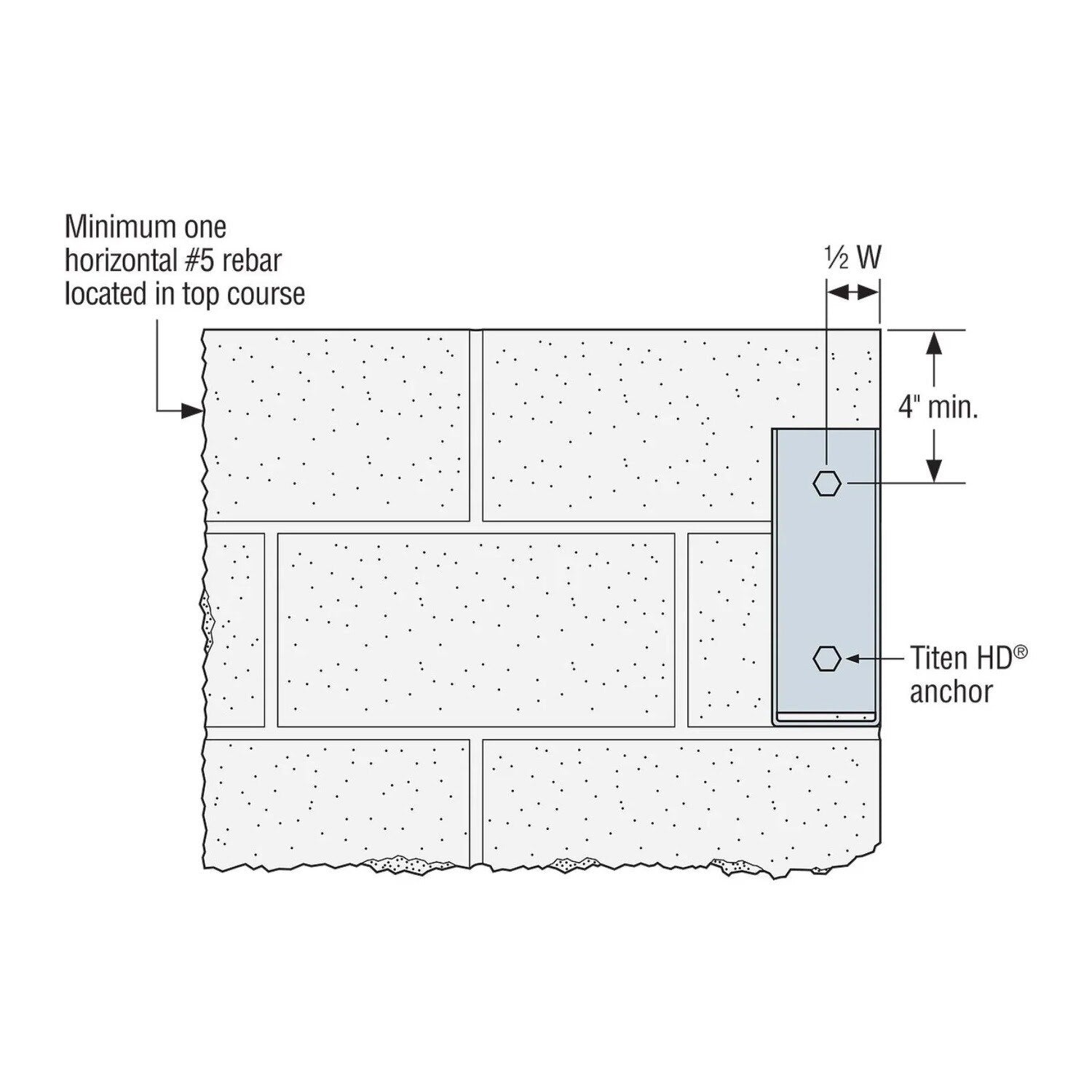

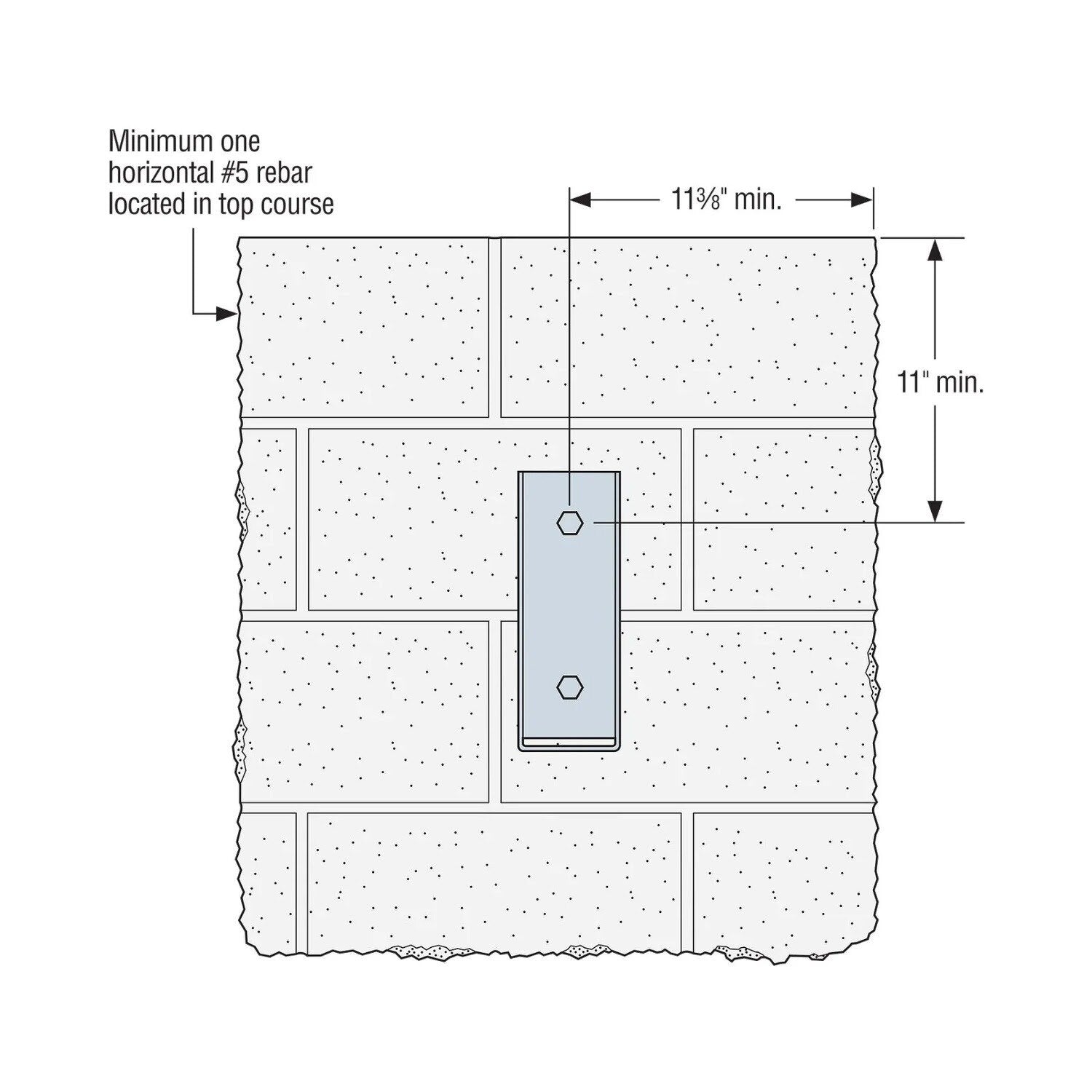

- Attach hanger to a concrete or grouted CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Holes shall be drilled 1/2" deeper than the specified Titen HD length.
- Provide moisture barrier between beam and wall per jurisdictional requirements.

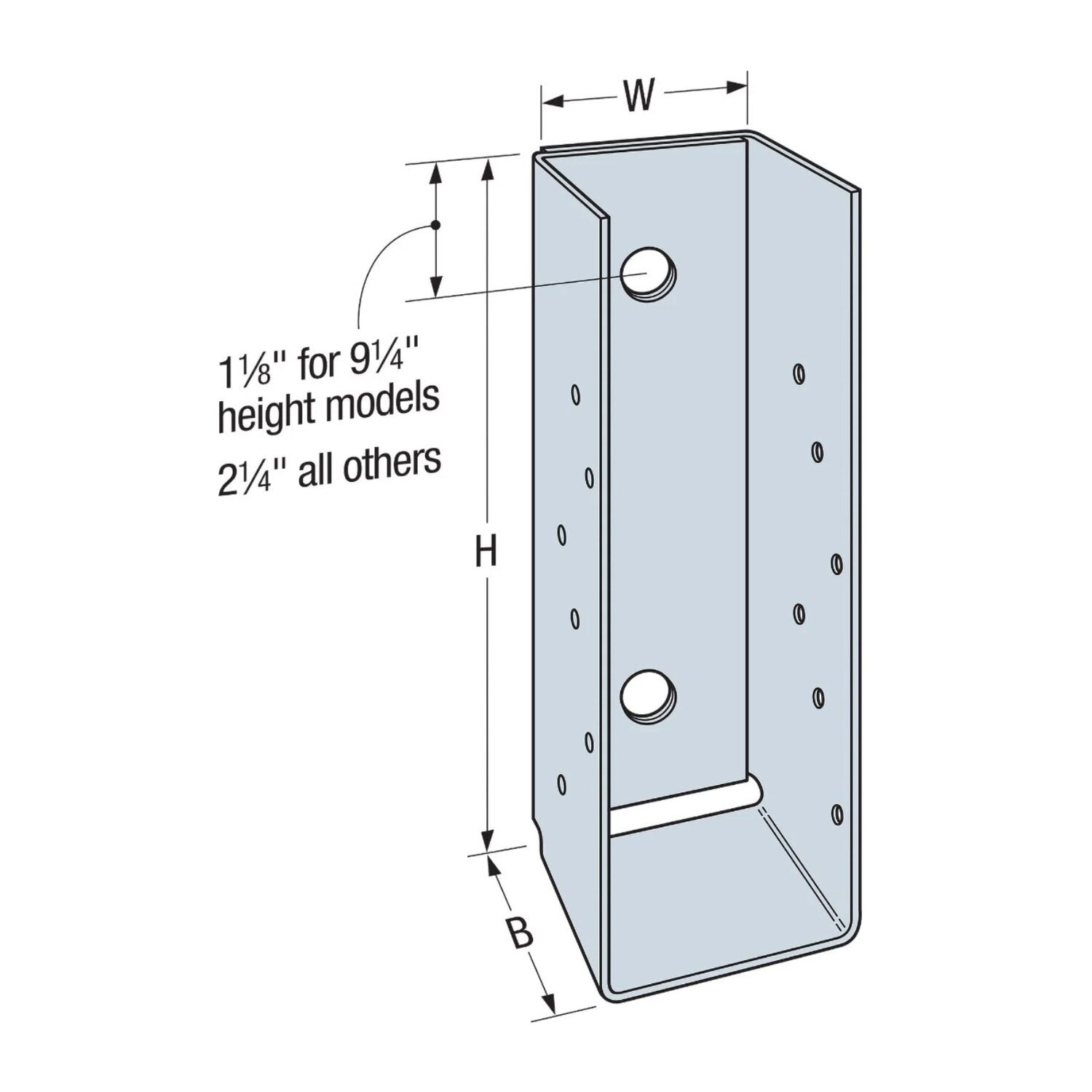

Simpson Strong-Tie MBHU5.50/11.25KT Specifications
| Material | 10 gauge |
| Finish | G90 Galvanized |
| Height | 11-1/4" |
| Width | 5-1/2" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
