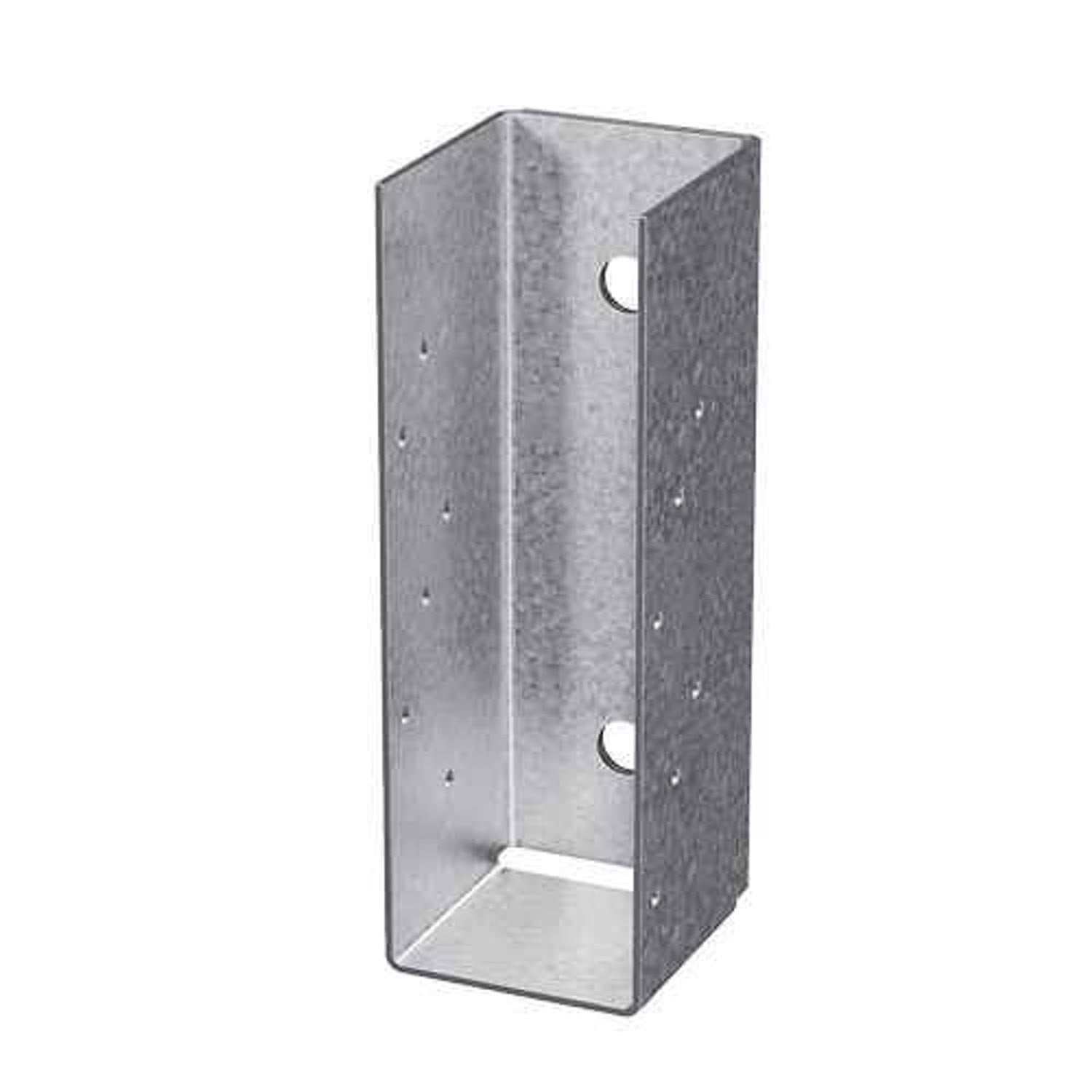

Simpson Strong-Tie MBHU5.50/11.88SSKT Description
The MBHU Masonry Beam Face-Mount Hanger is a stainless-steel connector designed for secure wood-to-masonry connections, featuring included fasteners for easy installation.
Simpson Strong-Tie MBHU5.50/11.88SSKT Includes
- (1) MBHU Masonry Beam Face-Mount Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU5.50/11.88SSKT Features
- Stainless steel construction for high corrosion resistance
- Includes all necessary fasteners for installation
- Designed for face-mounted wood-to-masonry connections
- Compatible with trusses and solid engineered wood beams
- Simplifies installation with post-construction anchor placement
Simpson Strong-Tie MBHU5.50/11.88SSKT Applications
- Wood-to-masonry connections in construction
- Securing beams to concrete or masonry walls
- Use in environments requiring high corrosion resistance
Simpson Strong-Tie MBHU5.50/11.88SSKT Installation Overview
- Use all specified fasteners included in the package.
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the anchor length.
- Avoid oversized holes to maintain load capacity.
- Provide a moisture barrier between the beam and wall as required.
Simpson Strong-Tie MBHU5.50/11.88SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 5-1/2" |
| Height | 11-7/8" |
| Quantity | 1 |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the specified fasteners.
Toolup Part # :
819149
