Simpson Strong-Tie MBHU5.50/16SSKT Description

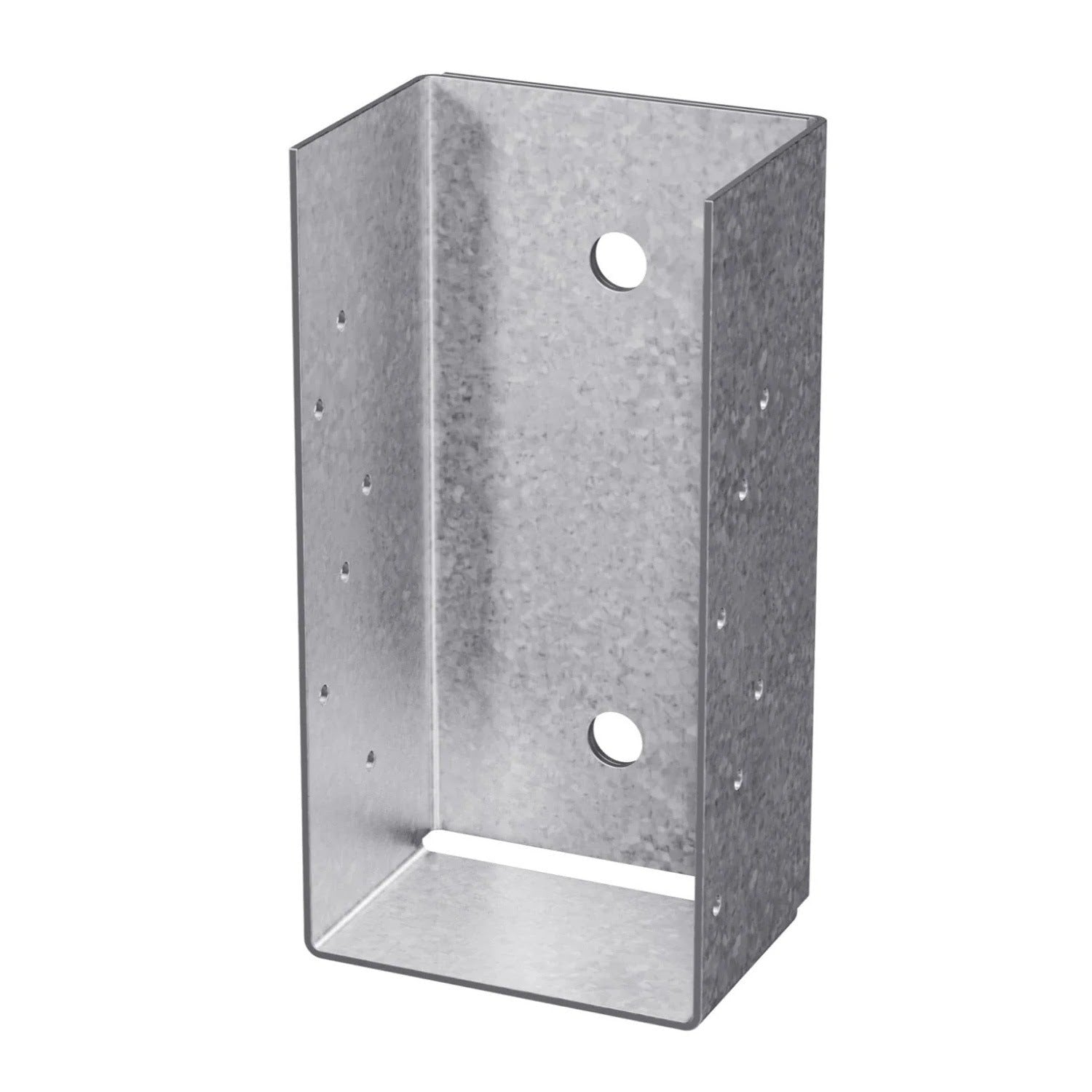

The MBHU Masonry Beam Face-Mount Hanger is a stainless steel connector designed for secure wood-to-masonry connections, featuring included fasteners for ease of installation.
Simpson Strong-Tie MBHU5.50/16SSKT Includes
- (1) MBHU5.50/16SSKT Masonry Beam Face-Mount Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU5.50/16SSKT Features
- Stainless steel construction for high corrosion resistance
- Includes all necessary fasteners for installation
- Designed for face-mounted wood-to-masonry connections
- Compatible with engineered wood beams and trusses
- Simplifies installation compared to cast-in-place bolts
Simpson Strong-Tie MBHU5.50/16SSKT Applications

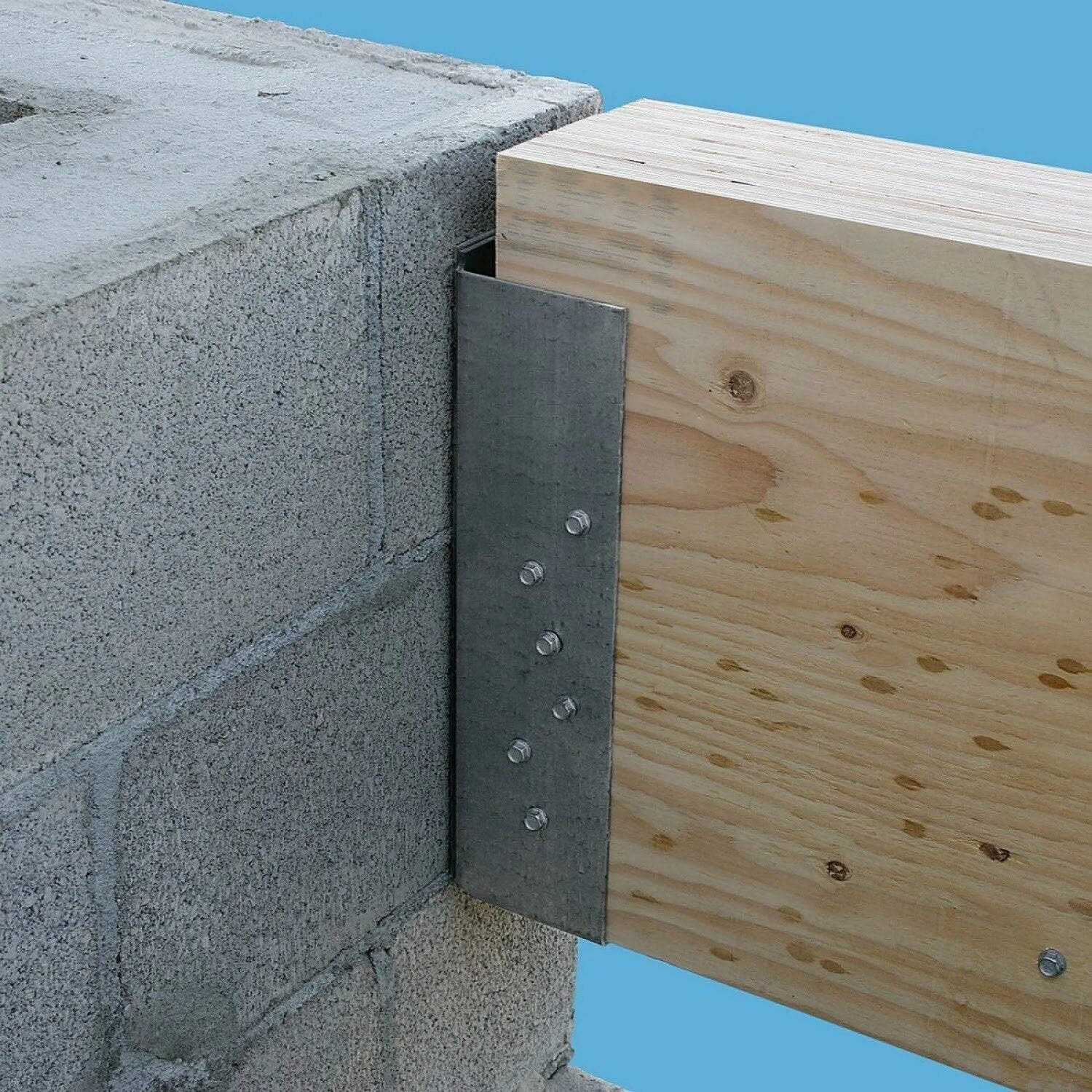

- Wood-to-masonry connections in construction
- Securing beams to concrete or masonry walls
- Use in environments requiring high corrosion resistance
Simpson Strong-Tie MBHU5.50/16SSKT Installation Overview
- Use all specified fasteners included in the kit.

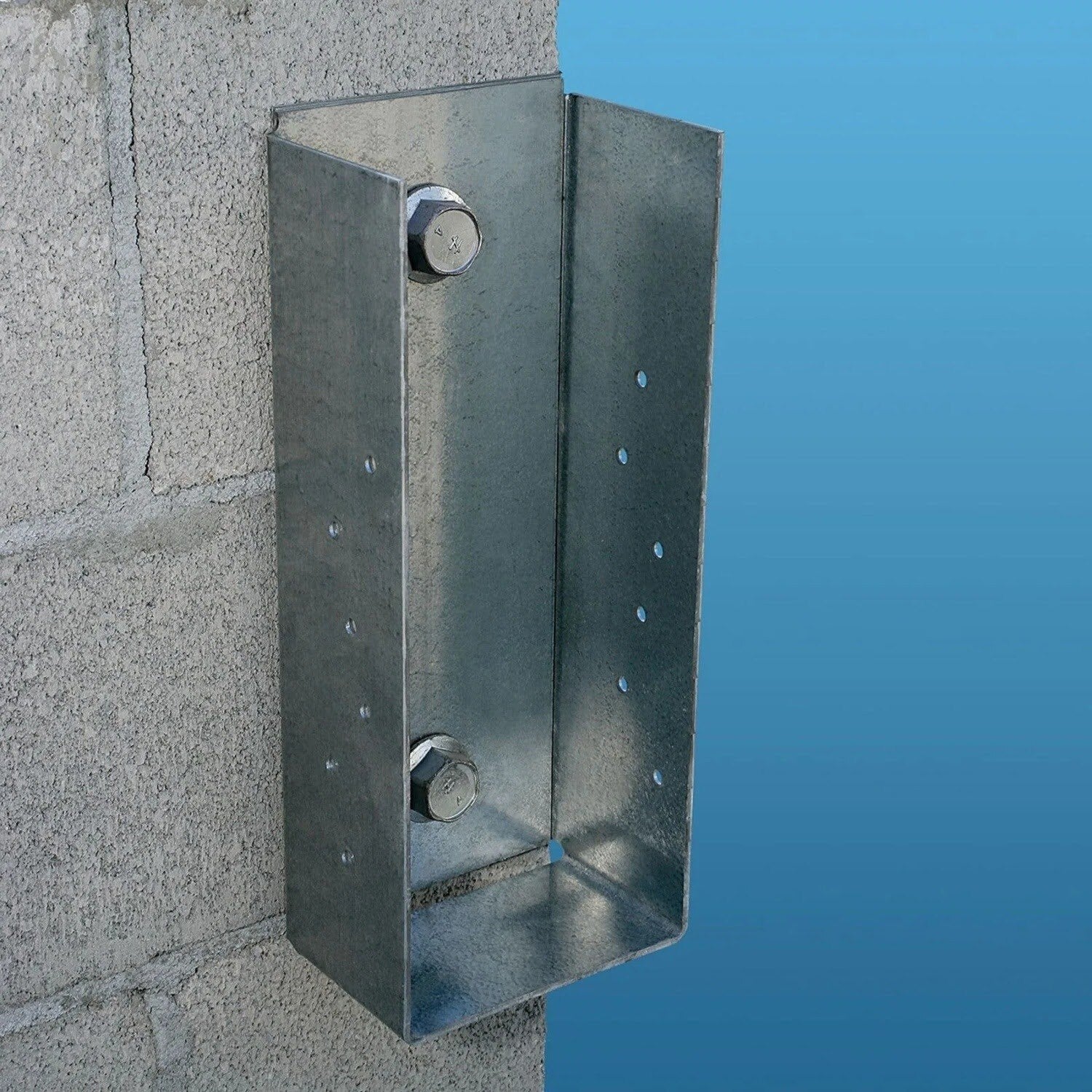

- Attach hanger to concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes 1/2" deeper than the specified Titen HD anchor length.
- Ensure no oversized holes to maintain mechanical interlock.
- Provide moisture barrier between beam and wall as required.

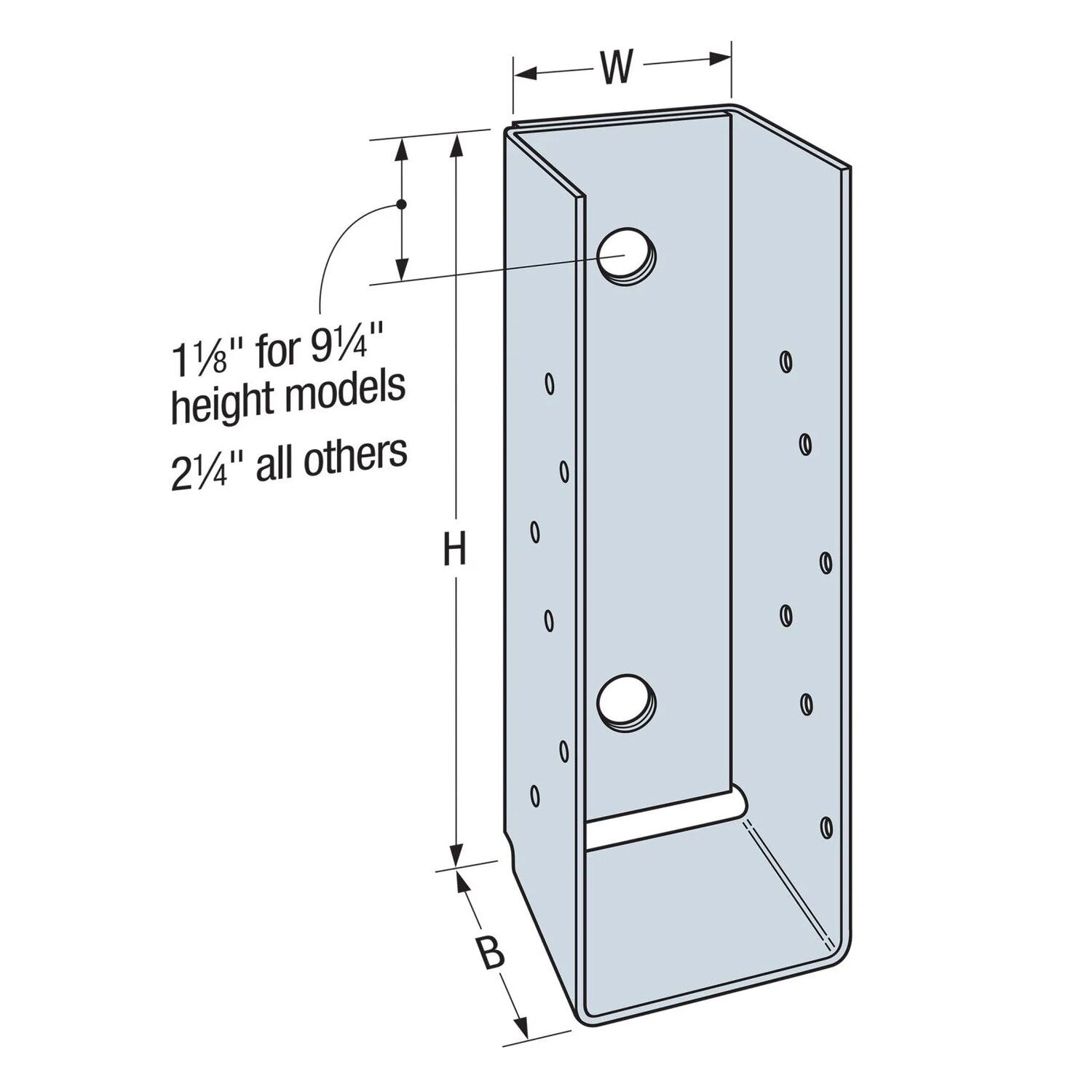

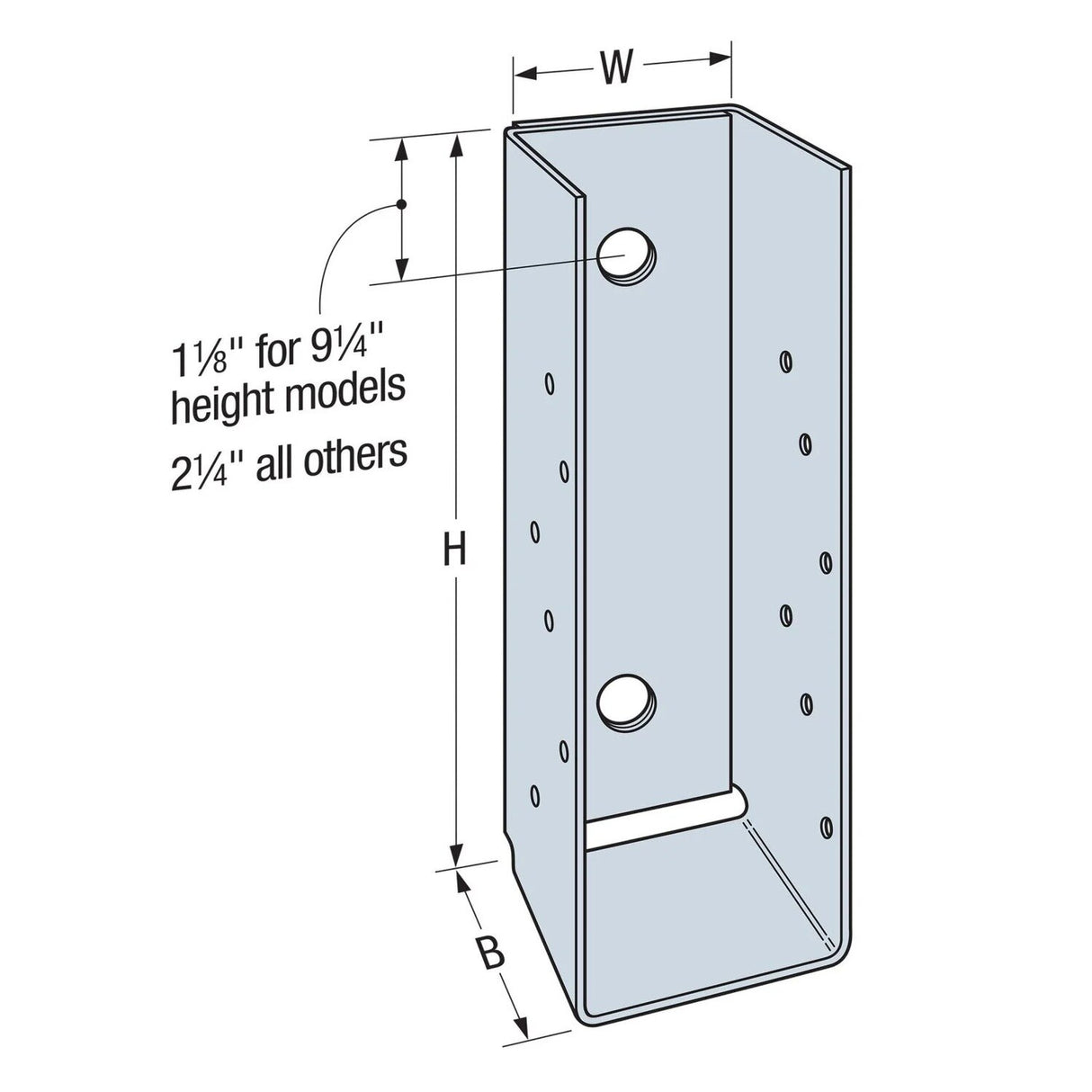

Simpson Strong-Tie MBHU5.50/16SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 5-1/2" |
| Height | 16" |
| Quantity | 1 |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners listed in the table.
Toolup Part # :
819146
