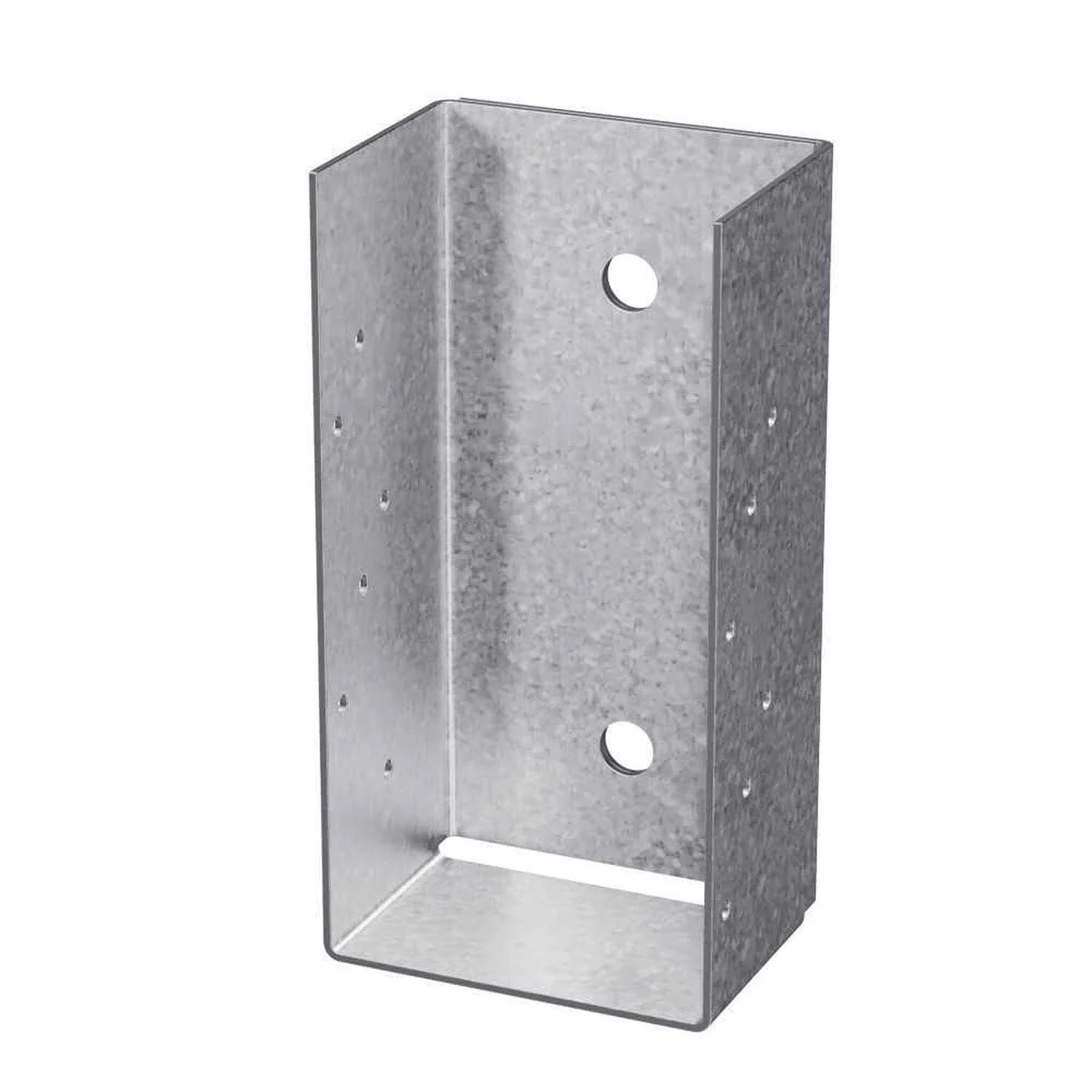

Simpson Strong-Tie MBHU5.50/9.25KT Description
The MBHU beam hanger provides a face-mounted solution for connecting beams to masonry or concrete walls. It is suitable for solid sawn and engineered wood beams as well as trusses.
Simpson Strong-Tie MBHU5.50/9.25KT Includes
- (1) MBHU5.50/9.25KT Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD Anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie MBHU5.50/9.25KT Features
- Face-mounted design for secure connections
- Includes all necessary fasteners for installation
- Compatible with solid sawn and engineered wood beams
- Galvanized finish for corrosion resistance
Simpson Strong-Tie MBHU5.50/9.25KT Applications
- Connecting beams to masonry or concrete walls
- Use in solid sawn and engineered wood beam installations
- Truss connections
Simpson Strong-Tie MBHU5.50/9.25KT Installation Overview
- Use all specified fasteners included in the package.
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the specified Titen HD length.
- Avoid oversized holes to maintain load capacity.
- Provide a moisture barrier between the beam and wall as required.
Simpson Strong-Tie MBHU5.50/9.25KT Specifications
| Material | 10 gauge |
| Finish | G90 Galvanized |
| Height | 9-1/4" |
| Width | 5-1/2" |
| Fasteners Required | All Fasteners Included |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
