Description
Description
Simpson Strong-Tie MBHU5.50/9.25SSKT Description

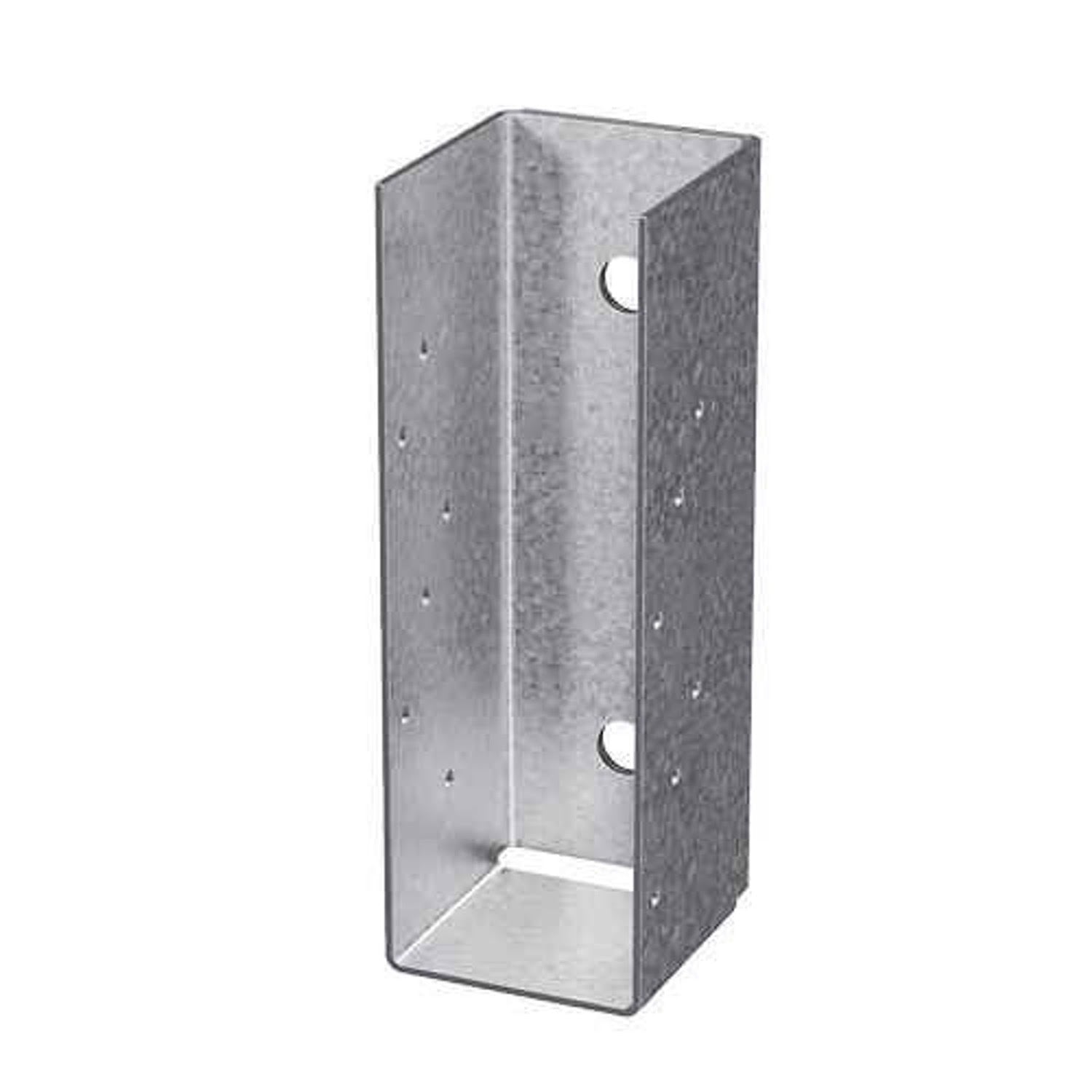

The MBHU5.50/9.25SSKT is a stainless-steel masonry beam hanger designed for wood-to-masonry connections, providing reliable structural support.
Simpson Strong-Tie MBHU5.50/9.25SSKT Includes
- (1) Strong-Tie Stainless-Steel Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU5.50/9.25SSKT Features
- Stainless steel construction for durability and corrosion resistance
- Designed for wood-to-masonry connections
- Includes necessary fasteners for installation
Simpson Strong-Tie MBHU5.50/9.25SSKT Applications
- Wood-to-masonry connections in construction
- Structural support for beams in masonry walls
Simpson Strong-Tie MBHU5.50/9.25SSKT Installation Overview
- Use all specified fasteners included in the package.
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Ensure holes are drilled 1/2" deeper than the specified Titen HD length.
- Avoid oversized holes to maintain mechanical interlock and load capacity.
- Provide moisture barrier between beam and wall as required.
Simpson Strong-Tie MBHU5.50/9.25SSKT Specifications
| Material | 10 gauge |
| Finish | Galvanized; available in stainless steel |
| Application | Engineered Wood |
| Width | 5 1/2" |
| Height | 9 1/4" |
| Depth | 3 1/2" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
Toolup Part # :
819142
