Simpson Anchors | SKU:
MCB11.5X17
Simpson Strong-Tie MCB11.5X17 (11-1/2" x 17") Mass Timber Column Base for Glulam to Concrete Connections
Free Shipping
$355.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MCB11.5X17 Description

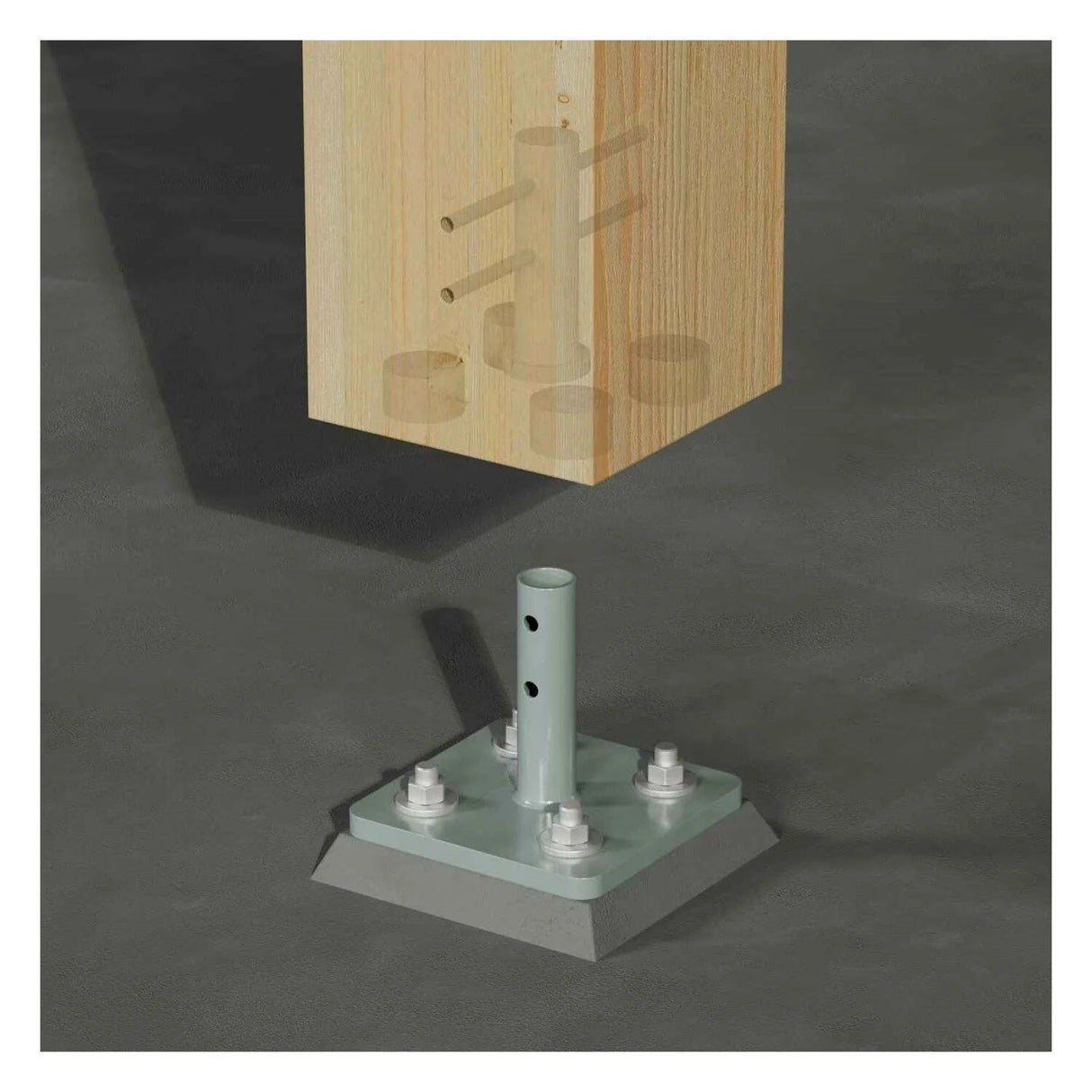

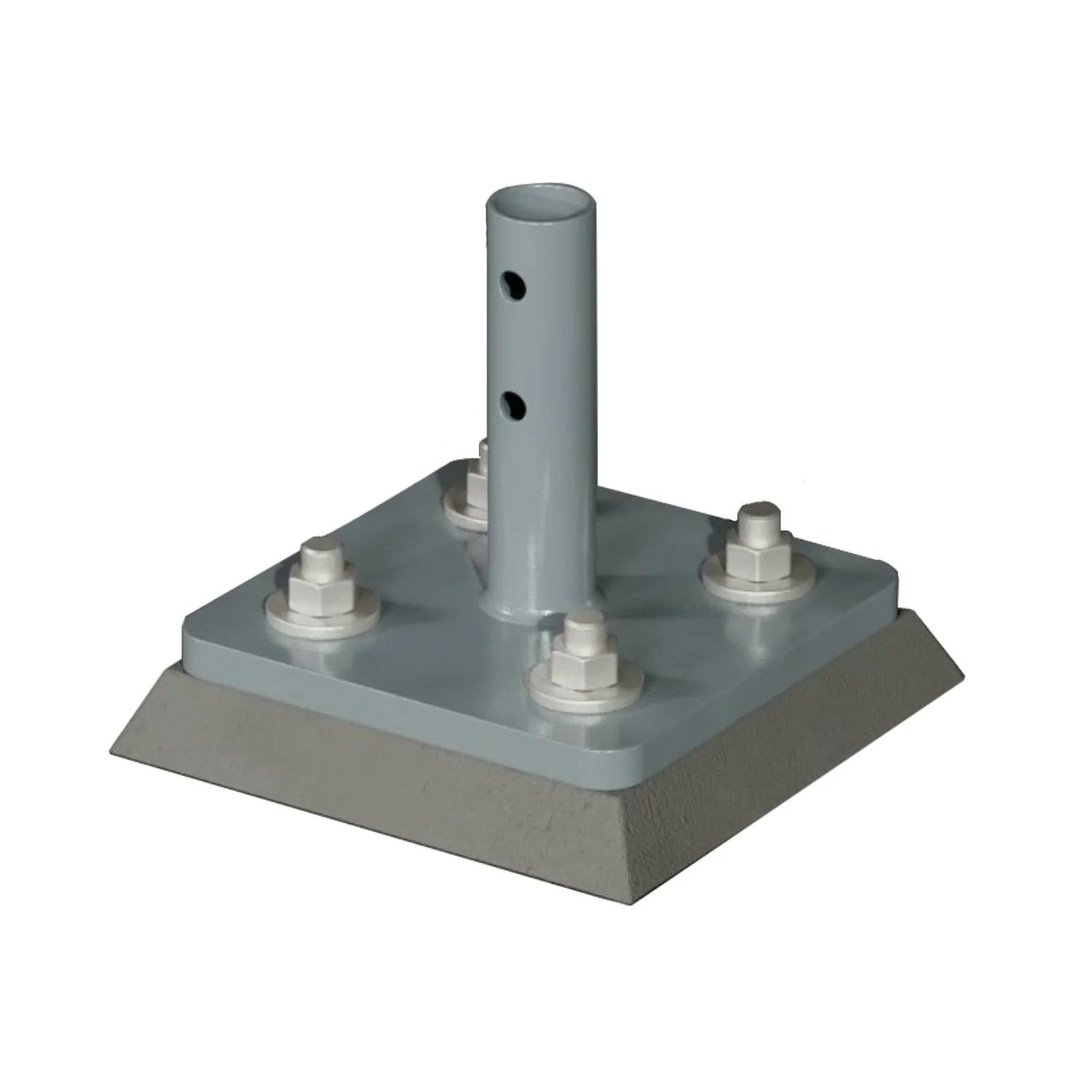

The MCB Mass Timber Column Base provides a standardized concealed connection between glulam columns and concrete foundations or supports, ensuring both structural integrity and aesthetic appeal in mass timber constructions.
Simpson Strong-Tie MCB11.5X17 Includes
- (1) Mass Timber Column Base
Simpson Strong-Tie MCB11.5X17 Features
- Concealed connection for architectural aesthetics and fire protection
- Wide range of base sizes and load capacities
- Simple routing for CNC fabrication of columns
- Threaded rods and leveling nuts may be used with grout pad for vertical adjustability
- Base plate oversized holes provide horizontal adjustability
- Recommended for use at column-to-foundation connections in any Seismic Design Category
Simpson Strong-Tie MCB11.5X17 Applications
- Mass Timber / Cross-Laminated Timber
- Column-to-foundation connections in seismic design categories

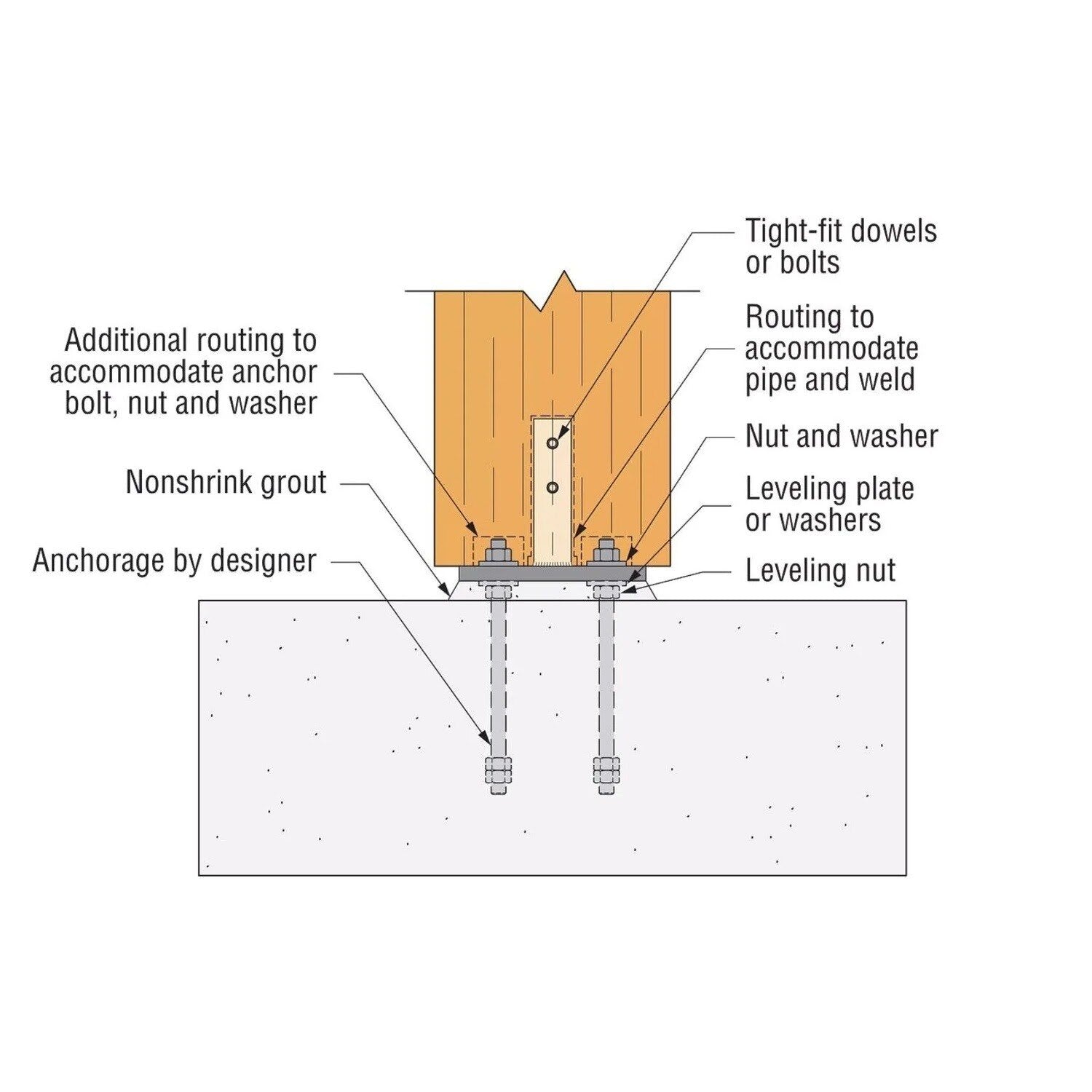

Simpson Strong-Tie MCB11.5X17 Installation Overview
- Use CNC equipment to cut and drill glulam columns for accurate alignment.
- Ensure anchors are correctly positioned in the foundation.
- Place the MCB on anchor rods and use leveling nuts for vertical and horizontal alignment.
- Install nonshrink grout between the base plate and foundation.
- Lower the glulam column onto the base and secure with dowels or bolts.

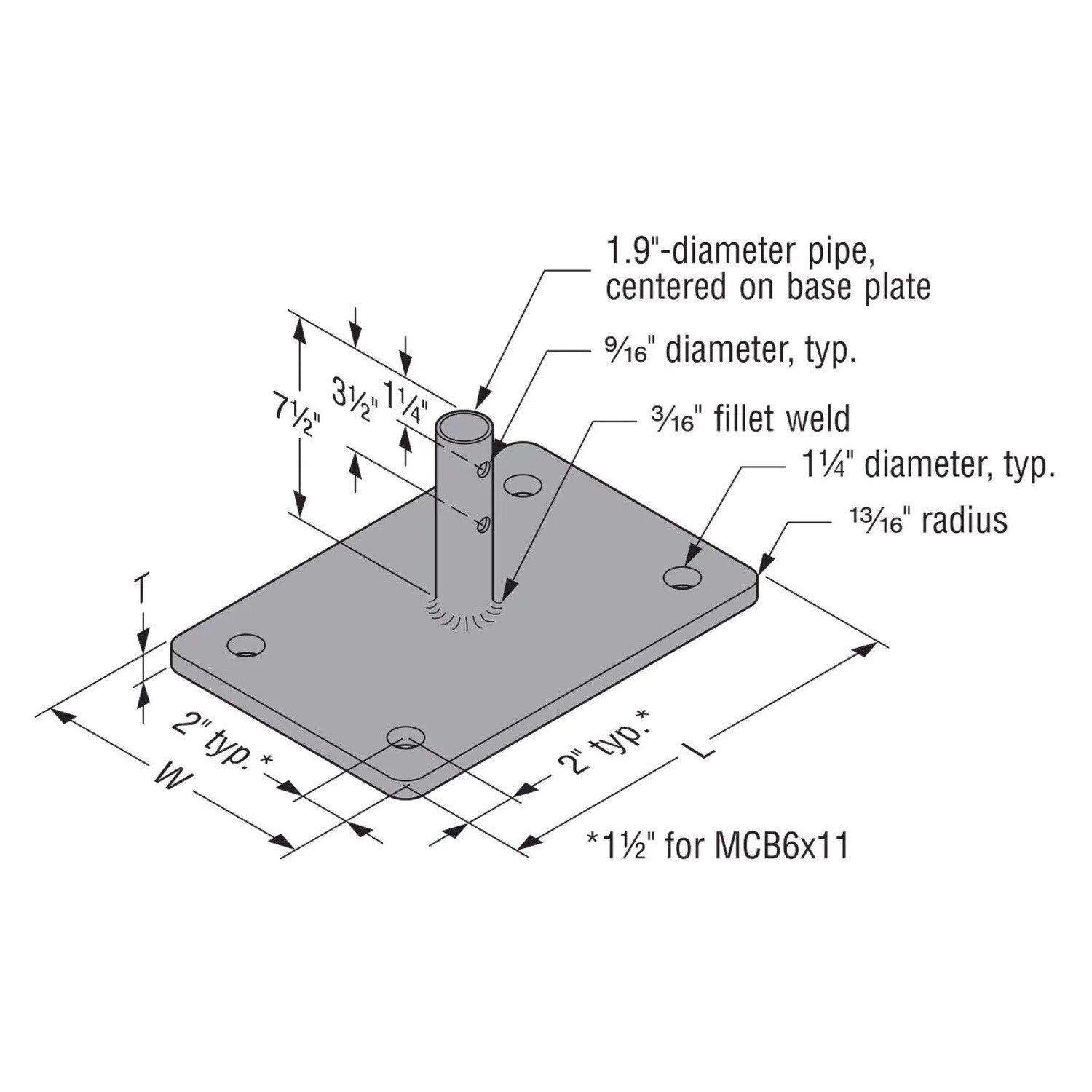

Simpson Strong-Tie MCB11.5X17 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Width | 11-1/2" |
| Length | 17" |
| Thickness | 3/4" |
| Weight | 41.8 lb |
