Simpson Strong-Tie MCB8X14 (8" x 14") Mass Timber Column Base for Glulam to Concrete Connections
Free Shipping
$254.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MCB8X14 Description

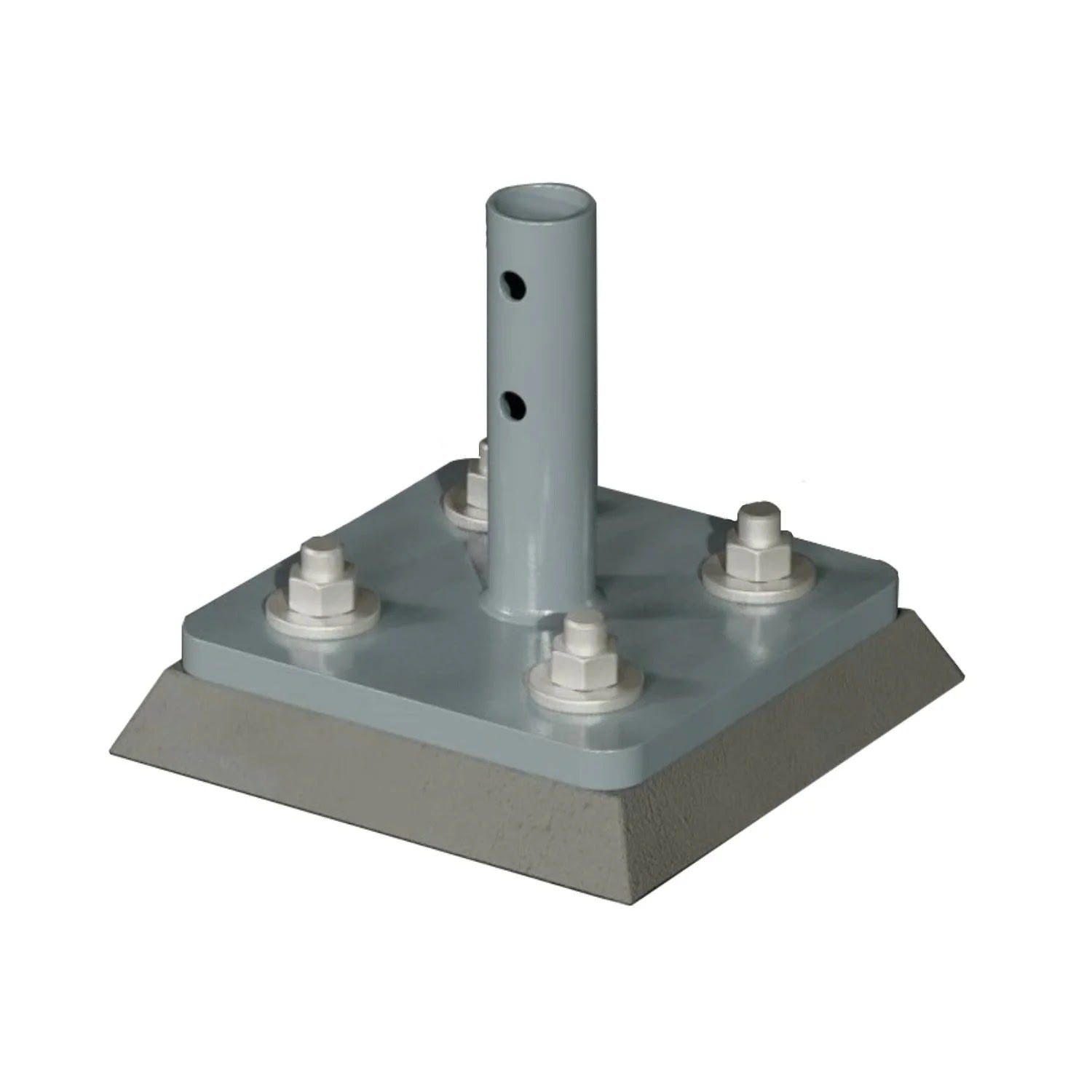

The MCB Mass Timber Column Base provides a concealed connection between glulam columns and concrete foundations, ensuring structural integrity and aesthetic appeal.
Simpson Strong-Tie MCB8X14 Includes
- (1) Mass Timber Column Base
Simpson Strong-Tie MCB8X14 Features
- Concealed connection for architectural aesthetics and fire protection
- Wide range of base sizes and load capacities
- Simple routing for CNC fabrication of columns
- Threaded rods and leveling nuts may be used with grout pad for vertical adjustability
- Base plate oversized holes provide horizontal adjustability
- Recommended for use at column-to-foundation connections in any Seismic Design Category
Simpson Strong-Tie MCB8X14 Applications
- Mass Timber / Cross-Laminated Timber
- Column-to-foundation connections in seismic design categories

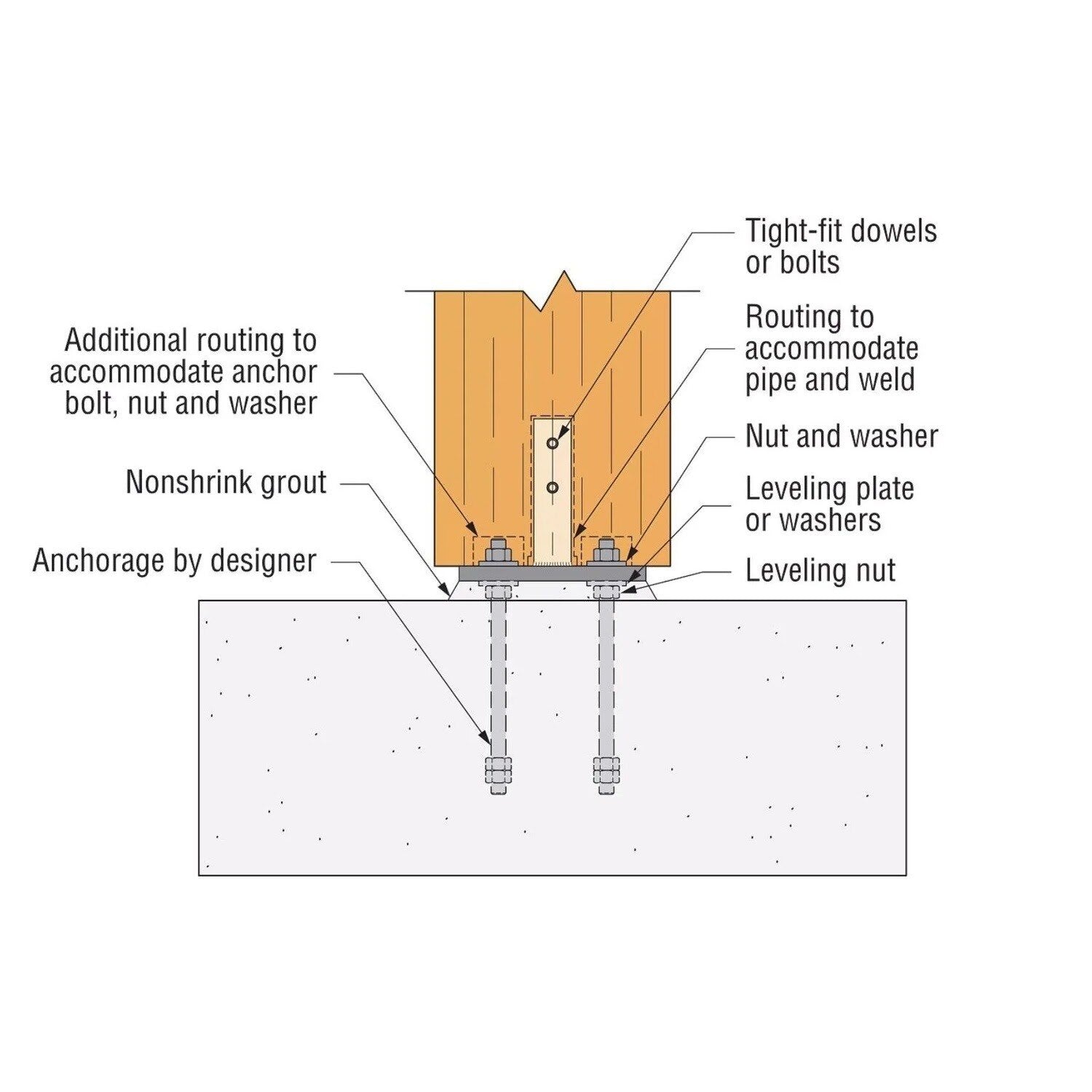

Simpson Strong-Tie MCB8X14 Installation Overview
- Use CNC equipment for precise cutting and drilling of glulam columns
- Ensure anchors are correctly positioned in the foundation
- Place the MCB on anchor rods and use leveling nuts for alignment
- Install nonshrink grout between the base plate and foundation

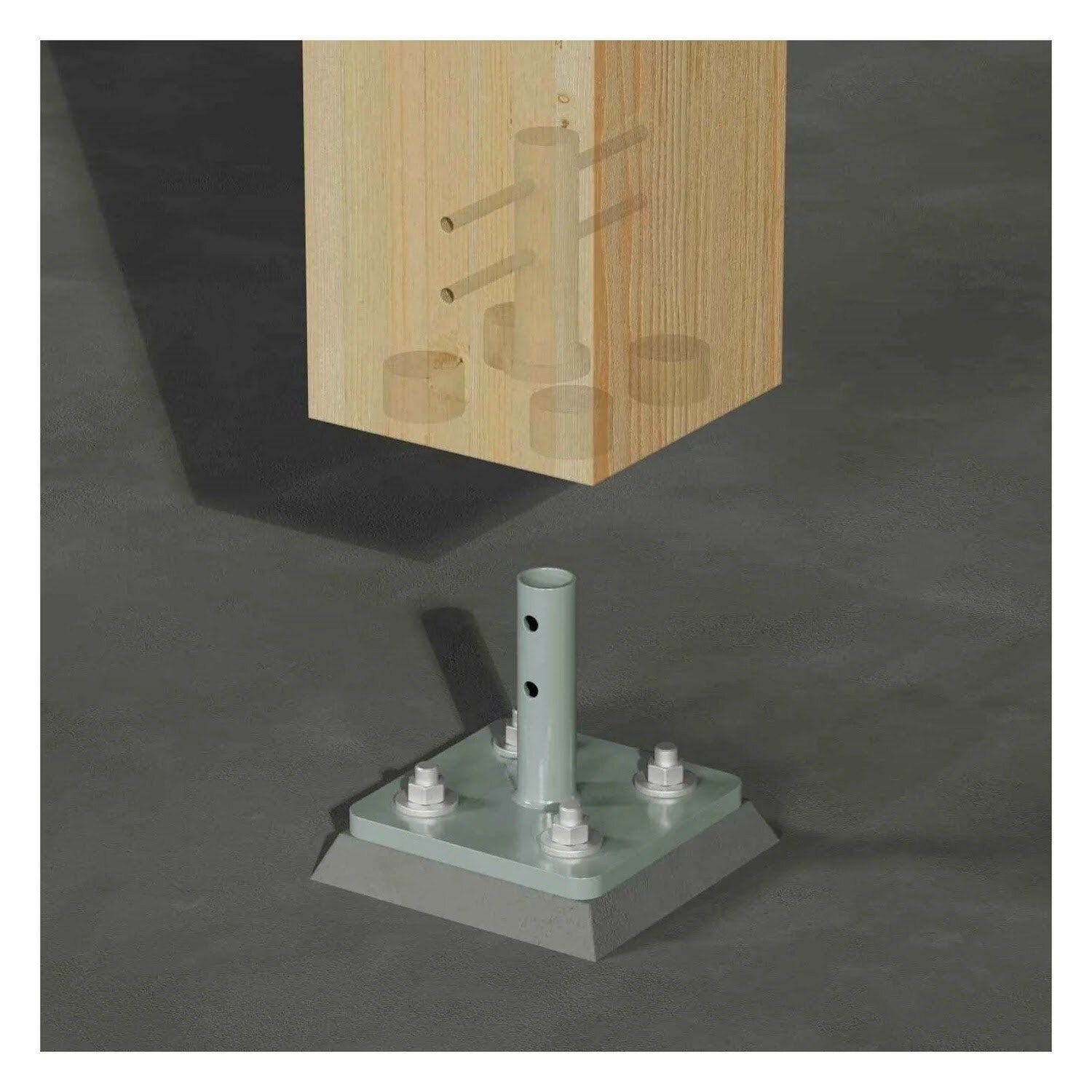

- Lower the glulam column onto the base and secure with dowels or bolts

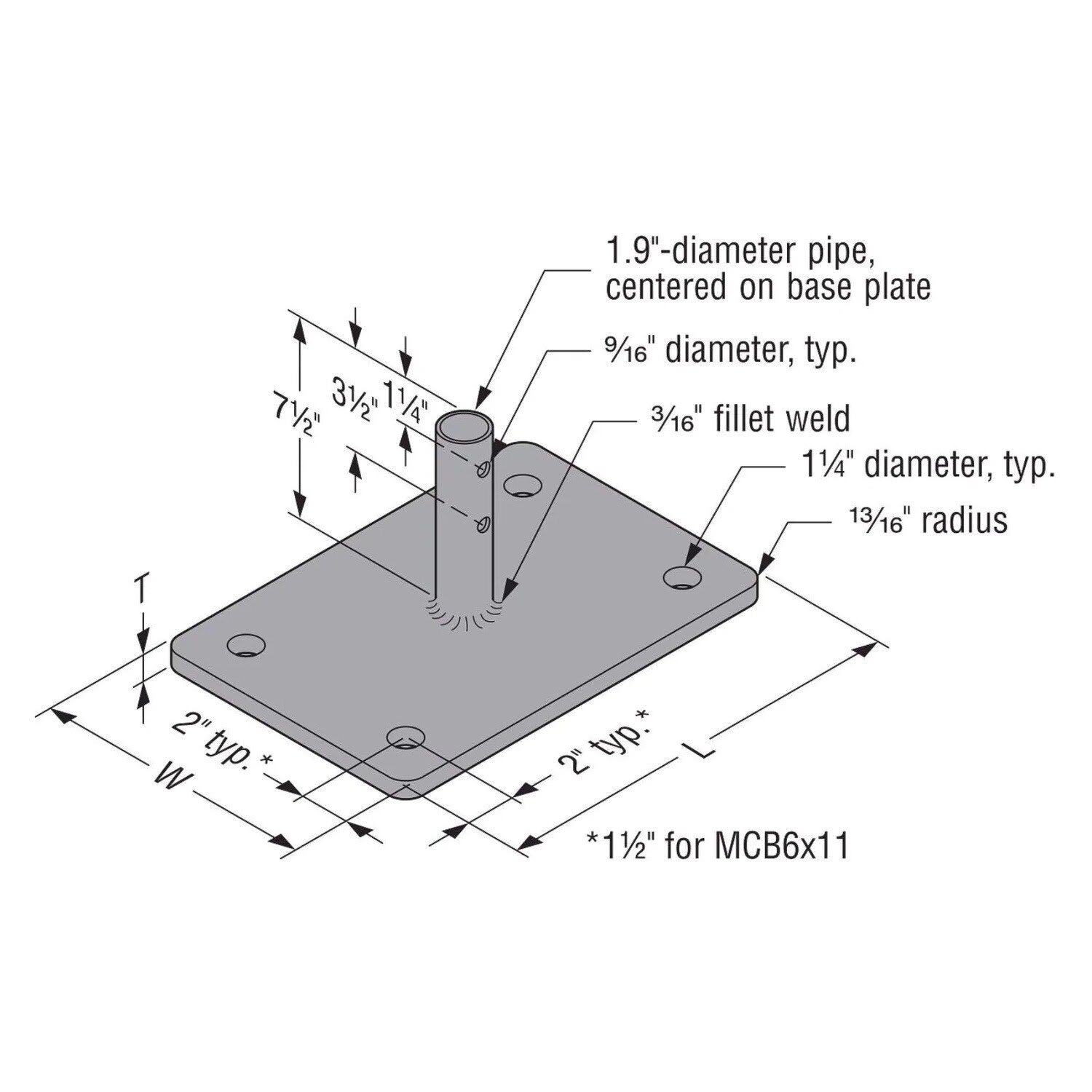

Simpson Strong-Tie MCB8X14 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Width | 8 in. |
| Length | 14 in. |
| Thickness | 3/4 in. |
| Weight | 24.1 lb |
