Simpson Strong-Tie MCB9.5X9.5 (9-1/2 x 9-1/2 in.) Mass Timber Column Base Concealed Glulam-to-Concrete Connector
Free Shipping
$230.81
Unit price
/
Unavailable
Description
Description

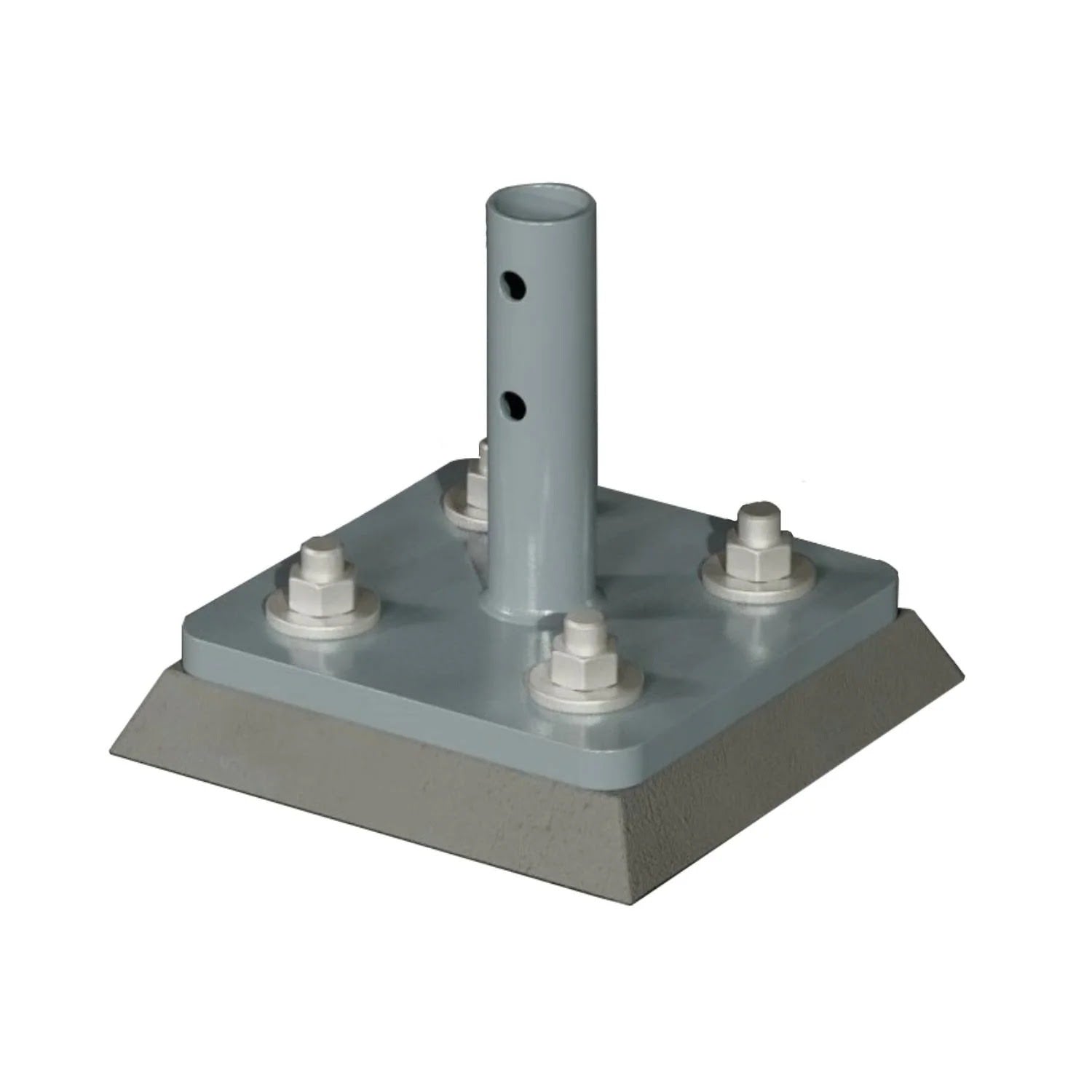

Simpson Strong-Tie MCB9.5X9.5 Description

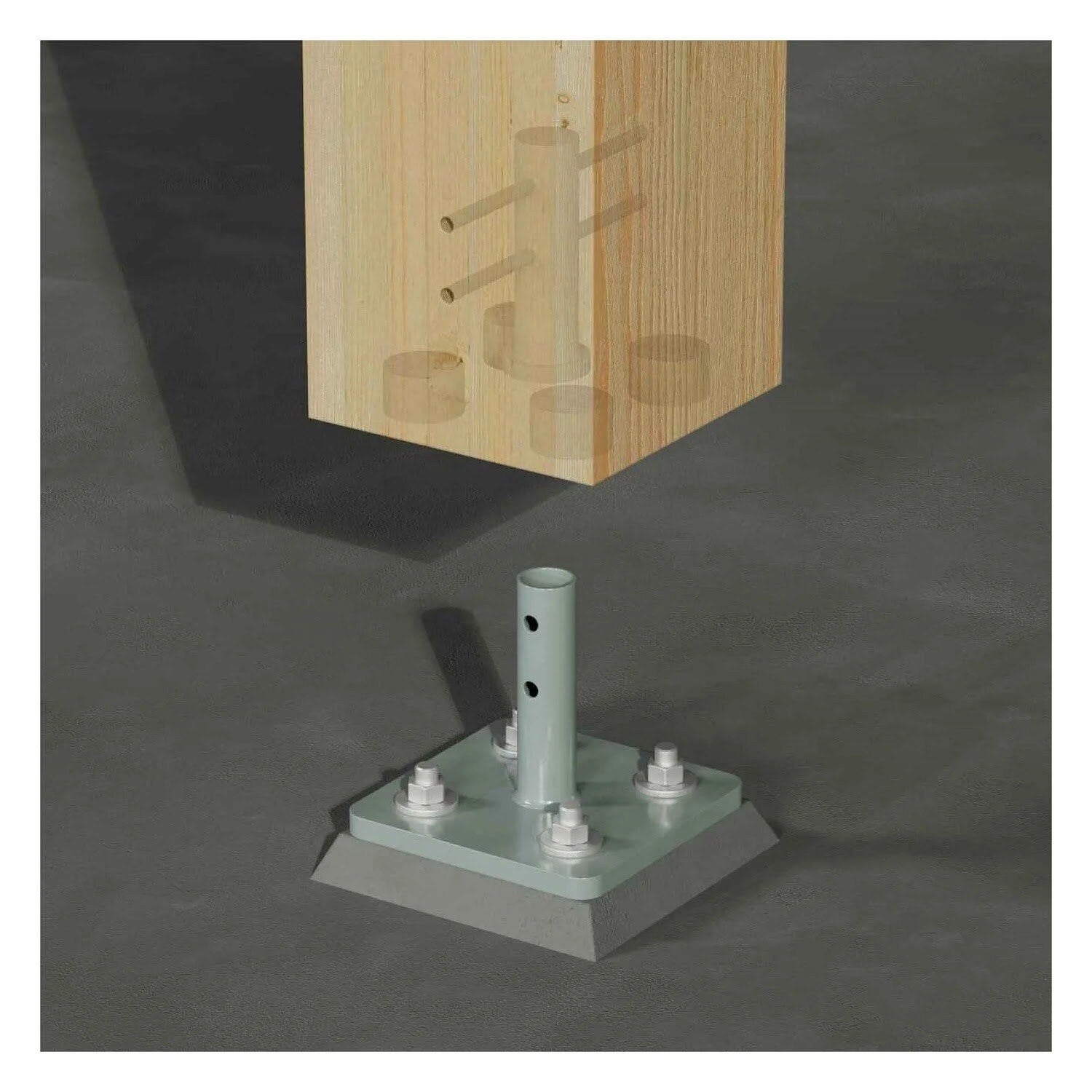

The MCB Mass Timber Column Base provides a standardized concealed connection between glulam columns and concrete foundations or supports, ensuring both structural integrity and aesthetic appeal in mass timber constructions.
Simpson Strong-Tie MCB9.5X9.5 Includes
- (1) Mass Timber Column Base Concealed Glulam-to-Concrete Connector
Simpson Strong-Tie MCB9.5X9.5 Features
- Concealed connection for architectural aesthetics and fire protection
- Wide range of base sizes and load capacities
- Simple routing for CNC fabrication of columns
- Threaded rods and leveling nuts may be used with grout pad for vertical adjustability
- Base plate oversized holes provide horizontal adjustability
- Recommended for use at column-to-foundation connections in any Seismic Design Category
Simpson Strong-Tie MCB9.5X9.5 Applications
- Mass Timber / Cross-Laminated Timber
- Column-to-foundation connections in seismic design categories

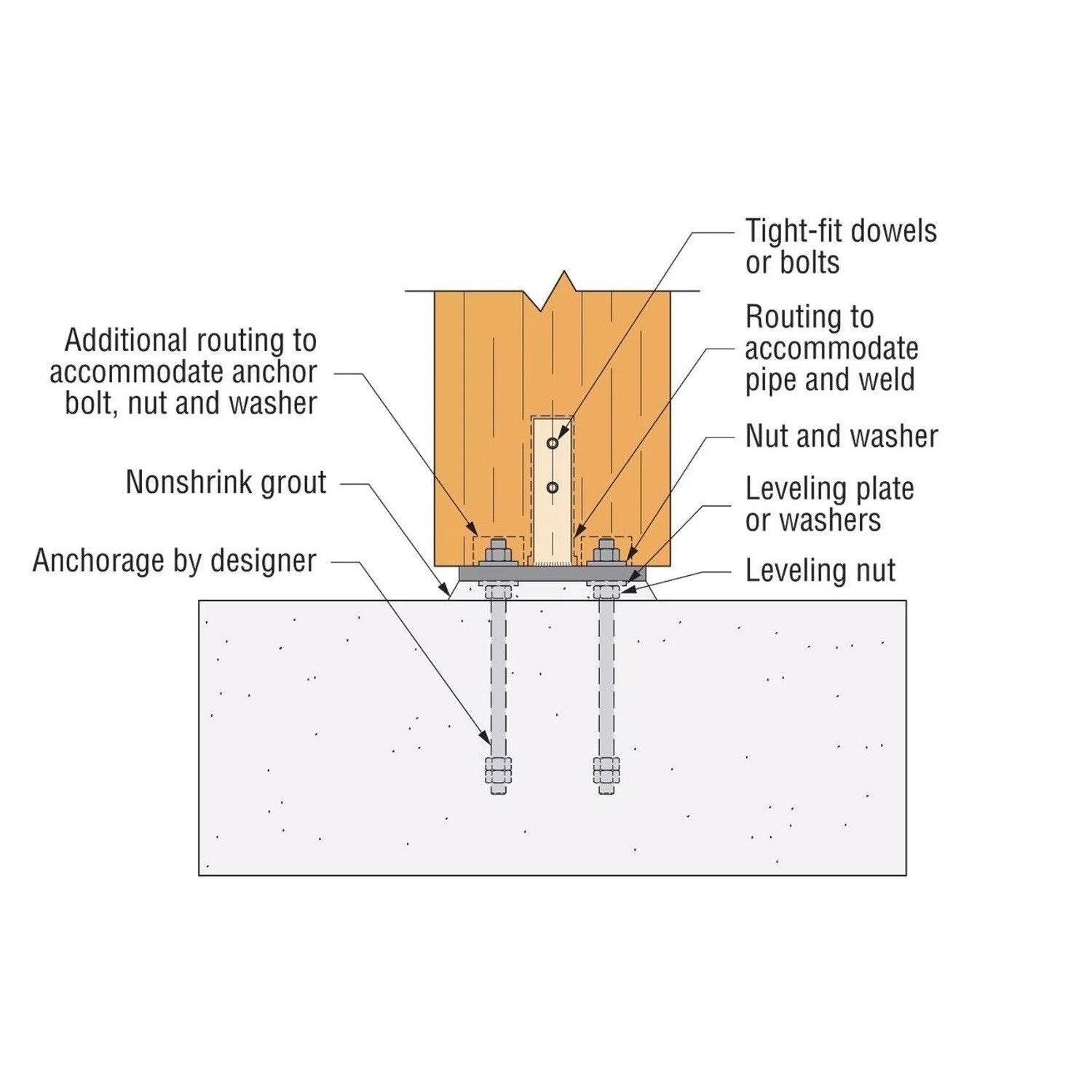

Simpson Strong-Tie MCB9.5X9.5 Installation Overview
- Use CNC equipment to cut and drill glulam columns for accurate alignment
- Ensure anchors are in the correct location in the foundation
- Place MCB on the anchor rods and use leveling nuts and the oversized holes in the base plate to accurately position the base vertically and horizontally
- Attach plate washers and nuts to anchors and install nonshrink grout between the base plate and the foundation
- Lower the glulam column onto the base and install tight-fit dowels or bolts to connect the column to the base
Simpson Strong-Tie MCB9.5X9.5 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Width | 9-1/2" |
| Length | 9-1/2" |
| Thickness | 3/4" |
| Weight | 19.5 lb |
