Simpson Strong-Tie MCT1.9X15 (1-9/10 in. x 15 in.) Mass Timber Column Tie for Column-to-Foundation Connections

$72.15
POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Route Package Protection extends coverage for online purchases that are lost or damaged in transit, or stolen immediately after the carrier's proof of delivery where Route traces the transportation. Route App, Inc. (Route) is the named insured on the package insurance policy ("Policy"); Route Insurance Solutions ("RIS"), Route's licensed producer entity, procures the Policy from SEG Insurance Ltd. Route, through RIS, may receive compensation for its services.

Description

Simpson Strong-Tie MCT1.9X15 Description

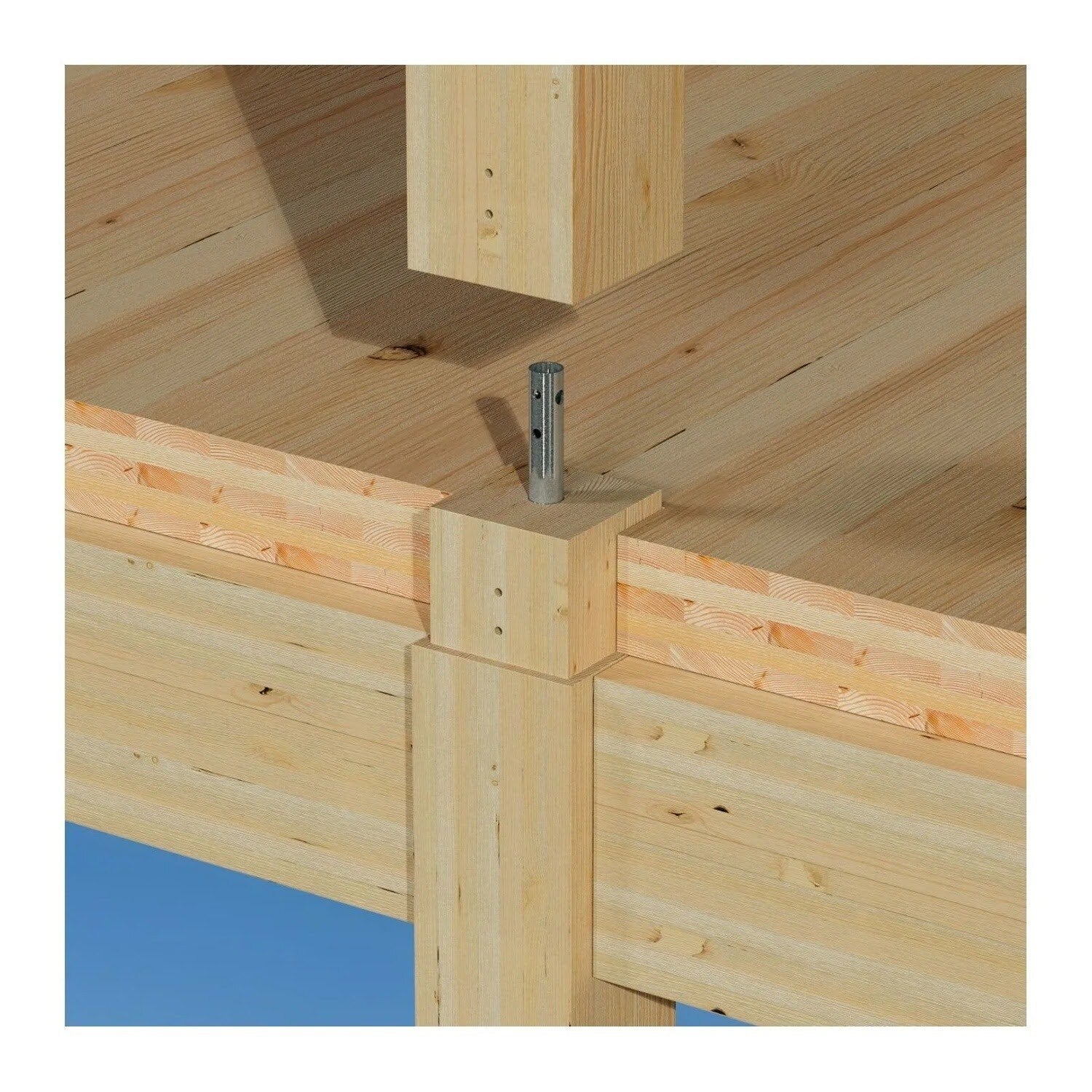

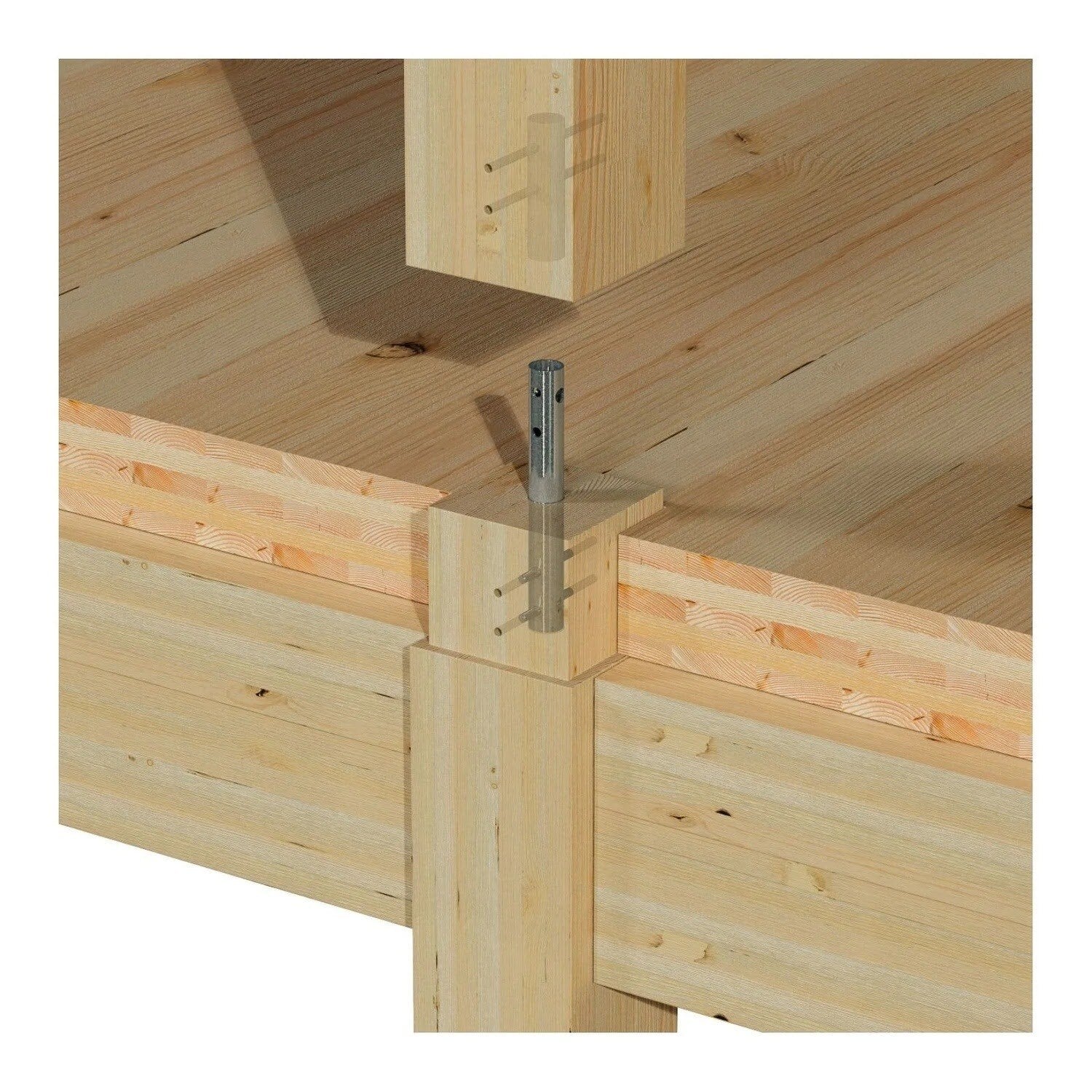

The MCT Mass Timber Column Tie is designed to connect two glulam columns, facilitating vertical load transfer through direct column-to-column bearing. Its concealed design enhances architectural aesthetics and fire protection, making it ideal for post-and-beam style construction.

Simpson Strong-Tie MCT1.9X15 Includes

  • (1) Mass Timber Column Tie

Simpson Strong-Tie MCT1.9X15 Features

  • Concealed connection for architectural aesthetics and fire protection
  • Universal design allows the same connector to be used on a wide range of column sizes
  • Simple routing for CNC fabrication of columns

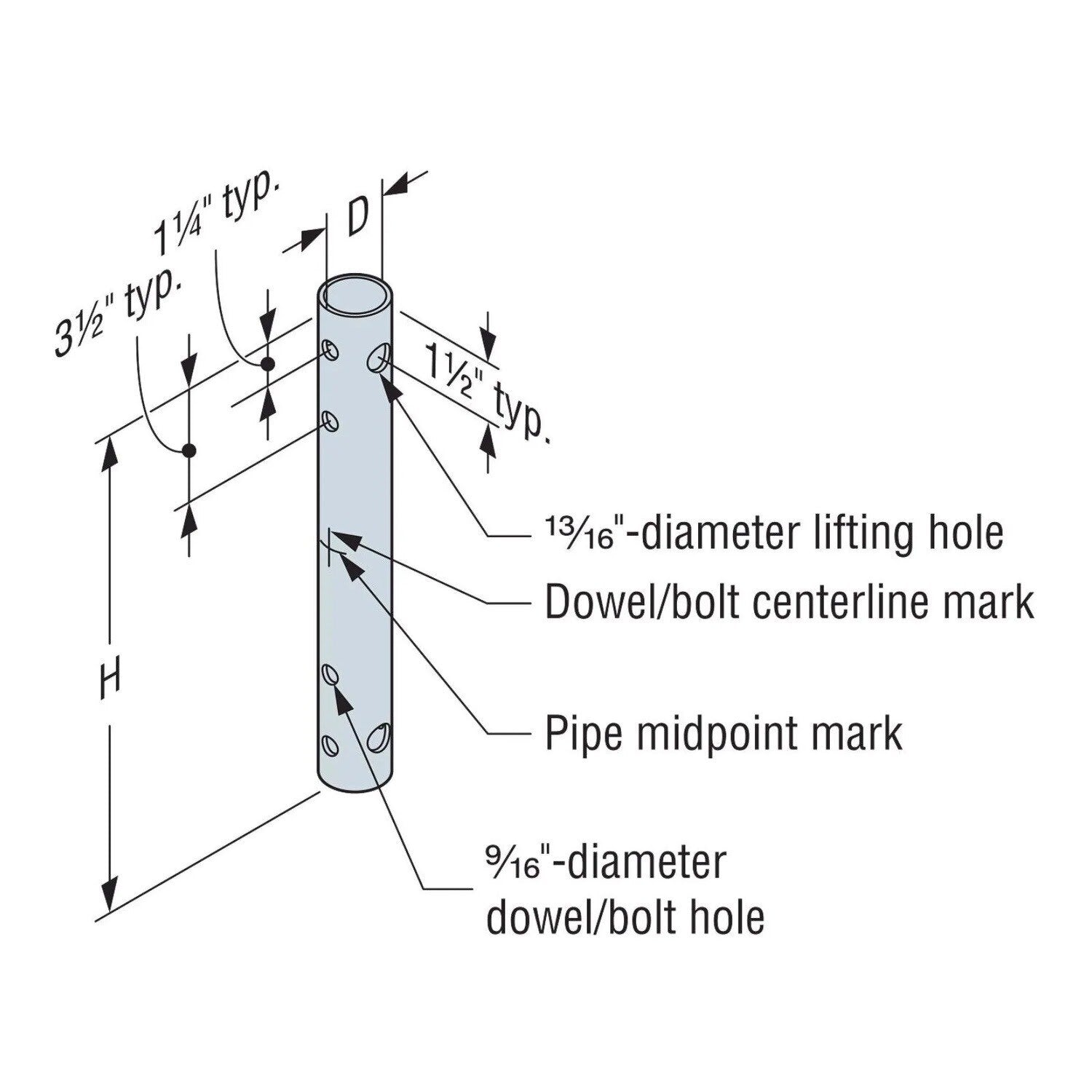

  • Integrated lifting hole with tested lifting load values
  • Crosshair marks at centerlines of pipe to aid installation
  • Recommended for use at column-to-foundation connections in any Seismic Design Category

Simpson Strong-Tie MCT1.9X15 Applications

  • Mass Timber / Cross-Laminated Timber
  • Post-and-beam style construction

Simpson Strong-Tie MCT1.9X15 Installation Overview

  1. Use CNC equipment for cutting and drilling to maintain accuracy; if using hand tools, exercise extra care to ensure precision.
  2. Ensure column ends are cut level to facilitate proper bearing between columns.

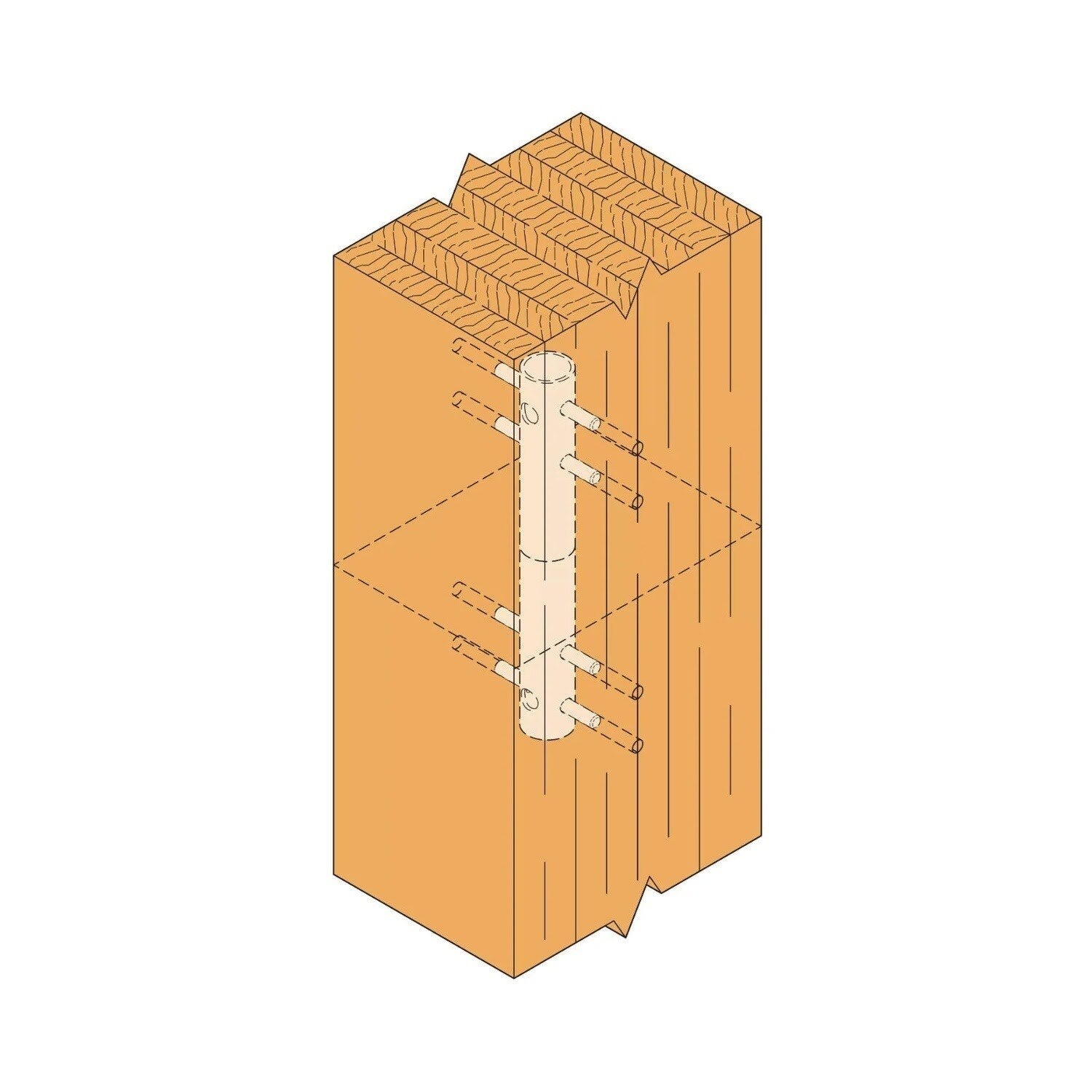

  3. Position dowel and end mill holes on true centerlines of the glulam, maintaining a tolerance of ±1/32".
  4. Use tight-fit dowels or bolts (not included) with specified strength criteria to complete the connection.

Simpson Strong-Tie MCT1.9X15 Specifications

Material Carbon Steel
Finish Electrogalvanized
Diameter 1.9 in.
Height 15 in.
Fasteners required 1/2 in. x 4 3/4 in. (min.) dowel or 1/2 in. bolt
Quantity 1
Toolup Part # : 824334
