Simpson Strong-Tie MDCST48 Description

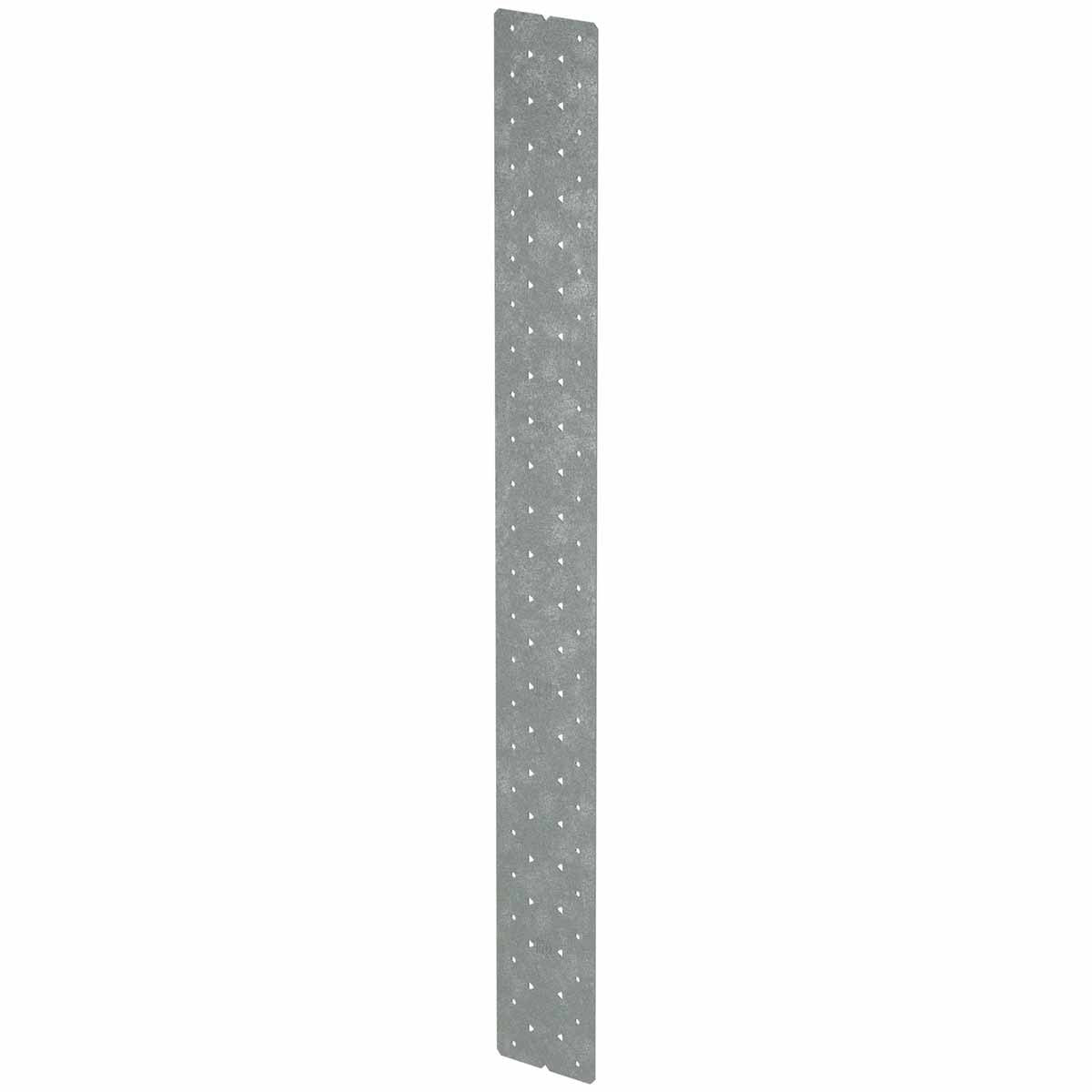

The Simpson Strong-Tie MDCST48 is a 14-gauge high-capacity strap designed for tension transfer across CLT floor or wall-panel joints.
Simpson Strong-Tie MDCST48 Includes
- (1) MDCST48 Strap
Simpson Strong-Tie MDCST48 Features
- Pre-punched screw holes for faster installation
- High capacity reduces the need for shop-fabricated steel plates

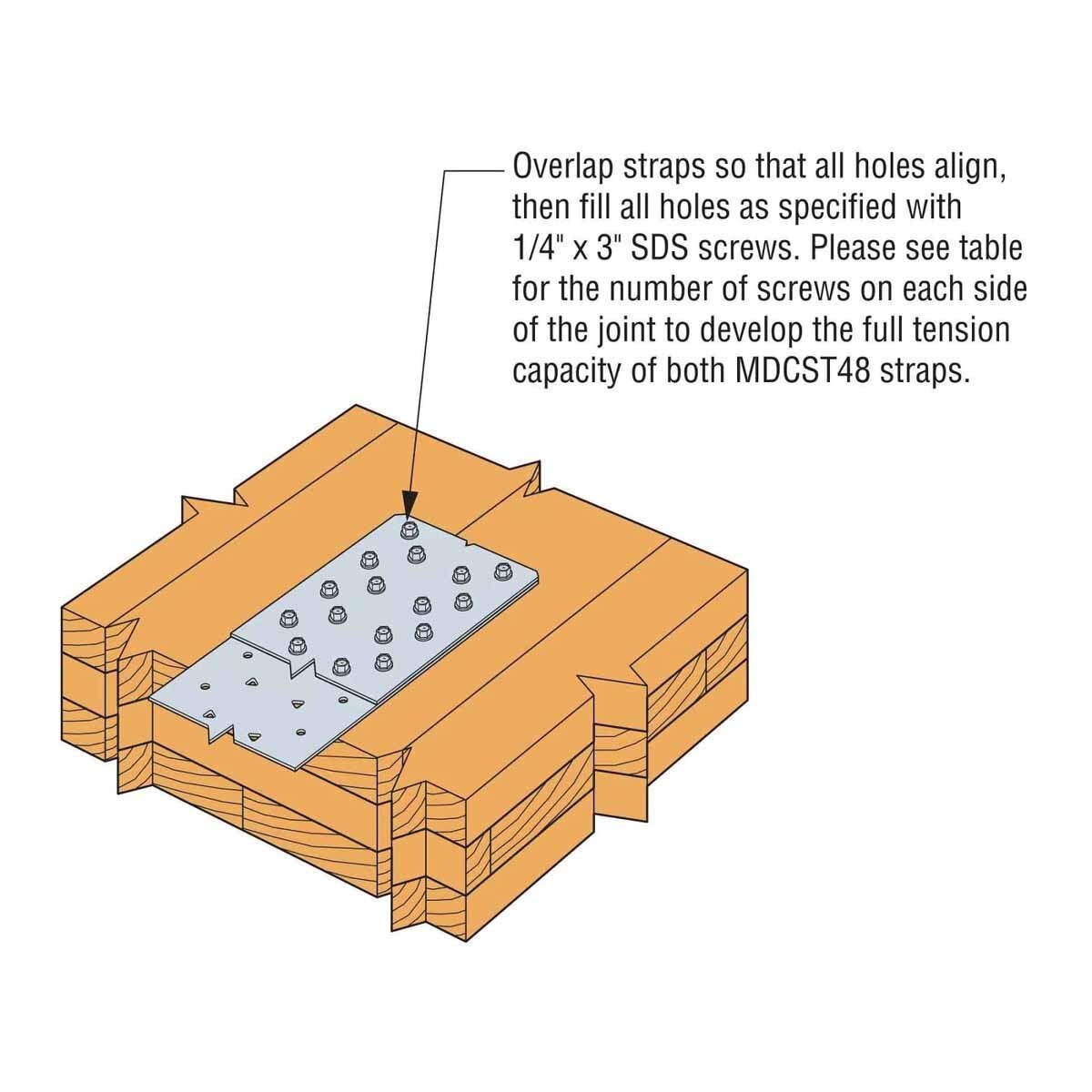

- Overlapping straps reduce physical space needed for high load transfer
Simpson Strong-Tie MDCST48 Applications

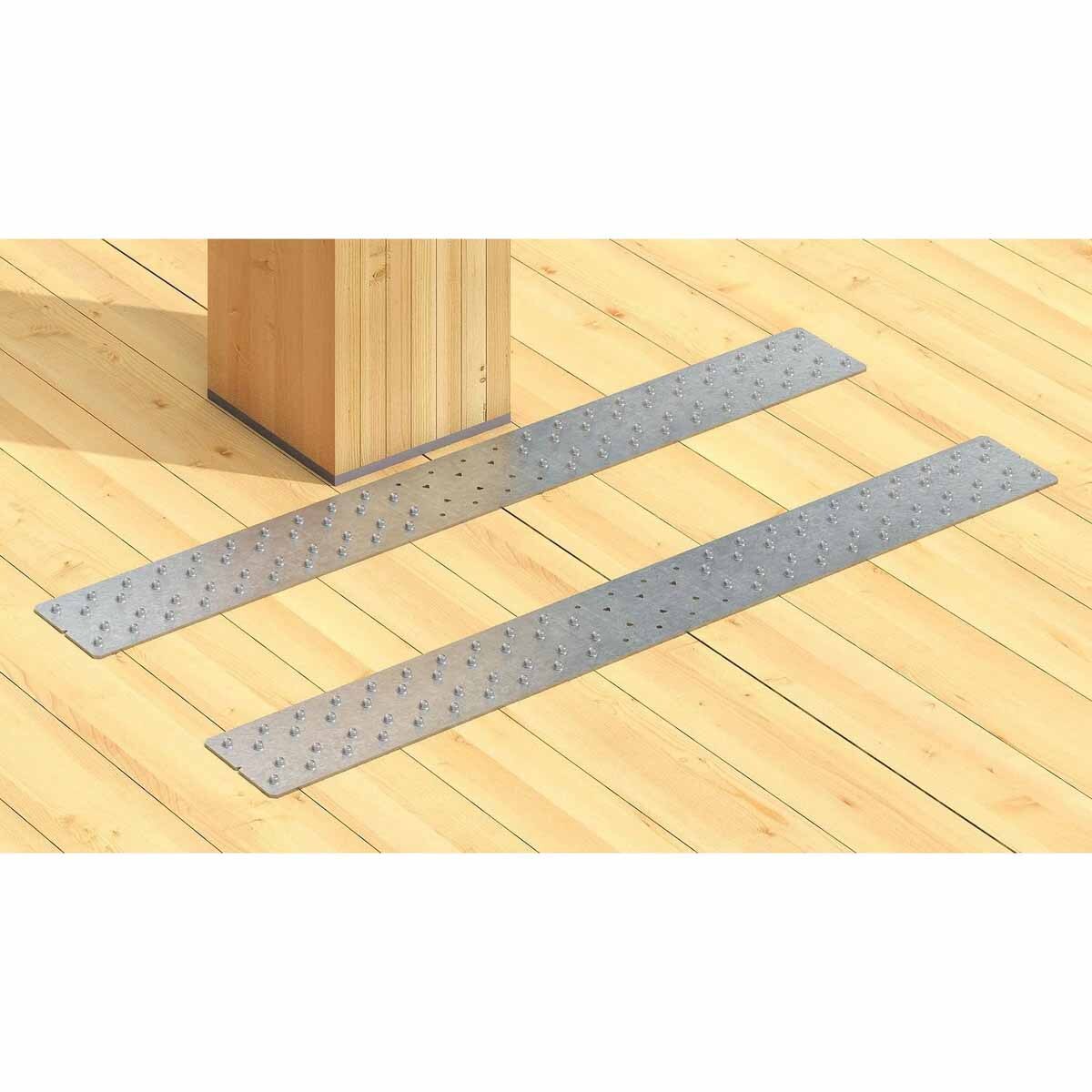

- Mass Timber / Cross-Laminated Timber

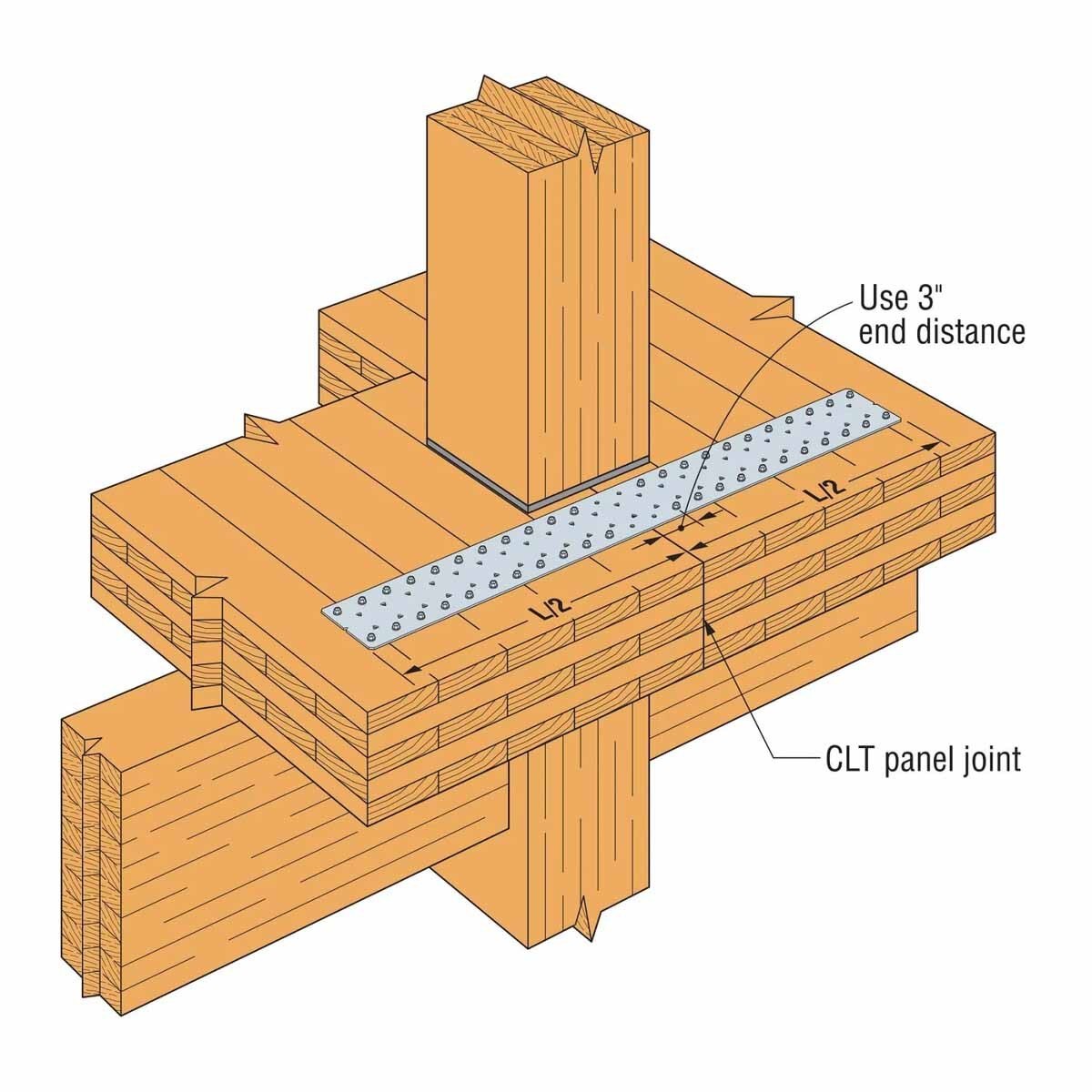

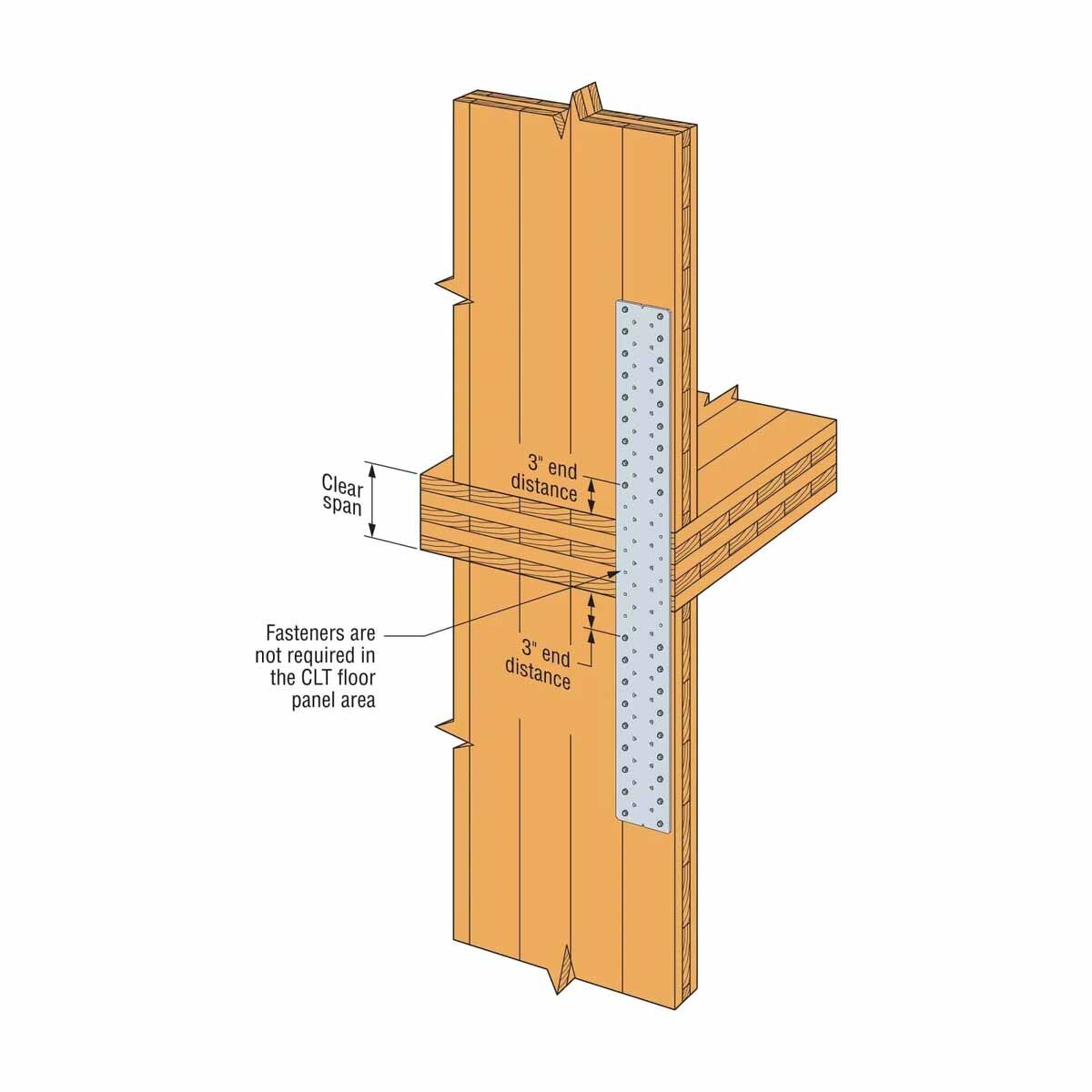

Simpson Strong-Tie MDCST48 Installation Overview
- Use all specified fasteners as per the general notes

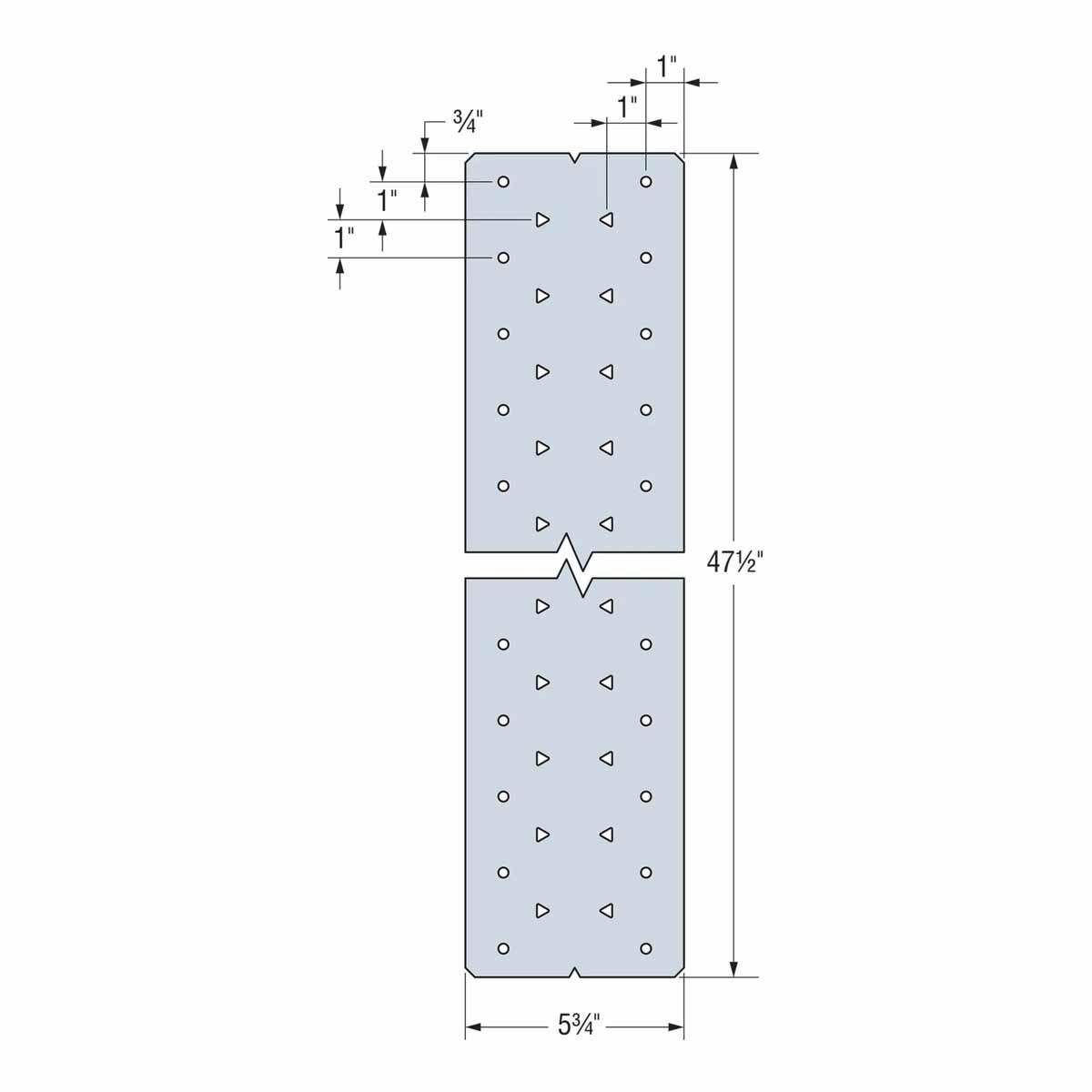

Simpson Strong-Tie MDCST48 Specifications
| Material | 14 Gauge Carbon Steel |
| Finish | Galvanized (G90) |
| Length | 47-1/2" |
| Width | 5-3/4" |
| Fasteners Required | (36) 1/4" x 3" SDS Screws |
| Weight | 5.7 lb |
NOTE: Ensure all specified fasteners are used to achieve the published load values.
