Simpson Anchors | SKU:
MDMX03713
Simpson Strong-Tie MDMX03713 (3/8" x 13") SDS-max Shank Drill Bit
$49.75
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie MDMX03713 Description

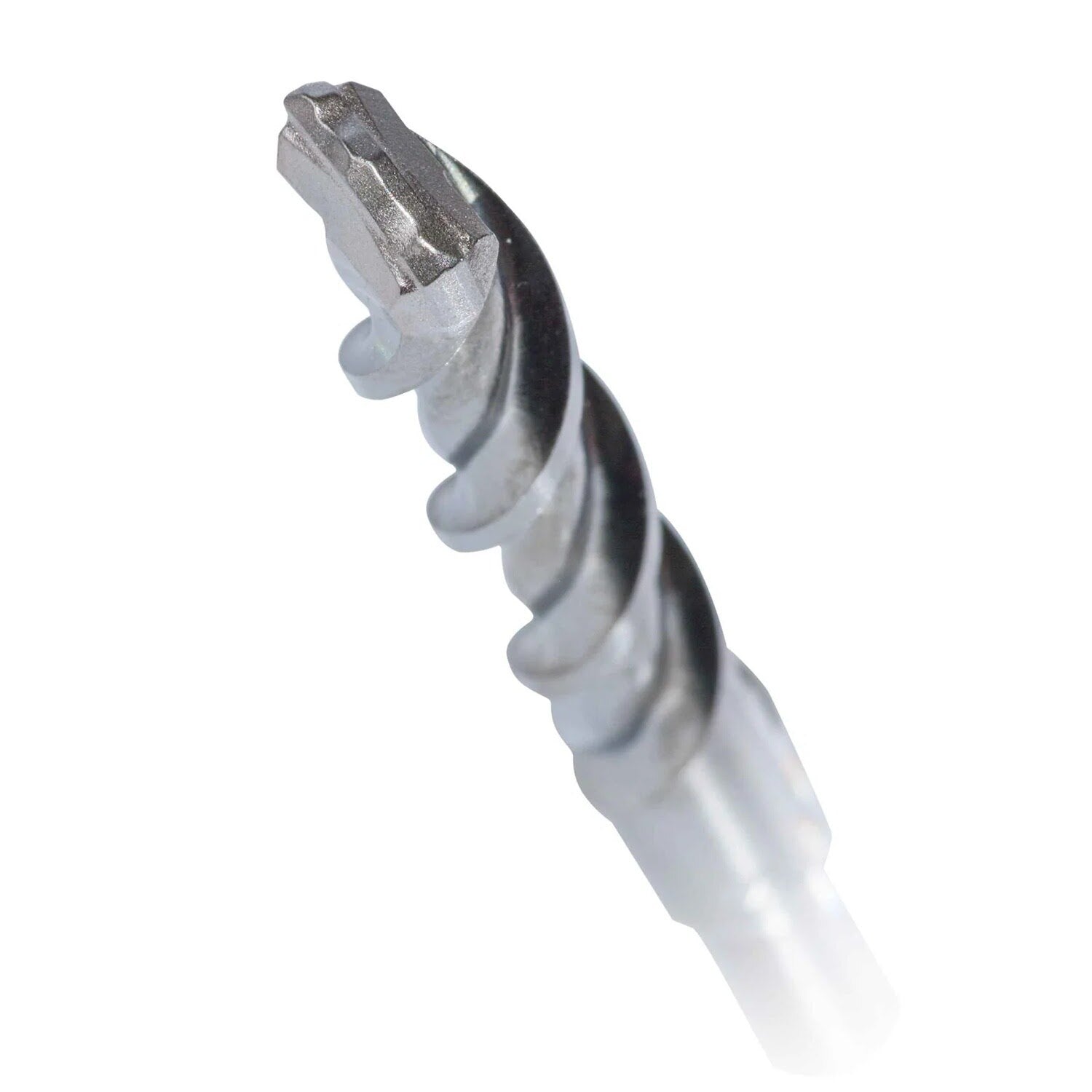

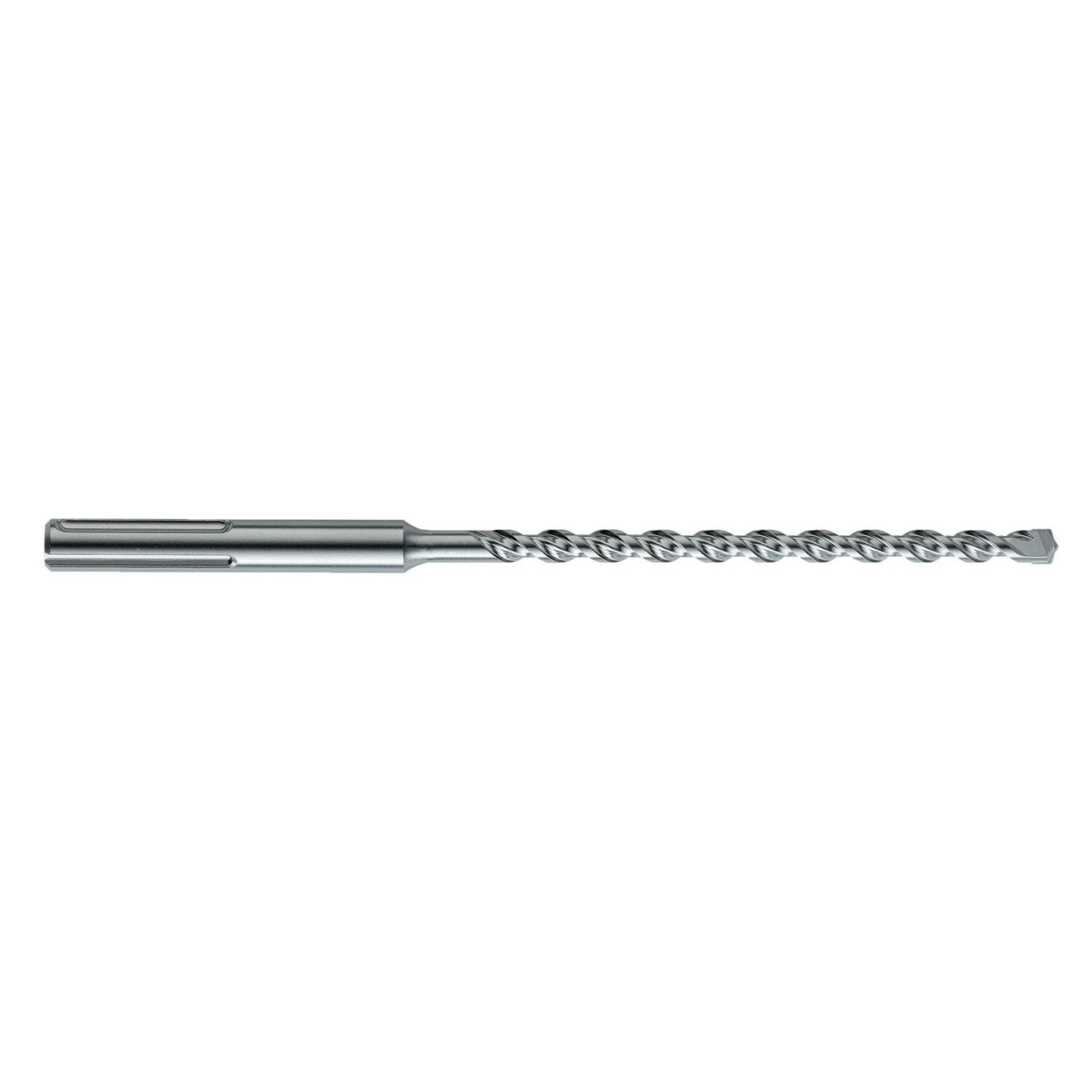

The SDS-max Shank Drill Bit is designed for concrete and masonry applications, featuring a durable carbide tip and robust construction for efficient drilling.
Simpson Strong-Tie MDMX03713 Includes
- (1) SDS-max Shank Drill Bit
Simpson Strong-Tie MDMX03713 Features
- Uniformly brazed carbide inserts for longer bit life
- Centering tip for easy spot drilling
- Chromium-nickel-molybdenum steel alloy body for extended service life
- Heat-treated and shot-peened finish for increased surface hardness
- Conforms to ANSI Standard B212.15
- Chisel-shaped drill-bit head for efficient material penetration
- Patented multi-flute spiral for improved drilling speed
- 4 x 90° head geometry for rebar penetration
Simpson Strong-Tie MDMX03713 Applications
- Concrete drilling
- Brick and block applications
- Reinforced concrete penetration
Simpson Strong-Tie MDMX03713 Specifications
| Diameter | 3/8" |
| Length | 13" |
| Drilling Depth | 7-1/2" |
| Head Type | 2-Cutter Head |
| Shank Style | SDS-max |
| Tip Style | Carbide Tip |
