At a Glance
Shank Type
SDS-Max
Bit Diameter
1-1/4 in
Bit Length
36 in
Material
Alloy Steel
Sold As
Individual
For Use On
Concrete
Finish
Satin
Description
Description
Simpson Anchors MDMX12536Q Description

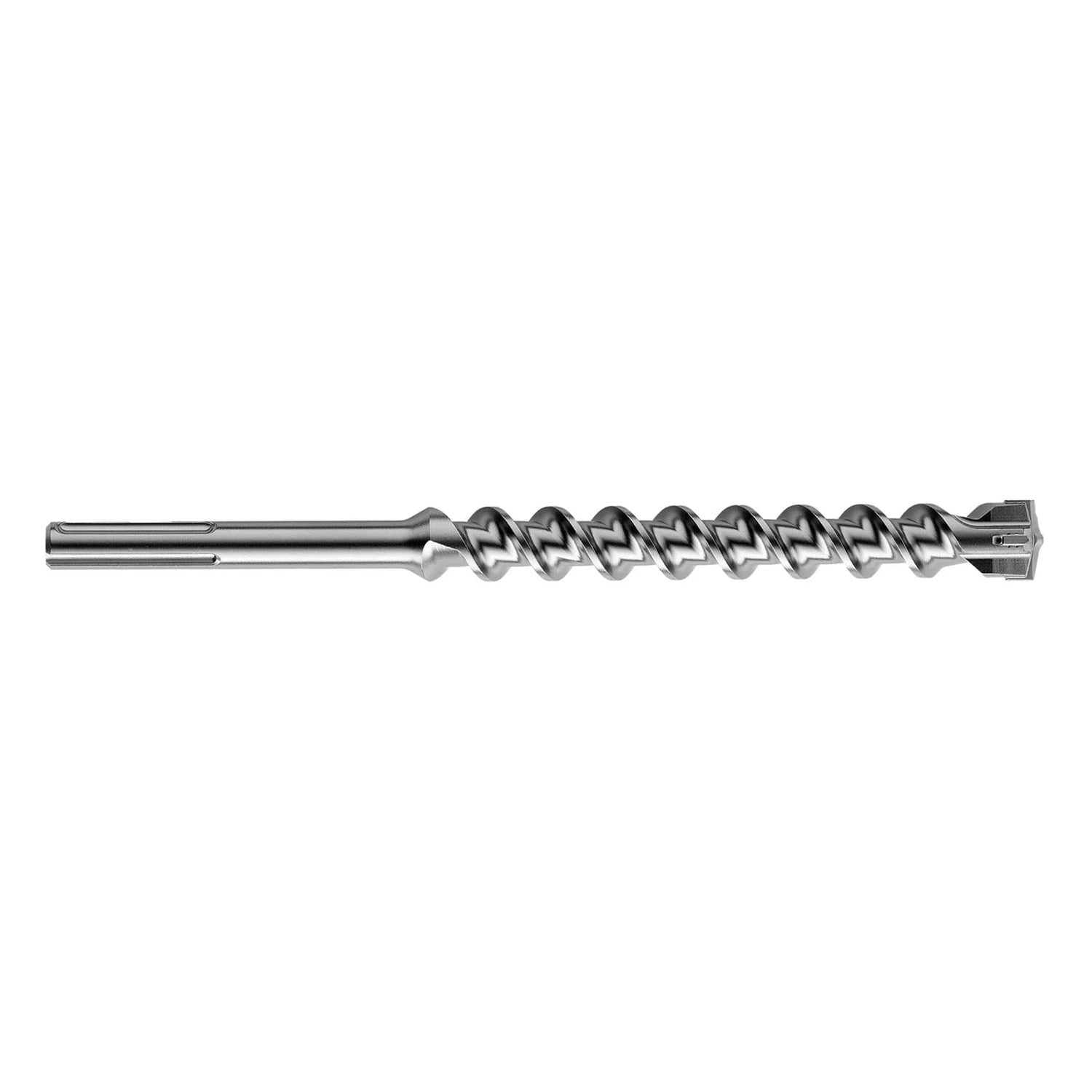

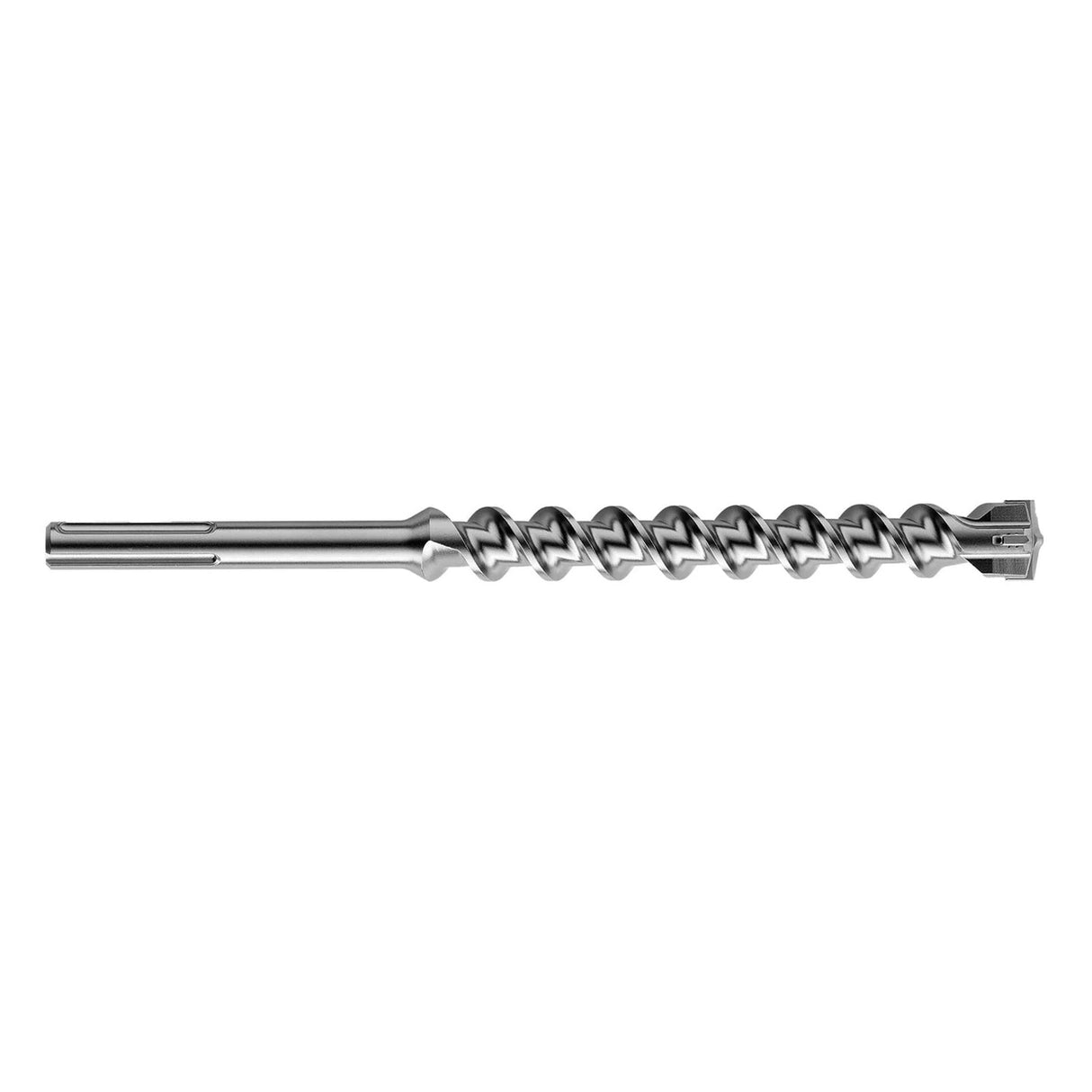

The SDS-max Quad-Head Drill Bit is designed for efficient drilling in concrete and masonry, featuring a durable quad-head design for enhanced performance.
Simpson Anchors MDMX12536Q Includes
- (1) SDS-max Quad-Head Drill Bit
Simpson Anchors MDMX12536Q Features
- Uniformly brazed carbide inserts for longer bit life
- Centering tip for easy spot drilling
- Chromium-nickel-molybdenum steel alloy body for durability
- Heat-treated and shot-peened finish for increased hardness and reduced wear
- Conforms to ANSI Standard B212.15
- Chisel-shaped head for efficient material penetration
- Patented multi-flute spiral for improved dust removal

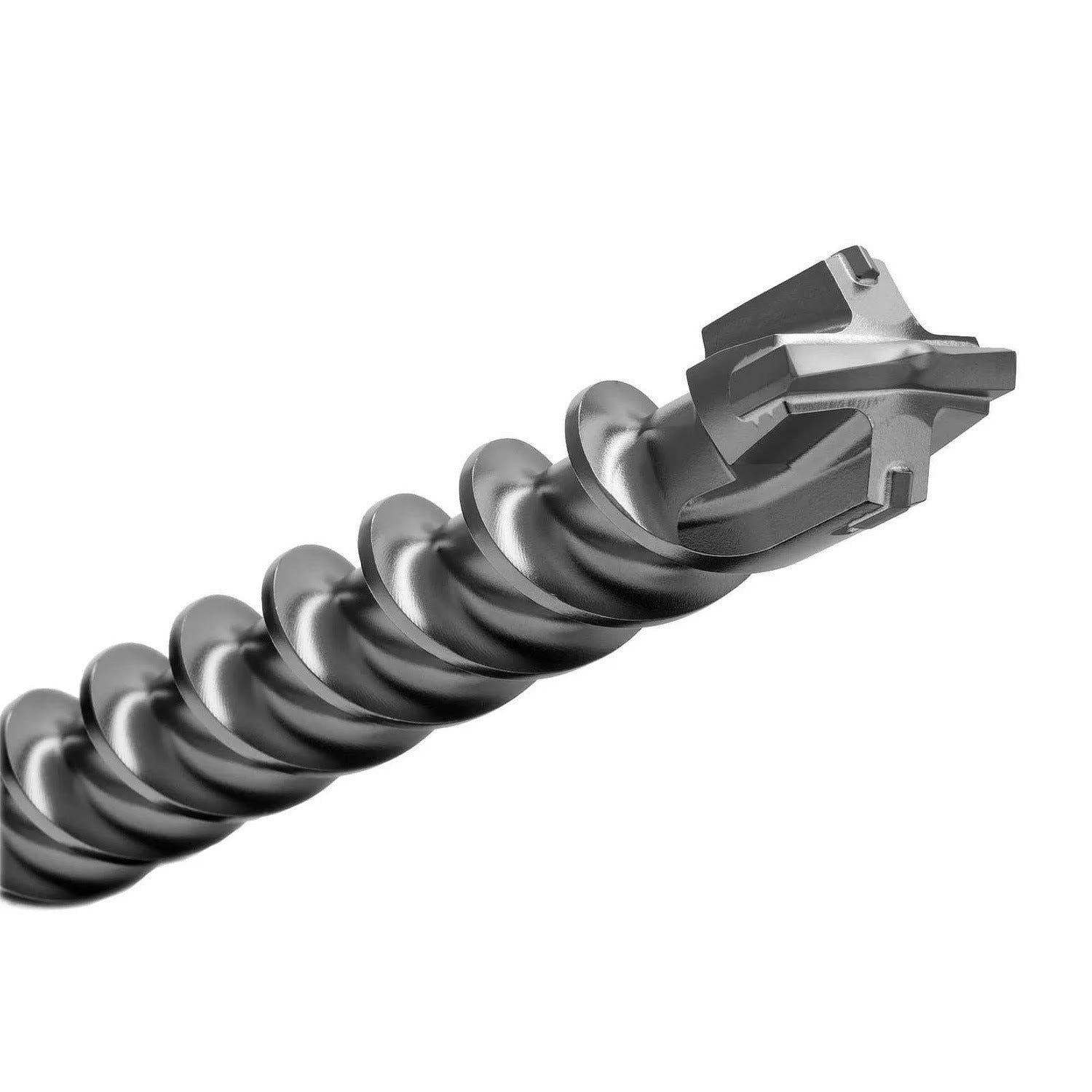

- 4 x 90° head geometry for rebar penetration and reduced sticking
Simpson Anchors MDMX12536Q Applications
- Concrete drilling
- Masonry drilling
- Reinforced concrete applications
Simpson Anchors MDMX12536Q Specifications
| Material | Hardened Steel |

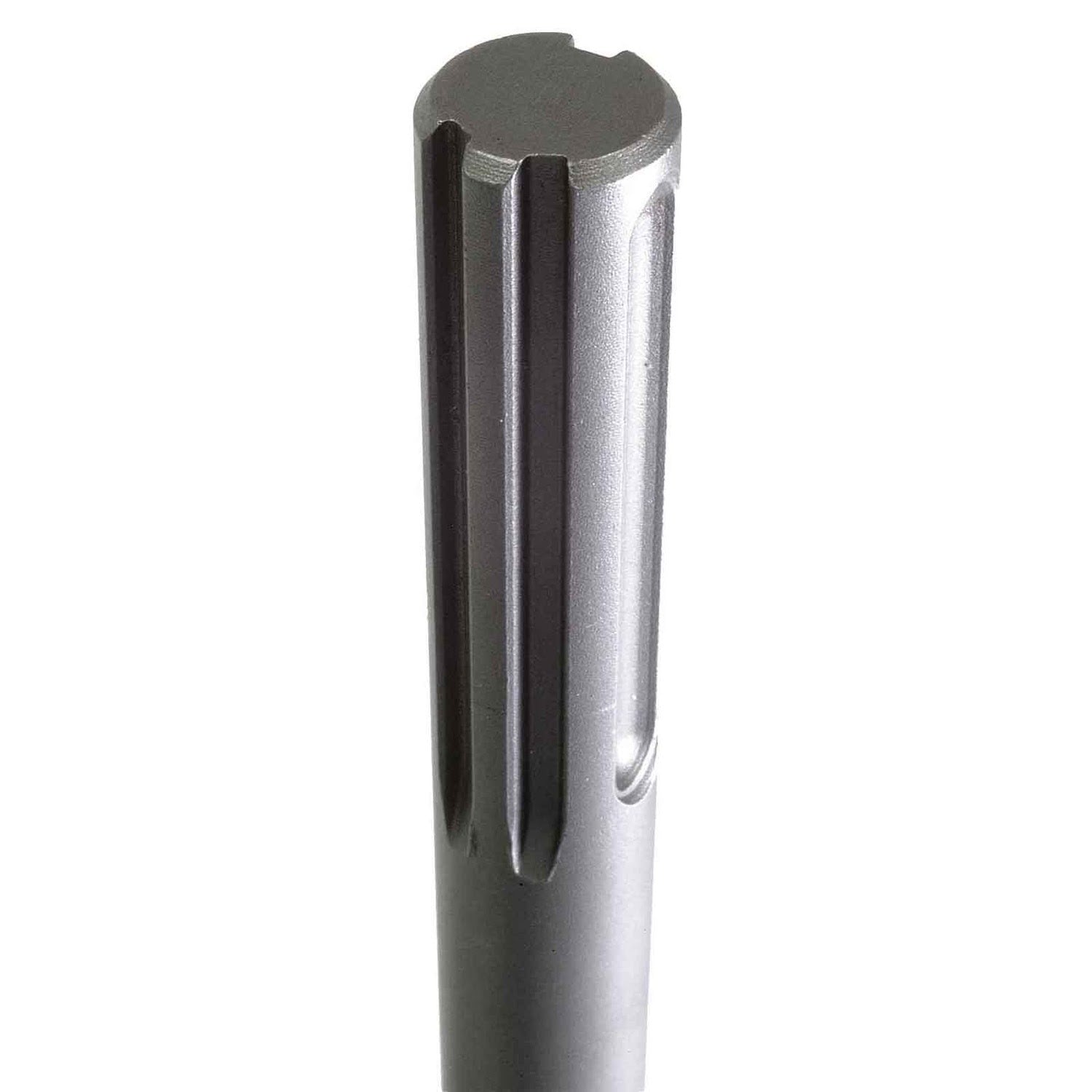

| Shank Type | SDS-max Shank |
| Head Type | Quad Head4x Drill Bit |
| Diameter (in.) | 1 1/4 |
| Drilling Depth | 31 |
| Length (in.) | 36 |
Toolup Part # :
820991
