Simpson Anchors | SKU:
MDMX13717Q

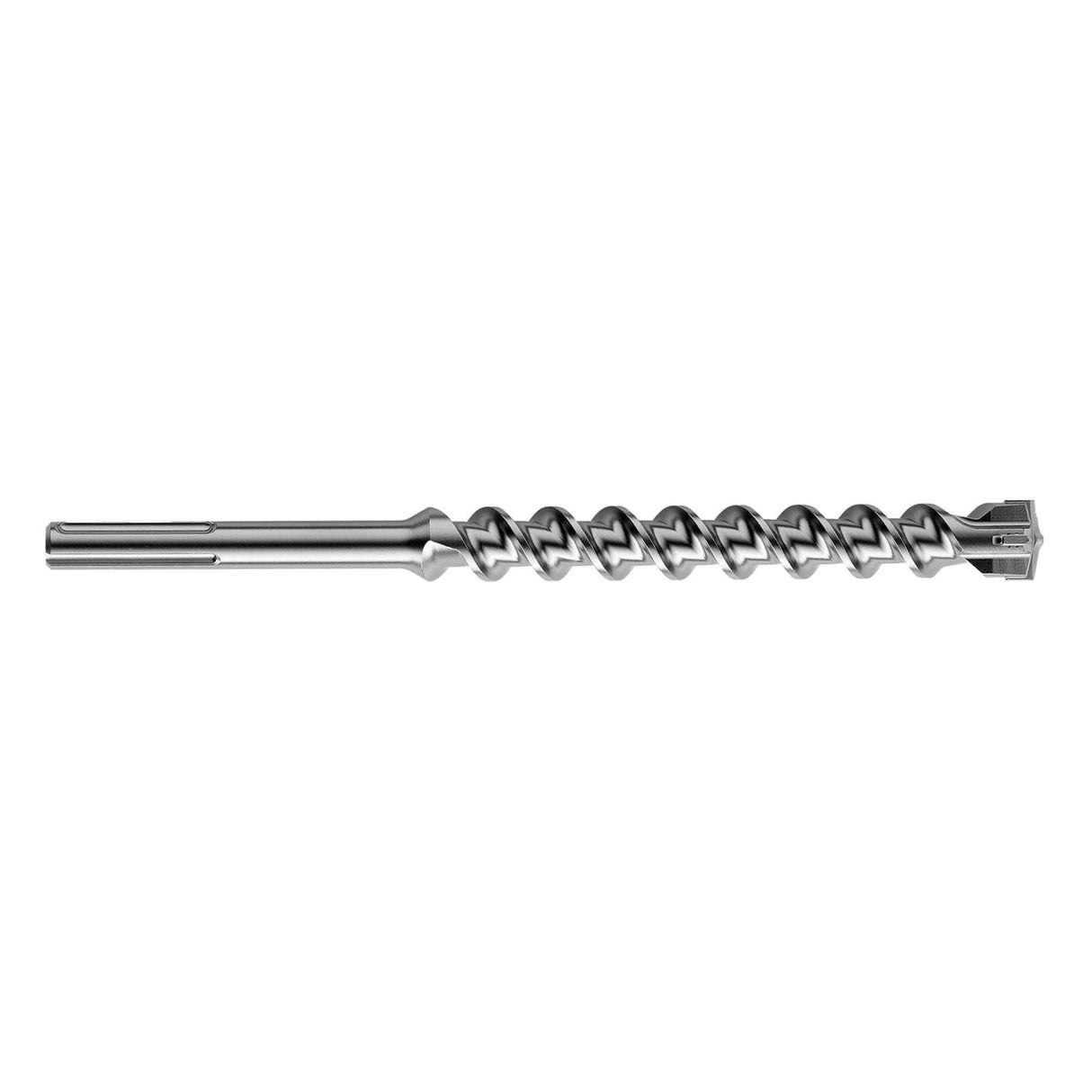

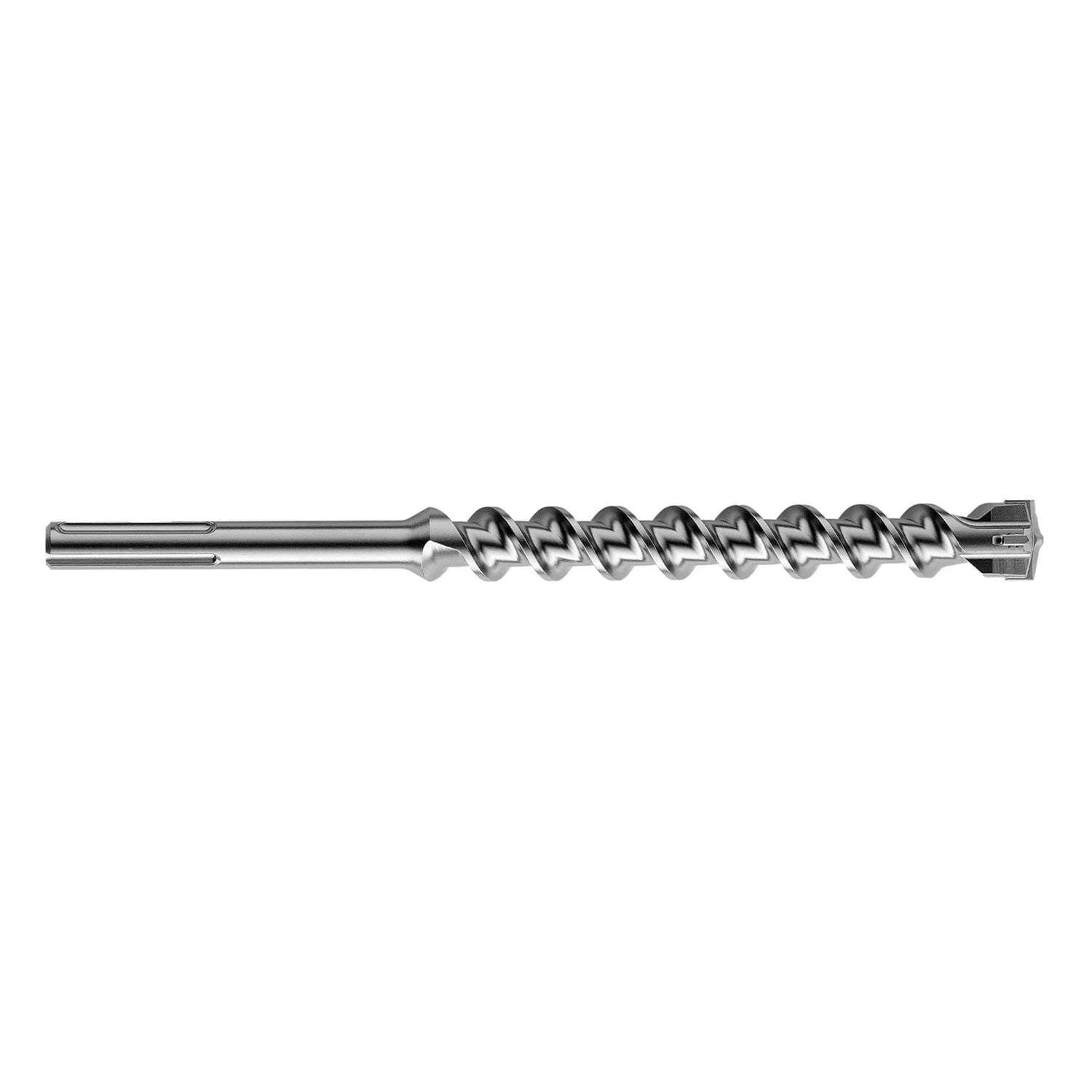

Simpson Strong-Tie MDMX13717Q (1-3/8" x 17") SDS-max Shank Quad-Head Drill Bit for Concrete Drilling (1 Piece)
$137.45
Unit price
/
Unavailable
Description
Description
Simpson Anchors MDMX13717Q Description
The SDS-max Shank Quad-Head Drill Bit is designed for efficient and durable concrete drilling, featuring a quad-head design for improved performance.
Simpson Anchors MDMX13717Q Includes
- (1) SDS-max Shank Quad-Head Drill Bit
Simpson Anchors MDMX13717Q Features
- Uniformly brazed carbide inserts for longer bit life
- Centering tip for easy spot drilling
- Chromium-nickel-molybdenum steel alloy body for extended service life
- Heat-treated and shot-peened finish for increased surface hardness and reduced wear
- Conforms to ANSI Standard B212.15

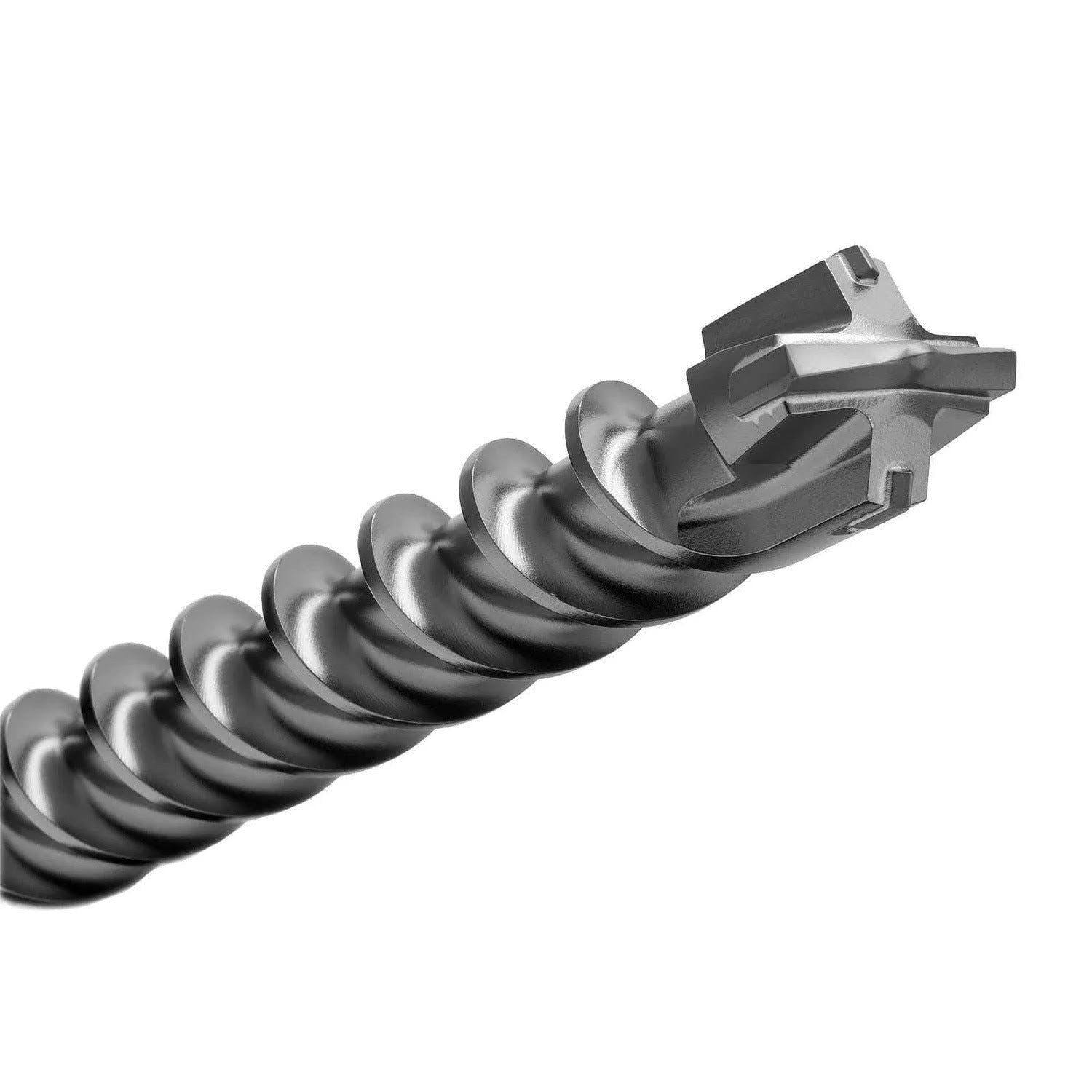

- Chisel-shaped head for efficient material penetration
- Patented high-volume multi-flute spiral for improved drilling speed
- 4 x 90° head geometry for rebar penetration and reduced sticking
Simpson Anchors MDMX13717Q Applications
- Concrete Drilling: Ideal for creating precise holes in concrete surfaces
Simpson Anchors MDMX13717Q Specifications
| Material | Hardened Steel |

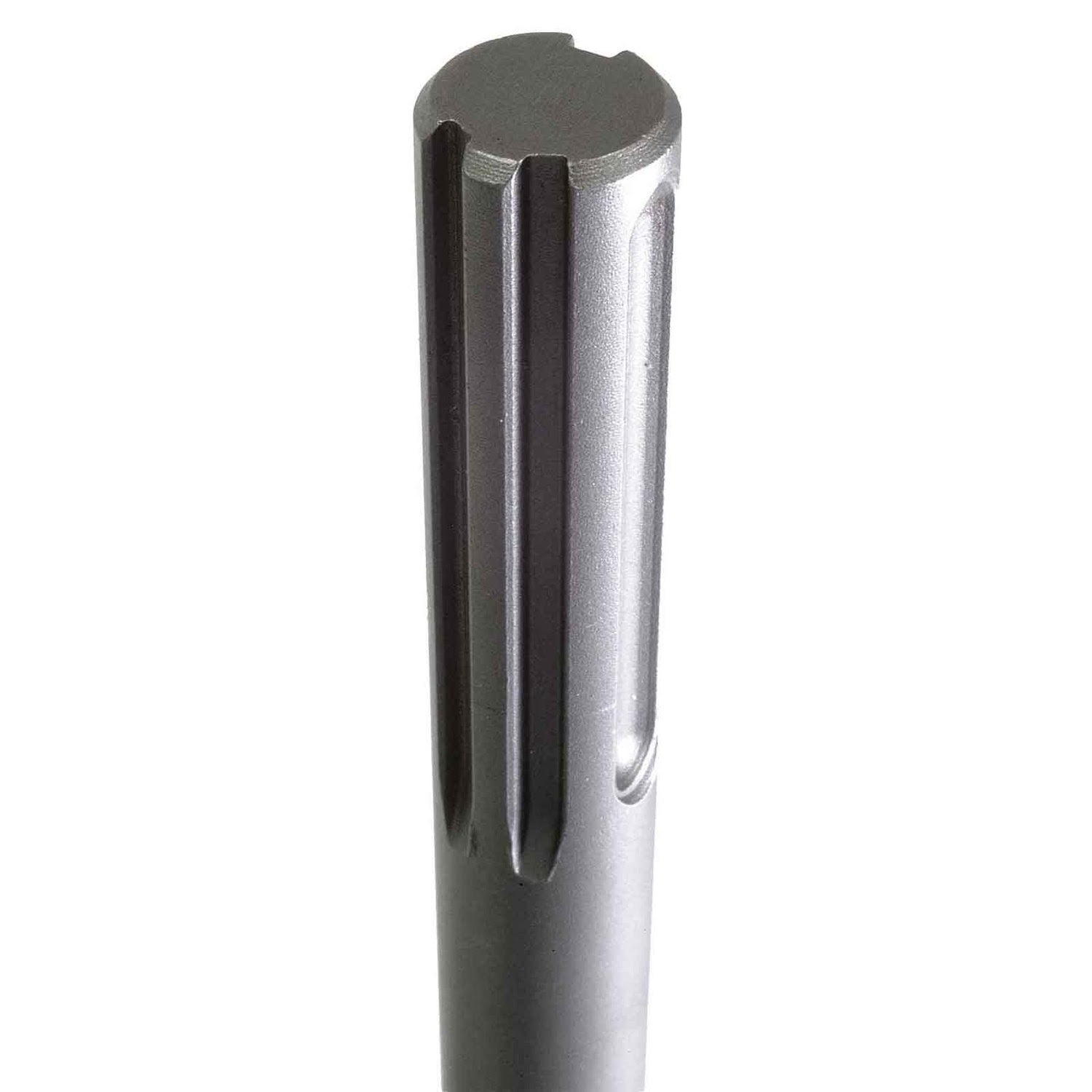

| Shank Type | SDS-max Shank |
| Head Type | Quad Head4x Drill Bit |
| Diameter (in.) | 1 3/8 |
| Drilling Depth | 12 |
| Length (in.) | 17 |
| Packaging Qty. | 1 |
