Simpson Strong-Tie META12 Description

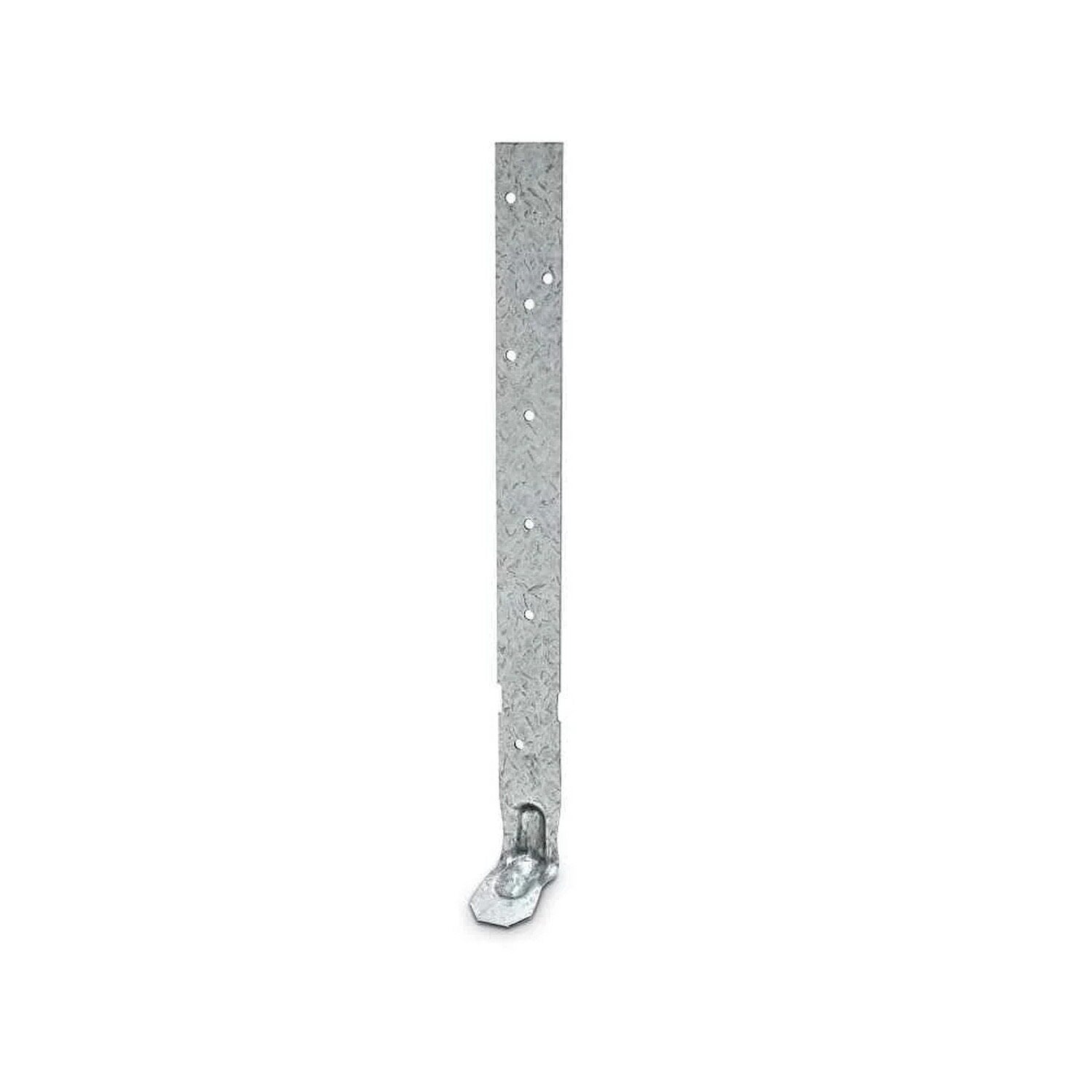

The META12 Embedded Truss Anchor is designed for secure attachment of roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie META12 Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie META12 Features
- Engineered for proper attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Includes moisture barrier for added protection
- Preassembled unit with no height adjustment required
Simpson Strong-Tie META12 Applications
- Roof truss attachment to concrete and masonry walls
- Use in residential and commercial construction projects
Simpson Strong-Tie META12 Installation Overview
- Embed the anchor 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall
- Ensure proper alignment and secure with specified fasteners
- Avoid installing fasteners where straps overlap in double anchor installations
Simpson Strong-Tie META12 Specifications
| Weight | 0.4 lb |
| Height | 8 in. |
| Finish | G90 Galvanized |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
