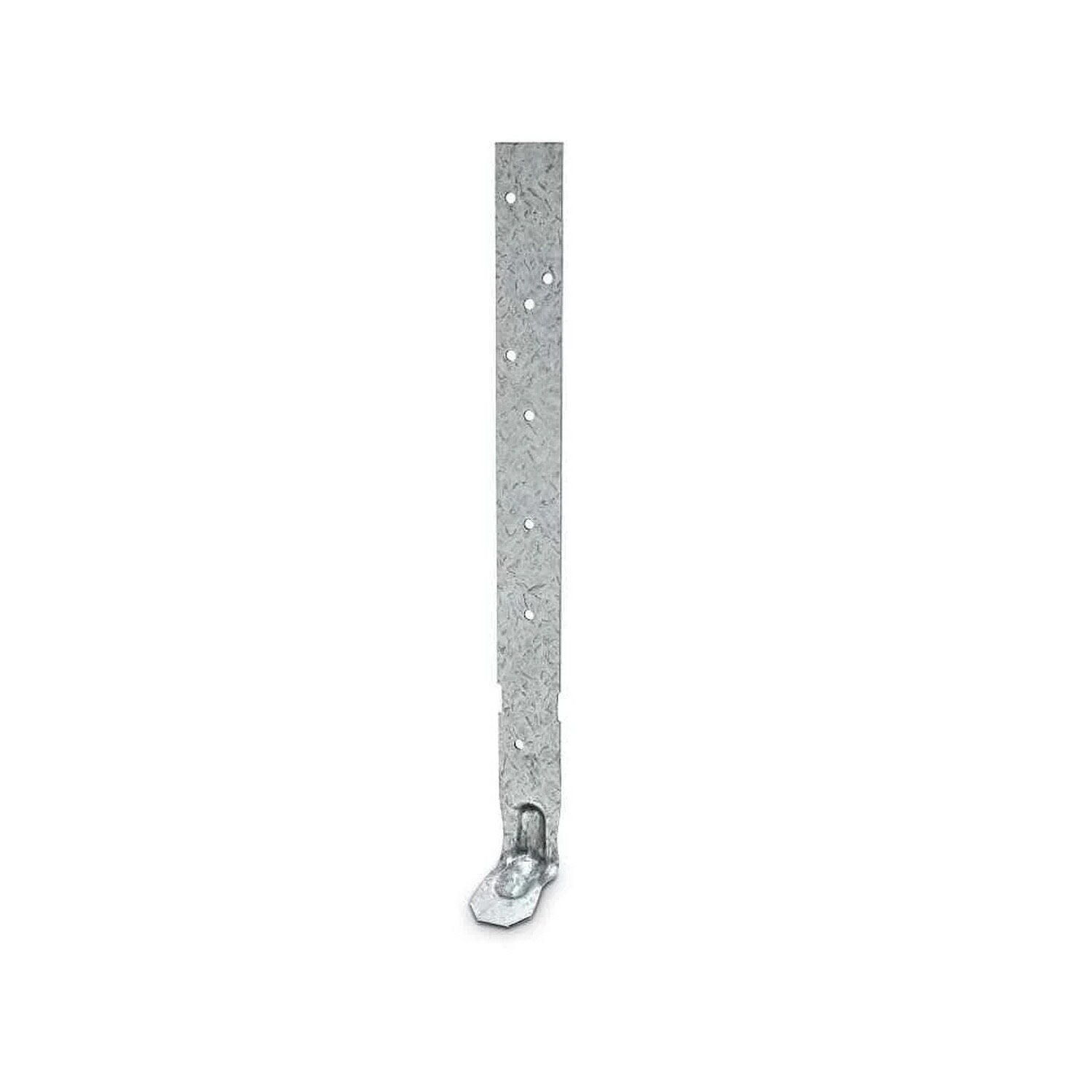

Simpson Strong-Tie META12/TSS2 Description
The META12/TSS2 Embedded Truss Anchor provides a reliable method to attach roof trusses to concrete and masonry walls, featuring staggered nail patterns for enhanced uplift resistance.
Simpson Strong-Tie META12/TSS2 Includes
- (1) Embedded Truss Anchor
Simpson Strong-Tie META12/TSS2 Features
- Engineered for secure attachment of roof trusses to concrete and masonry walls
- Staggered nail patterns for increased uplift resistance
- Preassembled unit with no height adjustment
- Includes moisture barrier for added protection
Simpson Strong-Tie META12/TSS2 Applications
- Roof truss attachment to concrete and masonry walls
- Use in residential and commercial construction projects
Simpson Strong-Tie META12/TSS2 Installation Overview
- Embed the anchor 4" into a 6" minimum concrete beam or 8" nominal grouted block wall
- Ensure proper alignment and secure with specified fasteners
- For mislocated anchors, use a shim designed by a Truss Engineer if the gap is between 1/8" and 1 1/2"
- Avoid installing fasteners where straps overlap in double embedded anchor installations
Simpson Strong-Tie META12/TSS2 Specifications
| Height | 8" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
825221
